1/2" 6000 PSI Needle Valve F316 H.W. Three-Valve Manifold
Key Specifications / Features
Model No.: Hits: 0
The valve body is made of A182 F316. It has the structural characteristics of Three-Valve Manifold. Its connection mode is 1/2" MNPT X 1/2" FNPT. Its operation mode is handle operation.
Request a quote
Tags:
Detail Information
Product Description
| Type | Needle Valve |
| Size | 1/2” |
| Pressure | 6000PSI |
| Connection | 1/2" MNPT X 1/2" FNPT |
| Body Material | A182 F316 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Manufactured from F316 stainless steel, delivering superior corrosion resistance and reliable performance under 6000 PSI pressure.2.Integrated three-valve manifold design with H.W. ends ensures precise flow control and easy system maintenance.

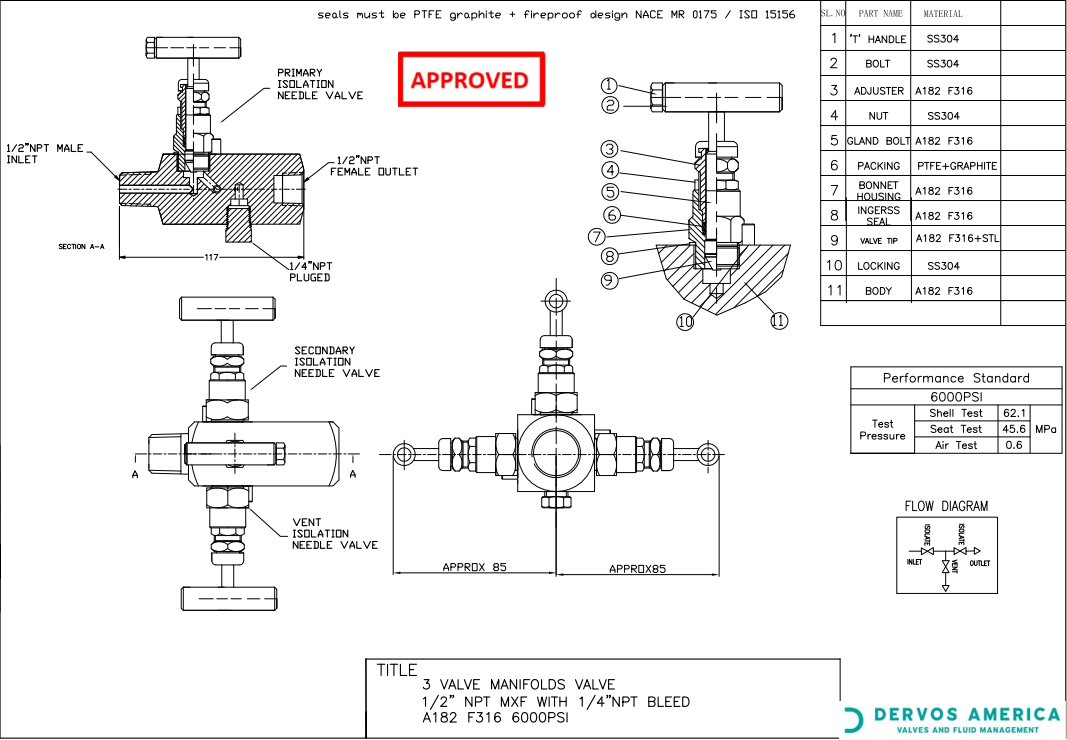

Technical Drawing

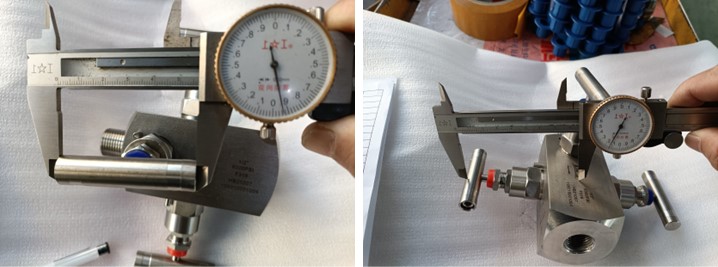

Dimension Checking

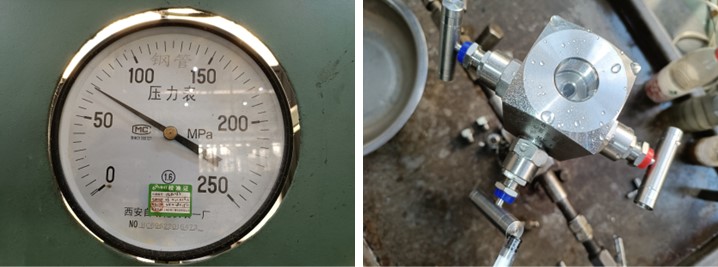

Pressure Testing

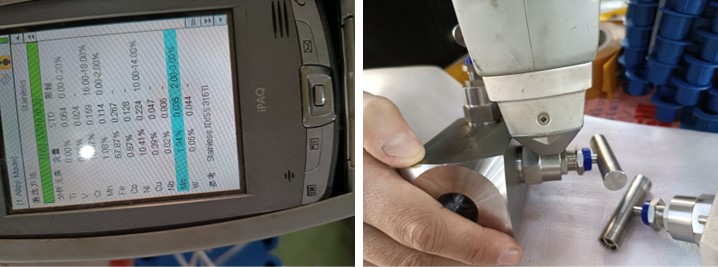

Spectrum

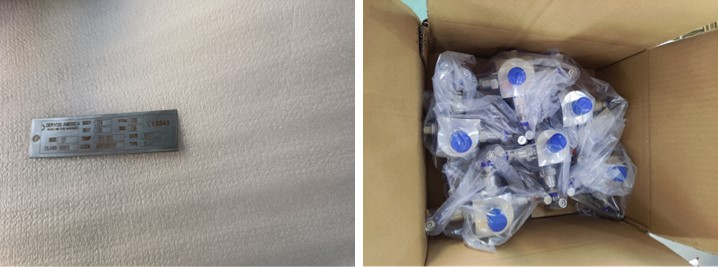

Nameplate & Packing

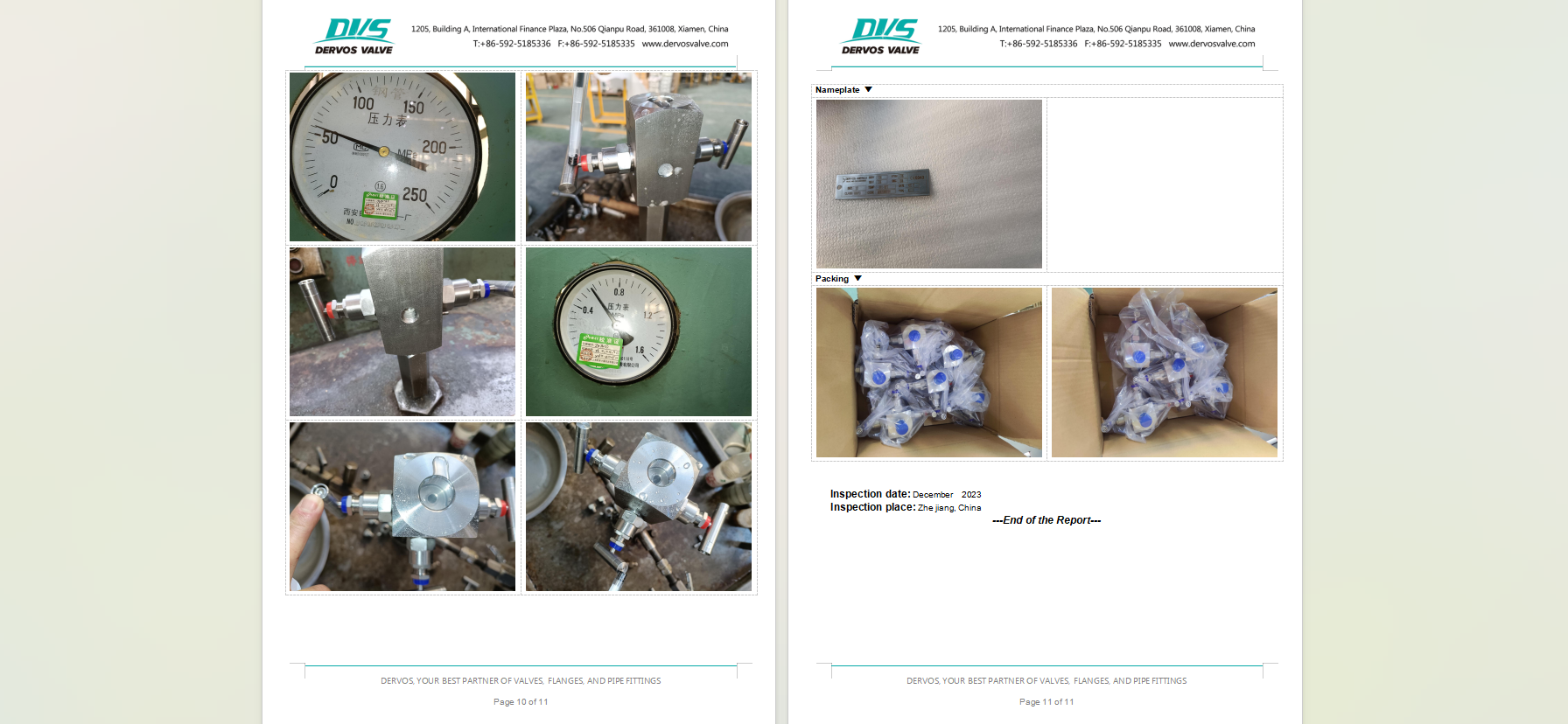

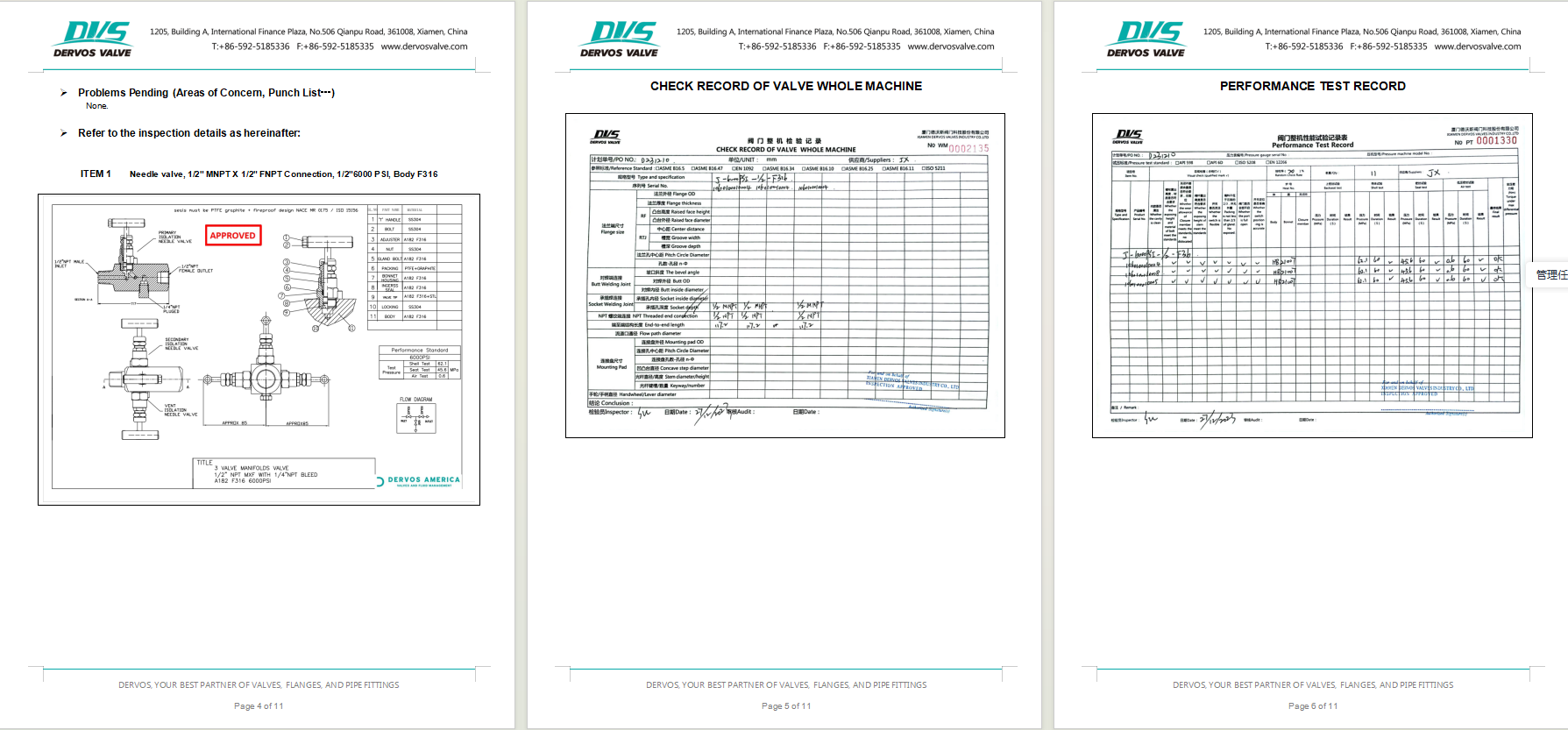

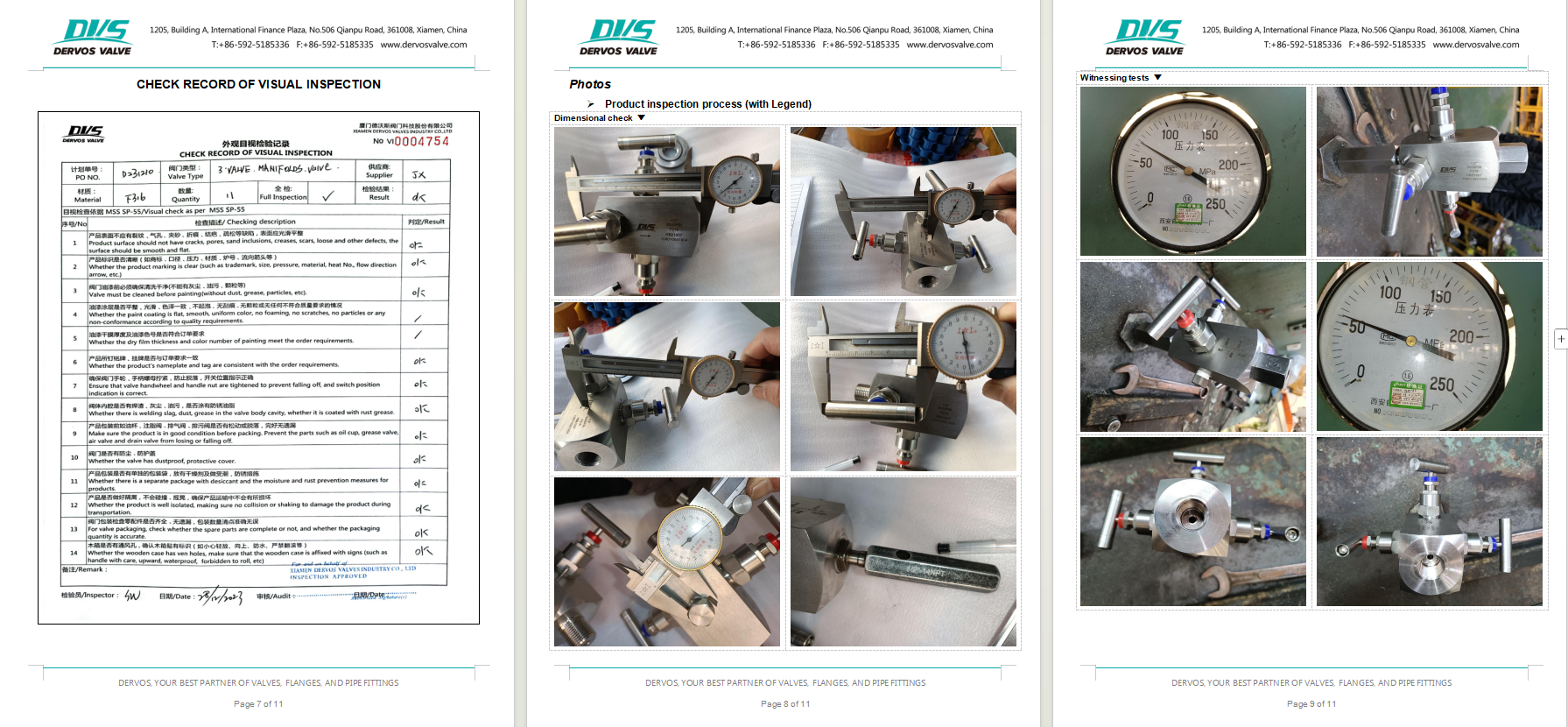

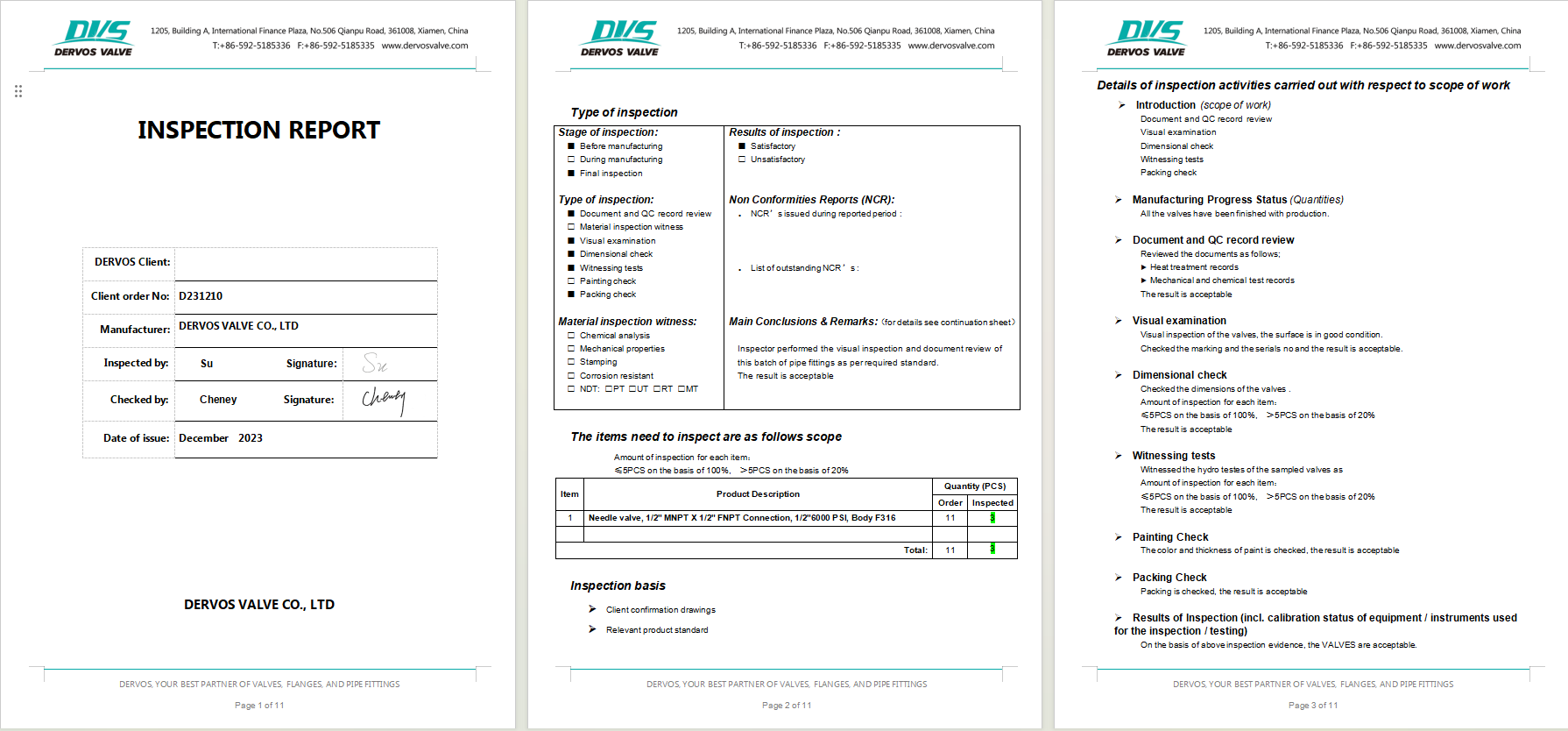

Inspection Report
