DN150 PN40 Position Selector Valve WCB EN1092-1 B DIN
Key Specifications / Features
Model No.: Hits: 0
DN150 PN40 Position Selector Valve is made according to EN 12516 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of Bonnet. Its connection mode is EN1092-1 B. And it has handle wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Position Selector Valve |
| Size | DN150 |
| Pressure | PN40 |
| Connection | EN1092-1 B |
| Operation | Hand wheel |
| Body Material | ASTM A216 WCB |
| Design Norm | EN 12516 |
| Face to Face | Supplier's Standards |
| Flange | EN1092-1/B1 |
| Test & Inspection Code | EN12266-1/2 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Made from WCB cast steel, offering durability and dependable performance for PN40 pressure applications.2. Position selector valve design with EN1092-1 B flange connection ensures accurate flow direction control and easy integration with DIN-standard systems.

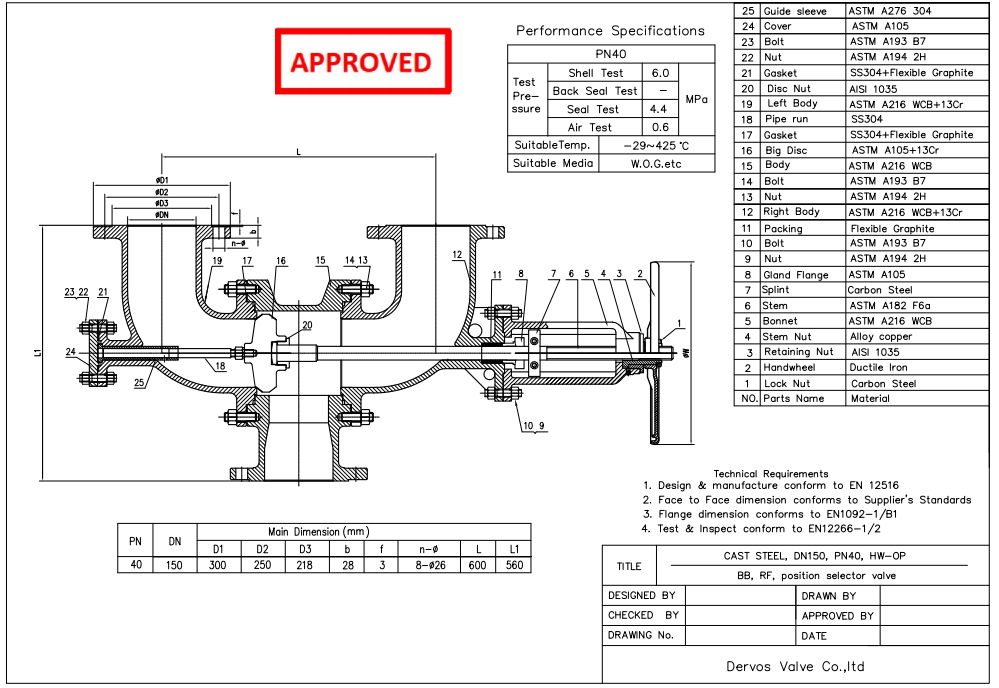

Technical Drawing

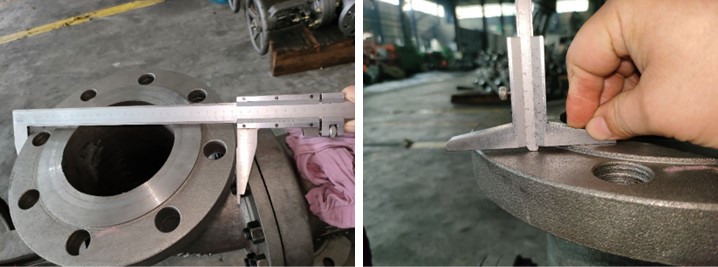

Dimension Checking

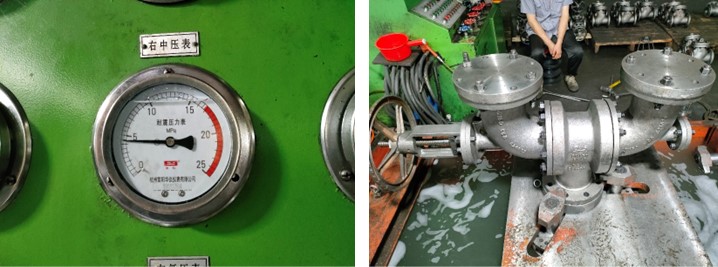

Pressure Testing
Painting
Nameplate & Packing

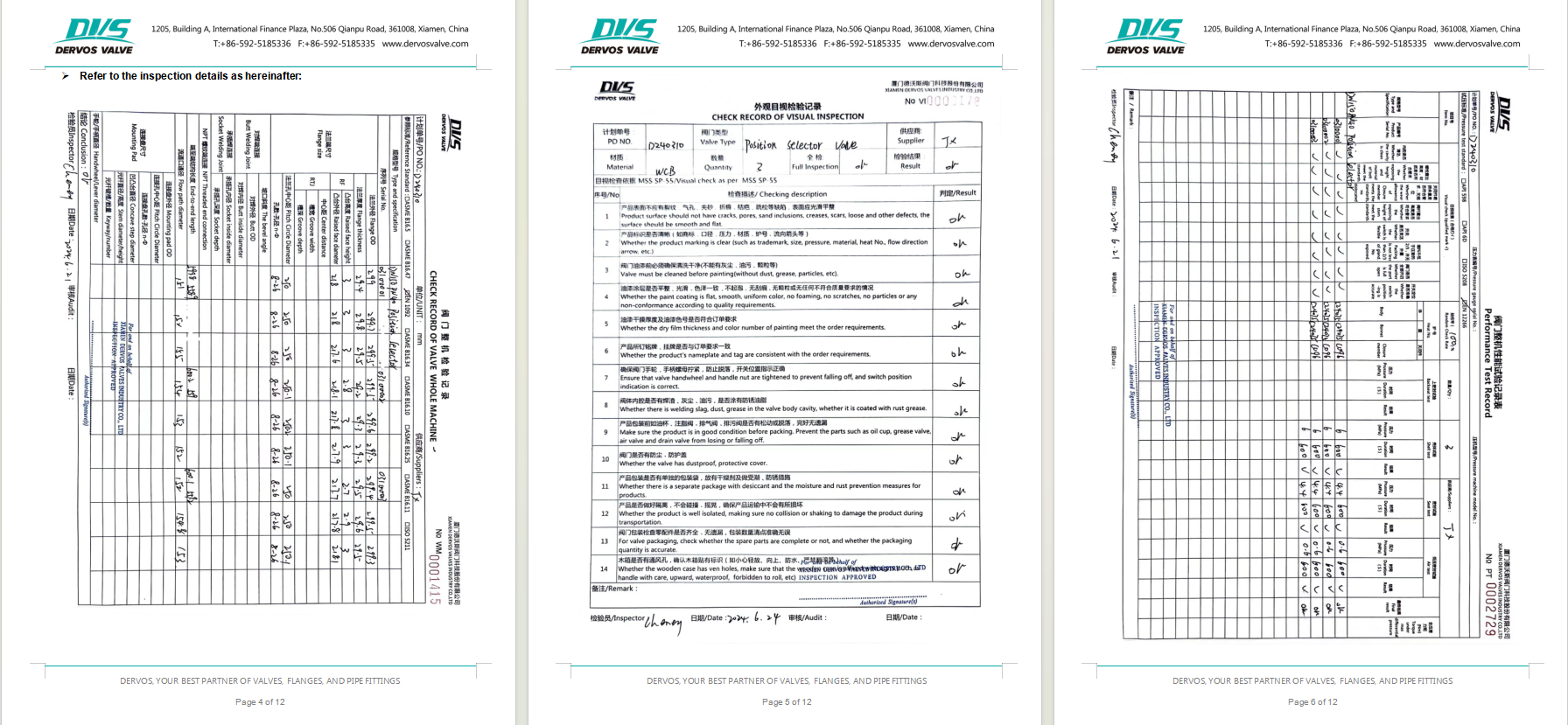

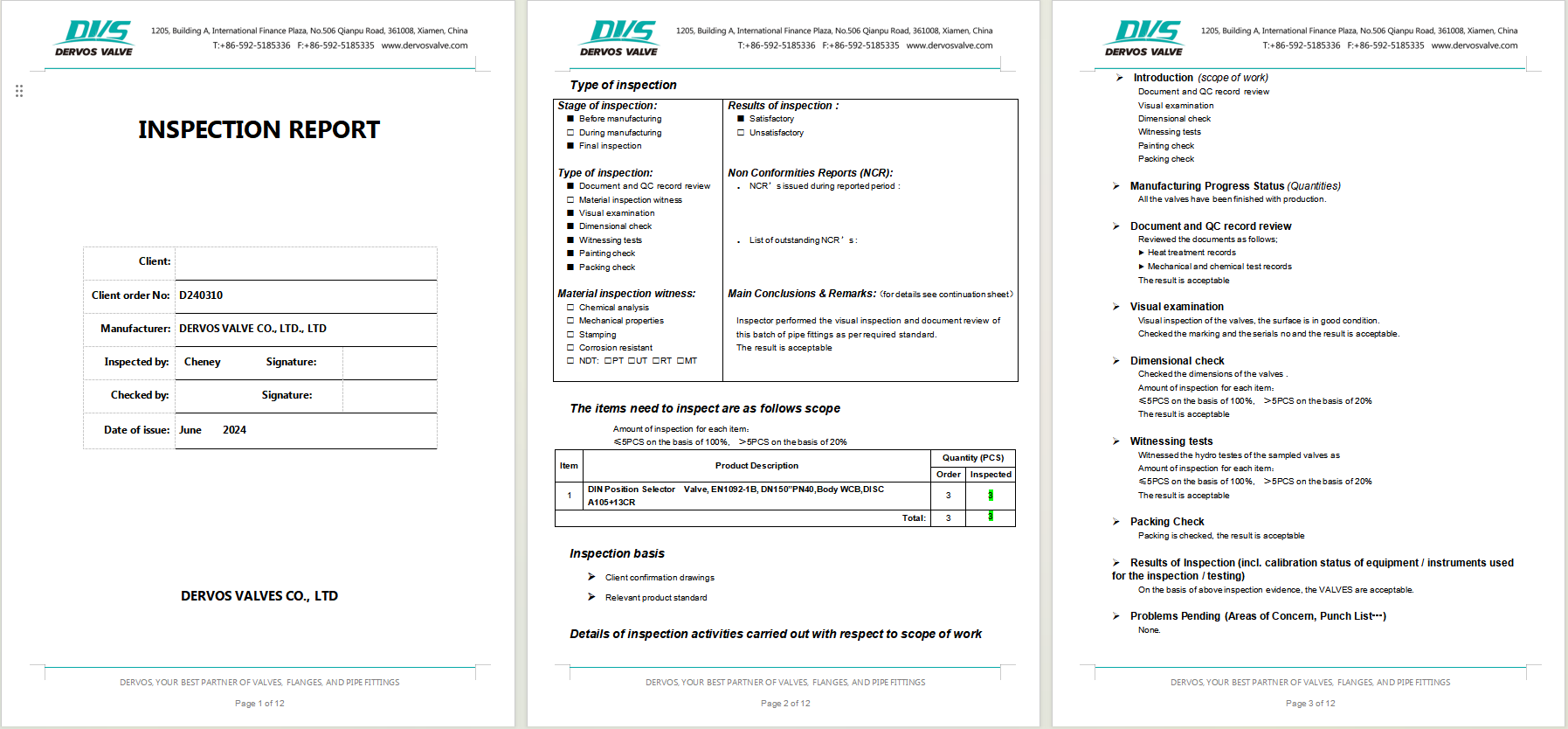

Inspection Report
