1/2”6000psi ASME16.34 Needle Valve 1/2”NPT Connection Body F316
Key Specifications / Features
Model No.: Hits: 0
1/2”6000psi Needle valve is made according to ASME16.34 standard. The valve body is made of A182 F316. Its connection mode is NPT. And it has hand wheel operation mode.
Request a quote
Tags:
Next: Return to List
Previous: DN150 PN40 Position Selector Valve WCB EN1092-1 B DIN
Detail Information
Product Parameters
| Type | Needle Valve |
| Size | 1/2” |
| Pressure | 6000psi |
| Connection | NPT |
| Operation | Hand wheel |
| Body Material | A182 F316 |
| Design Norm | ASME16.34 |
| Test & Inspection Code | API 598 |
| Applicable Medium | Water, Oil and Gas |
Features
1.Manufactured from F316 stainless steel, providing excellent corrosion resistance and reliable performance under 6000 PSI pressure.2.Needle valve design compliant with ASME B16.34 and 1/2” NPT connection ensures precise flow control and secure installation.

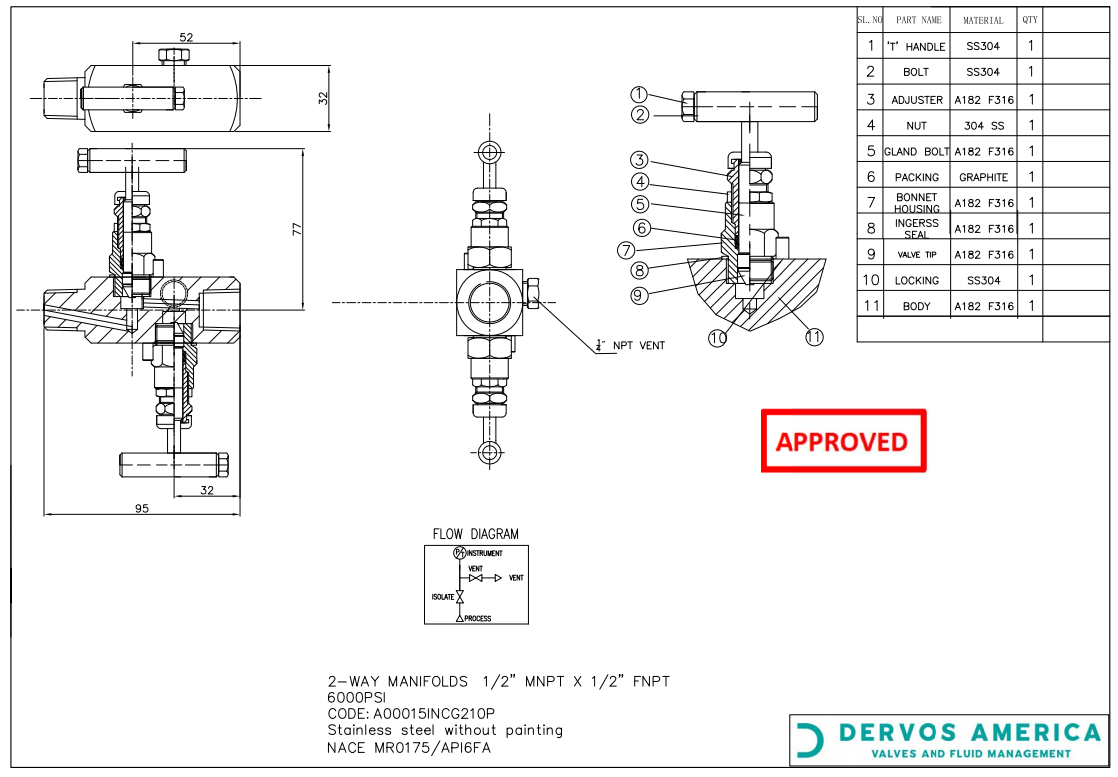

Technical Drawing

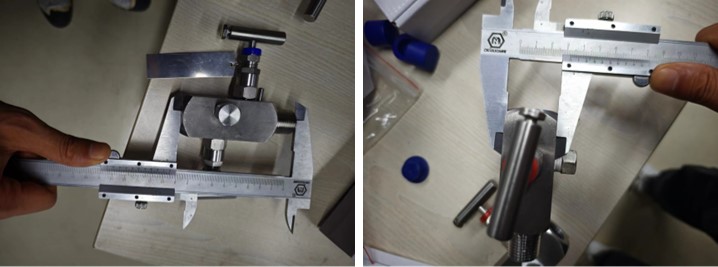

Dimension Checking

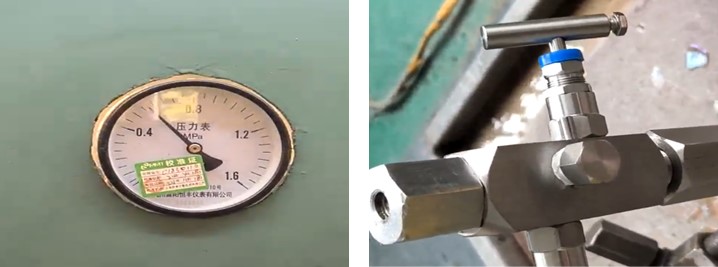

Pressure Testing

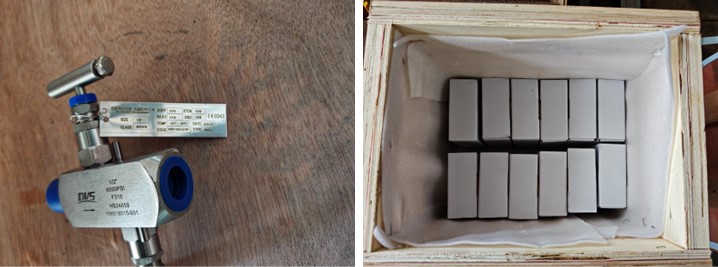

Nameplate & Packing

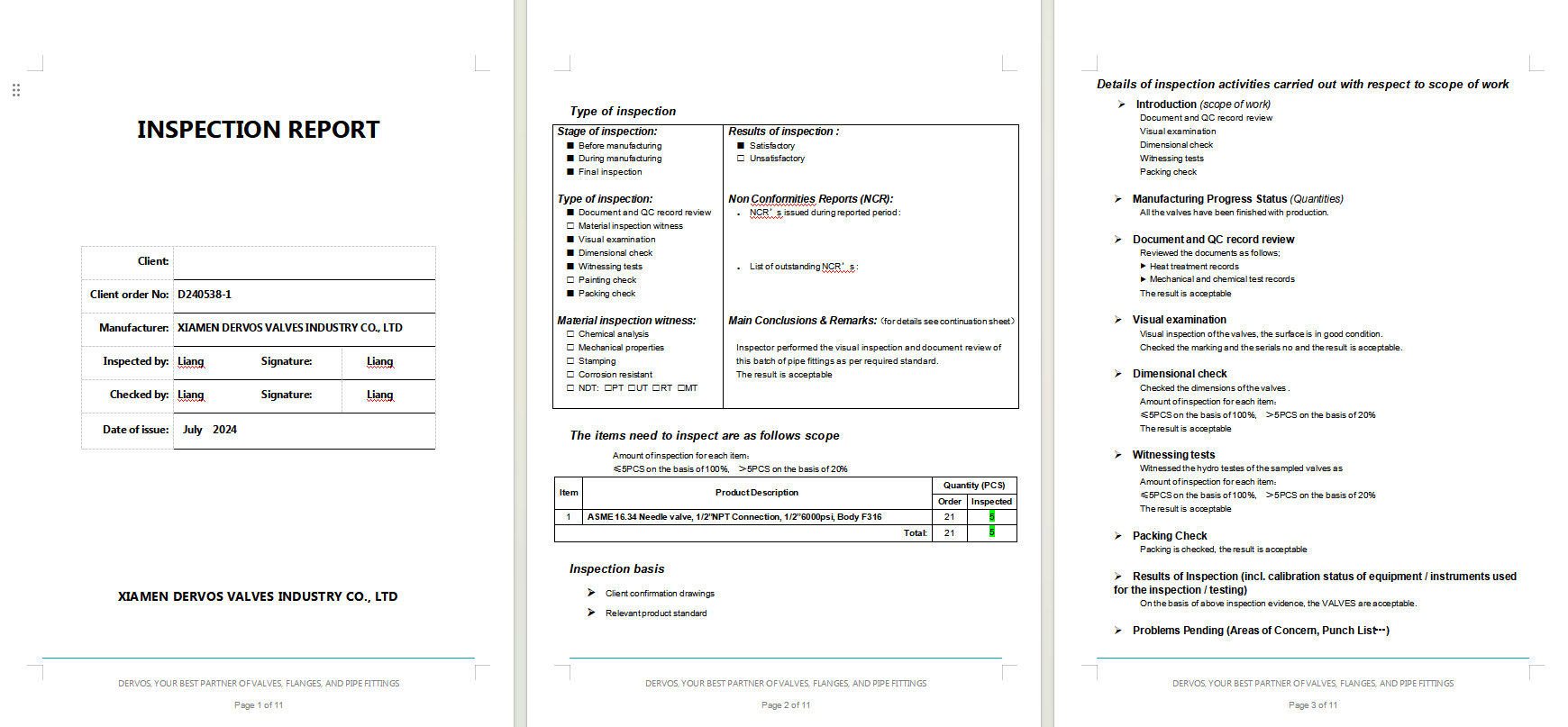

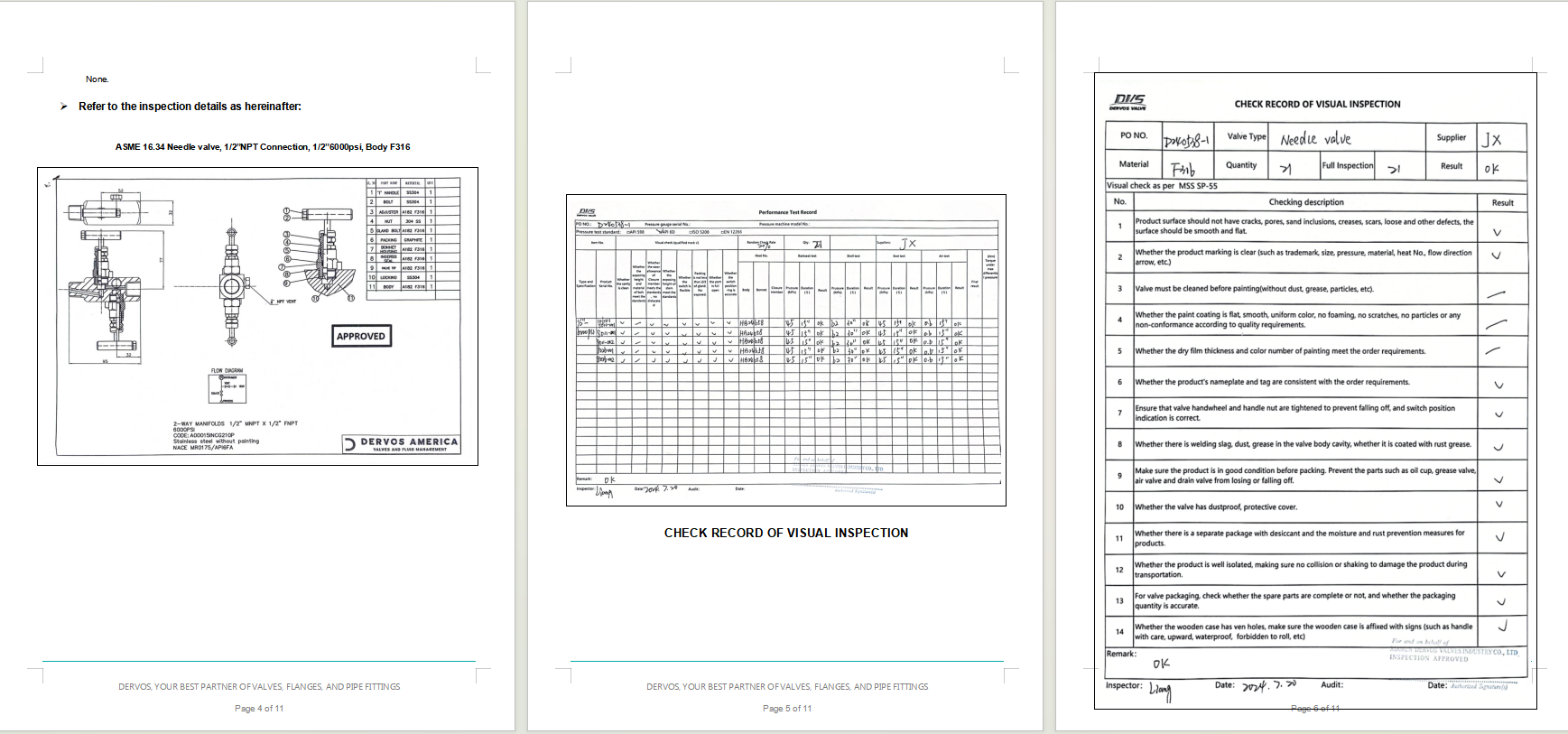

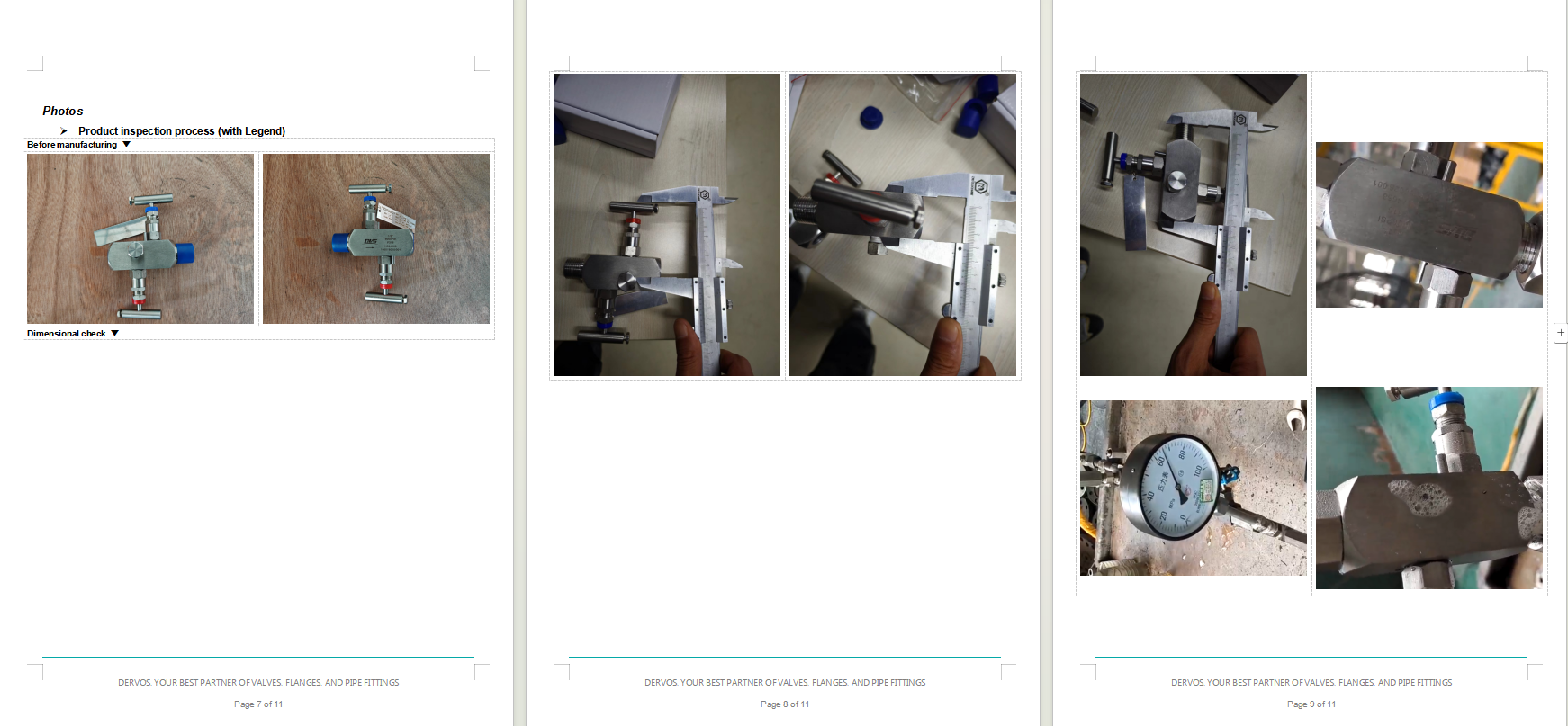

Inspection Report
