6”150LB Ball Valve FF Connection PVDF
Key Specifications / Features
Model No.: Hits: 0
6”150LB Ball Valve is made according to MFR standard. The valve body is made of PVDF. Its connection mode is FF. And it has Hand Wheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | PVDF Ball Valve |
| Size | 6” |
| Pressure | 150LB |
| Connection | FF |
| Operation | Hand Wheel |
| Body Material | PVDF |
| Design Norm | MFR |
| Face to Face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | MFR |
| Applicable Medium | Water, Oil and Gas |
Features
1.Corrosion-Resistant PVDF Material: Manufactured from high-performance PVDF, this ball valve offers excellent chemical resistance and long service life in corrosive media.2.Full Bore with FF Connection: Designed with a full bore and flat face (FF) connection, it ensures smooth flow performance and easy installation in Class 150 systems.

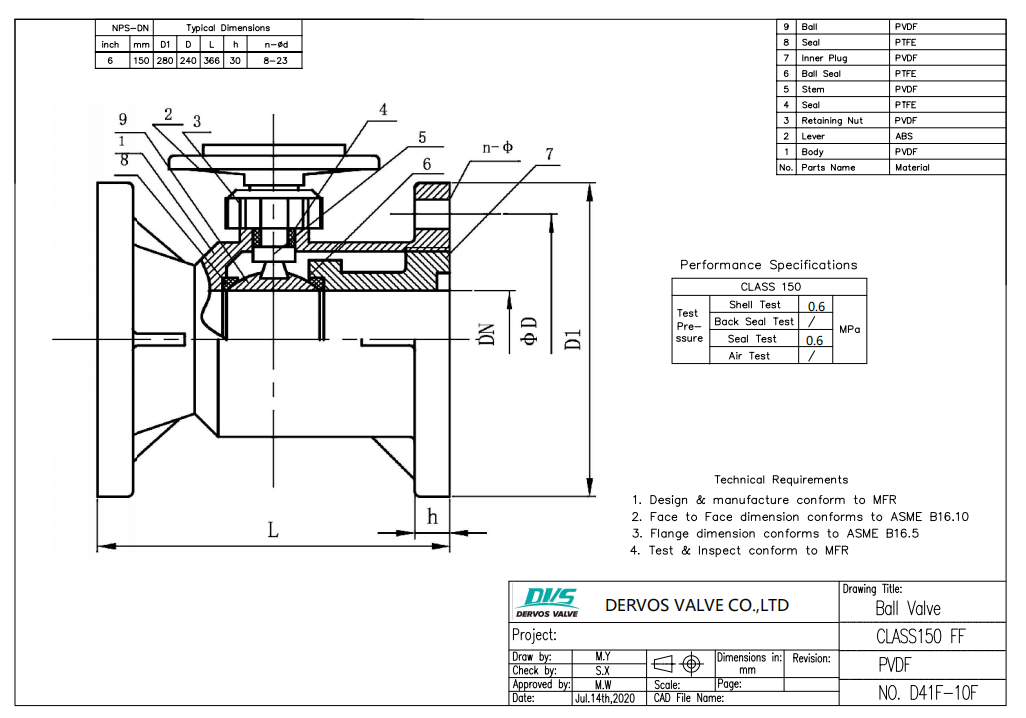

Technical Drawing

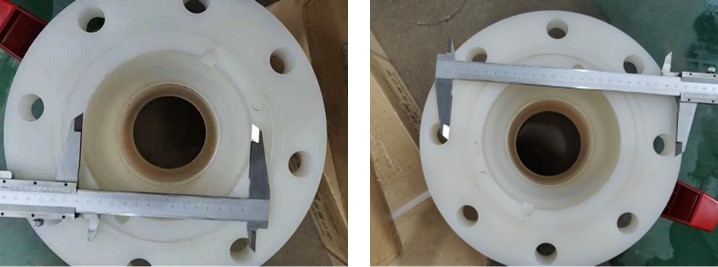

Dimension Checking

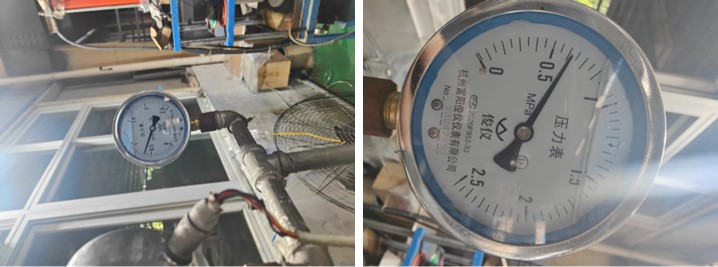

Pressure Testing

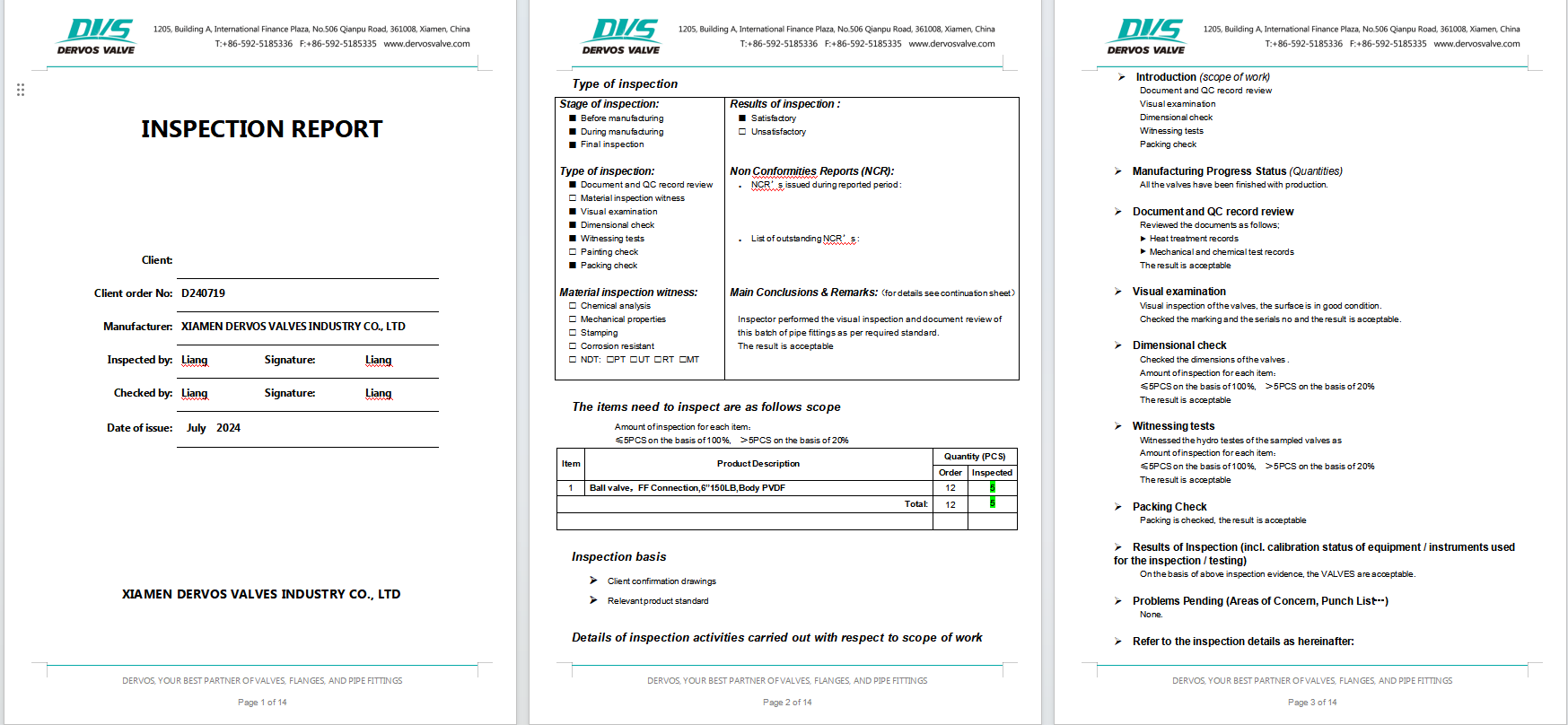

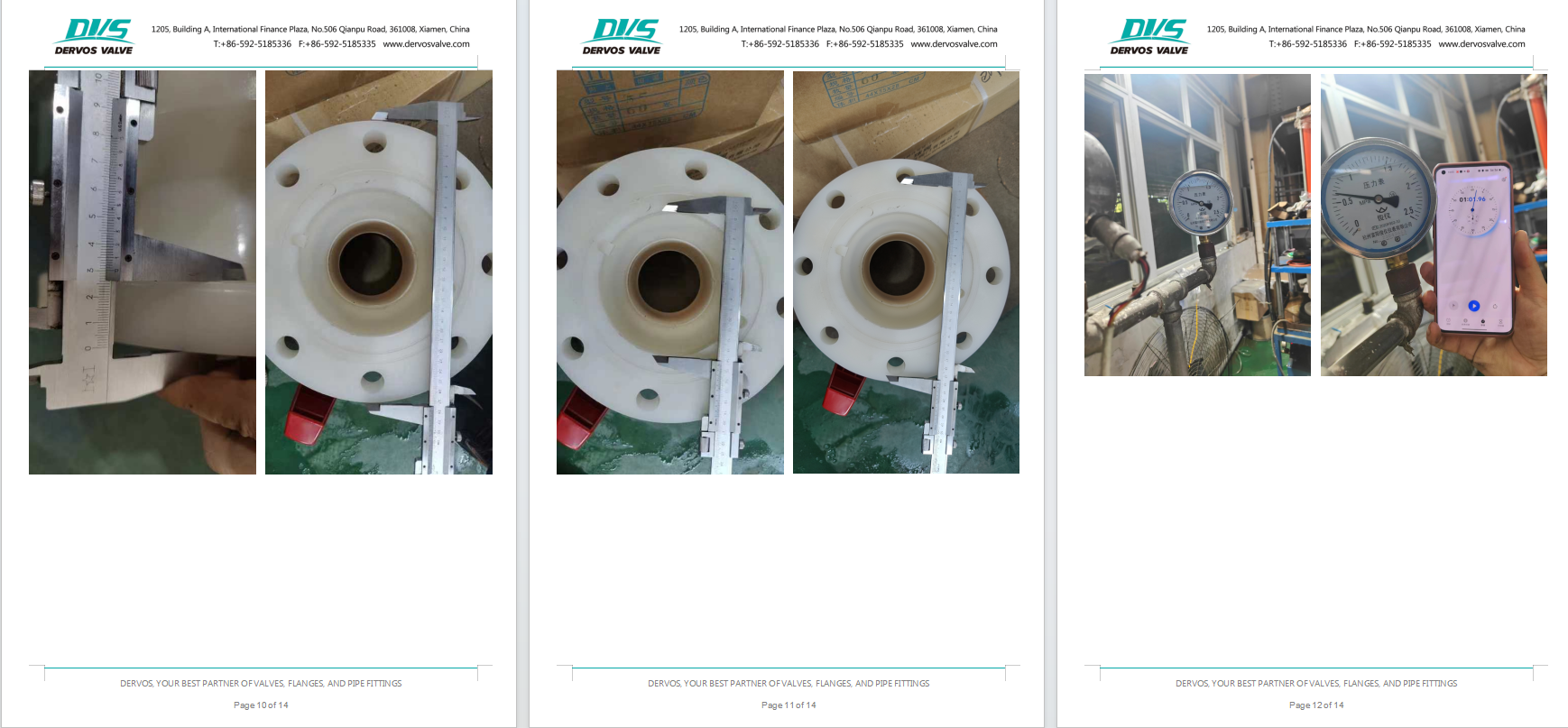

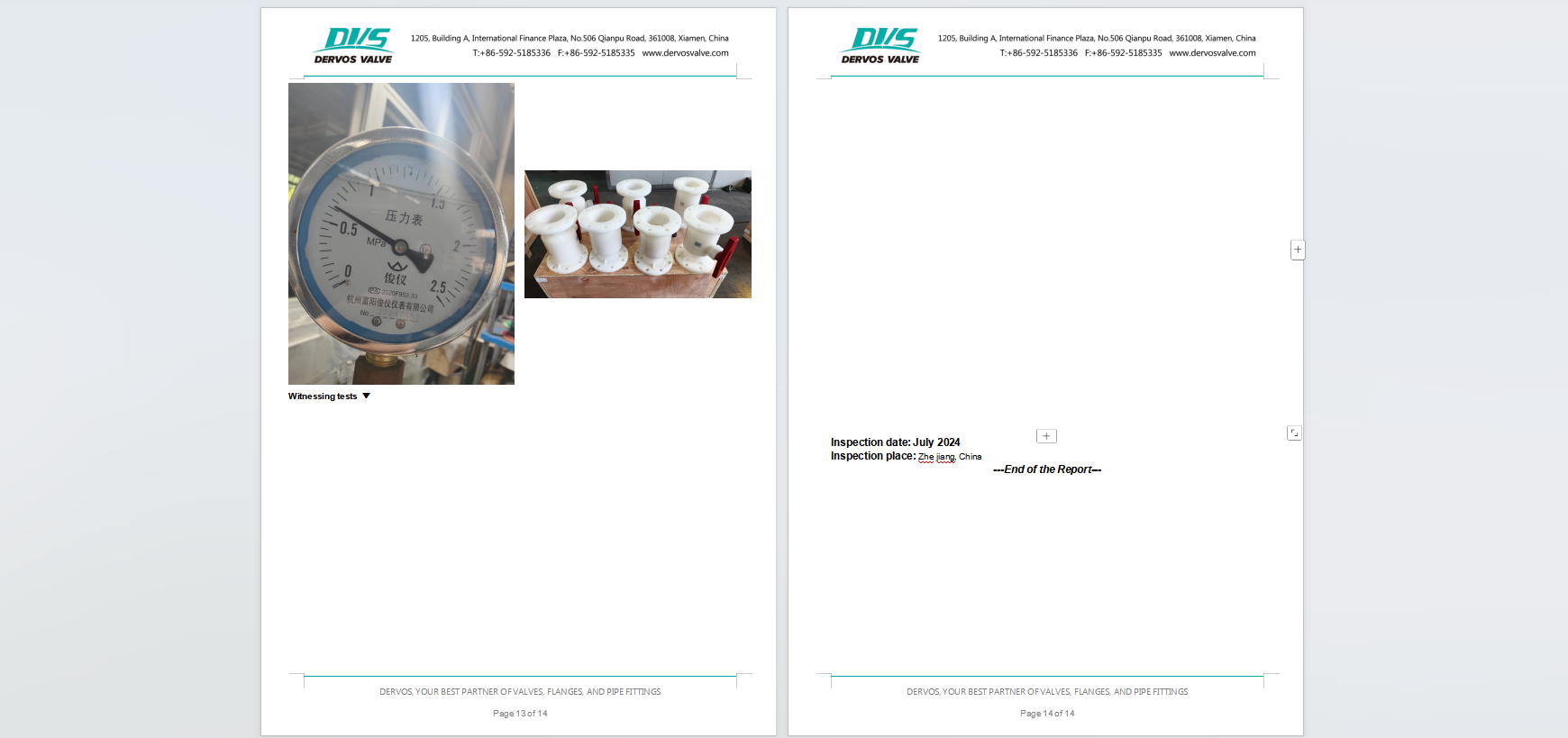

Inspection Report
