3/4" 600LB Needle Globe Valve BW N08825
Key Specifications / Features
Model No.: Hits: 0
3/4" 600LB Needle Globe Valve is made according to BS5352 and ASME B16.34 standard. The valve body is made of N08825. Its connection mode is BW. And it has Handle wheel operation mode.
Request a quote
Tags:
Next: Return to List
Previous: 6”150LB Ball Valve FF Connection PVDF
Detail Information
Product Parameters
| Type | Needle Globe Valve |
| Size | 3/4" |
| Pressure | 600LB |
| Connection | BW |
| Operation | Hand wheel |
| Body Material | N08825 |
| Design Norm | BS5352 and ASME B16.34 |
| End to End | API 6D |
| End dimension | ASME B16.25 |
| Test & Inspection Code | API 598 |
| Temperature | -35 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.N08825 alloy construction provides outstanding corrosion resistance in aggressive and sour service environments.2.Needle-type globe valve with butt-weld ends allows precise flow regulation and secure, leak-tight installation.

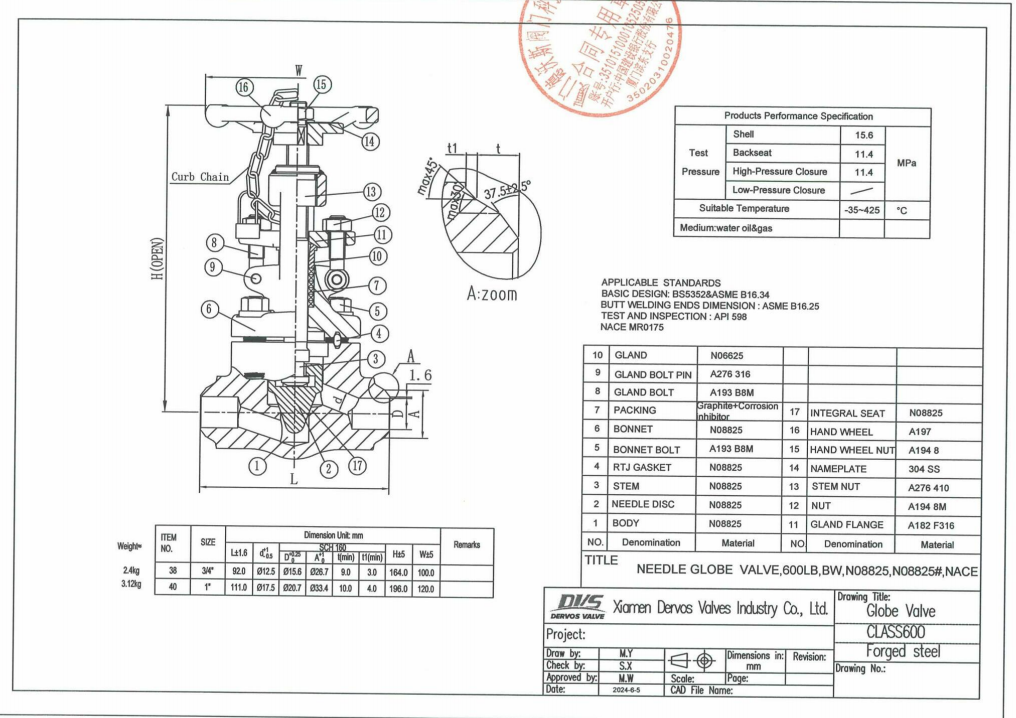

Technical Drawing

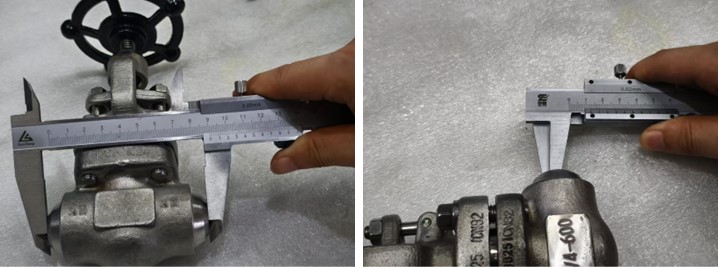

Dimension Checking

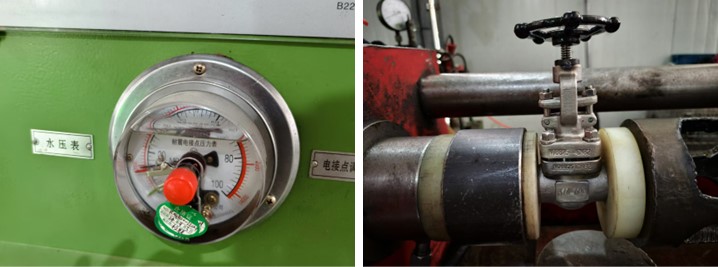

Pressure Testing

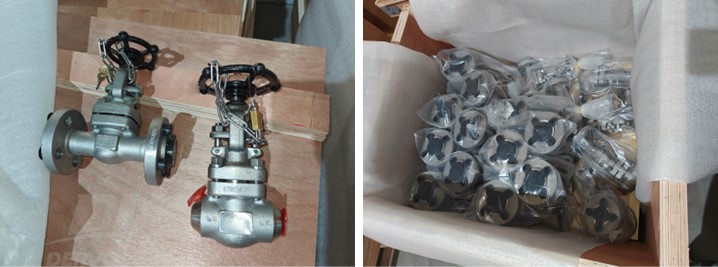

Nameplate & Packing
