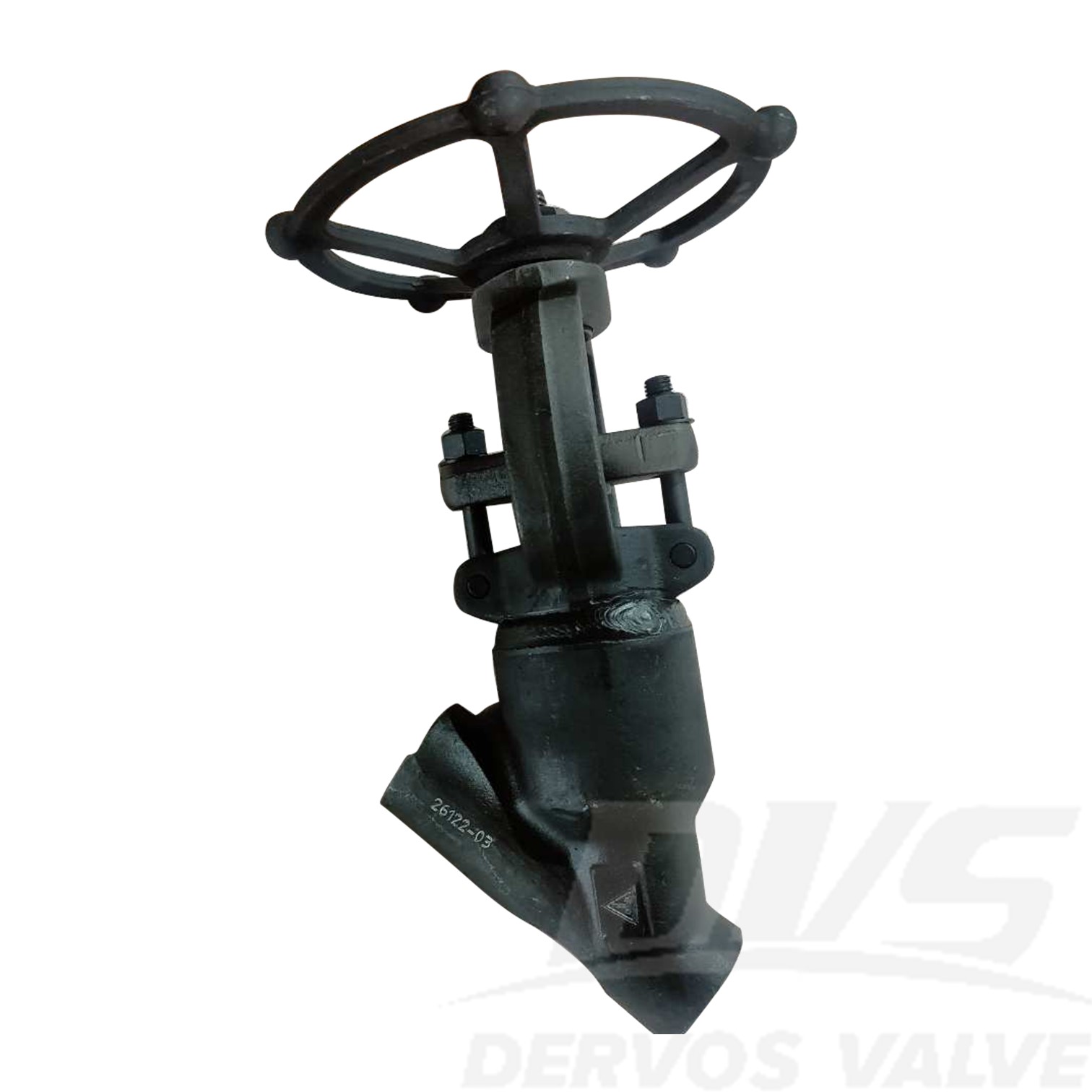

1" 6000PSI Forged Steel Y Type Globe Valve F11 SW API602
Key Specifications / Features
Model No.: Hits: 0
1" 6000PSI Y Type Globe Valve is made according to API602 standard. The valve body is made of ASTM A182 F11+STL. It has the structural characteristics of Y-Type, Welded Bonnet. Its connection mode is SW. And it has Hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Forged Steel Y Type Globe Valve |
| Size | 1” |
| Pressure | 6000PSI |
| Connection | SW |
| Operation | Hand wheel |
| Body Material | ASTM A182 F11+STL |
| Design Norm | API 602 |
| Face to face | MFRSTD |
| End connection | ASME B16.11 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 575°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Y-type body design reduces flow resistance and improves efficiency in high-pressure systems.2.Forged F11 alloy steel construction with socket weld ends ensures strength and reliable sealing up to 6000 PSI.

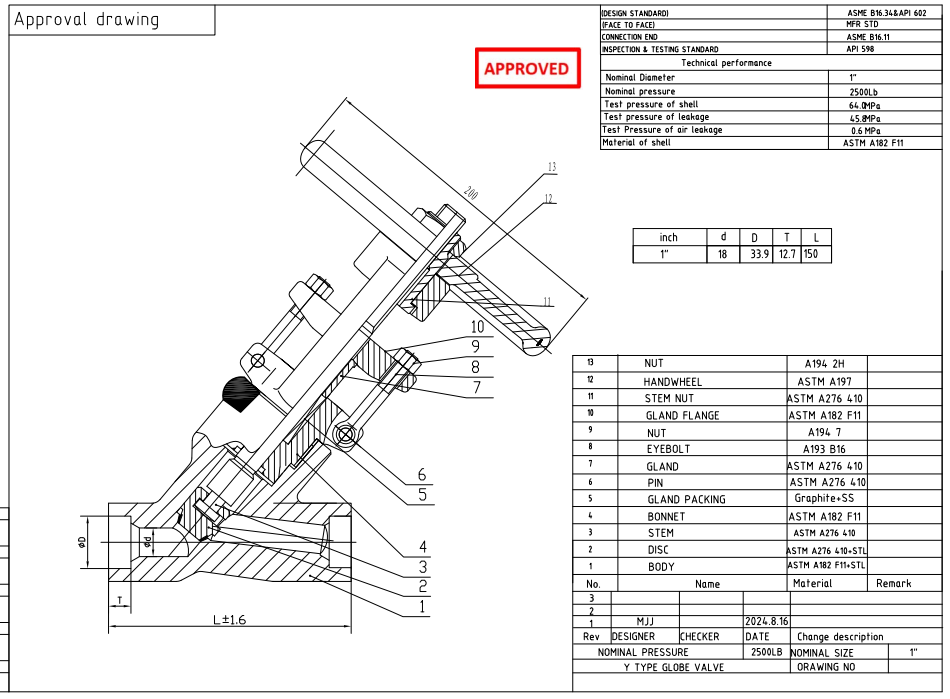

Technical Drawing

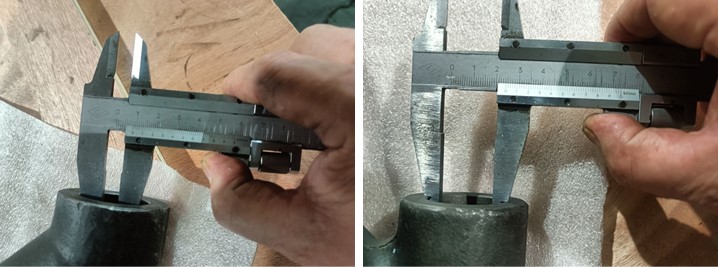

Dimension Checking

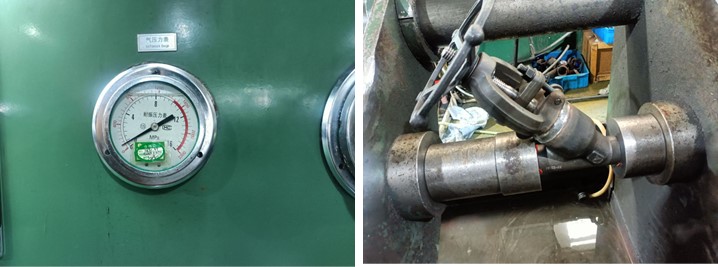

Pressure Testing
