1" 1500LB Forged Steel Globe Valve A350 LF2 CL1 API 602
Key Specifications / Features
Model No.: Hits: 0
1" 1500LB Forged Steel Globe Valve is made according to API602 standard. The valve body is made of A350 LF2 CL1. It has the structural characteristics of Bolted Bonnet, Rising Stem, Plug-Type Disc, Medium: Natural Gas. Its connection mode is SW. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Previous: 2" 1500LB Forged Steel Globe Valve SW A182 F91 API602
Detail Information
Product Parameters
| Type | Forged Steel Globe Valve |
| Size | 1” |
| Pressure | 1500LB |
| Connection | SW |
| Operation | Hand Wheel |
| Body Material | A350 LF2 CL1 |
| Design Norm | API 602 |
| Fire Safe | API 6FA |
| End size fit | ASME B16.11(SW) |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 345°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged steel body with bolted bonnet ensures high strength and reliable shut-off in high-pressure service.2.A350 LF2 CL1 construction rated 1500LB and manufactured to API 602 for low-temperature and demanding applications.

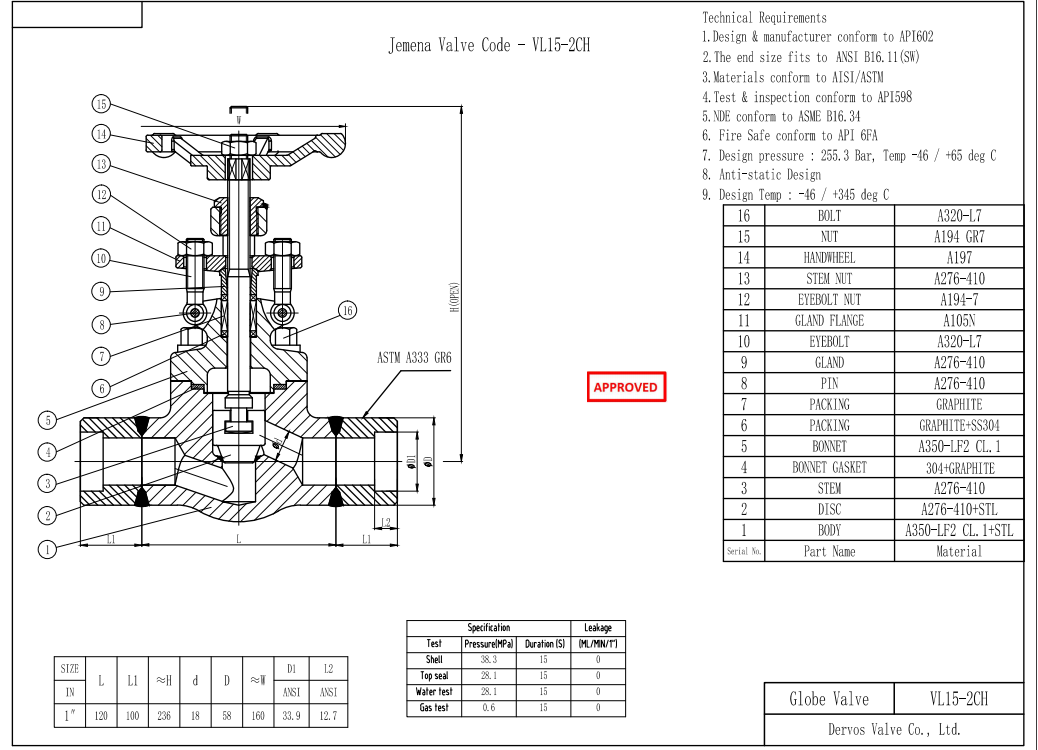

Technical Drawing

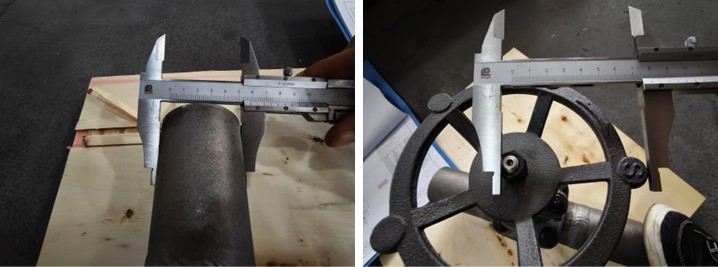

Dimension Checking

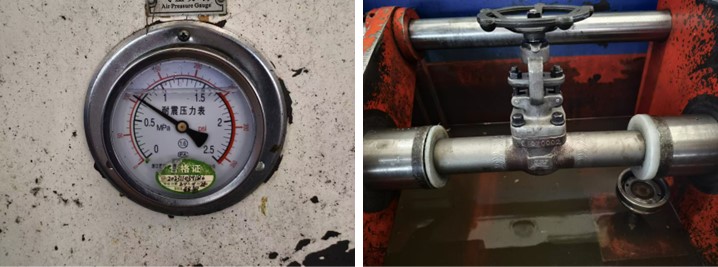

Pressure Testing

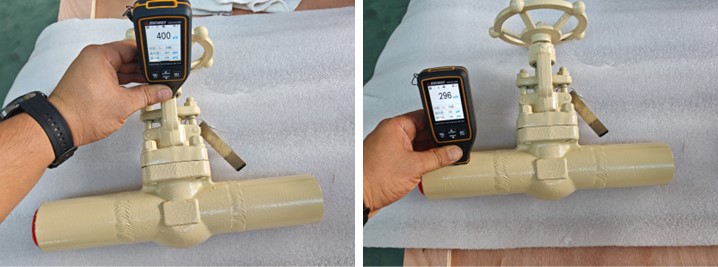

Painting
Spectrum

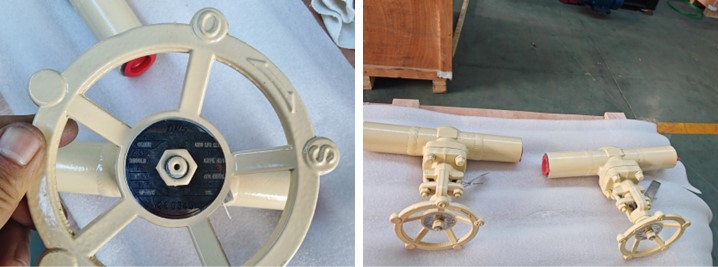

Nameplate & Packing
