2" 1500LB Forged Steel Globe Valve SW A182 F91 API602
Key Specifications / Features
Model No.: Hits: 0
2" 1500LB Globe Valve is made according to API602 standard. The valve body is made of A182 F91. It has the structural characteristics of OS&Y, Bolted Bonnet. Its connection mode is SW. And it has Hand Wheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Forged Steel Globe Valve |
| Size | 2” |
| Pressure | 1500LB |
| Connection | SW |
| Operation | Hand wheel |
| Body Material | A182 F91 |
| Design Norm | API602 |
| Socket Welding Dimension | ASME B16.11 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 450°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged from A182 F91 alloy steel, delivering excellent high-temperature strength and creep resistance for 1500LB pressure service.2.C-pattern globe valve with SW ends, compliant with API 602, ensures precise flow control and dependable shutoff in critical applications.

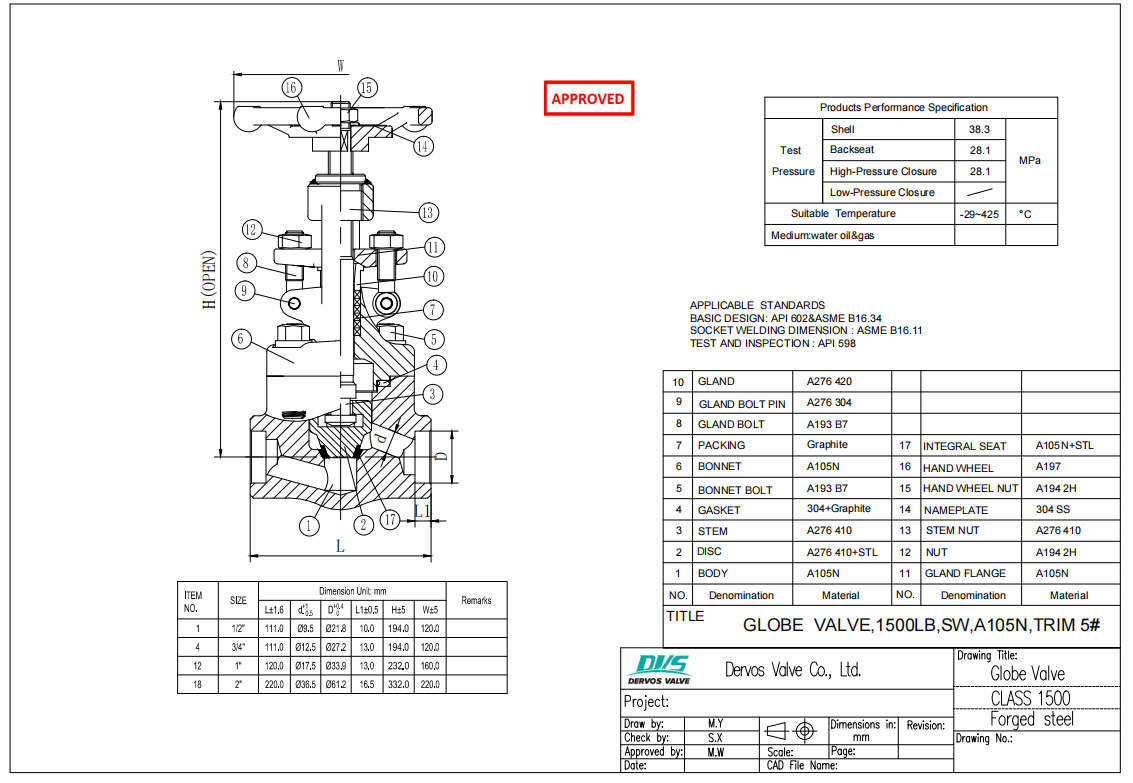

Technical Drawing

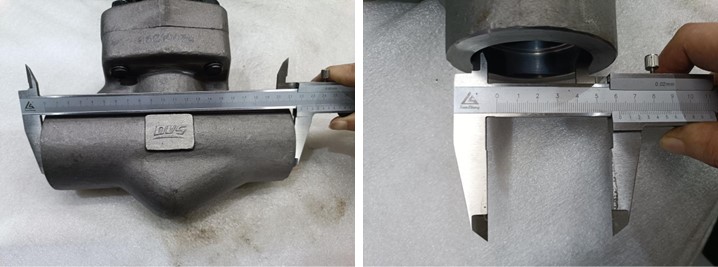

Dimension Checking

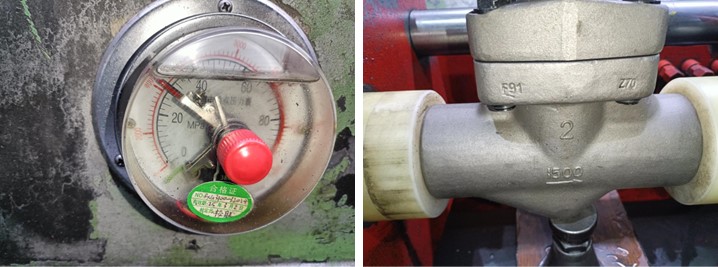

Pressure Testing

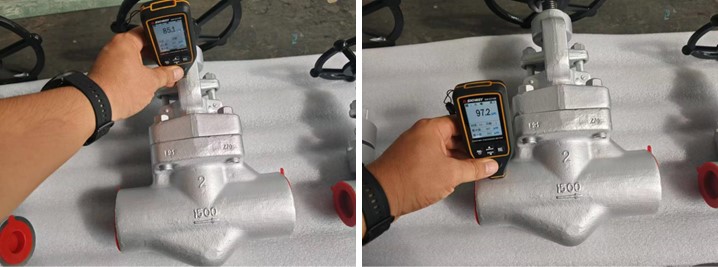

Painting
Spectrum

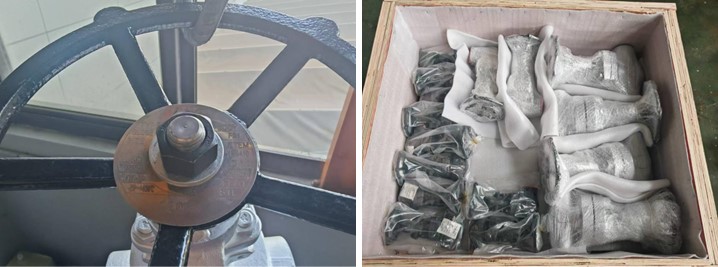

Nameplate & Packing

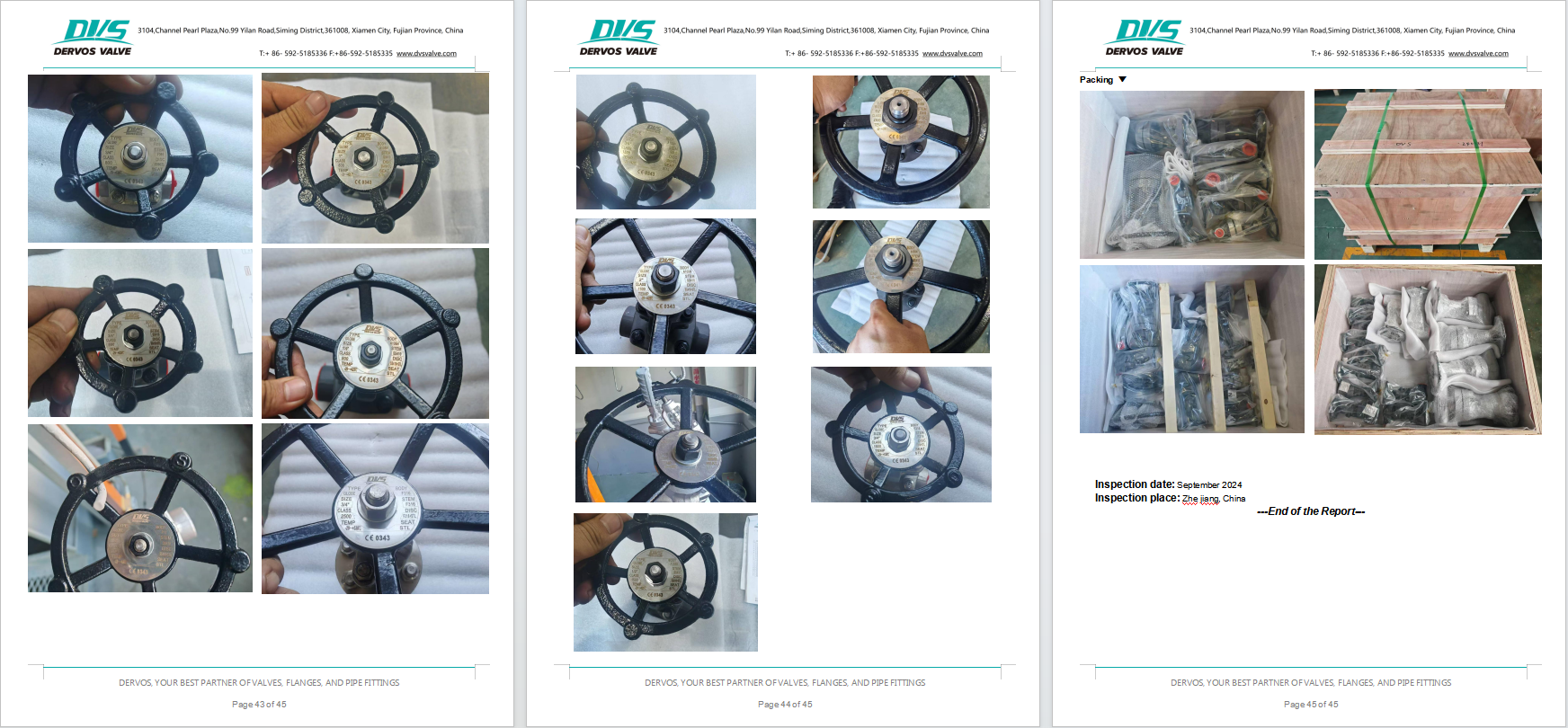

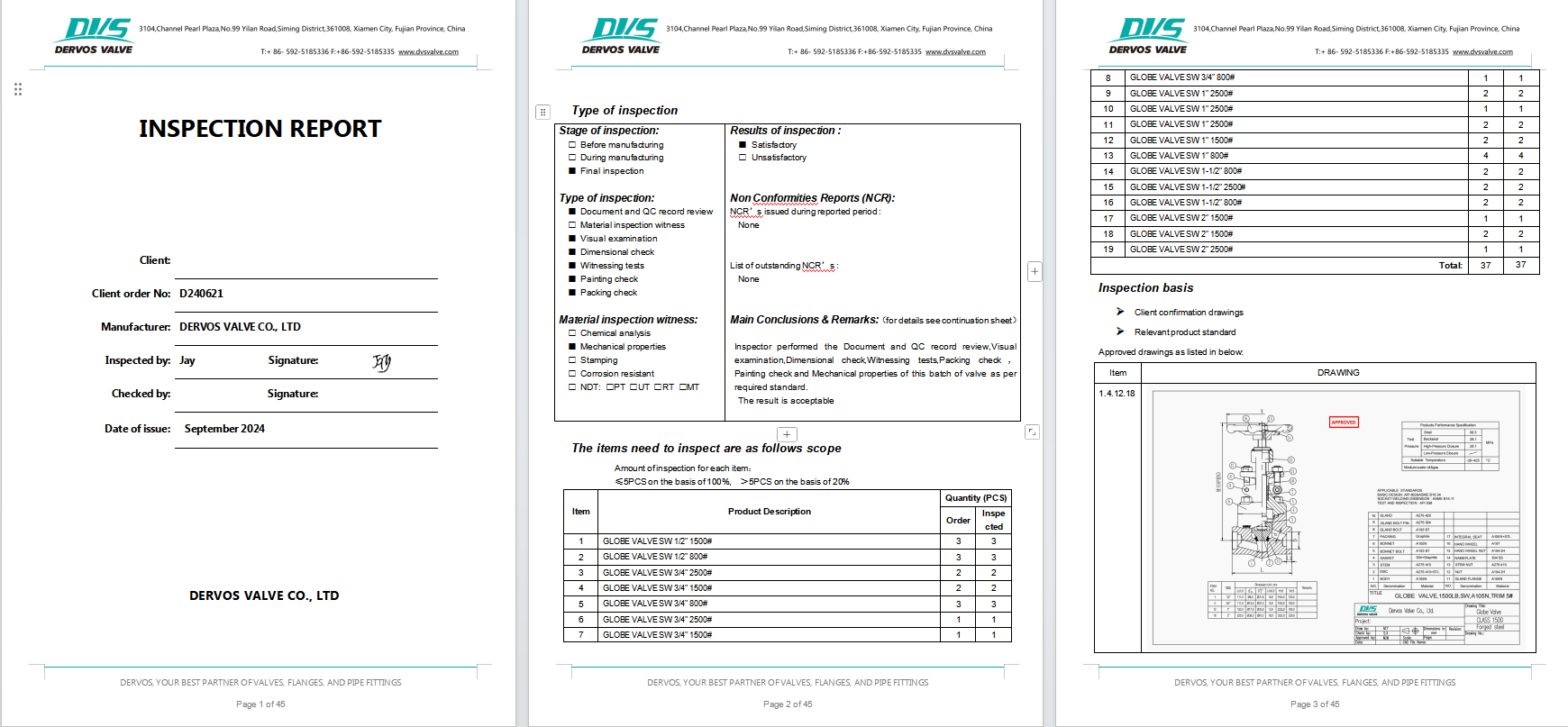

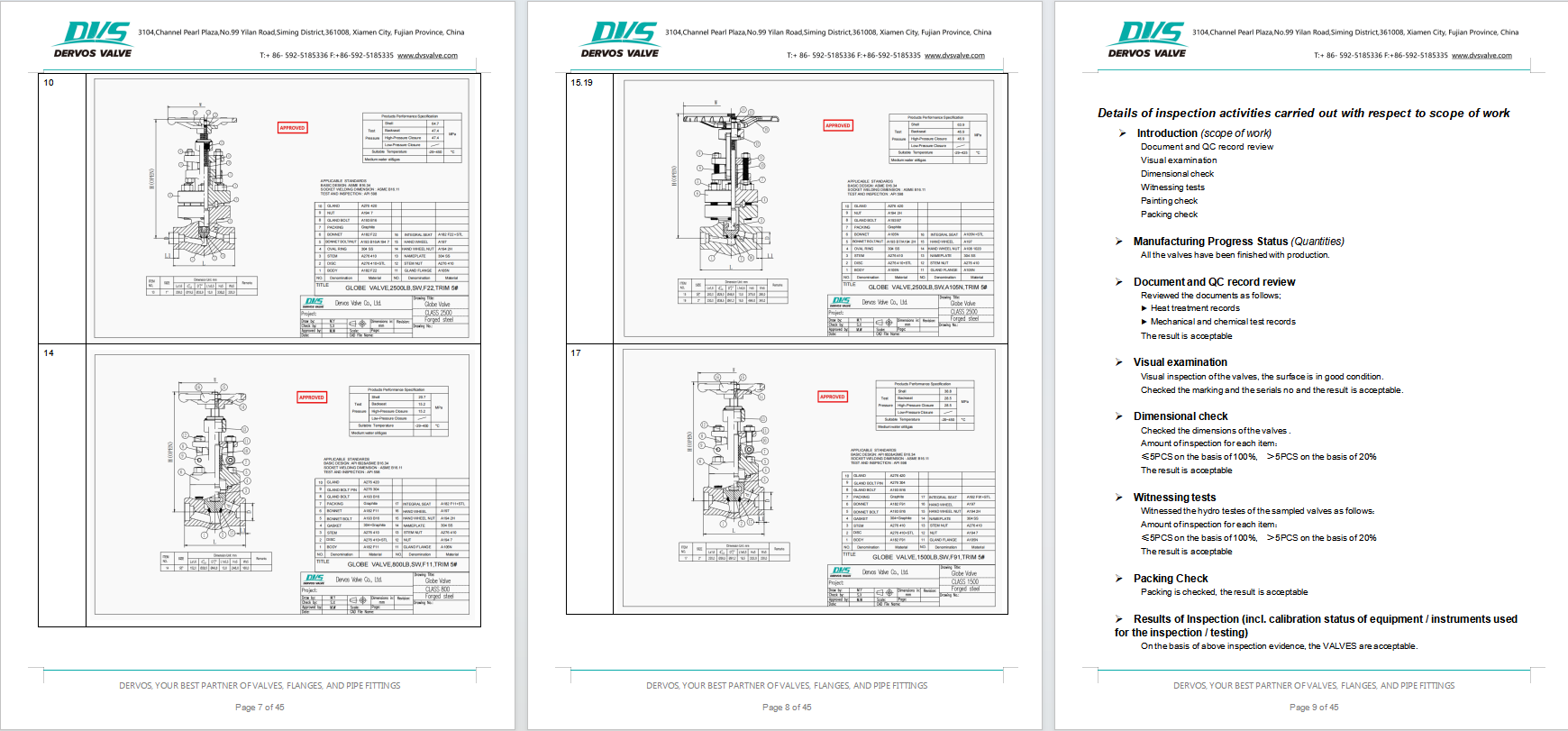

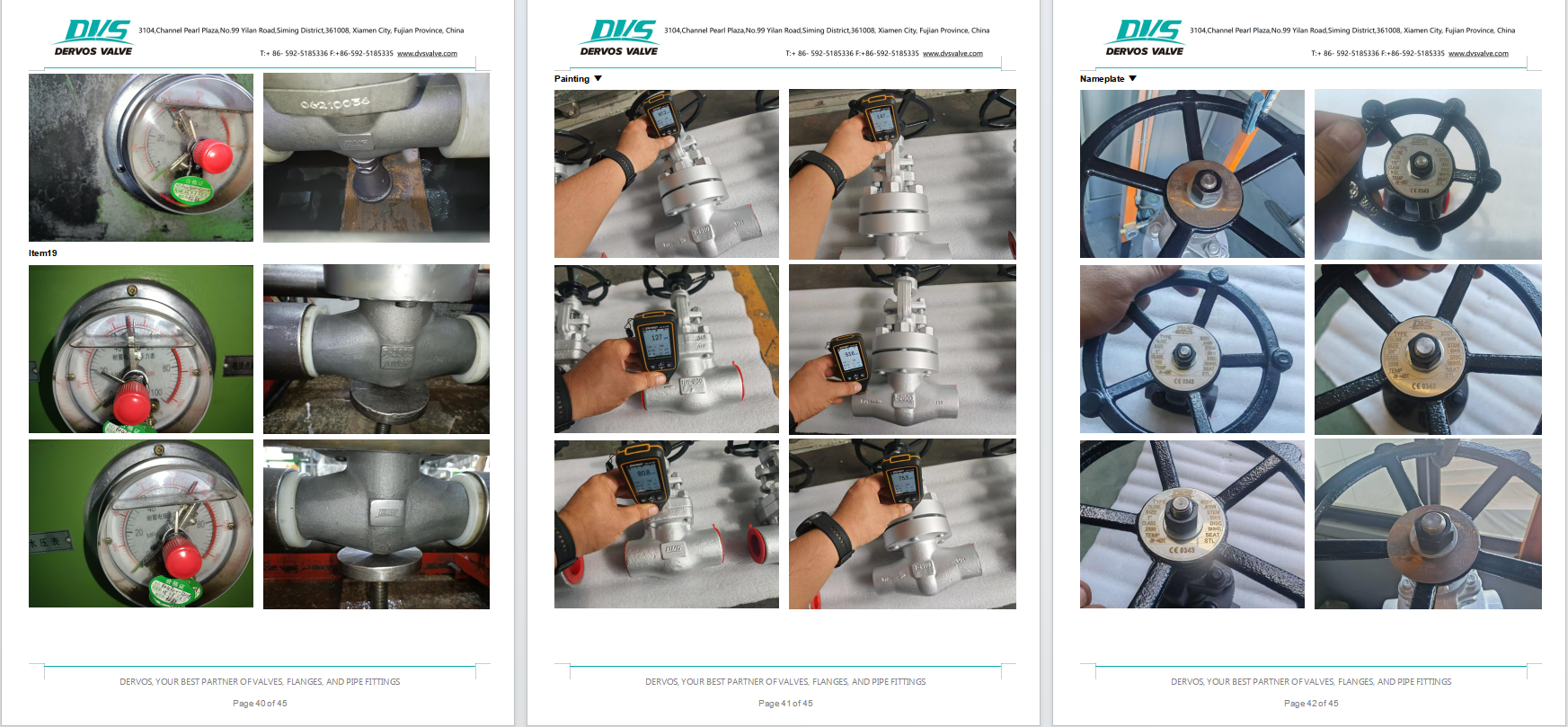

Inspection Report
