1" 600LB Ball Check Valve BW NO8825 API602
Key Specifications / Features
Model No.: Hits: 0
1" 600LB Check Valve is made according to API602 standard. The valve body is made of N08825. The valve is designed with a ball-type disc and a bolted bonnet for enhanced sealing and structural strength.
Request a quote
Tags:
Detail Information
Product Description
| Type | Check Valve |
| Size | 1” |
| Pressure | 600LB |
| Connection | BW |
| Body Material | N08825 |
| Design Norm | API602 |
| Butt Welding Ends Dimension | ASME B16.25 |
| Test & Inspection Code | API 598 |
| Temperature | -35 ~ 300°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Made from corrosion-resistant N08825 alloy, ensuring reliable performance in aggressive media and high-pressure systems.2. Ball-type disc with bolted bonnet design provides tight shutoff and robust mechanical strength as per API 602 standard.

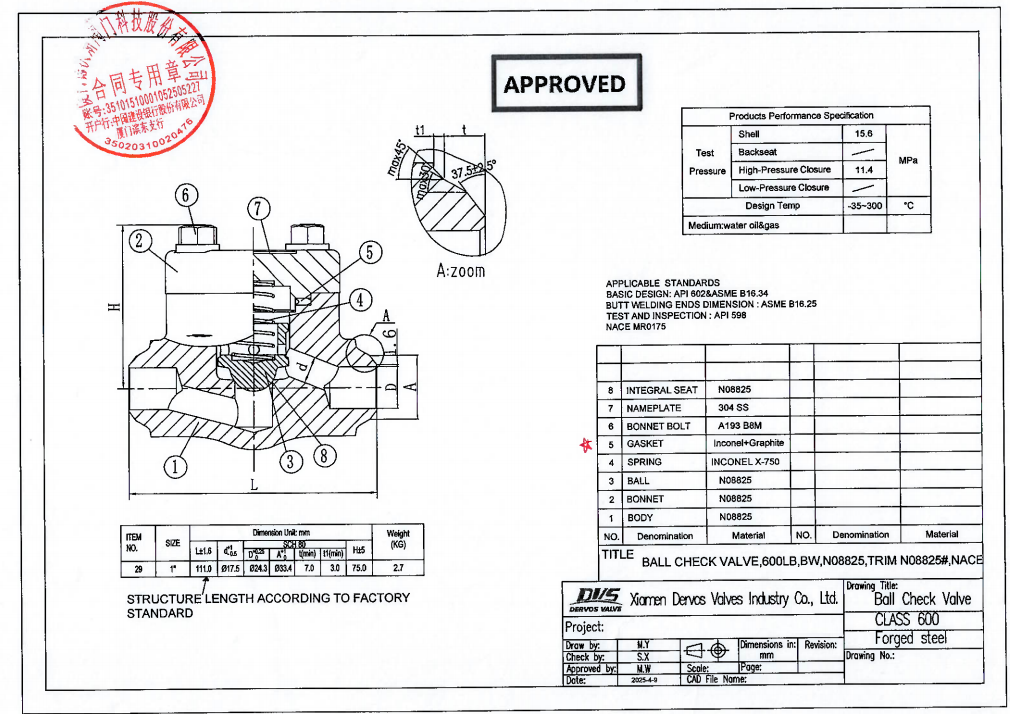

Ball Check Valve Technical Drawing

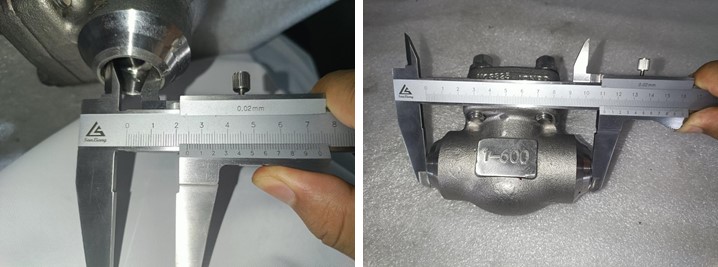

Dimension Checking

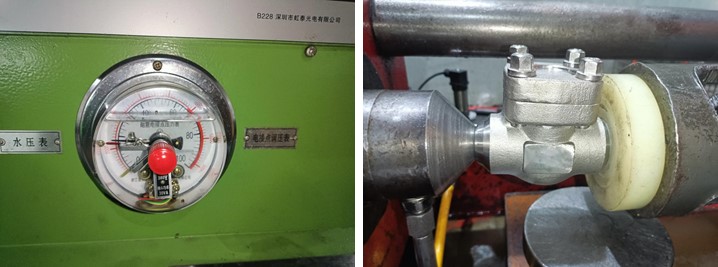

Pressure Testing
