1" 800LB Lift Type Check Valve API602
Key Specifications / Features
Model No.: Hits: 0
1" 800LB Lift Type Check Valve is made according to API602 standard. The valve body is made of A182-F347+STL. It has the structural characteristics of Bolted Bonnet, Semi-Spherical. Its connection mode is SW.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Description
| Type | Lift Check Valve |
| Size | 1" |
| Pressure | 800LB |
| Connection | SW |
| Body Material | A182-F347+STL |
| Design Norm | API 602 |
| Socket Welded Dimension Conform | ASME B16.11 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 525°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Designed for high-pressure applications, the 800LB Lift Type Check Valve ensures reliable flow control and prevents backflow.2. Manufactured according to API 602 standards, it offers exceptional durability and performance in demanding industrial environments.

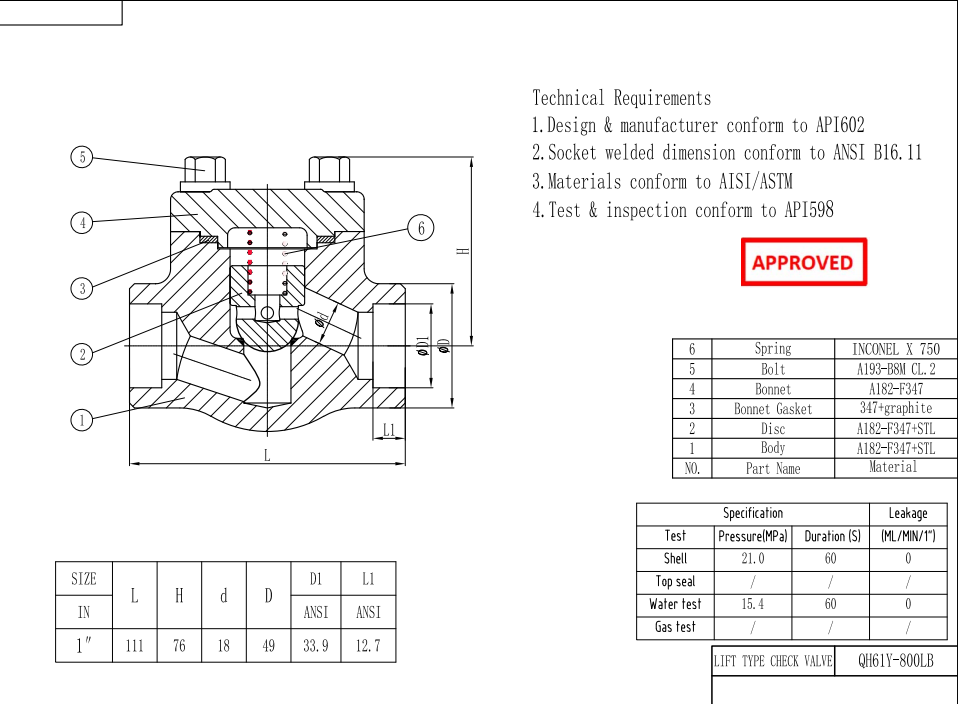

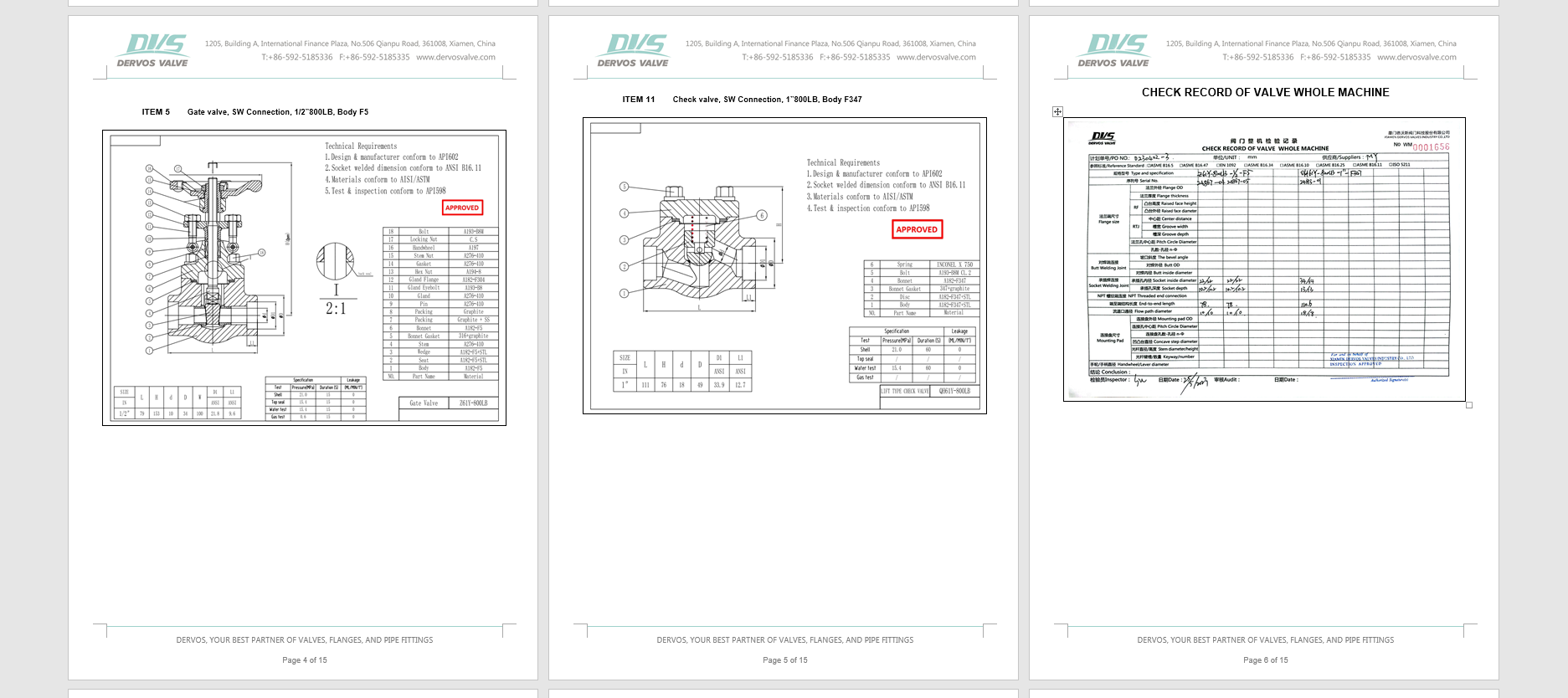

Technical Drawing

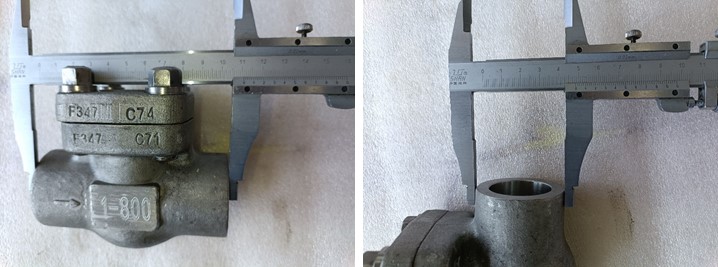

Dimension Checking

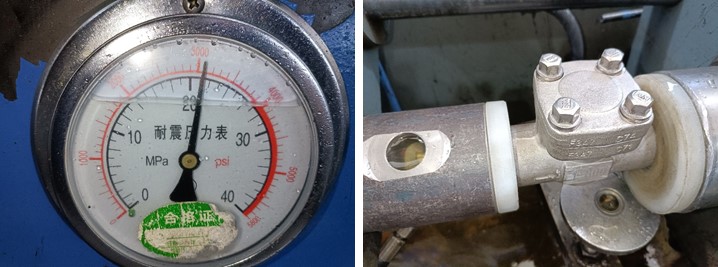

Pressure Testing

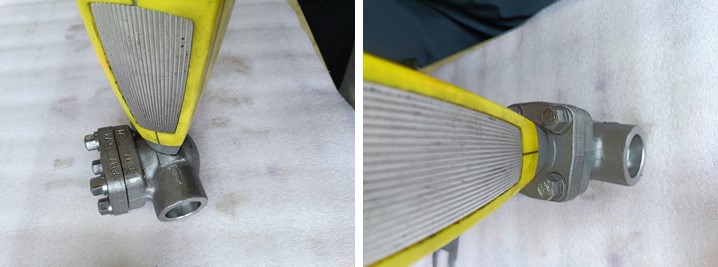

Spectrum

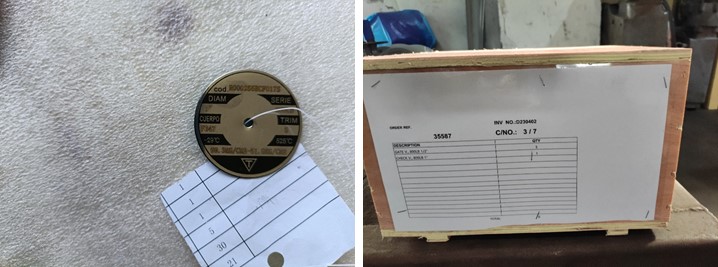

Nameplate & Packing

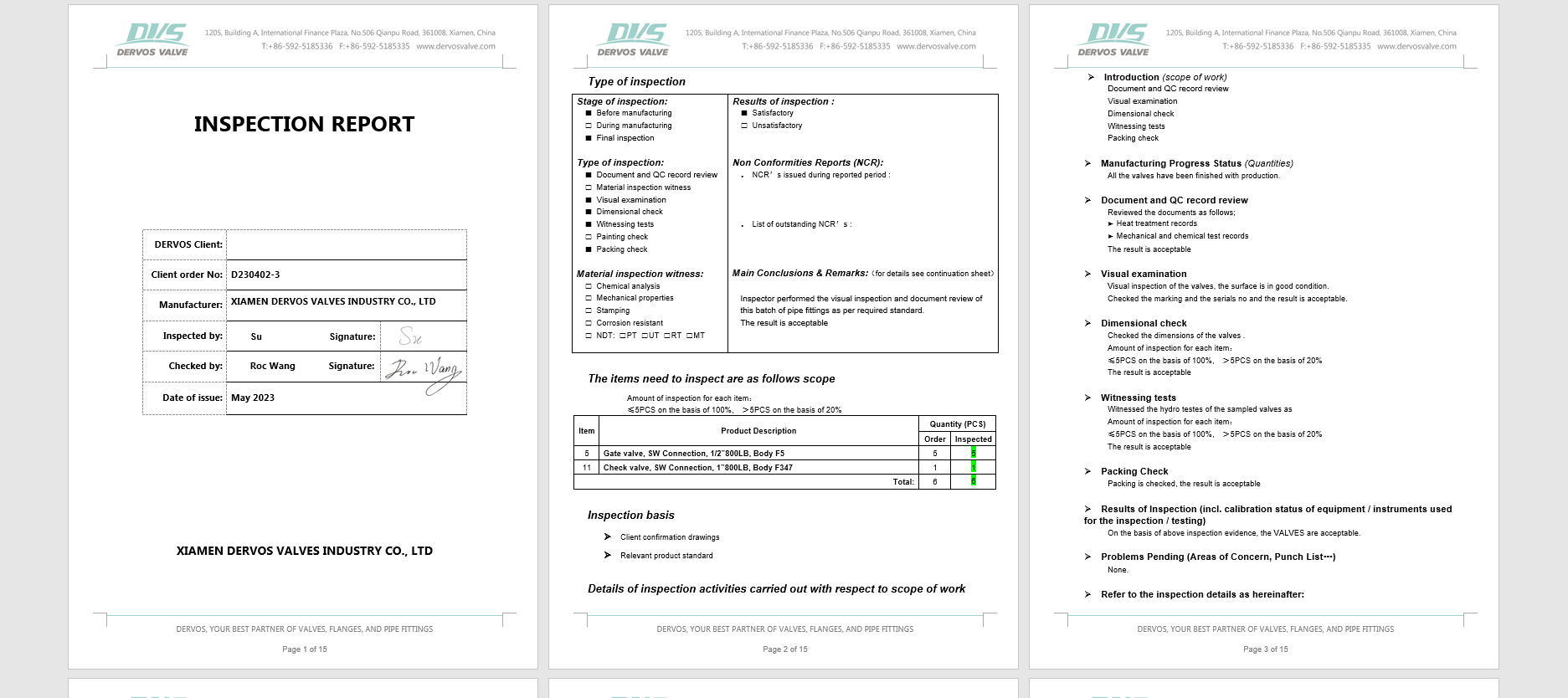

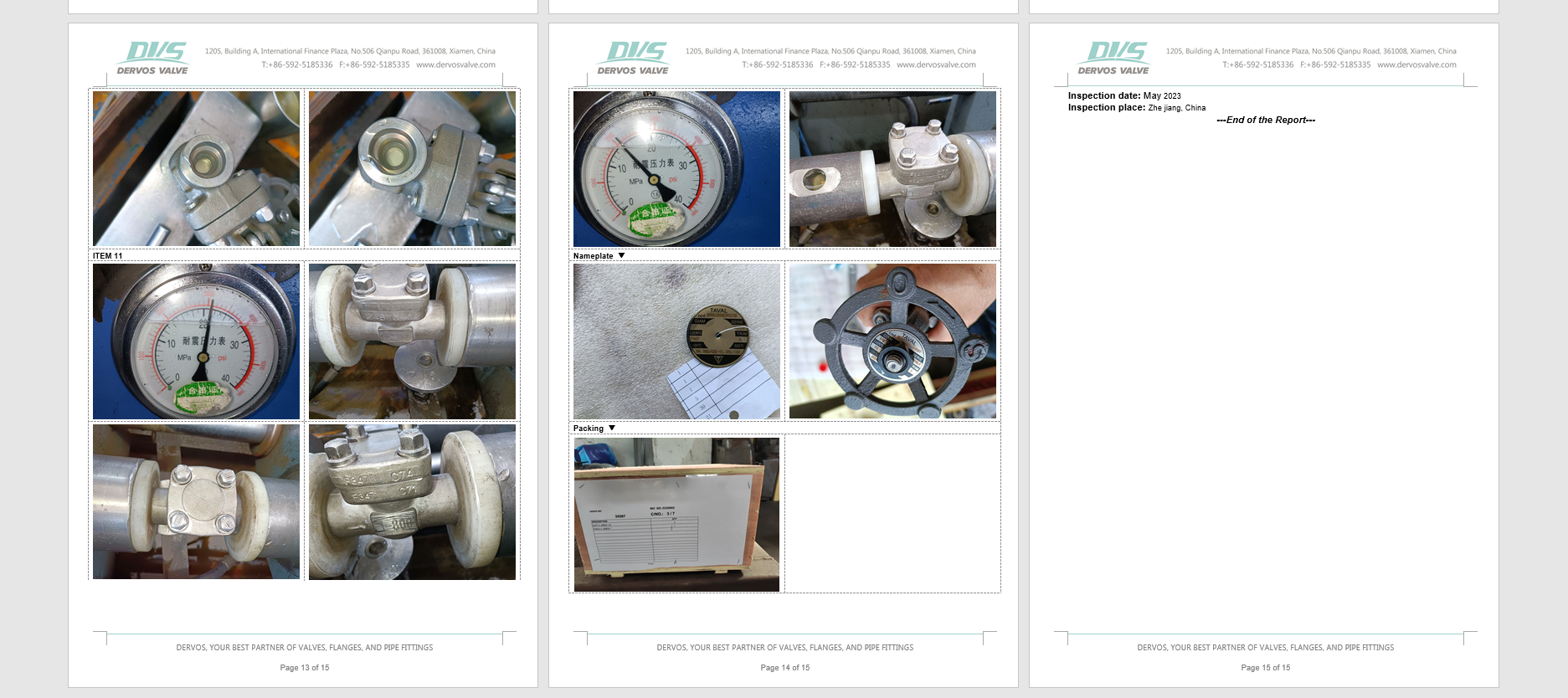

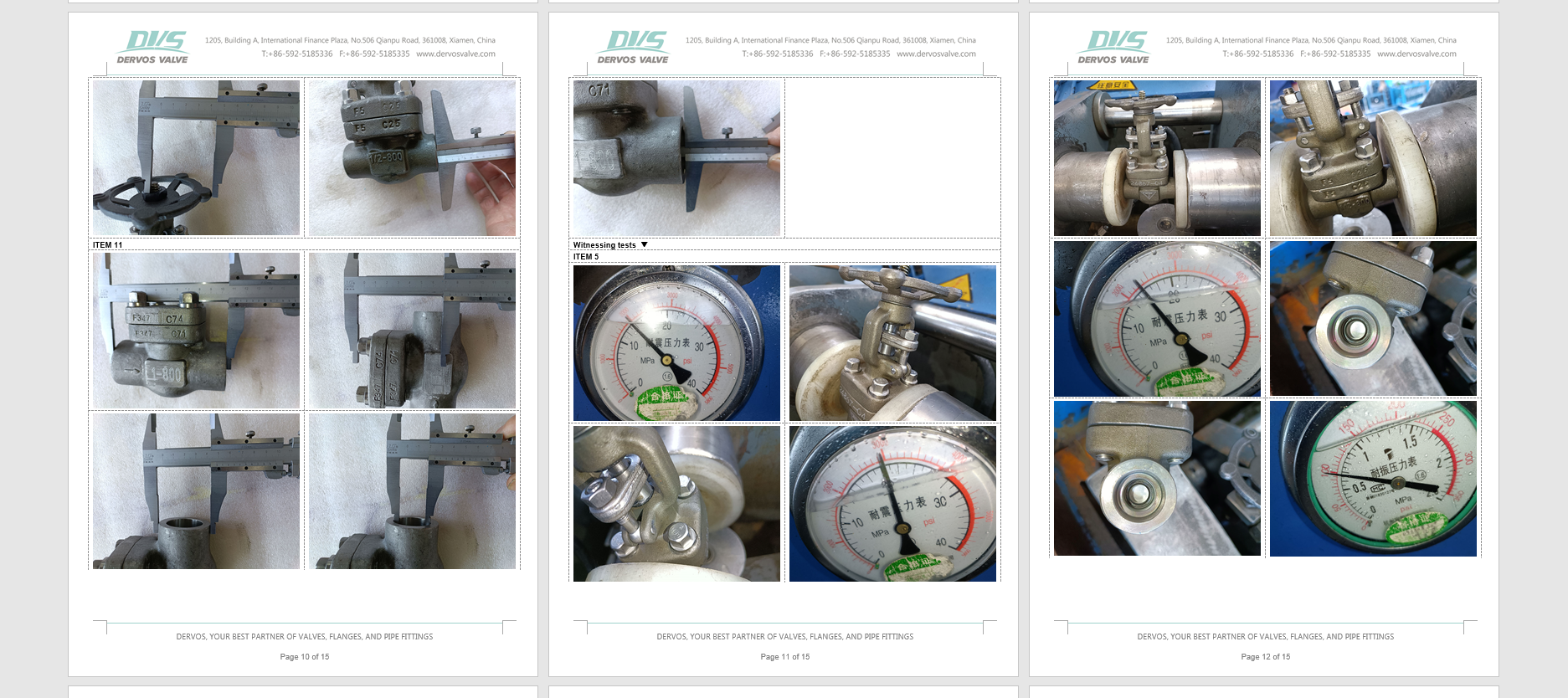

Inspection report
