Axial Flow Check Valve 2" 300LB CF8M API 6D
Key Specifications / Features
Model No.: Hits: 0
2" 300LB Axial Flow Check Valve is made according to API 6D standard. The valve body is made of A351 CF8M+STL. It has the structural characteristics of Vertical Installation. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Previous: 1" 800LB Lift Type Check Valve API602
Detail Information
Product Parameters
| Type | Axial Flow Check Valve |
| Size | 2” |
| Pressure | 300LB |
| Connection | RF |
| Body Material | A351 CF8M+STL |
| Design Norm | API 6D |
| Face to face | API 6D |
| End connection | ANSI B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -46 ~ 300°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Axial Flow Check Valve 2" 300LB CF8M API 6D provides low pressure drop and fast non-slam closure, ensuring reliable backflow prevention in corrosive media systems (axial flow check valve CF8M API 6D).2.Stainless Steel CF8M Check Valve 300LB delivers excellent corrosion resistance and stable sealing performance, ideal for chemical and offshore pipeline applications (2 inch 300LB axial check valve CF8M).

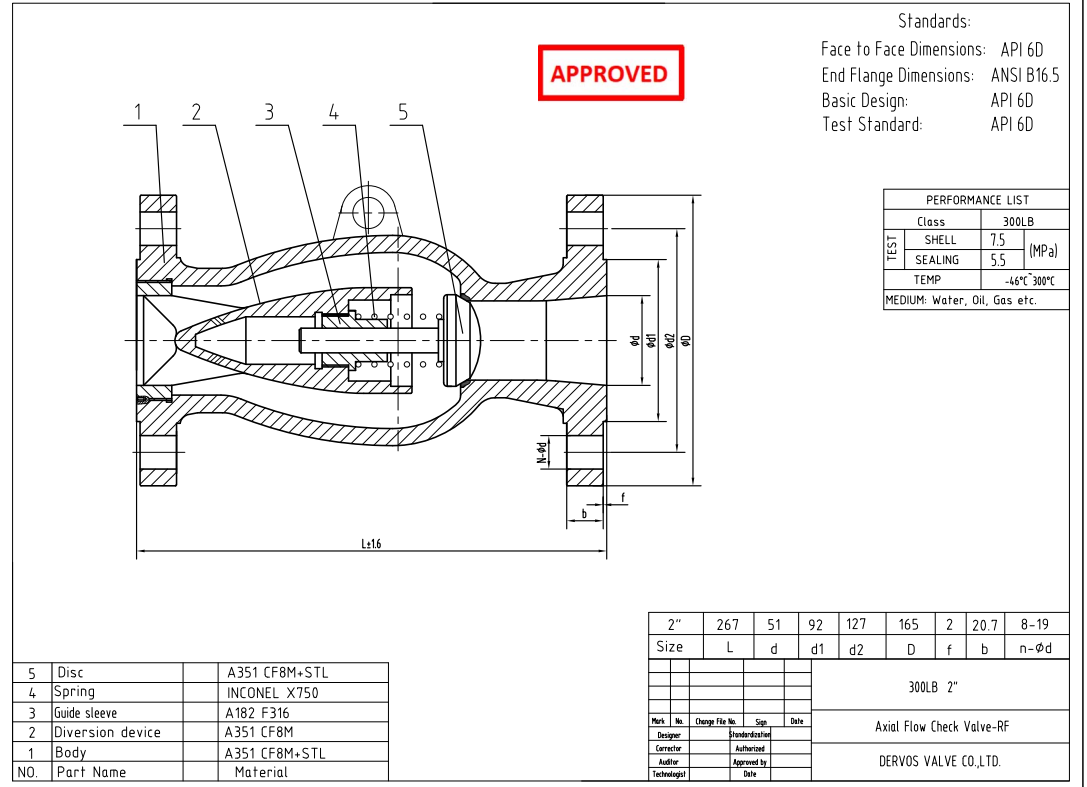

Technical Drawing

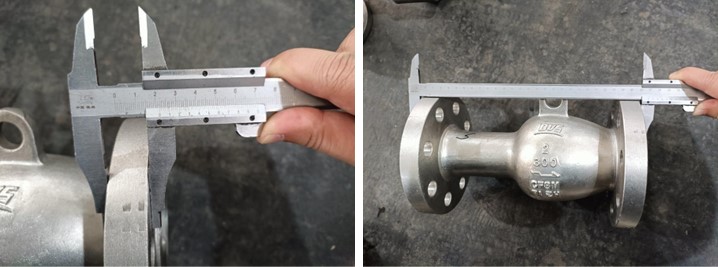

Dimension Checking

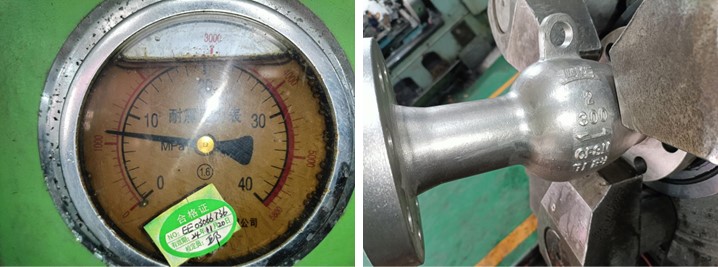

Pressure Testing

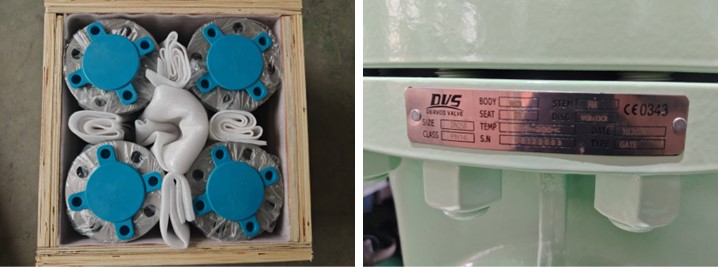

Nameplate & Packing

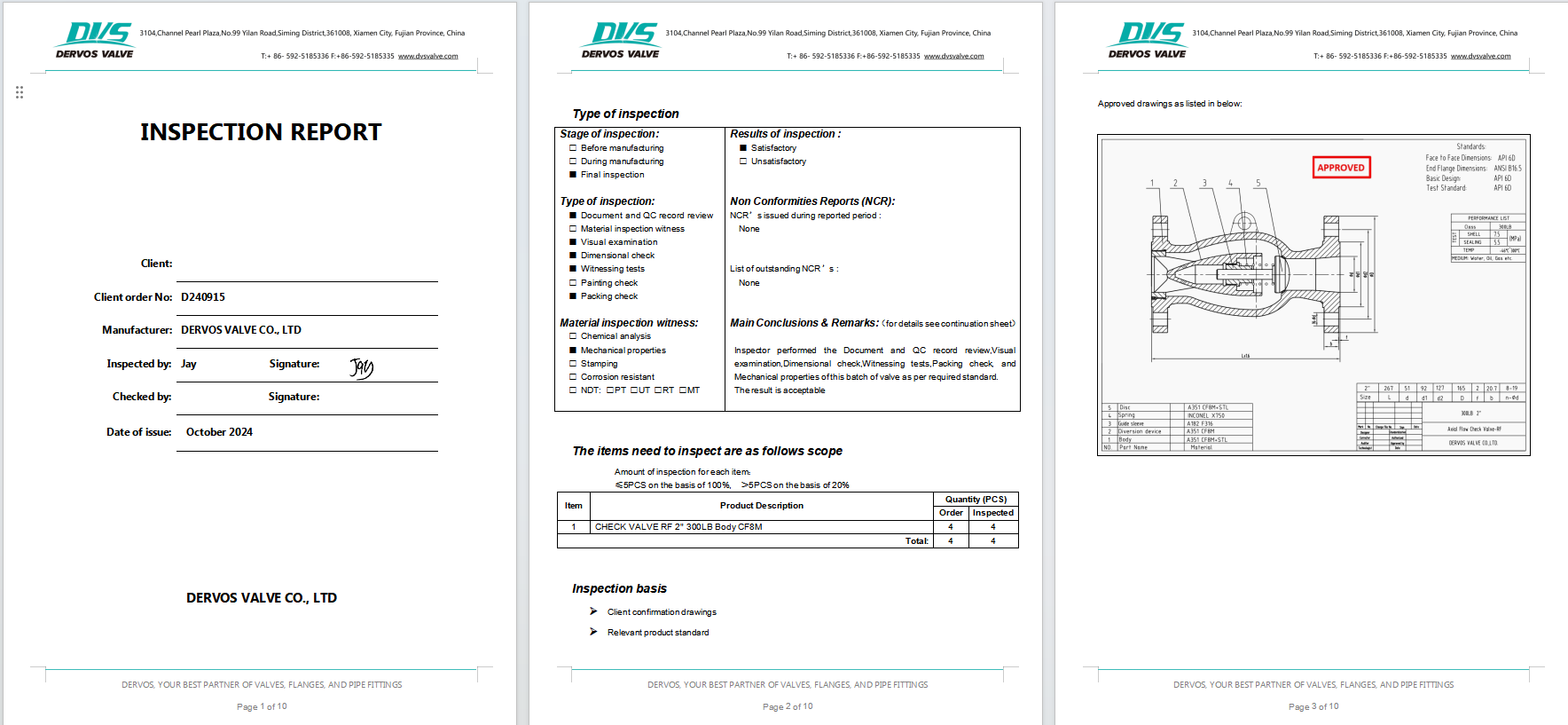

Inspection Report
