Lift Type Check Valve DN50 PN160 A105N EN1092-1D
Key Specifications / Features
Model No.: Hits: 0
DN50 PN160 Lift Type Check Valve is made according to BS 5352 standard. The valve body is made of A105N. It has the structural characteristics of Lift Type with Spring and structural length of 311mm,Service Medium: Moderately Acidic Hydrocarbon Condensate, Installation Orientation: Horizontal. Its connection mode is EN1092-1D.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Lift Type Check Valve |
| Size | DN500 |
| Pressure | PN160 |
| Connection | EN1092-1D |
| Body Material | A105N+STL |
| Design Norm | BS 5352 |
| Face to face | EN 558 |
| Flange dimension | EN 1092 |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Lift type check mechanism provides fast response and reliable backflow prevention in high-pressure PN160 systems.2. Forged A105N body with EN 1092-1 Type D flanged ends ensures excellent strength and secure pipeline connections.

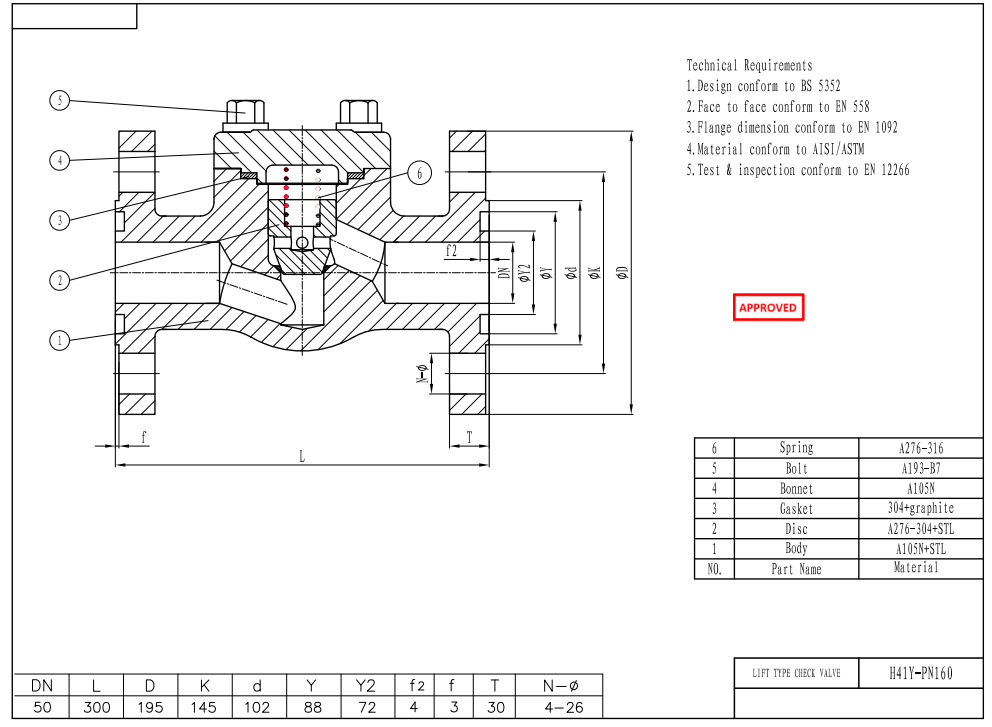

Technical Drawing

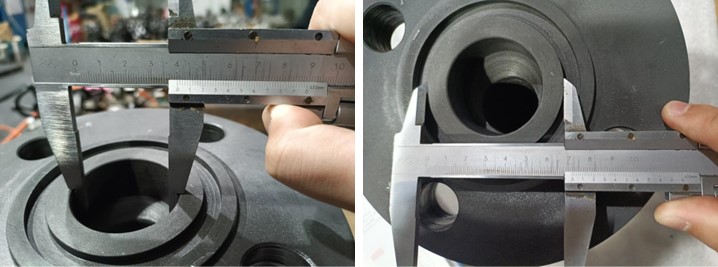

Dimension Checking

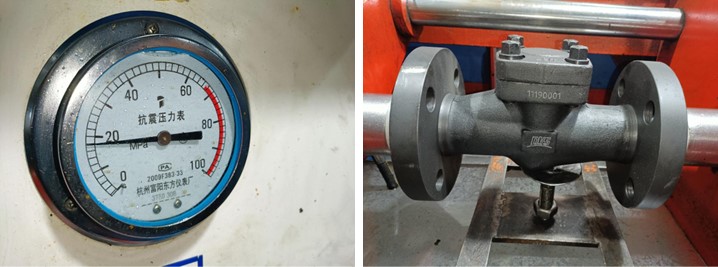

Pressure Testing

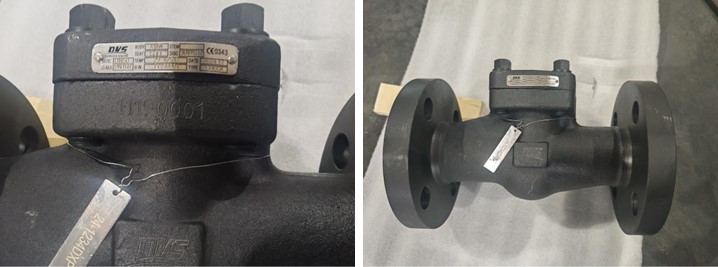

Nameplate & Packing

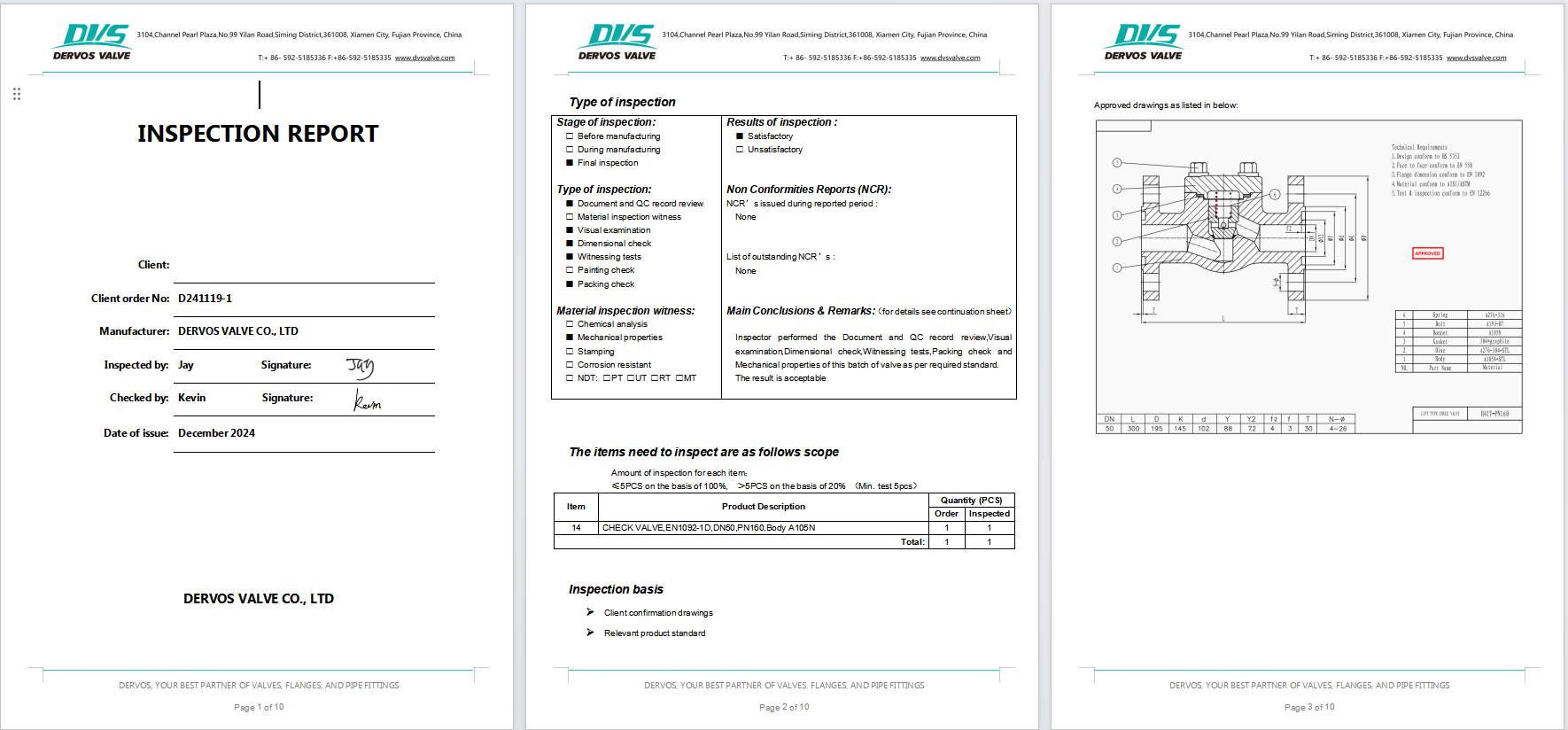

Inspection Report
