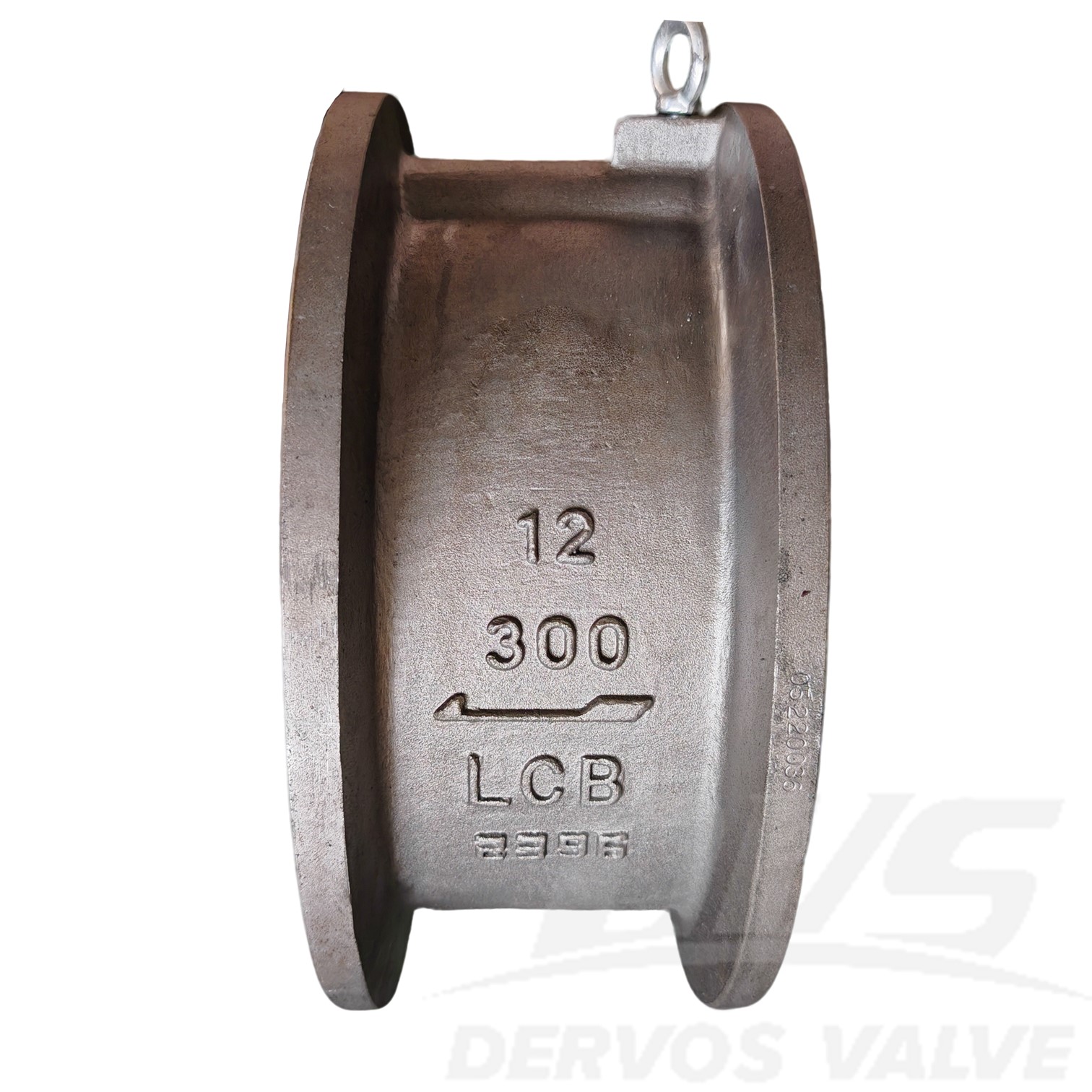

12" 300LB Dual Plate Wafer Type Check Valve API594 LCB
Key Specifications / Features
Model No.: Hits: 0
12" 300LB Dual Plate Wafer Type Check Valve is made according to ASME B16.34 standard. The valve body is made of A352 LCB. It has the structural characteristics of Dual Plate, In-line Type. Its connection mode is RF.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Dual Plate Wafer Type Check Valve |
| Size | 12” |
| Pressure | 300LB |
| Connection | RF |
| Body Material | A352 LCB |
| Design Norm | API 594 |
| Face to Face | API 594 |
| Flange end | ANSI B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 300°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Large-size dual plate wafer construction reduces installation space while maintaining fast, balanced closing action.2.Designed to API 594, ensuring dependable backflow prevention and stable performance in 300LB pipeline systems.

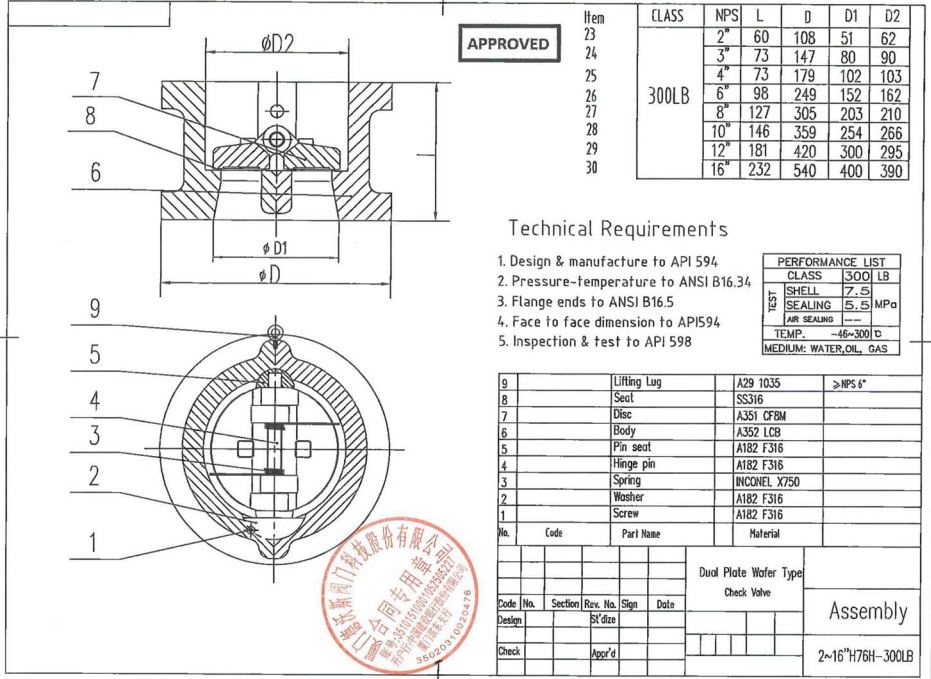

Technical Drawing

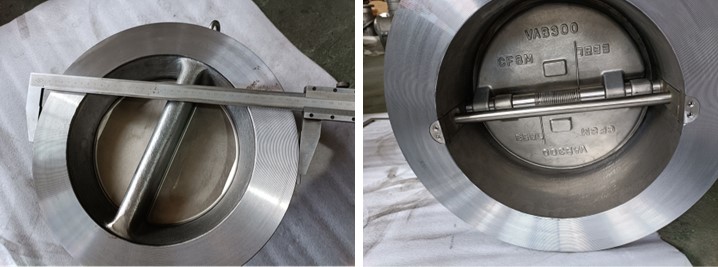

Dimension Checking

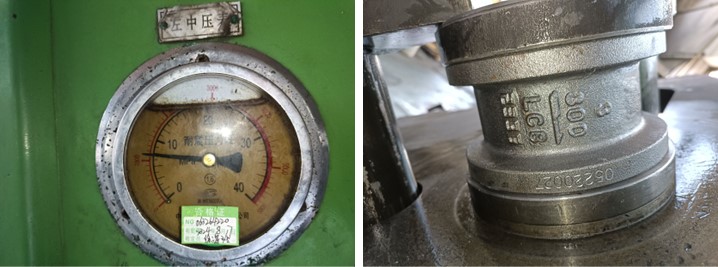

Pressure Testing

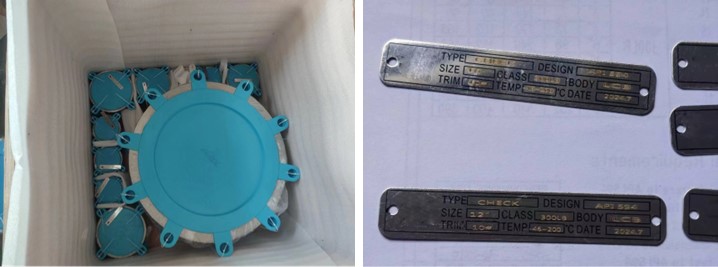

Nameplate & Packing

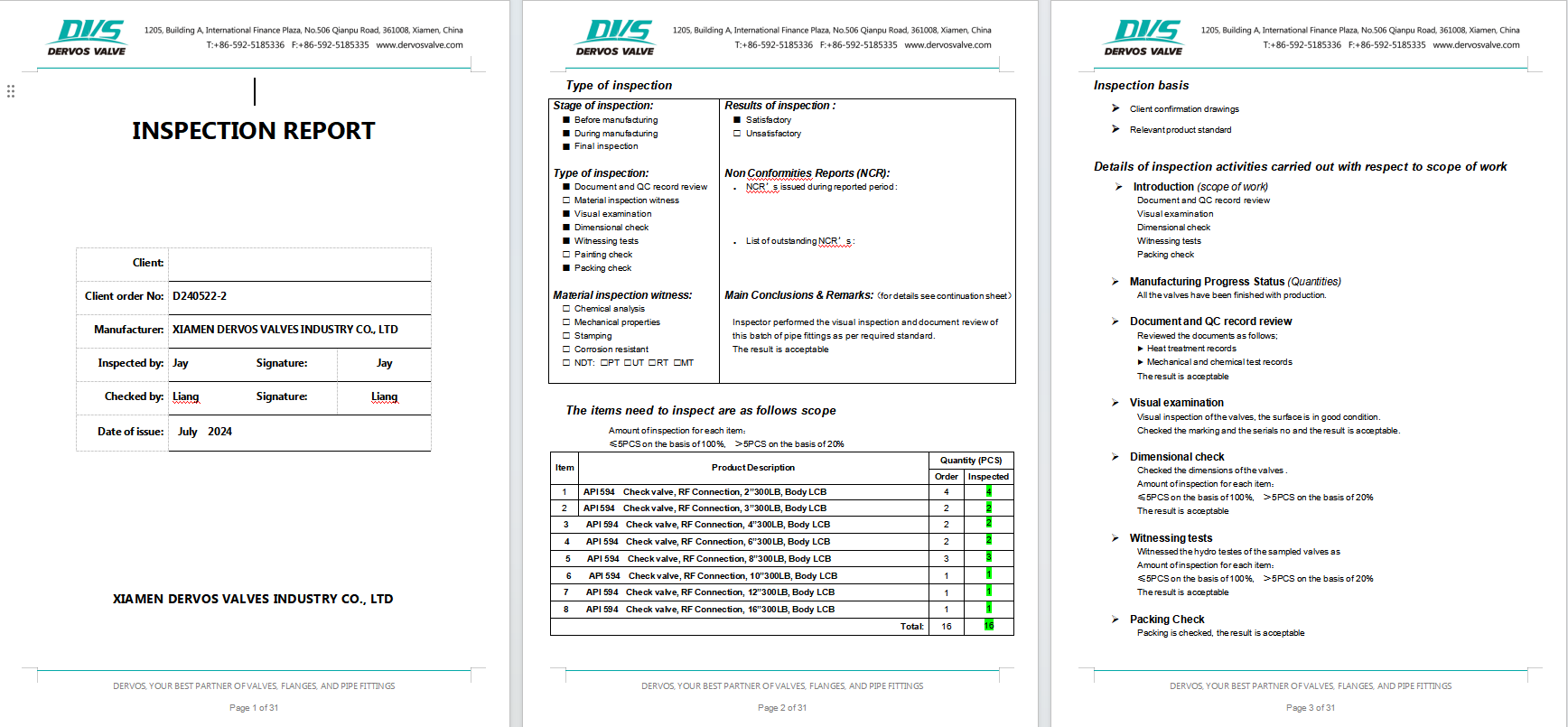

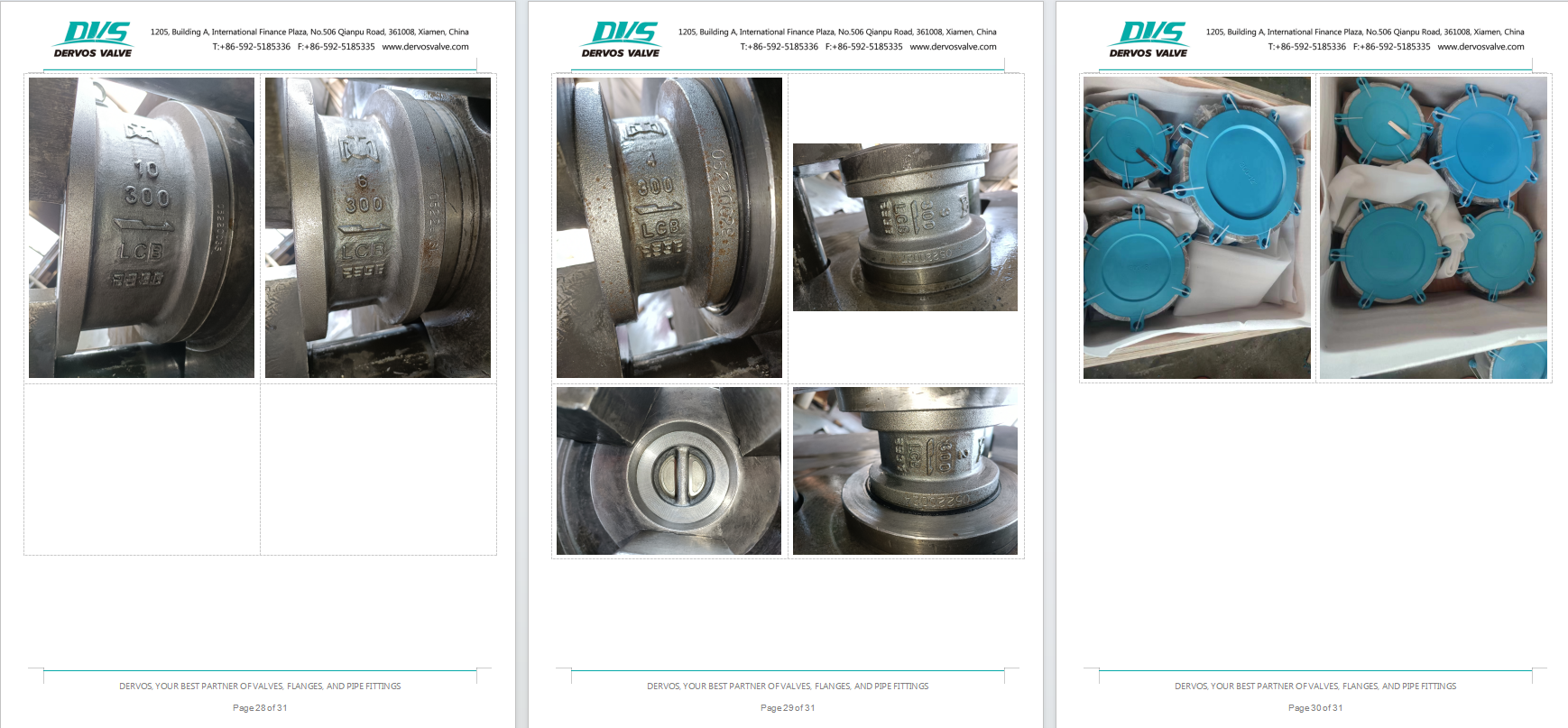

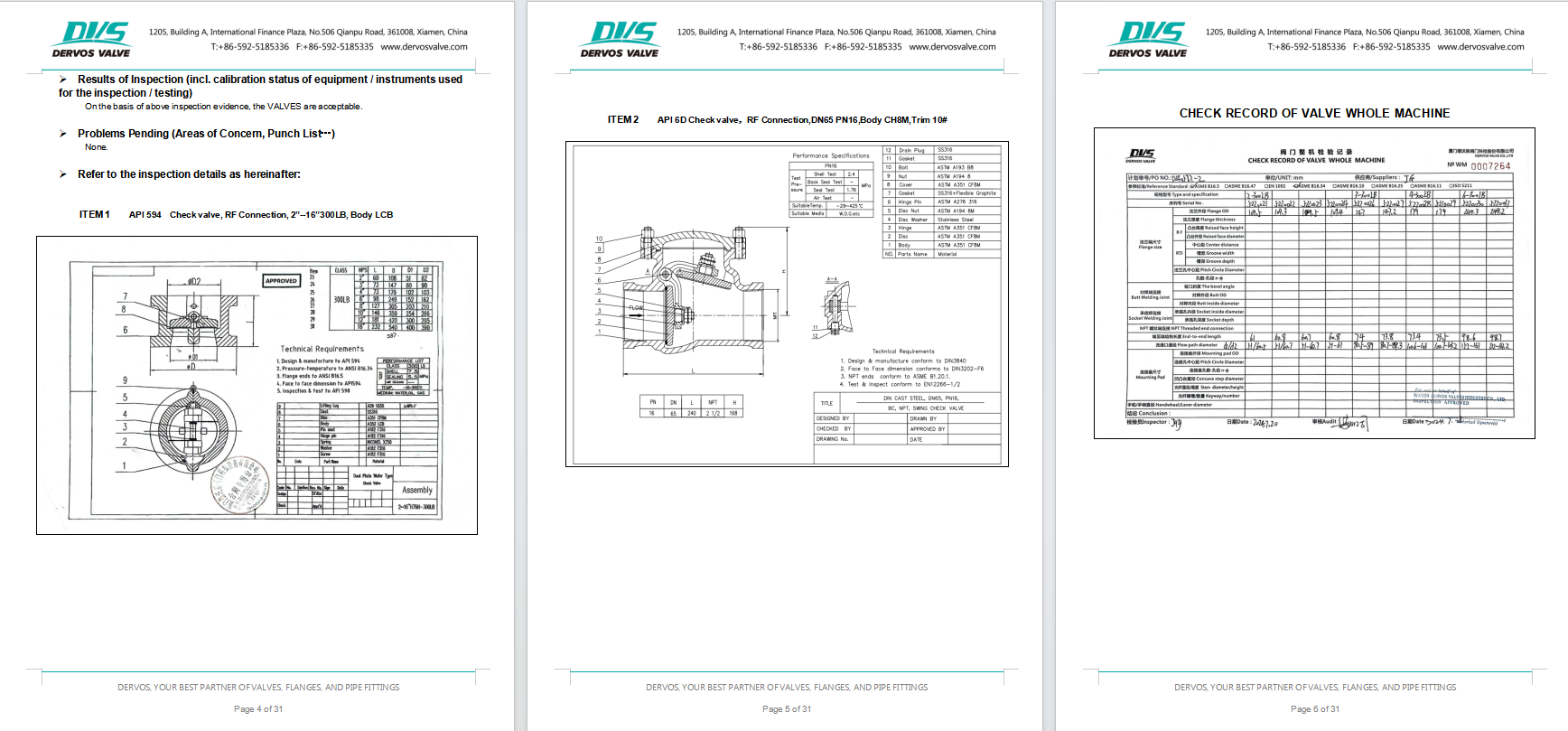

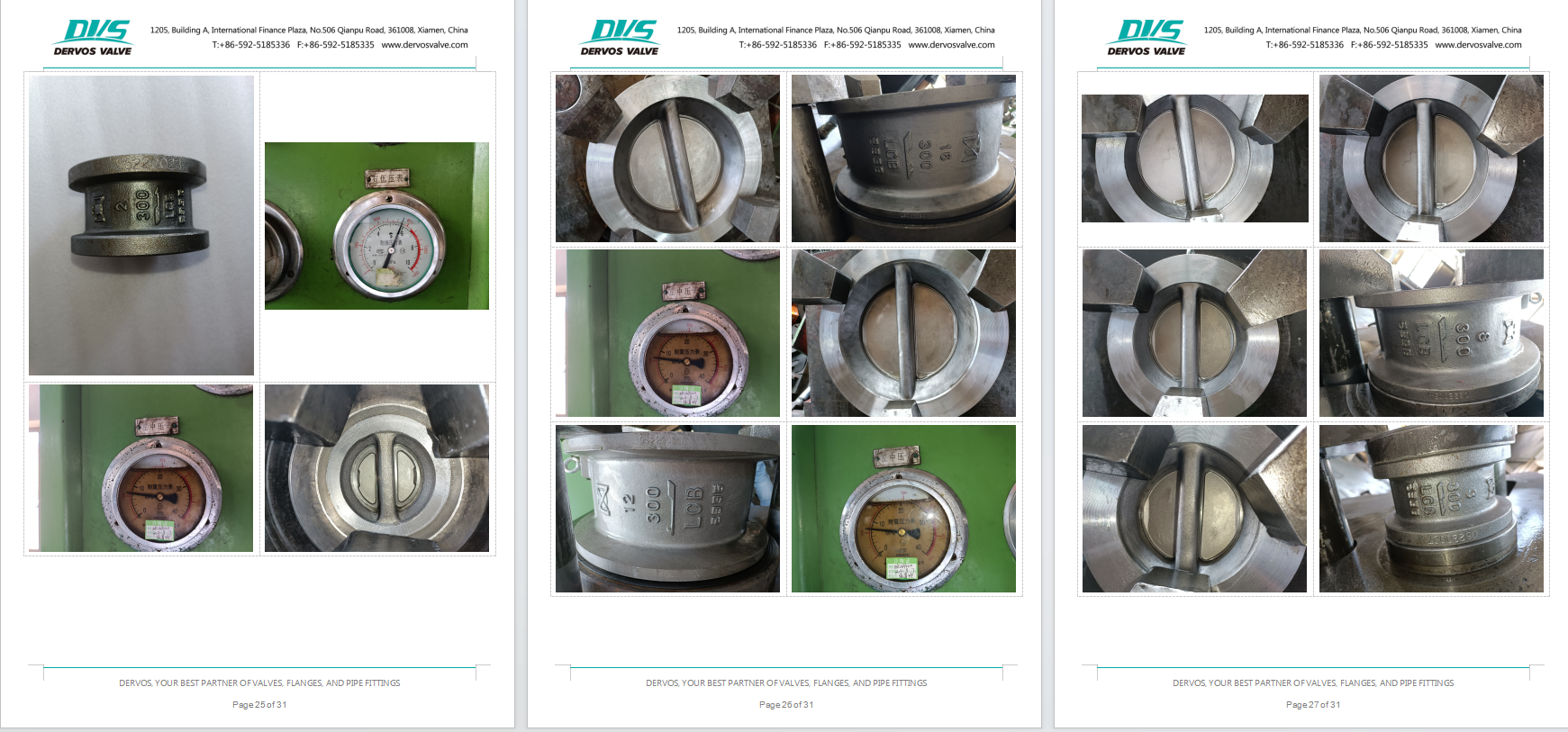

Inspection Report
