API598 2” 900LB Dual Plate Wafer Type Check Valve F5 RF

API598 2” 900LB Dual Plate Wafer Type Check Valve F5 RF
API598 2” 900LB Dual Plate Wafer Type Check Valve F5 RF

Key Specifications / Features

Model No.: Hits: 0

2” 900LB Dual Plate Wafer Type Check Valve is made according to API594 standard. The valve body is made of A182 F5+STL. It has the structural characteristics of Dual Plate. Its connection mode is RF.
Request a quote

Next: 12" 300LB Dual Plate Wafer Type Check Valve API594 LCB

Previous: 4" 150LB Dual Plate Wafer-Lug Type Check Valve WCB API 594

Detail Information

Product Description

Type Wafer Type Check Valve
Size 2"
Pressure 900LB
Connection RF
Body Material A182 F5+STL
Design Norm API 594
Face to Face API594
Flange Dimension ASME B16.5
Test & Inspection Code API 598
Temperature -29 ~ 425°C
Applicable Medium Water, Oil and Gas

Features

1.Constructed from F5 alloy steel, this 2” dual plate wafer check valve provides excellent corrosion resistance and durability under 900LB pressure.
2.Designed with RF (Raised Face) flange connections and tested to API 598, it ensures reliable one-way flow control and tight sealing performance.

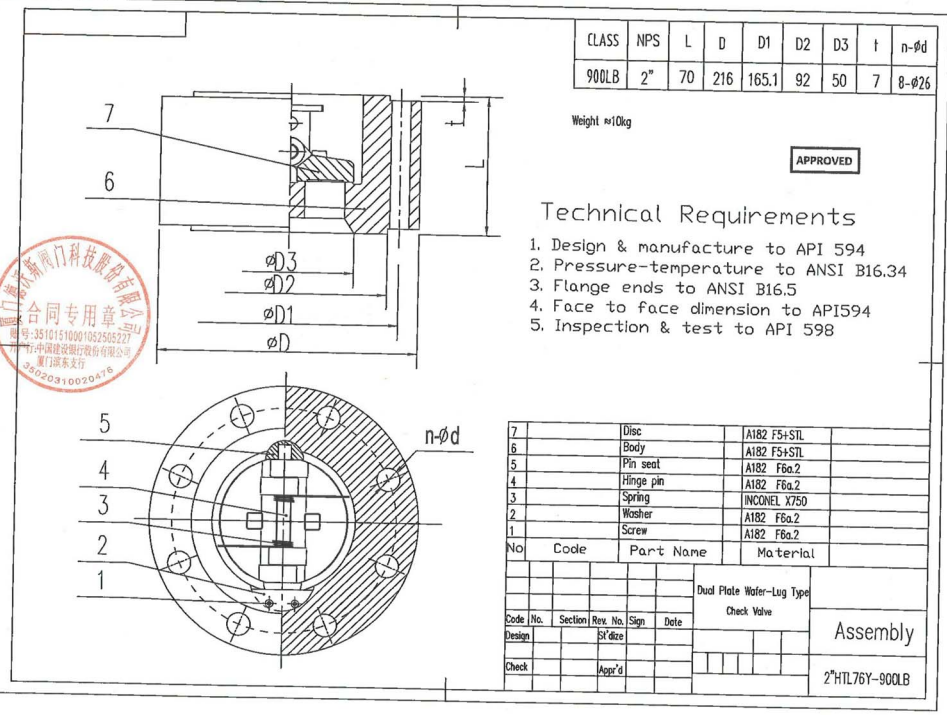

Technical Drawing

Wafer Type Check Valve

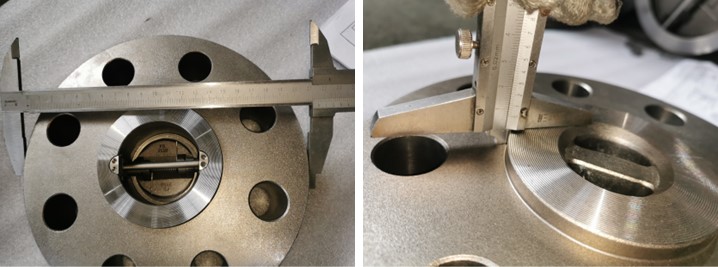

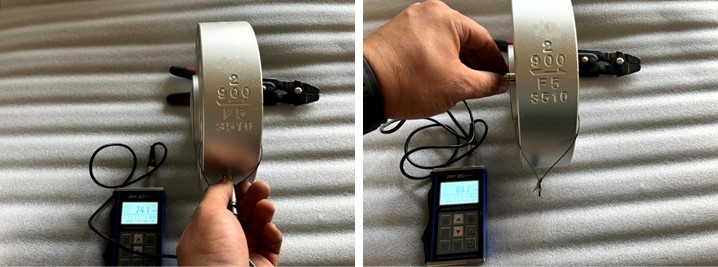

Dimension Checking

Wafer Type Check Valve

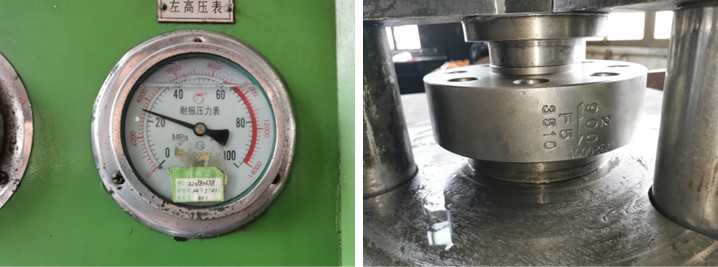

Pressure Testing

Wafer Type Check Valve

Painting

Wafer Type Check Valve

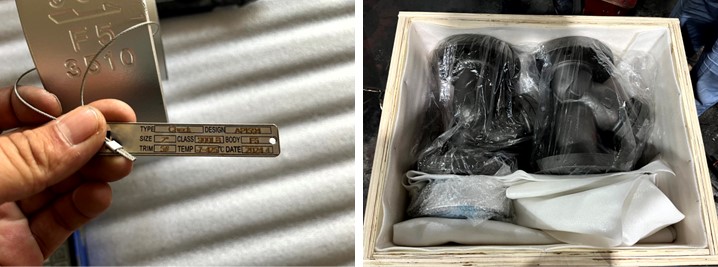

Nameplate & Packing

Wafer Type Check Valve

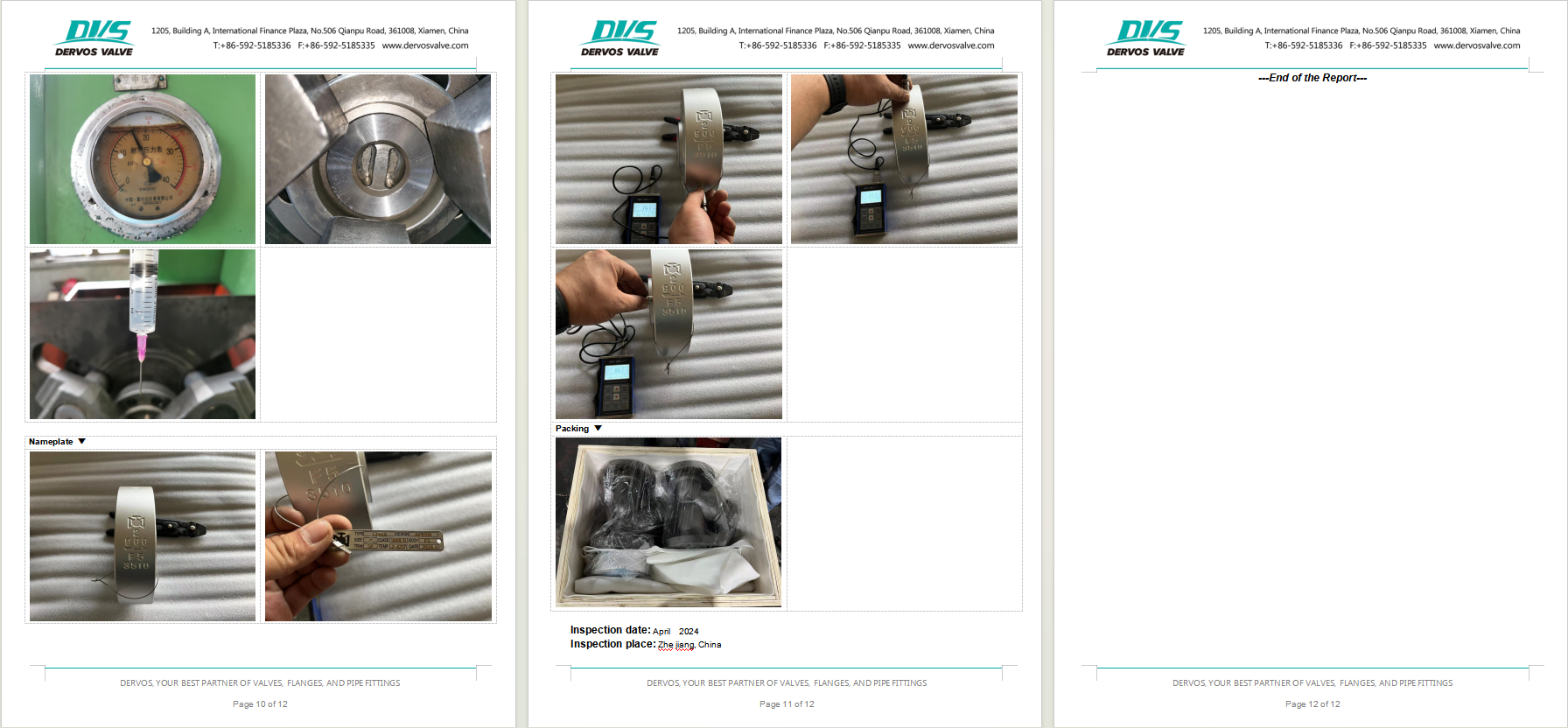

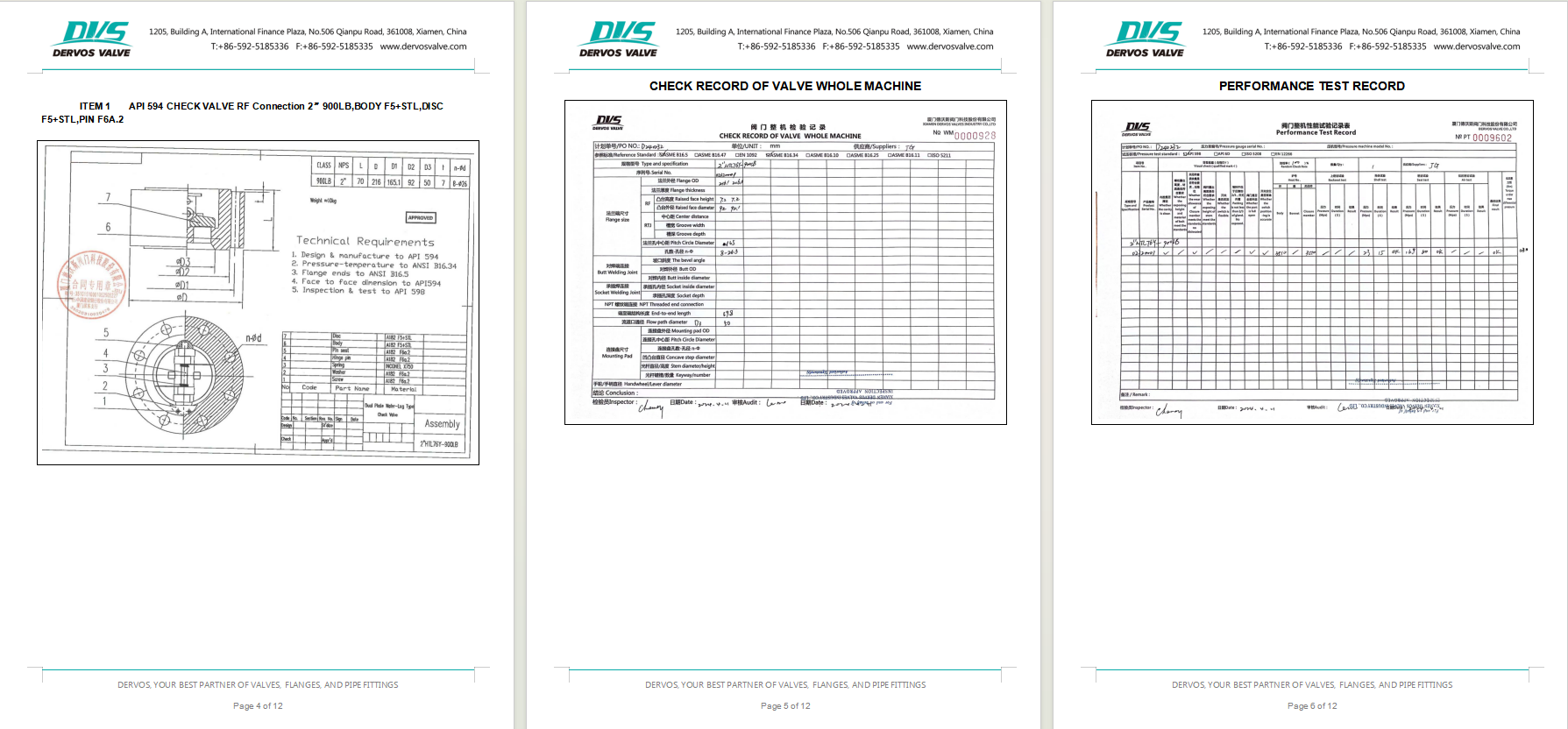

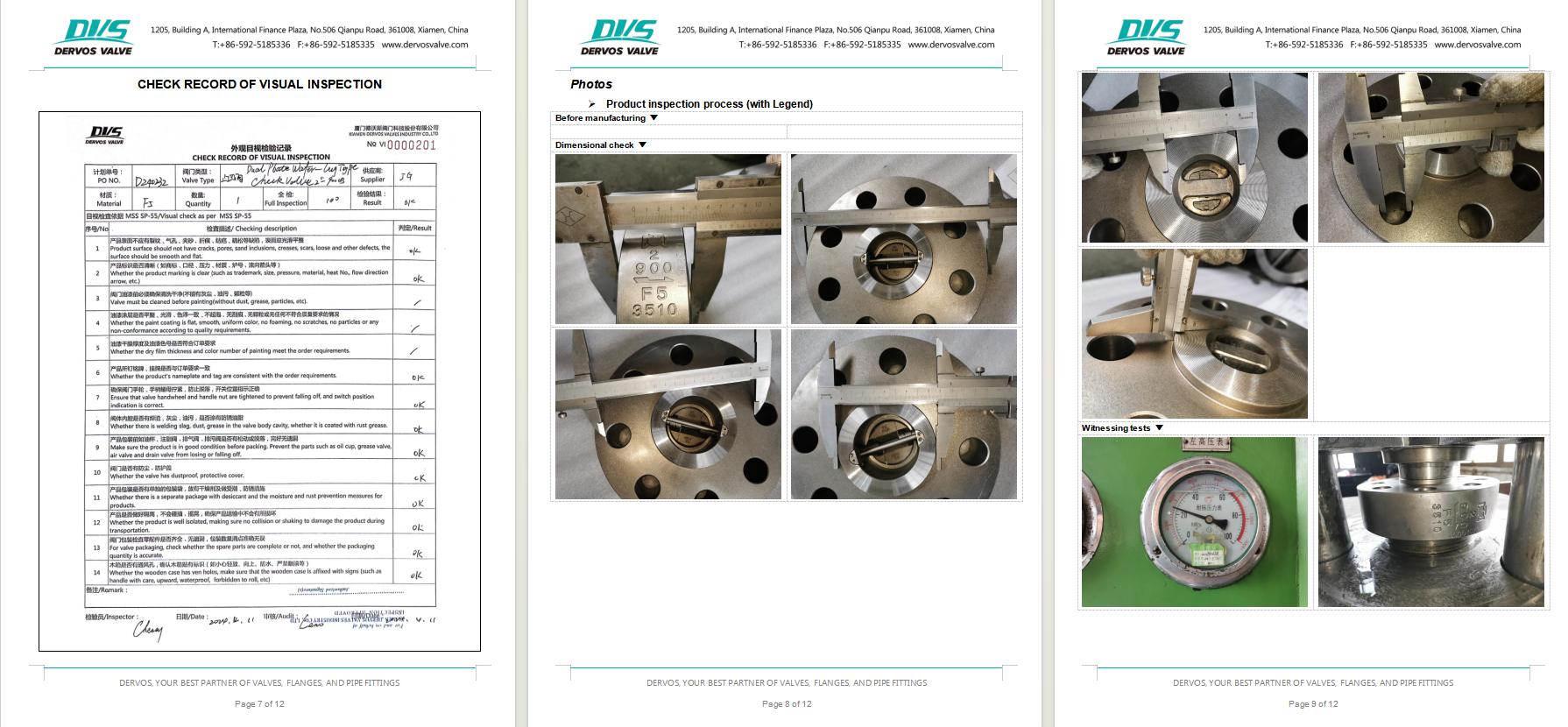

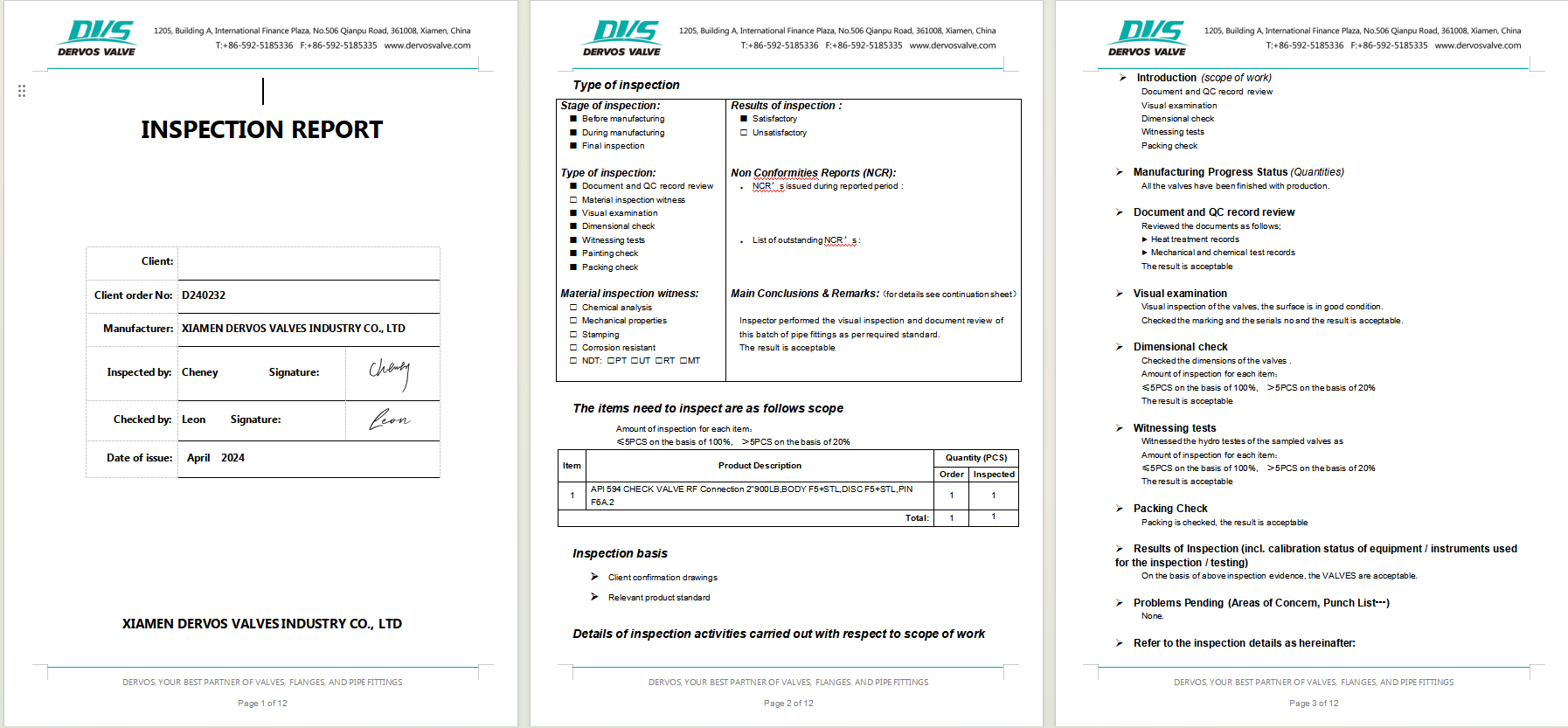

Inspection Report

Wafer Type Check ValveWafer Type Check ValveWafer Type Check ValveWafer Type Check Valve
