2" 900LB Forged Steel Flange Globe Valve API602 F316L Hand Wheel
Key Specifications / Features
Model No.: Hits: 0
2" 900LB Forged Steel Flange Globe Valve is made according to API602 standard. The valve body is made of A182-F316L. It has the structural characteristics of Straight-through Type, Bolted Bonnet, Fire-safe, compliant with NACE MR-0175. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Forged Steel Flange Globe Valve |
| Size | 2" |
| Pressure | 900LB |
| Connection | RF |
| Operation | Hand wheel |
| Body Material | A182-F316L |
| Design Norm | API 602 |
| Face to Face | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -20~ 800°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged from F316L stainless steel, providing excellent corrosion resistance and durability for 900LB pressure systems.2.Globe valve with flange connection and hand wheel operation, compliant with API 602, ensures precise flow control and reliable shutoff.

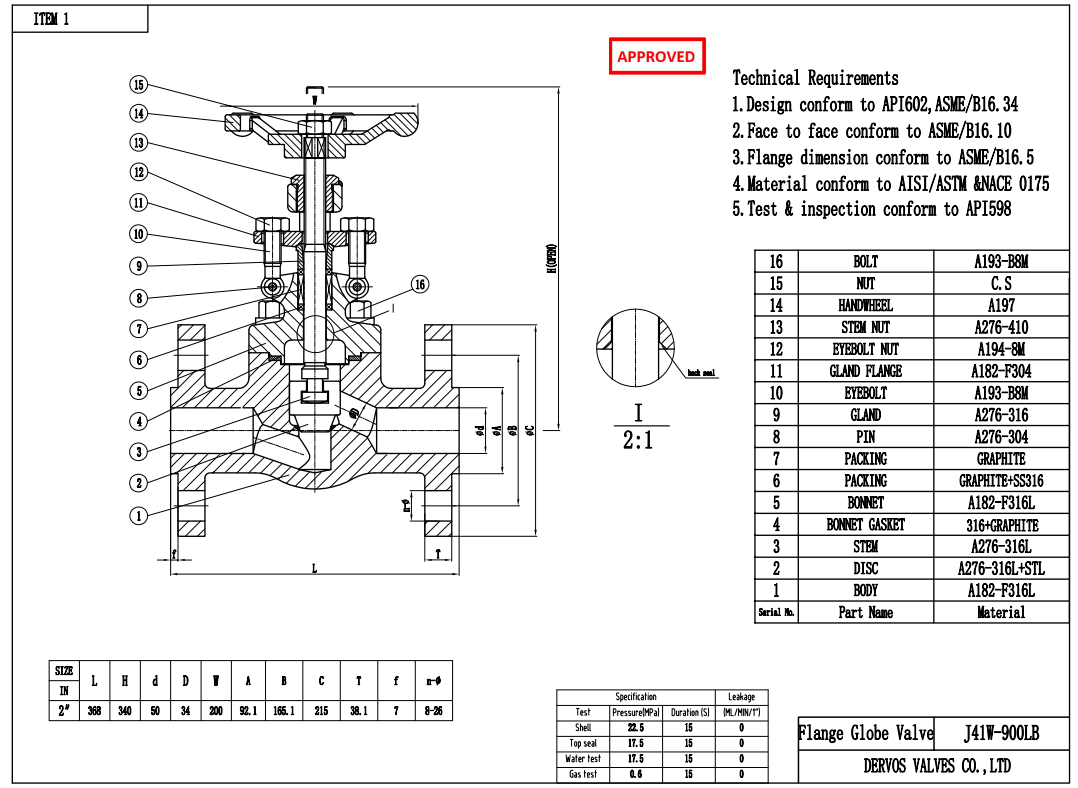

Technical Drawing

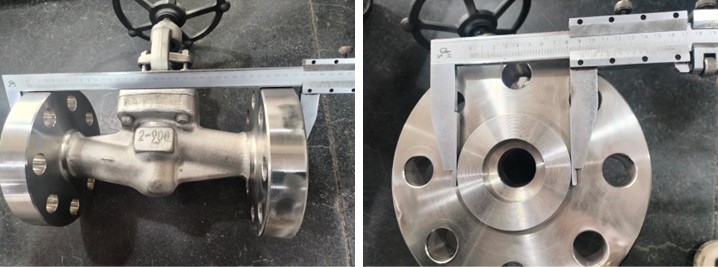

Dimension Checking

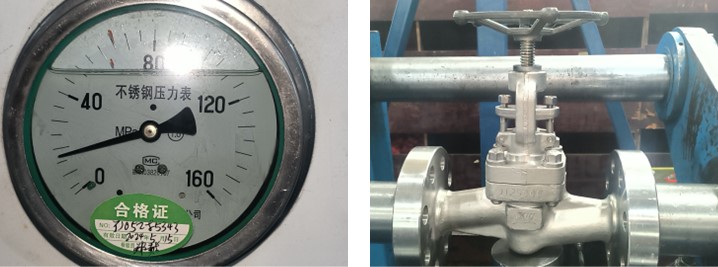

Pressure Testing

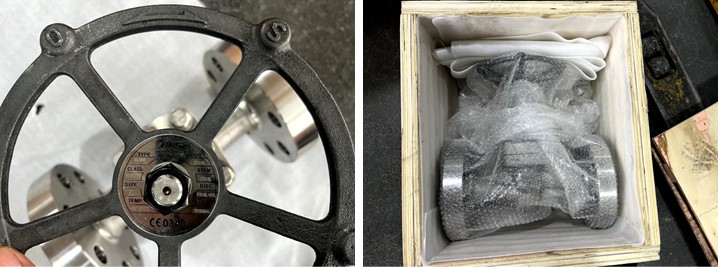

Nameplate & Packing

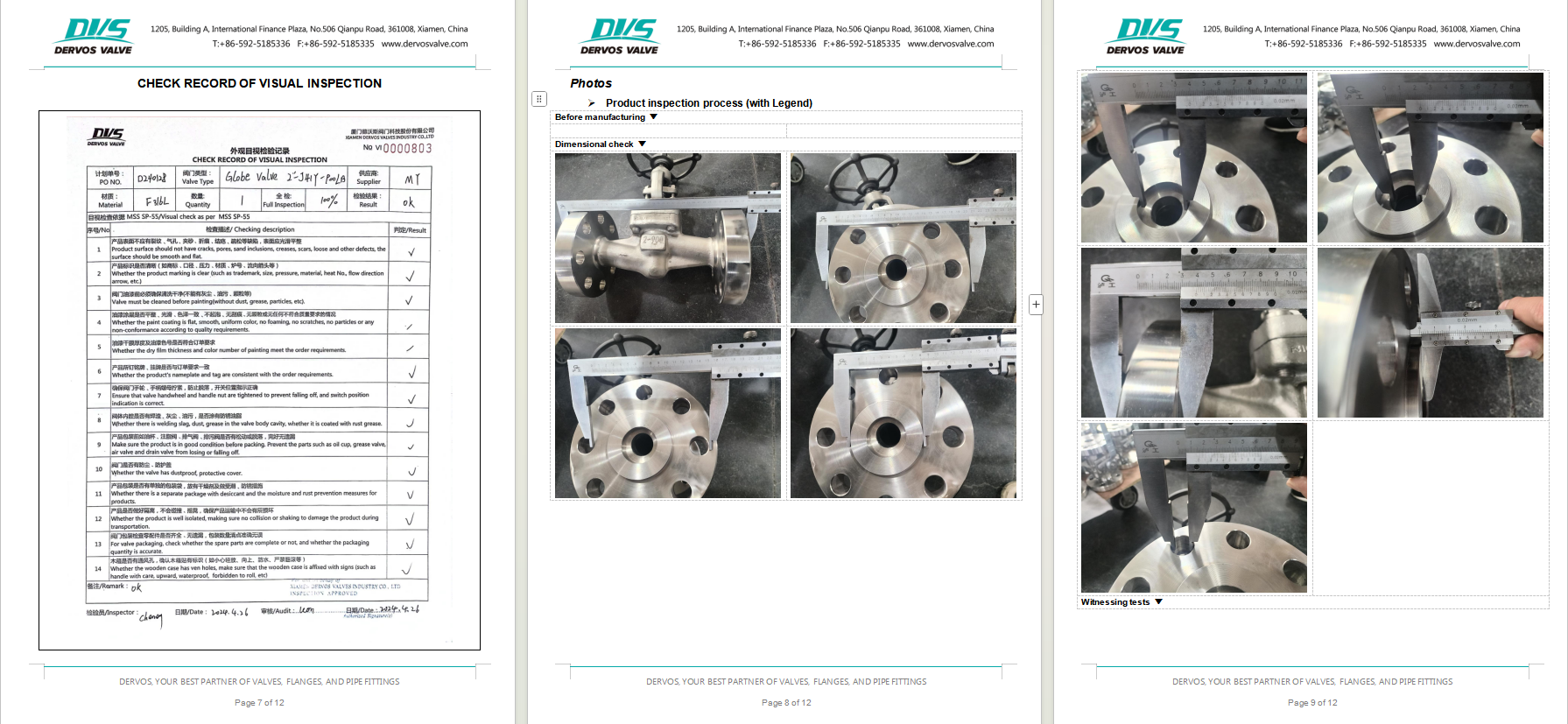

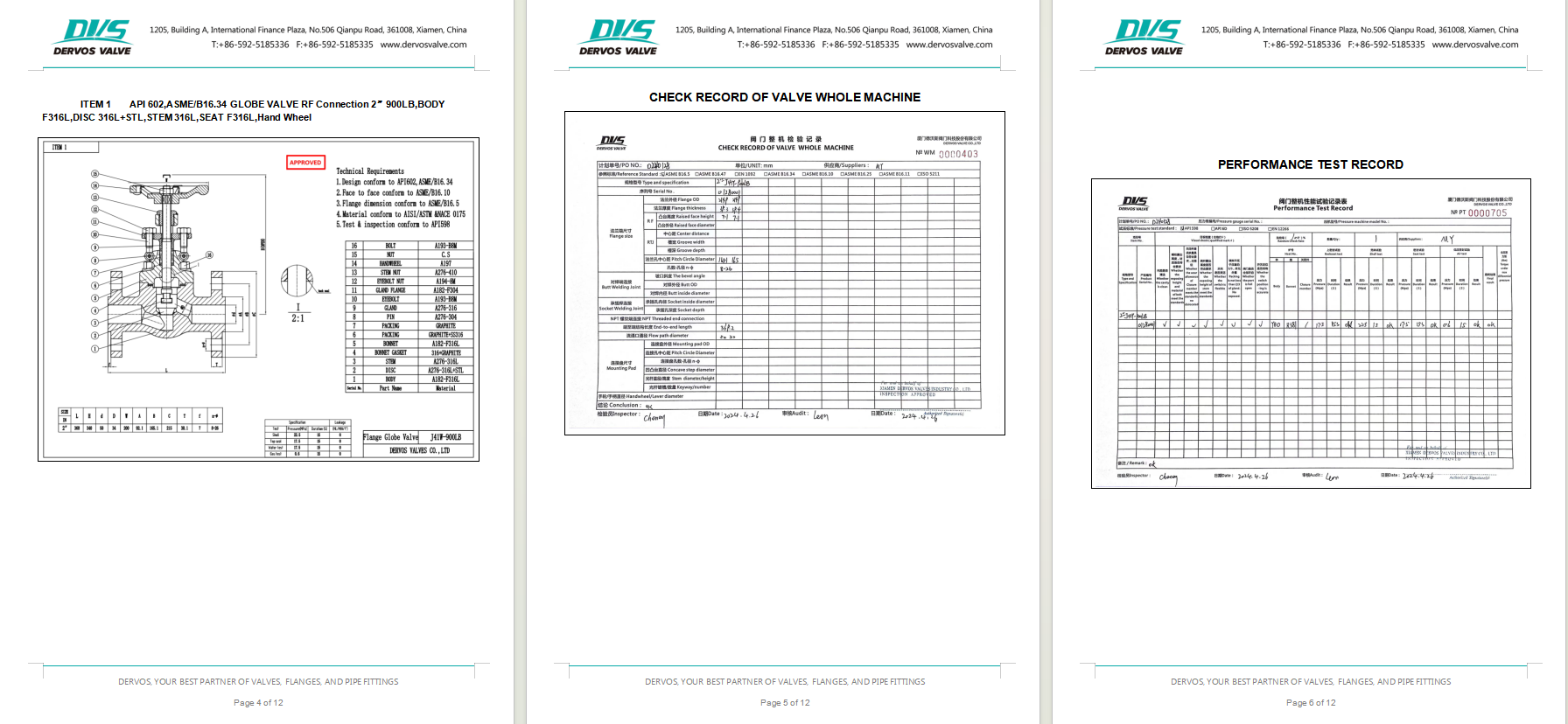

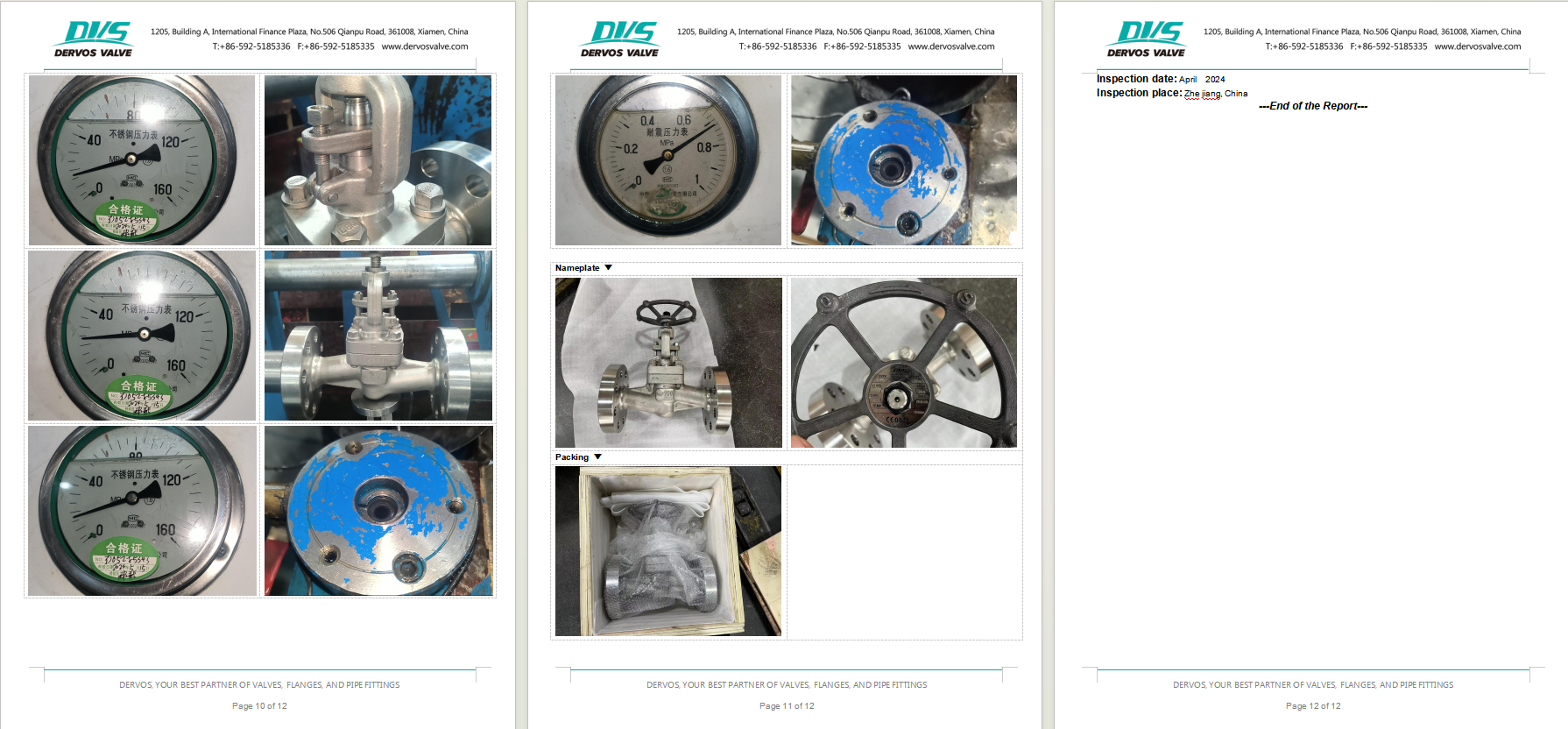

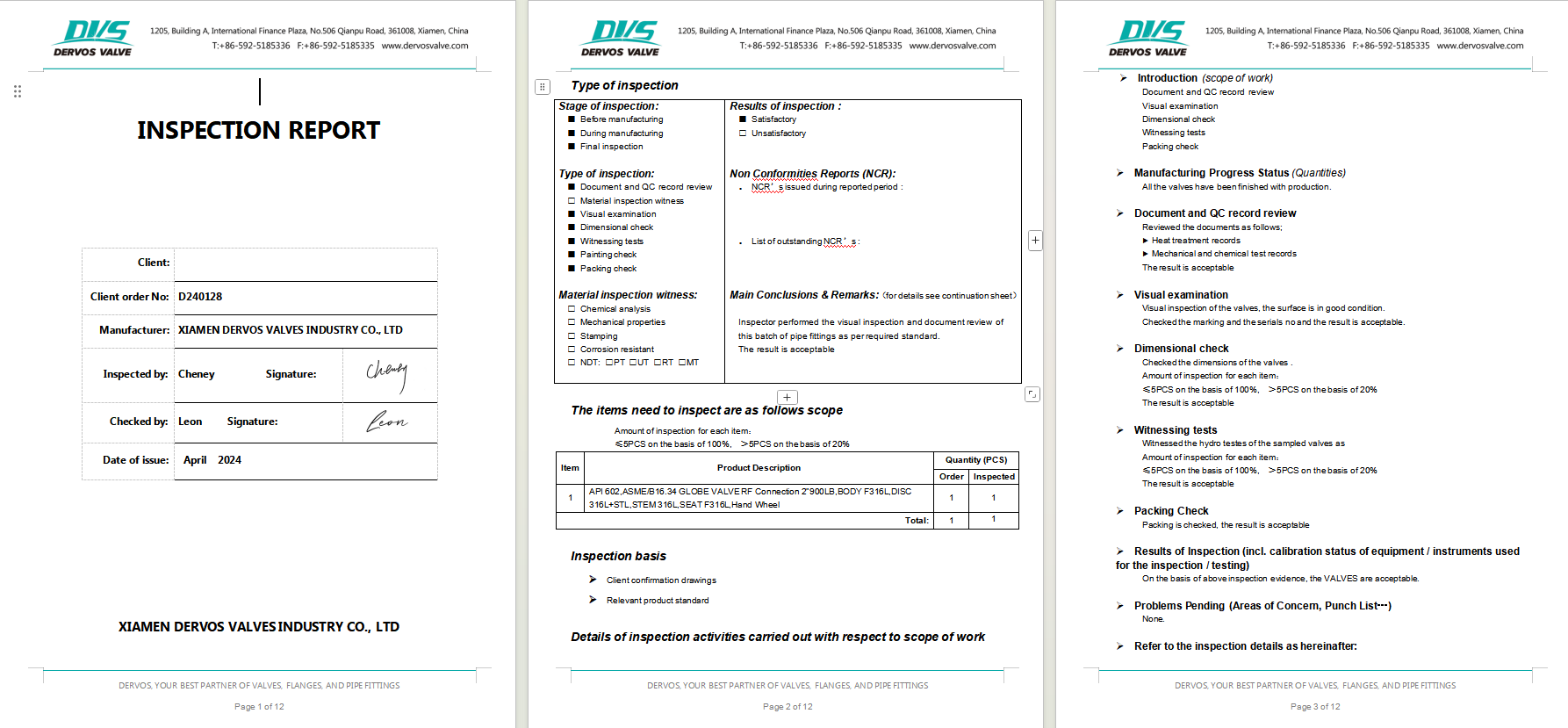

Inspection Report
