3" 150LB Y Type Strainer ASME B16.34 RF
Key Specifications / Features
Model No.: Hits: 0

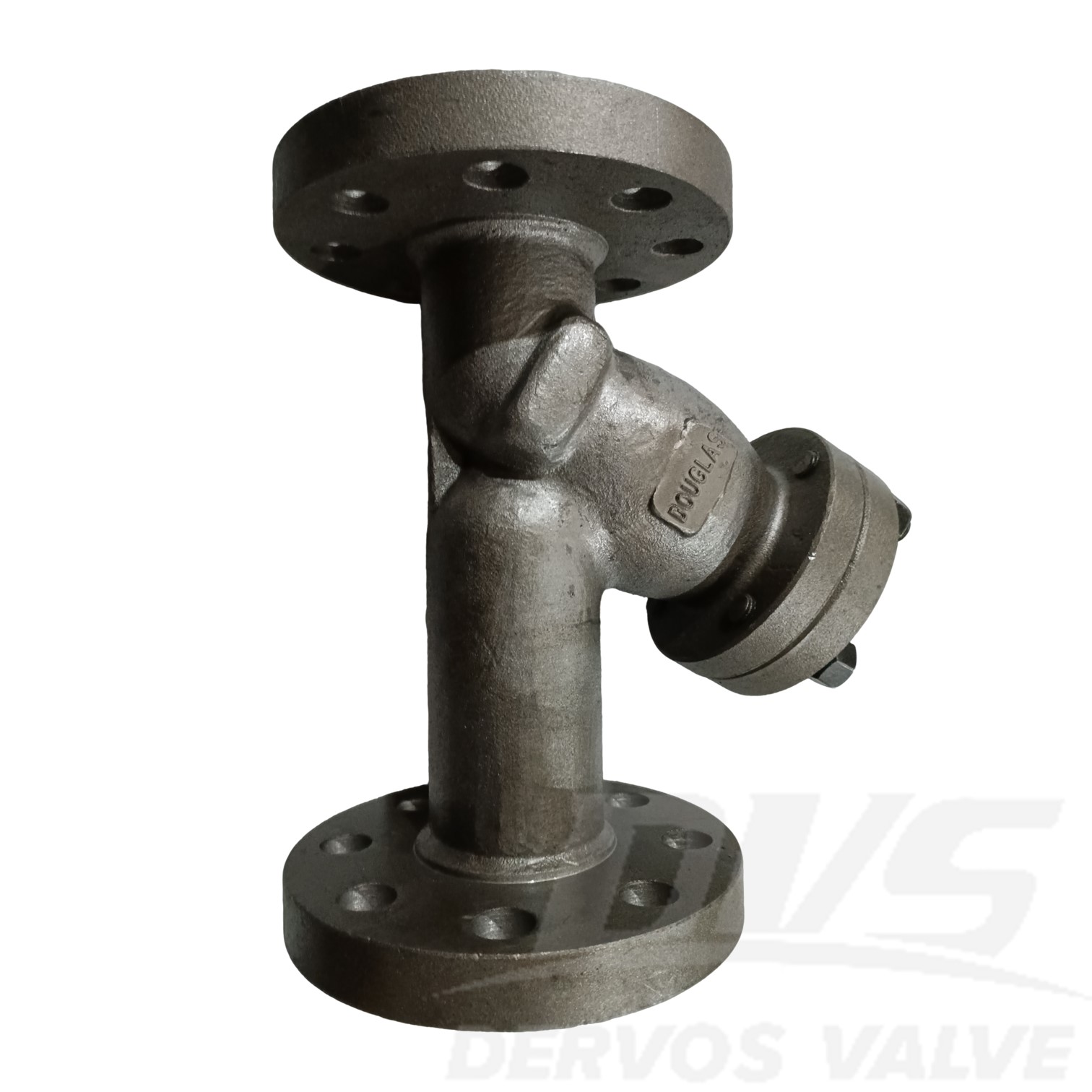

3" 150LB Y Type Strainer is made according to ASME B16.34 standard. The valve body is made of CF8M/F316. It has the structural characteristics of Y Type. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Y Type Strainer |
| Size | 3” |
| Pressure | 150LB |
| Connection | RF |
| Body Material | ASTM A351 CF8M |
| Design Norm | ASME B16.34 |
| Face to Face Dimensions | ASME B16.34 |
| Flange Ends Dimensions | ASME B16.10 |
| Test & Inspection Code | API 598 |
| Temperature | -80 ~ 350°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Y-type strainer design efficiently removes debris, protecting downstream equipment and maintaining system reliability.2.RF flange construction compliant with ASME B16.34 ensures secure installation and easy maintenance in 150LB pressure systems.

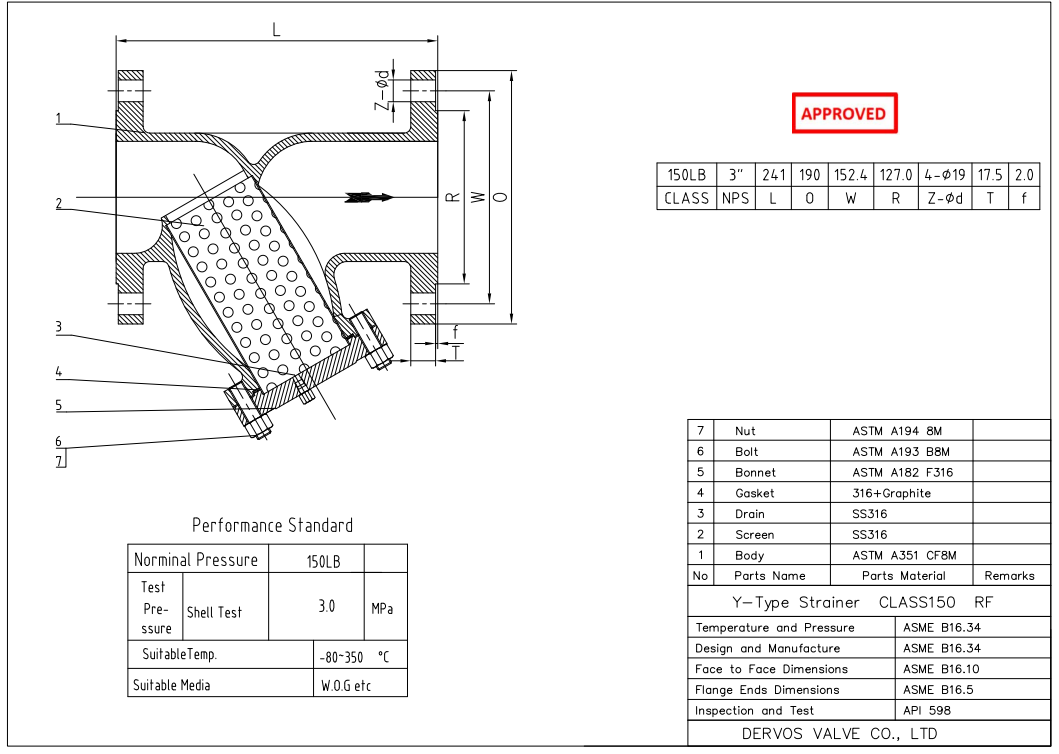

Technical Drawing

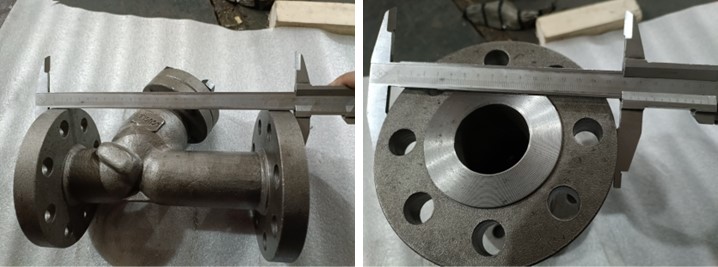

Dimension Checking

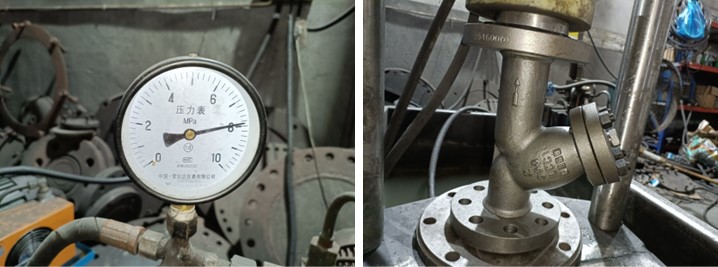

Pressure Testing
