4" 125LB Y Strainer A395 FF ASME B16.34
Key Specifications / Features
Model No.: Hits: 0
4" 125LB Y Strainer is made according to ASME B16.34 standard. The valve body is made of Ductile Iron A395. It has the structural characteristics of Y-type, Body-Bonnet Bolted Connection. Its connection mode is FF.
Request a quote
Tags:
Next: Return to List
Previous: 3" 150LB Y Type Strainer ASME B16.34 RF
Detail Information
Product Parameters
| Type | Y Strainer |
| Size | 4” |
| Pressure | 125LB |
| Connection | FF |
| Body Material | Ductile Iron A395 |
| Design Norm | ASME B16.34 |
| Face to Face | MFR's standard |
| Flange dimension conforms | ASME B16.10 |
| Test & Inspection Code | API 598 |
| Temperature | -10 ~ 110°C |
| Applicable Medium | Water, Oil and Steam |
Features
1.Made from A395 ductile iron, offering excellent strength and resistance to impact and wear in 125LB pressure systems.2.Y-strainer design with FF flange and ASME B16.34 compliance ensures effective filtration and smooth flow regulation.

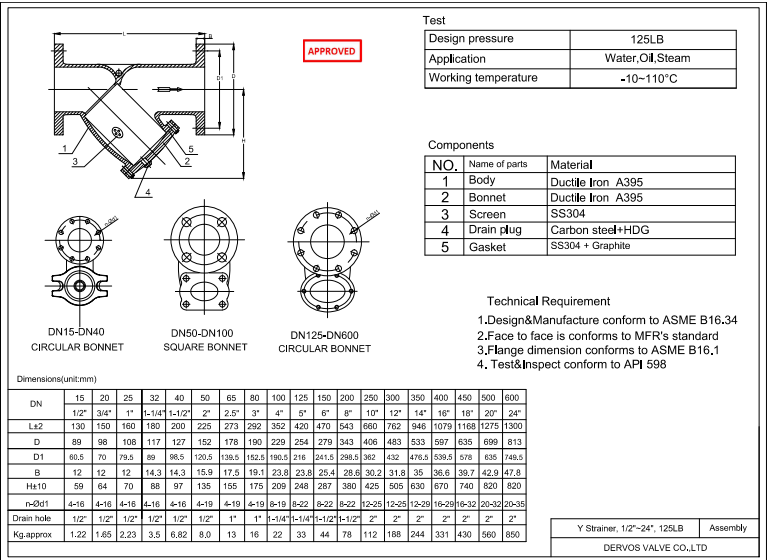

Technical Drawing

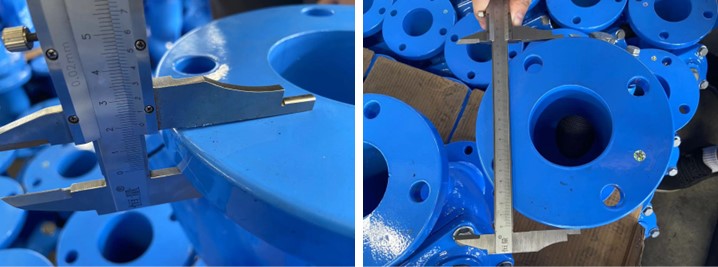

Dimension Checking

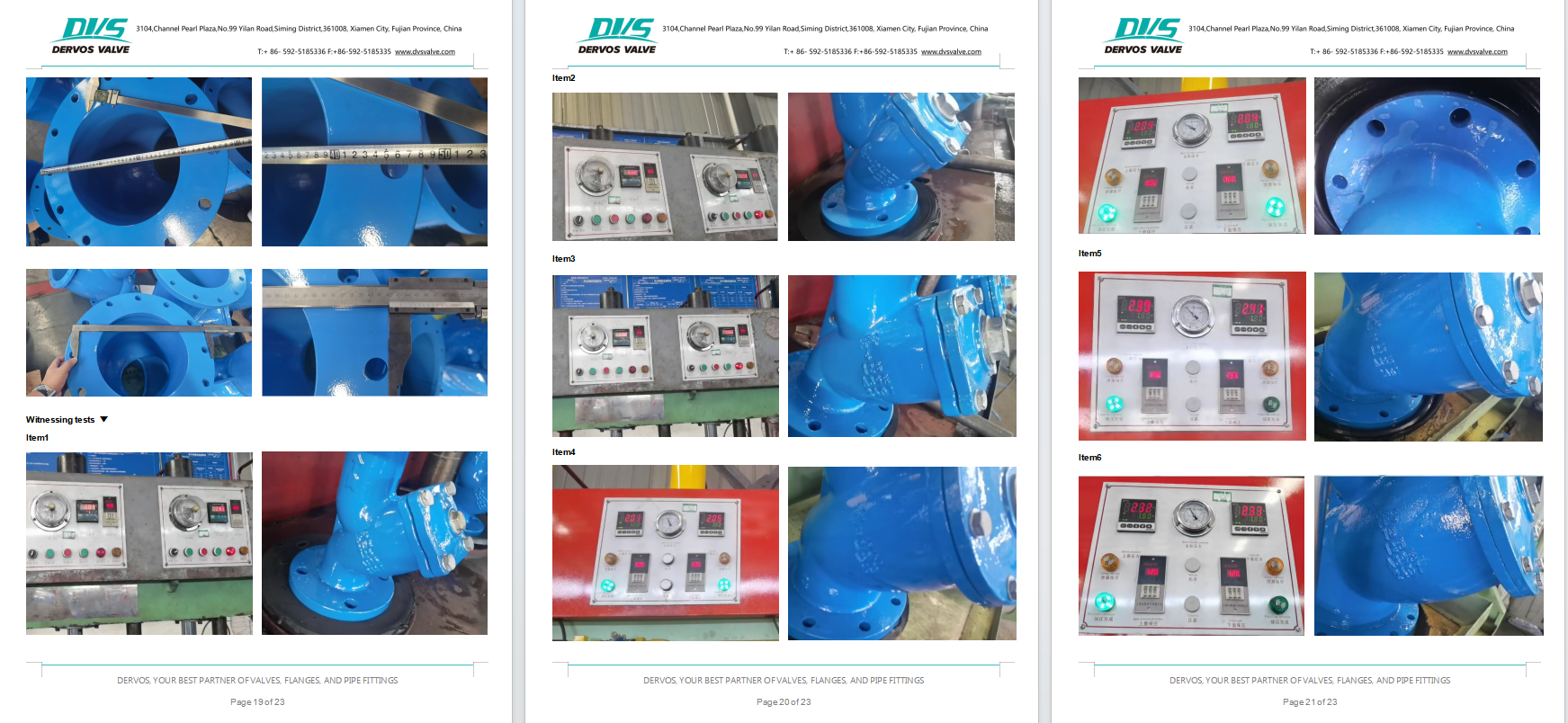

Pressure Testing

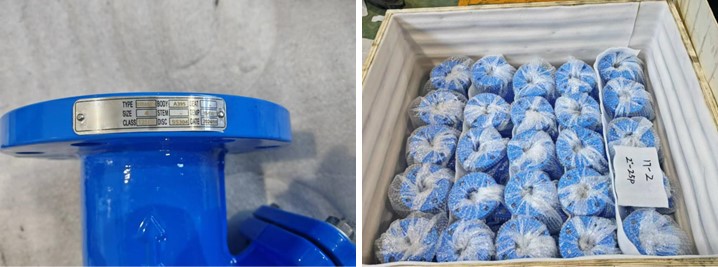

Nameplate & Packing

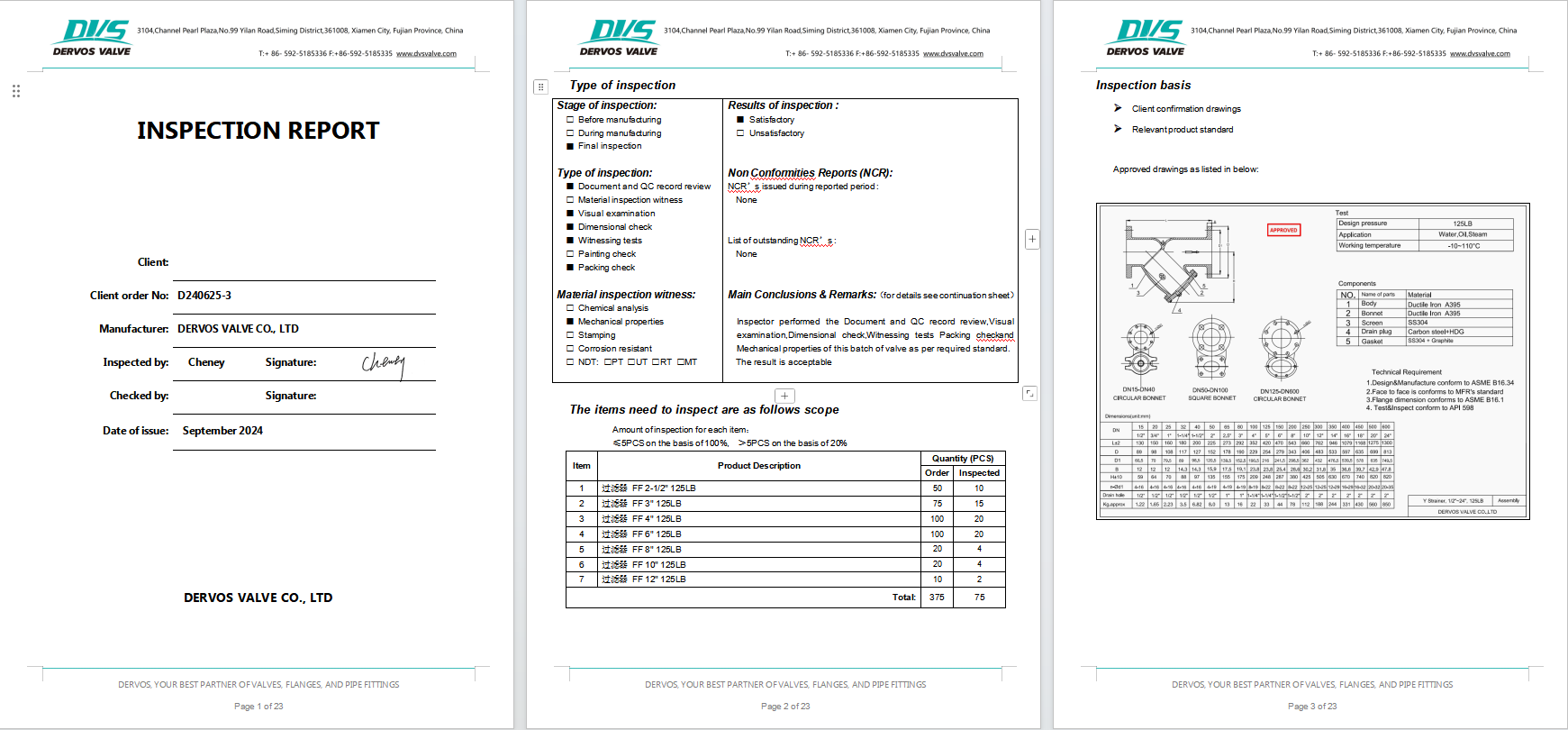

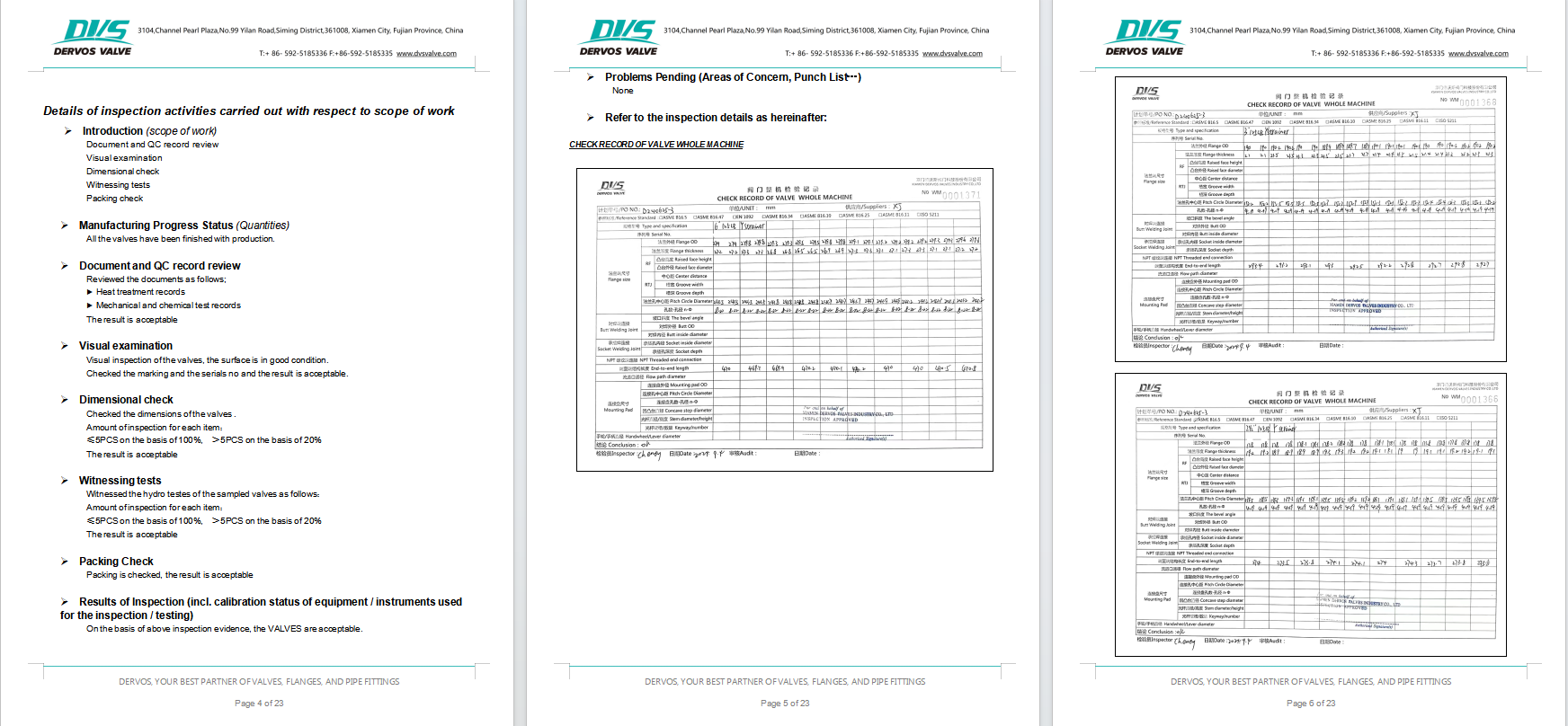

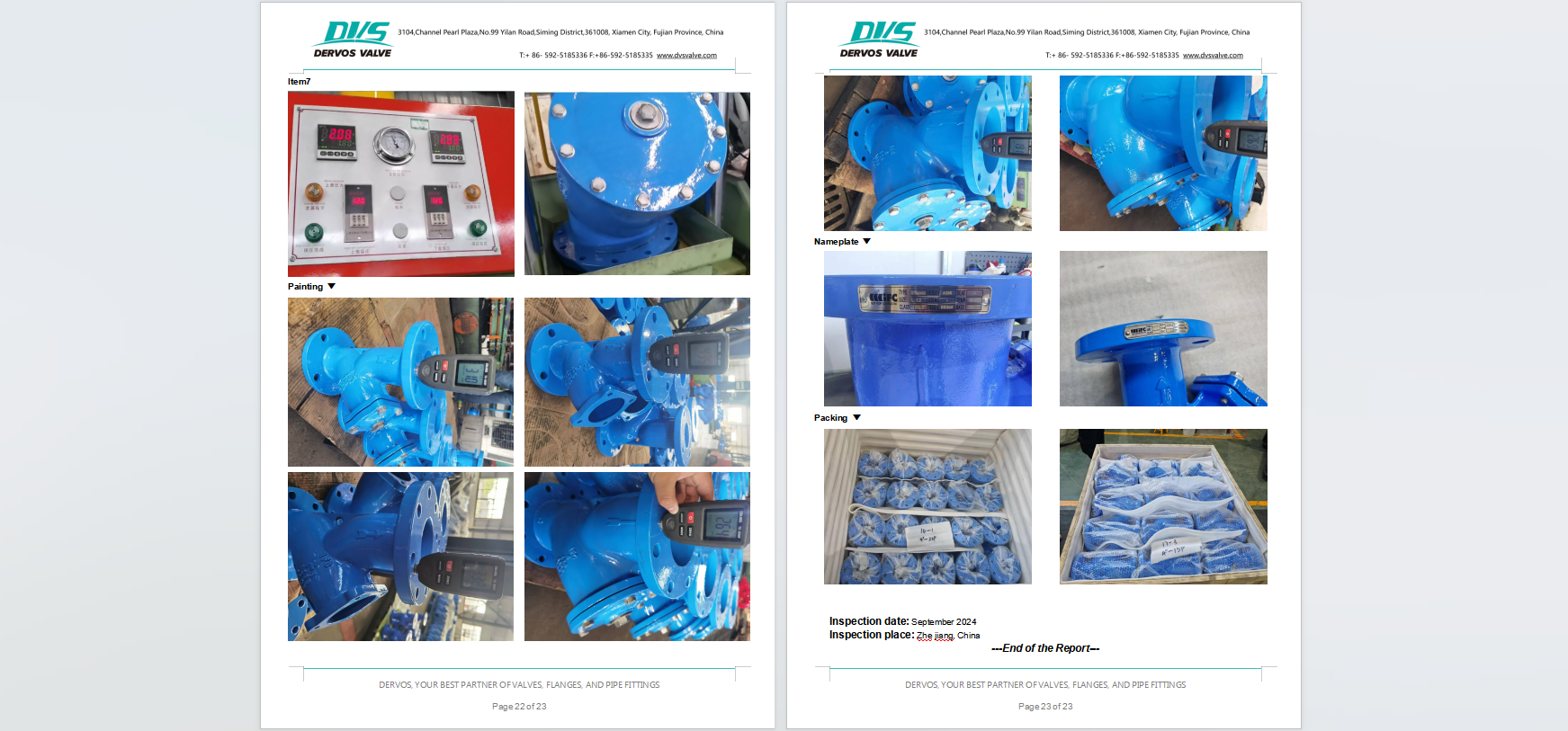

Inspection Report
