DN100 PN16 Y-Type Strainer EN1092-1 B 1.061 BS EN 13709
Key Specifications / Features
Model No.: Hits: 0
DN100 PN16 Y-Type Strainer is made according to BS EN 13709 standard. The valve body is made of EN 10213 1.0619. It has the structural characteristics of Y-Type, Bolted Bonnet. Its connection mode is EN1092-1 B.
Request a quote
Tags:
Next: Return to List
Previous: 4" 125LB Y Strainer A395 FF ASME B16.34
Detail Information
Product Parameters
| Type | Y-Type Strainer |
| Size | DN100 |
| Pressure | PN16 |
| Connection | EN1092-1 B |
| Body Material | EN 10213 1.0619 |
| Design Norm | BS EN 13709 |
| Face to face | BS EN 558-1 S.1 |
| Flange End dimension | BS EN 1092-B1 |
| Test & Inspection Code | BS EN 12266 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Y-type body design efficiently removes debris to protect downstream valves and equipment.2.PN16 flanged connection per EN1092-1 B with 1.061 carbon steel ensures durability and reliable filtration performance.

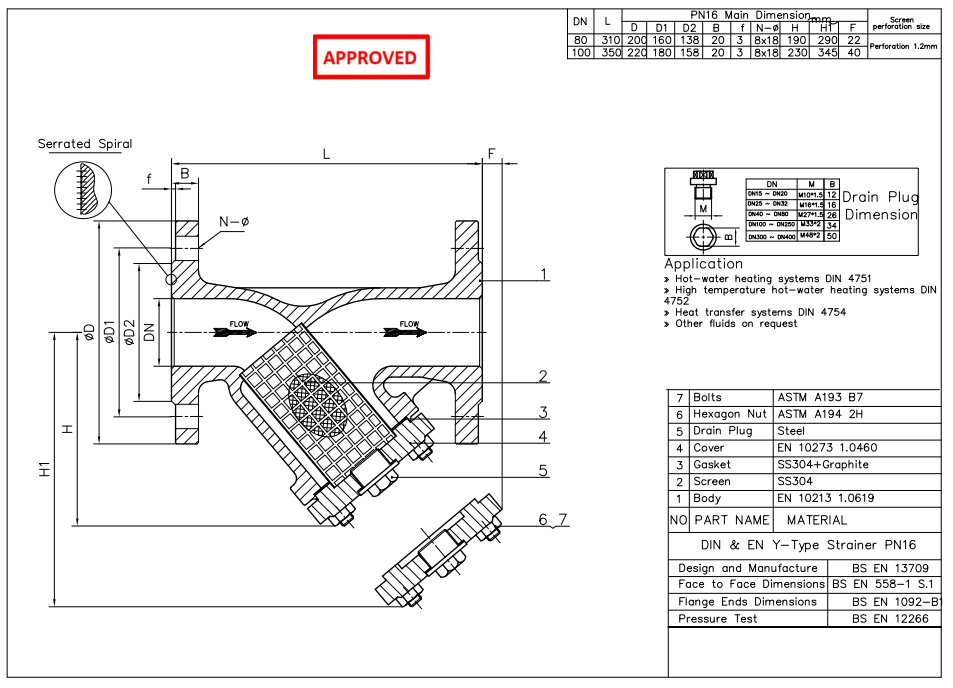

Technical Drawing

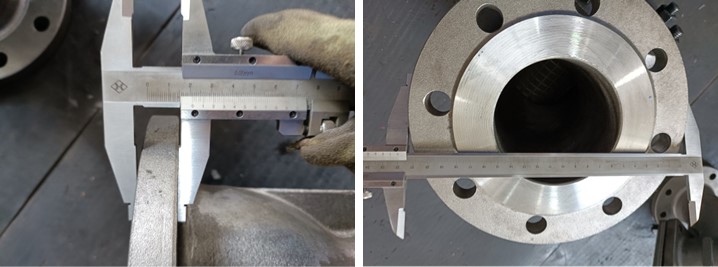

Dimension Checking

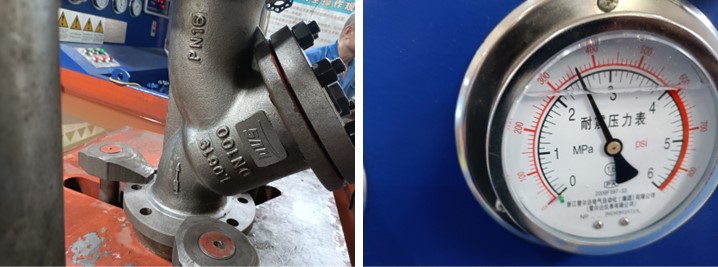

Pressure Testing

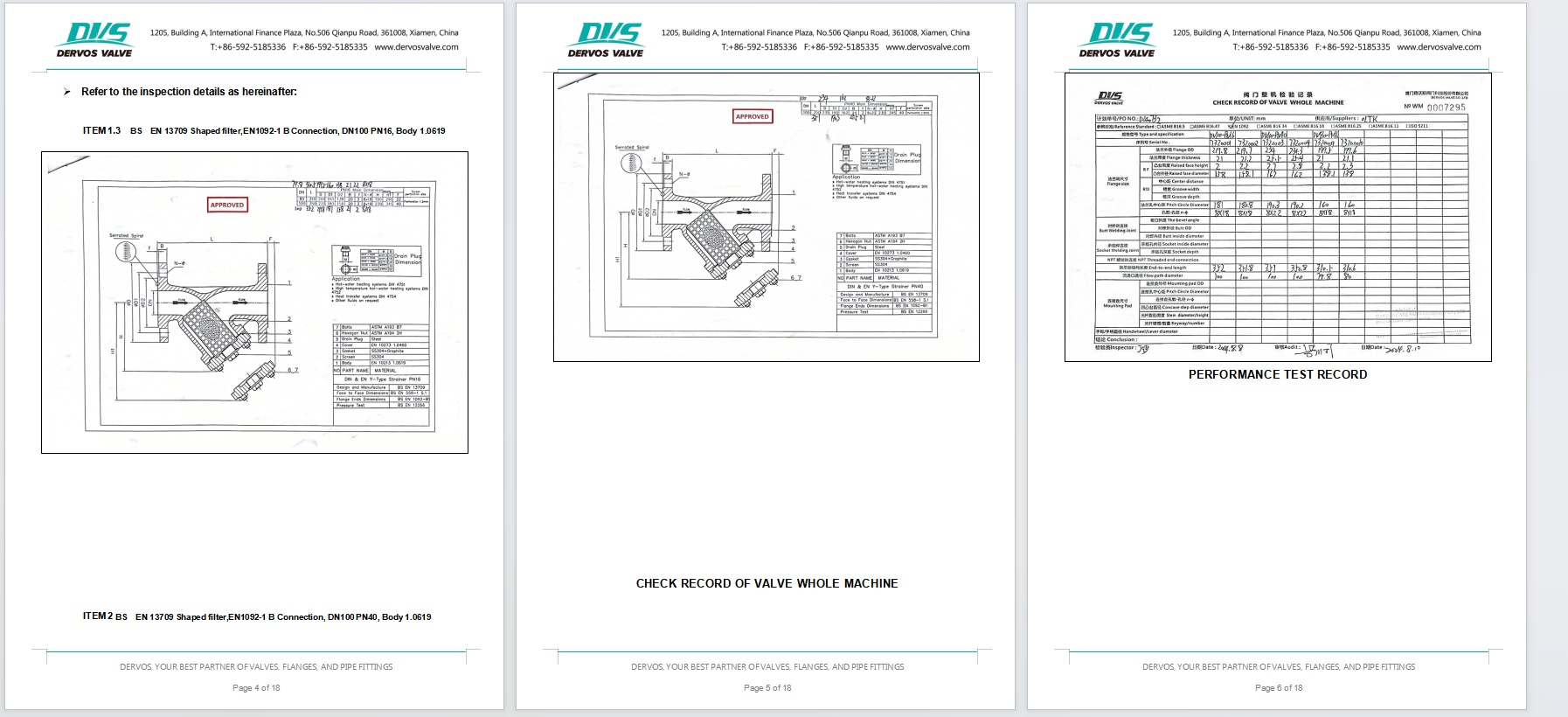

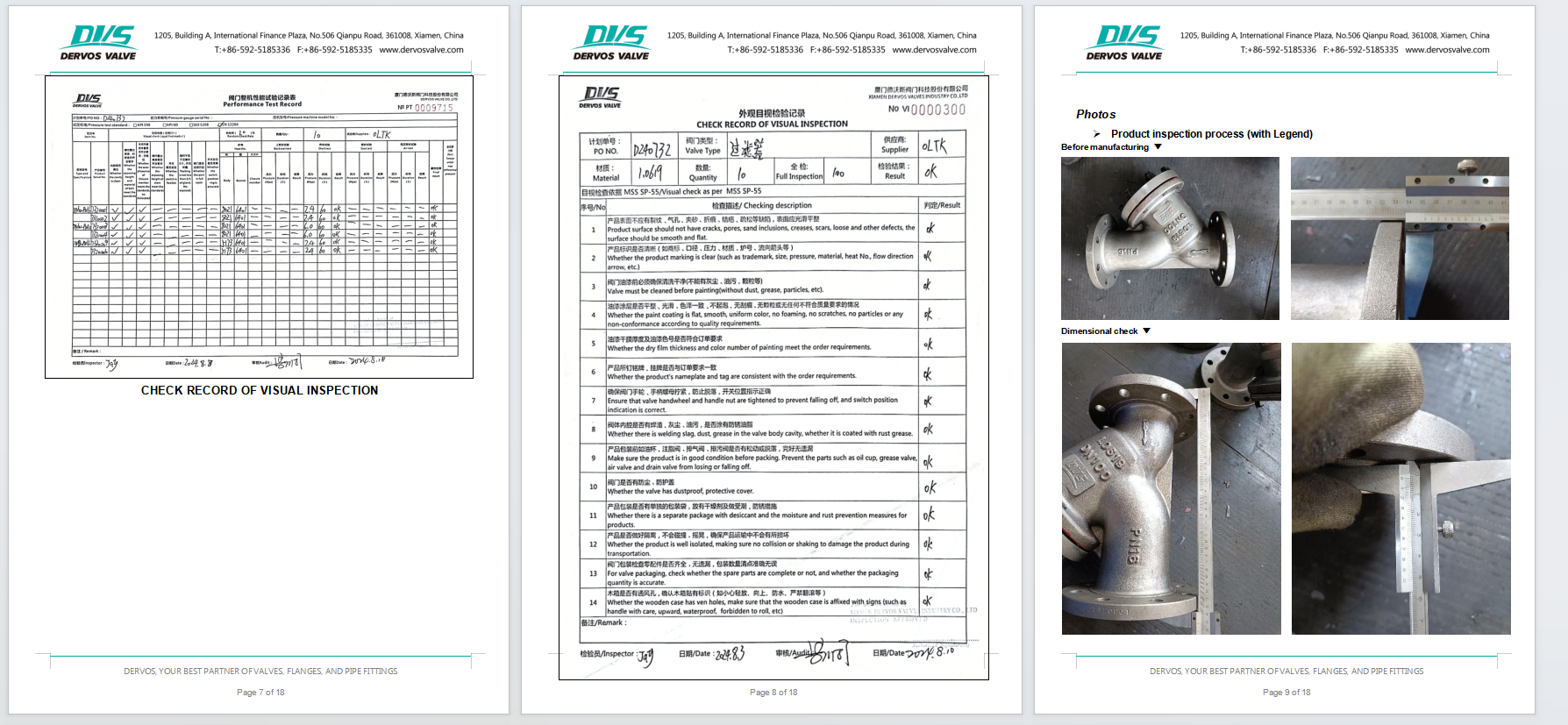

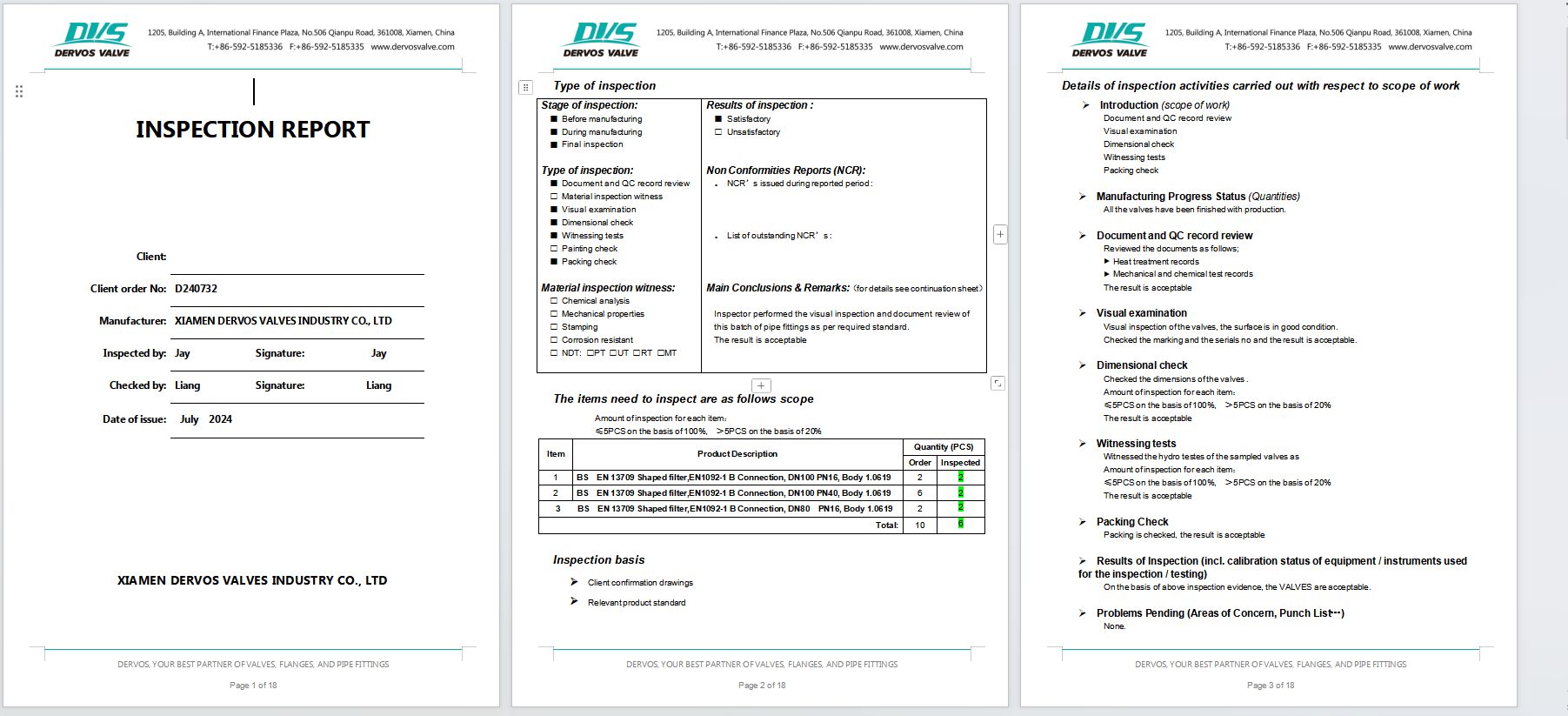

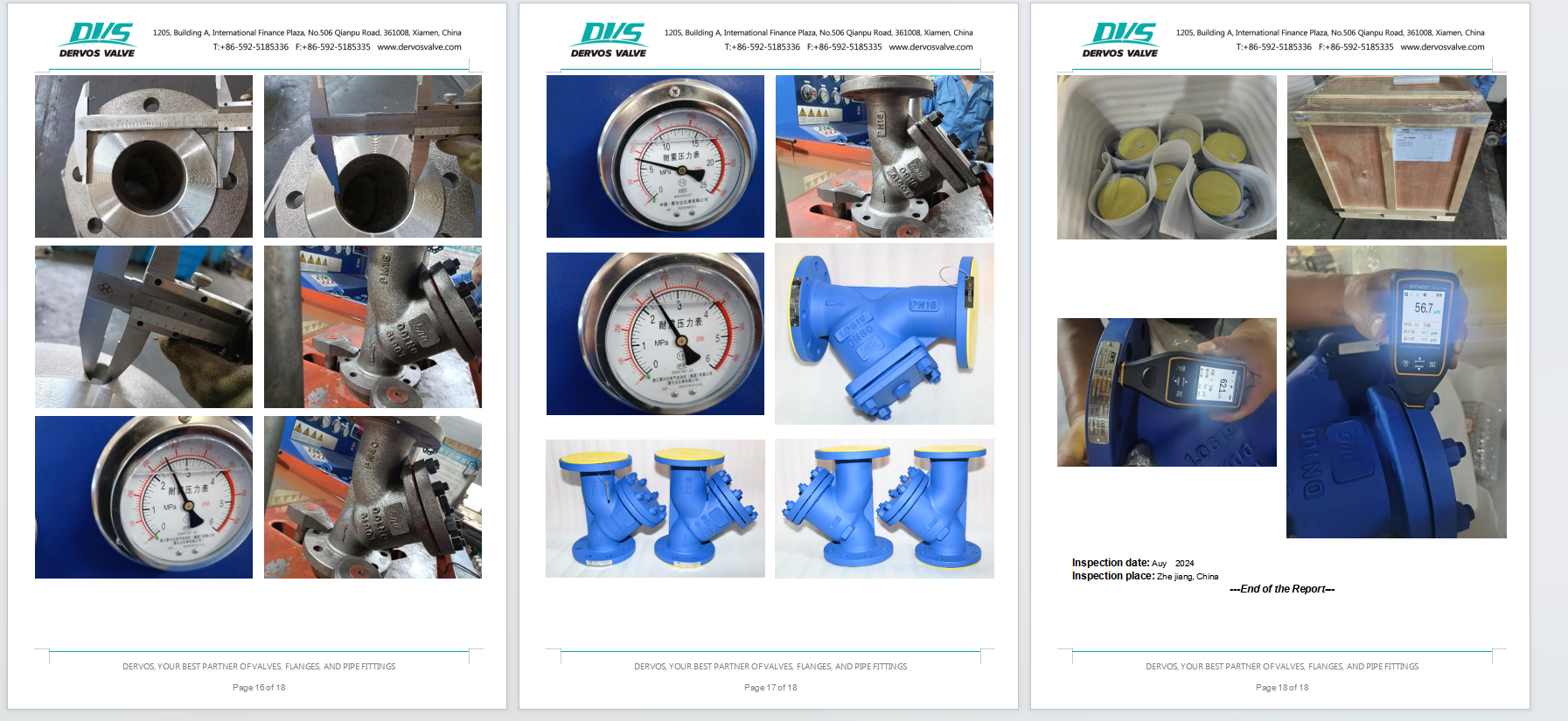

Inspection Report
