3" 300LB Y Type-Strainers ASTM A995 4A RF

3" 300LB Y Type-Strainers ASTM A995 4A RF

Key Specifications / Features

Model No.: Hits: 0

3" 300LB Y Type-Strainers is made according to ASME B16.34 standard. The valve body is made of ASTM A995 4A. It has the structural characteristics of BB and Perforated Plate. Its connection mode is RF.
Request a quote

Detail Information

Product Description

Type Strainers
Size 3”
Pressure 300LB
Connection RF
Body Material ASTM A995 4A
Design Norm ASME B16.34
Face to Face dimension conforms ASME B16.10
Flange dimension conforms ASME B16.5
Test & Inspection Code API 598
Temperature -46 ~ 100°C
Applicable Medium Water, Oil and Gas

Features

1. Manufactured from ASTM A995 4A duplex stainless steel for high strength and excellent corrosion resistance in demanding applications.
2. Equipped with RF (Raised Face) flanges and 300LB pressure rating for secure and leak-tight pipeline integration.

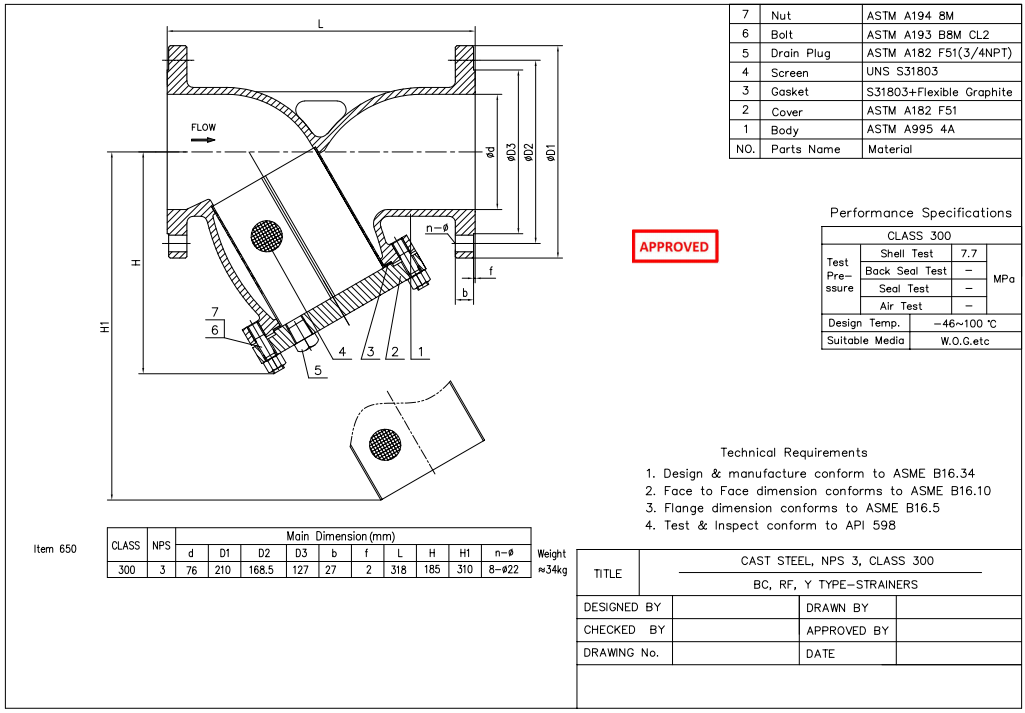

Strainer Technical Drawing

3" 300LB Y Type-Strainers

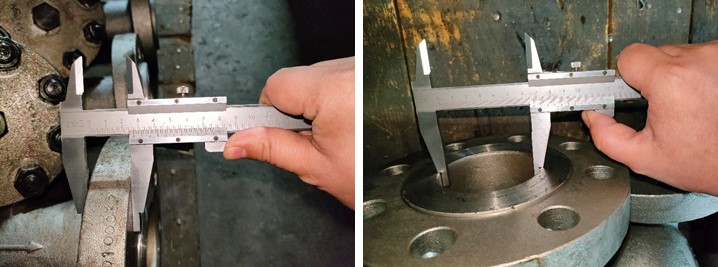

Dimension Checking

3" 300LB Y Type-Strainers ASTM A995 4A RF

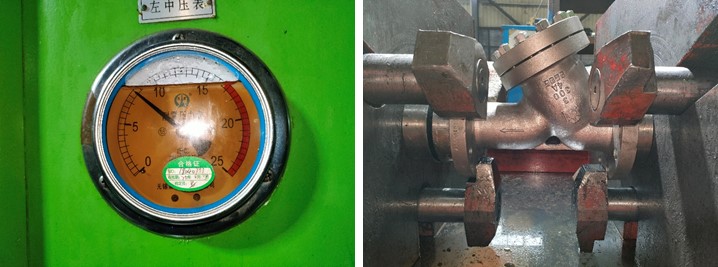

Pressure Testing

3" 300LB Y Type-Strainers ASTM A995 4A RF

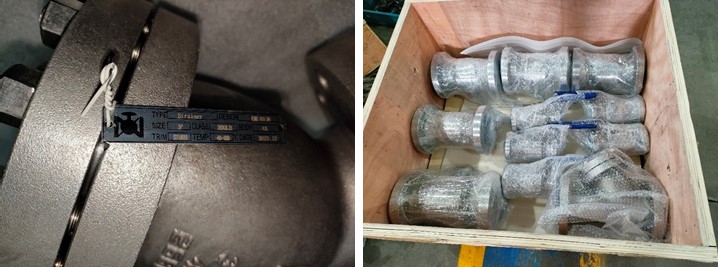

Nameplate & Packing

3" 300LB Y Type-Strainers ASTM A995 4A RF

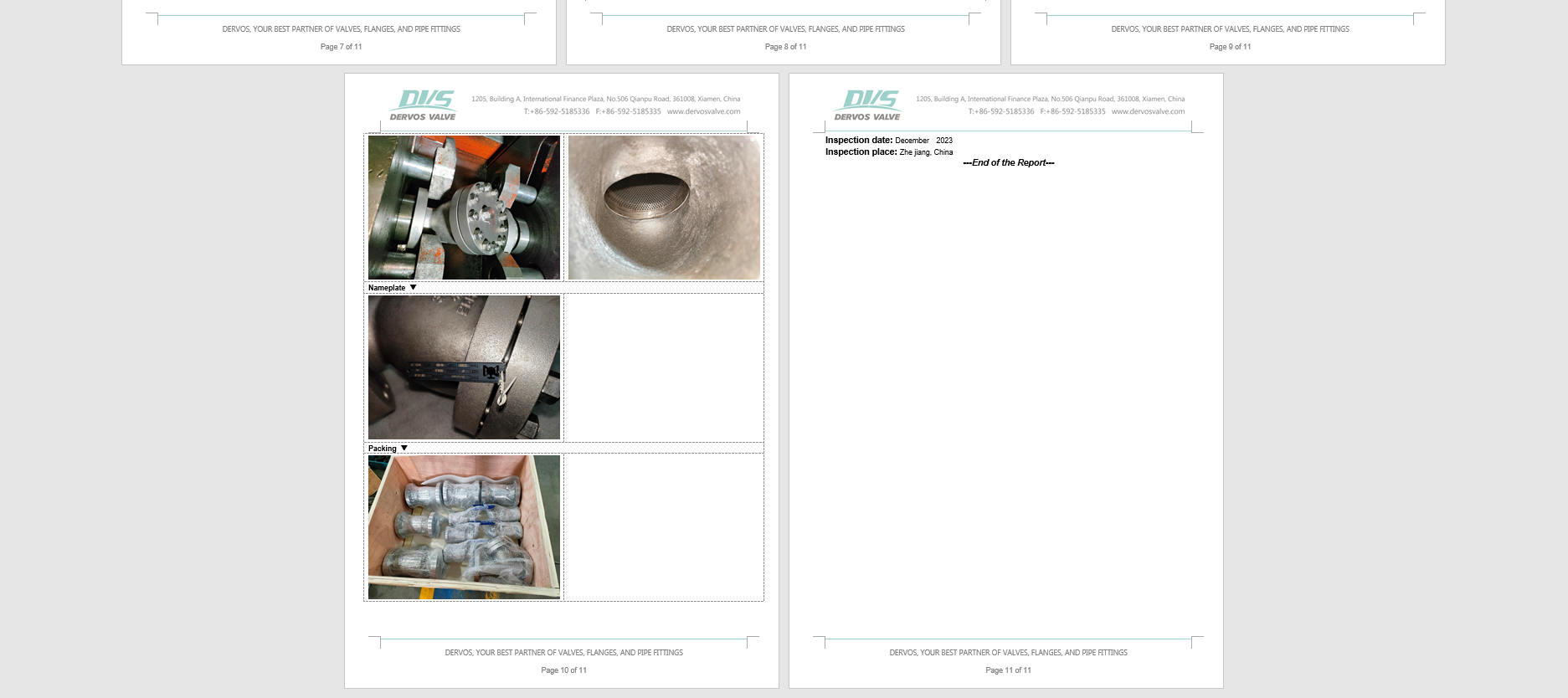

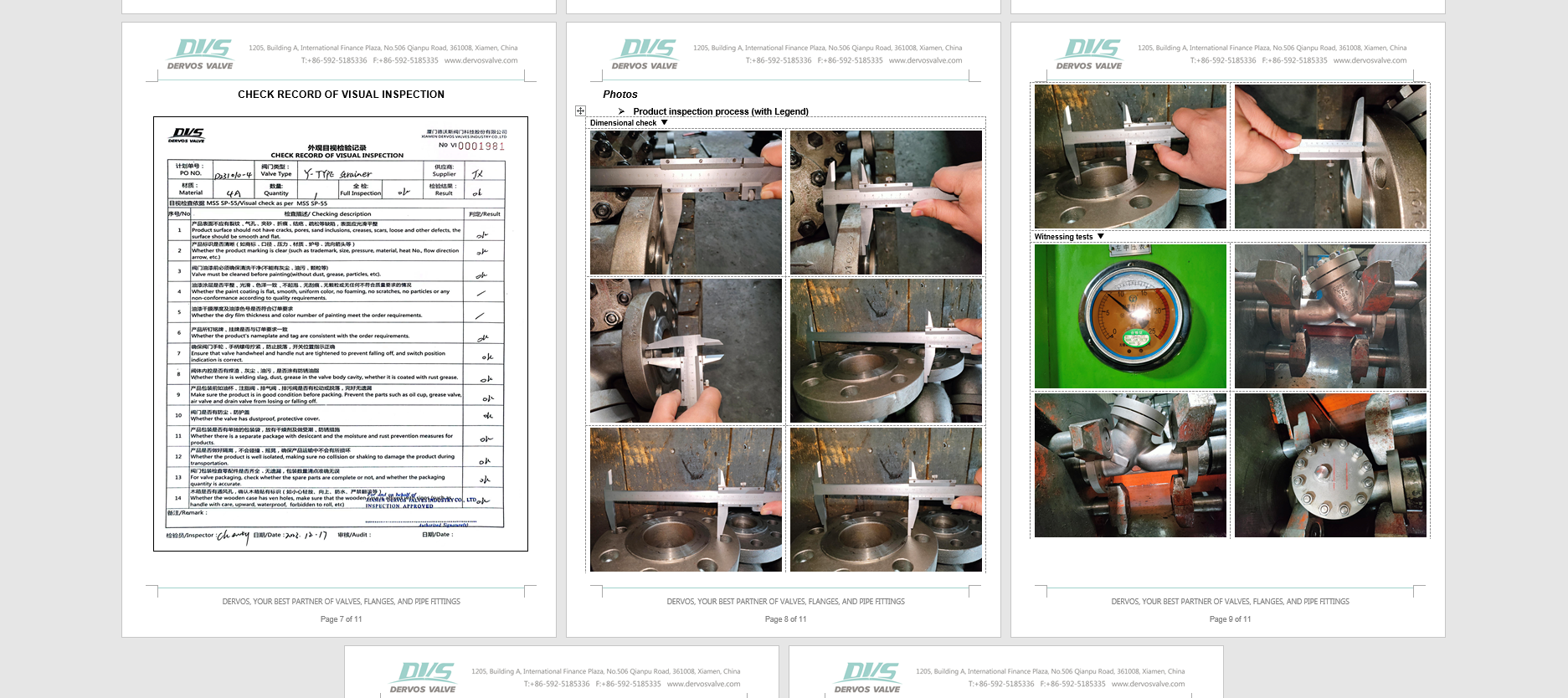

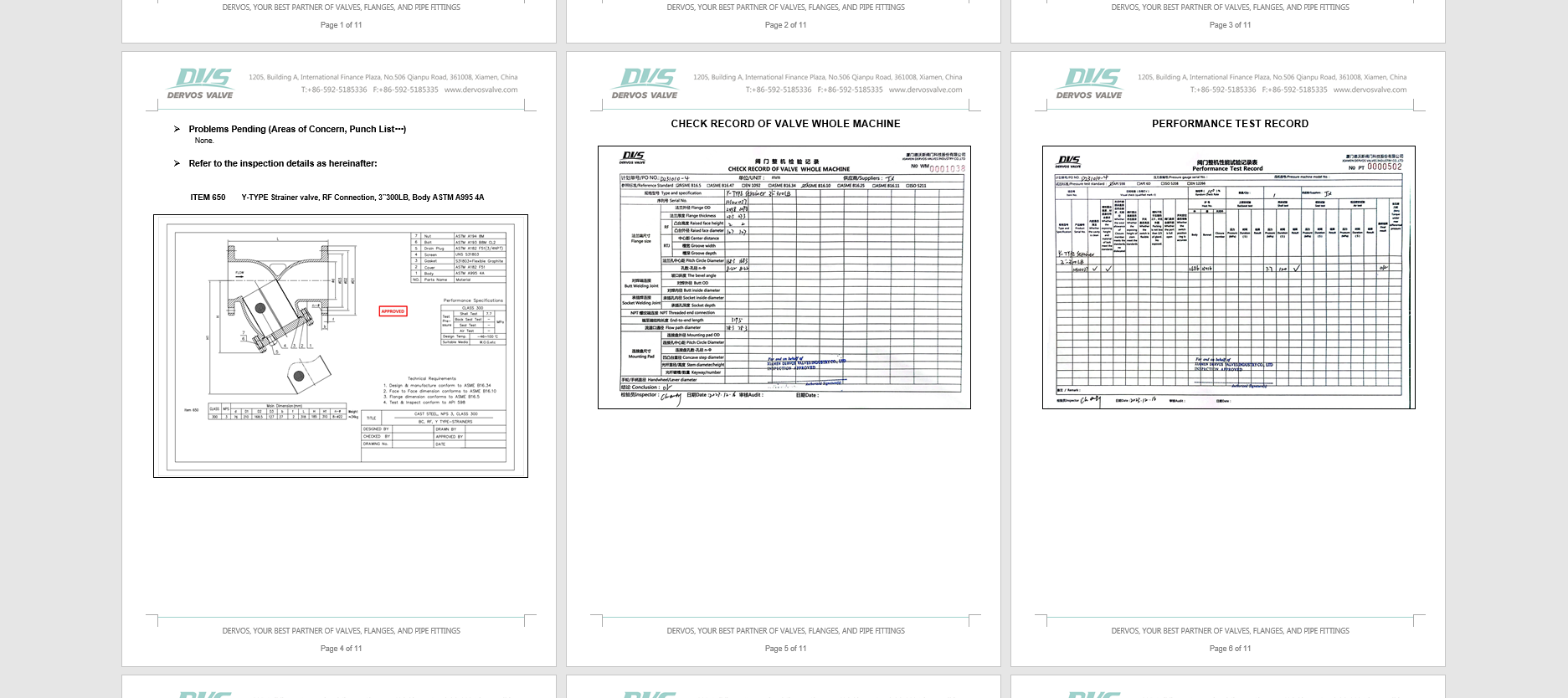

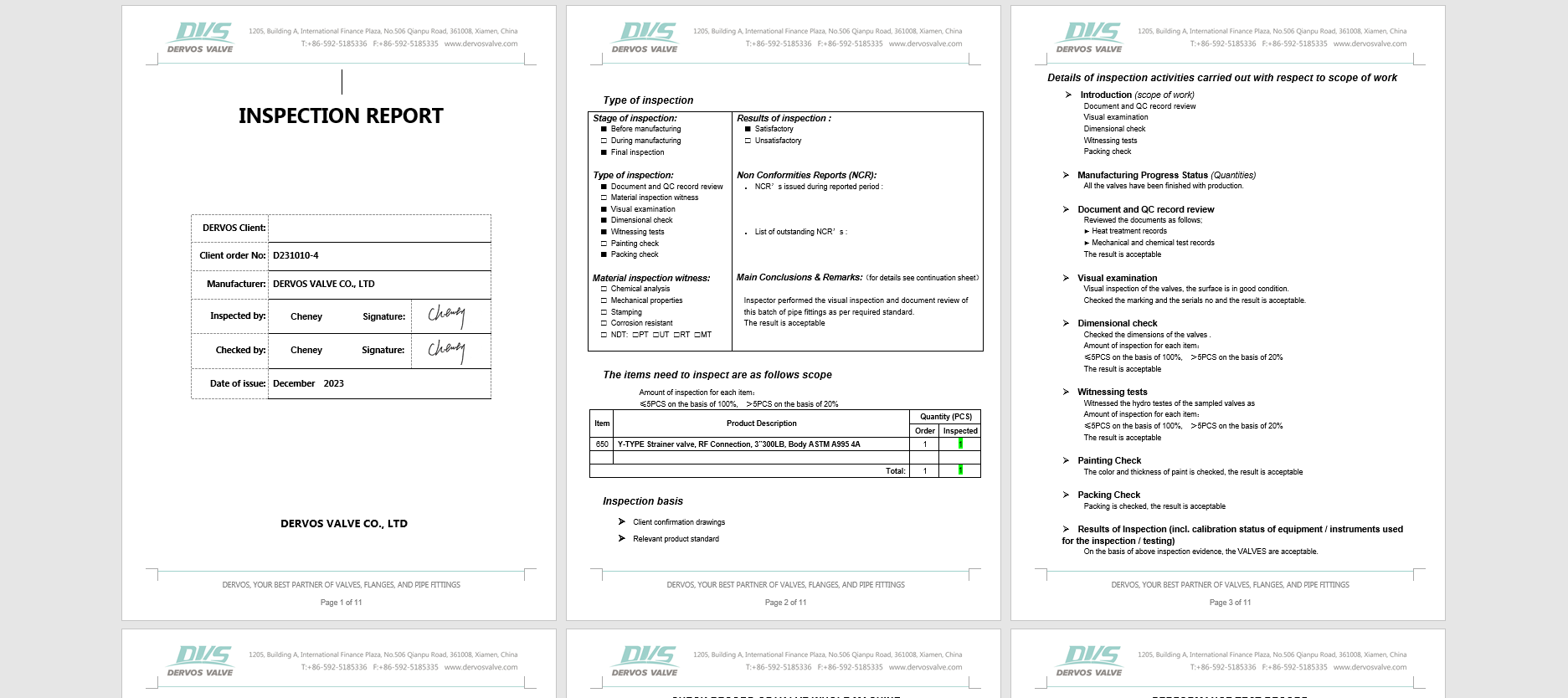

Inspection report

3" 300LB Y Type-Strainers ASTM A995 4A RF
3" 300LB Y Type-Strainers ASTM A995 4A RF
3" 300LB Y Type-Strainers ASTM A995 4A RF
3" 300LB Y Type-Strainers ASTM A995 4A RF
