3/4" 600LB Y Type Strainer Monel 400 API 602
Key Specifications / Features
Model No.: Hits: 0
3/4" 600LB Y Type Strainer is made according to API 602 standard. The valve body is made of Monel 400. It has the structural characteristics of BB. Its connection mode is BW SCH80.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Description
| Type | Y Type Strainer |
| Size | 3/4" |
| Pressure | 600LB |
| Connection | BB |
| Body Material | Monel 400 |
| Design Norm | API 602 |
| Face to face dimension conforms | MFR's standard |
| End size conforms | ANSI B16.25 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 475°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Constructed from Monel 400, offering excellent corrosion resistance in seawater and chemical environments.
2. Built to API 602 standards with 600LB pressure rating, ensuring reliable filtration performance in high-pressure systems.

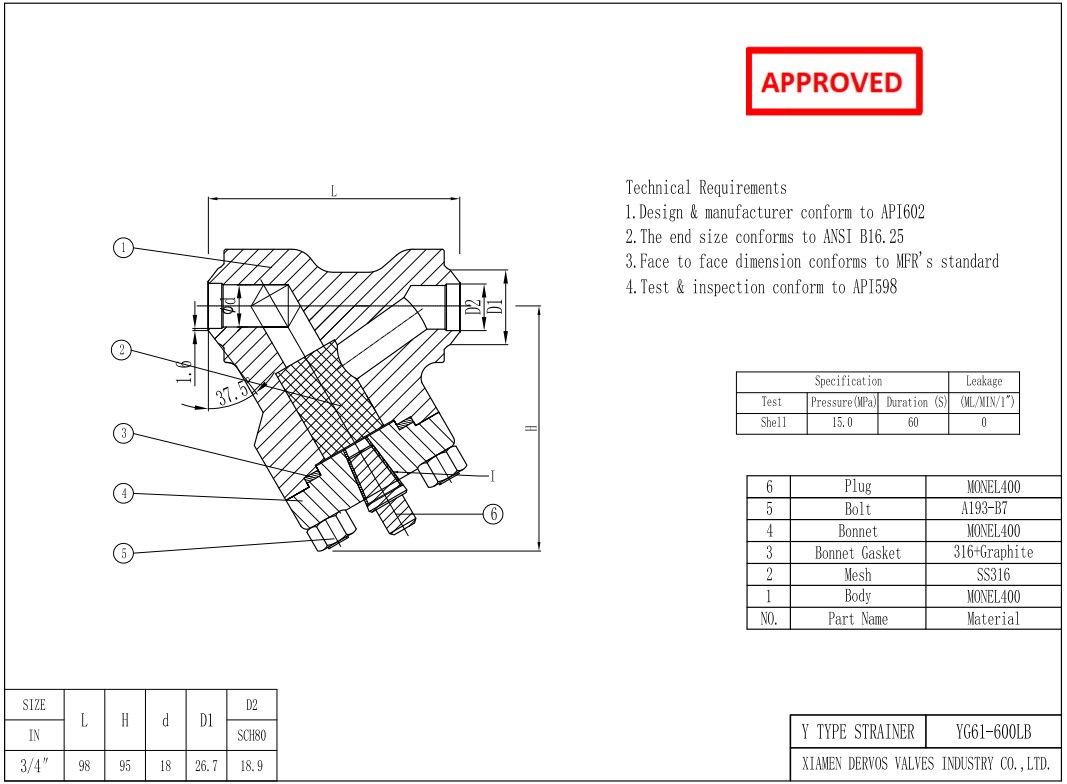

Y Type Strainer Technical Drawing

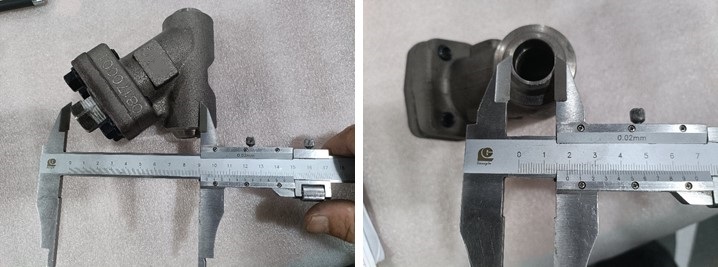

Dimension Checking

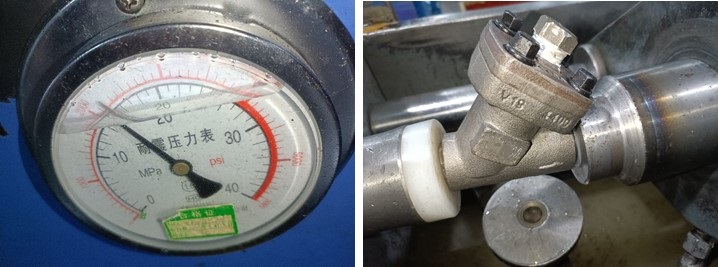

Pressure Testing

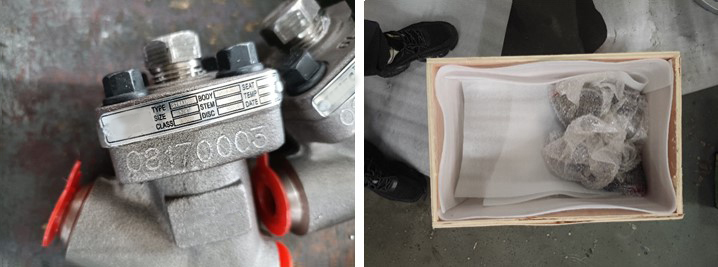

Nameplate & Packing

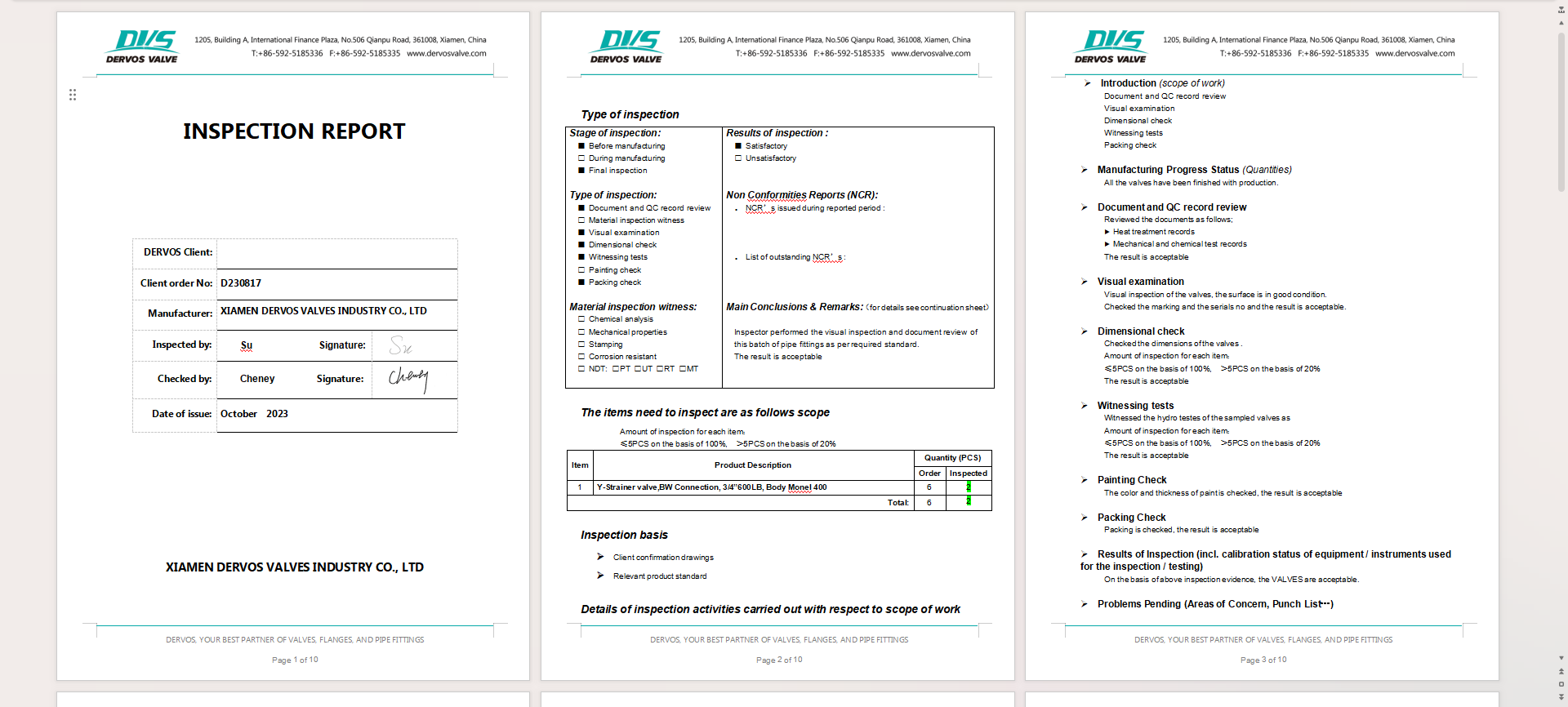

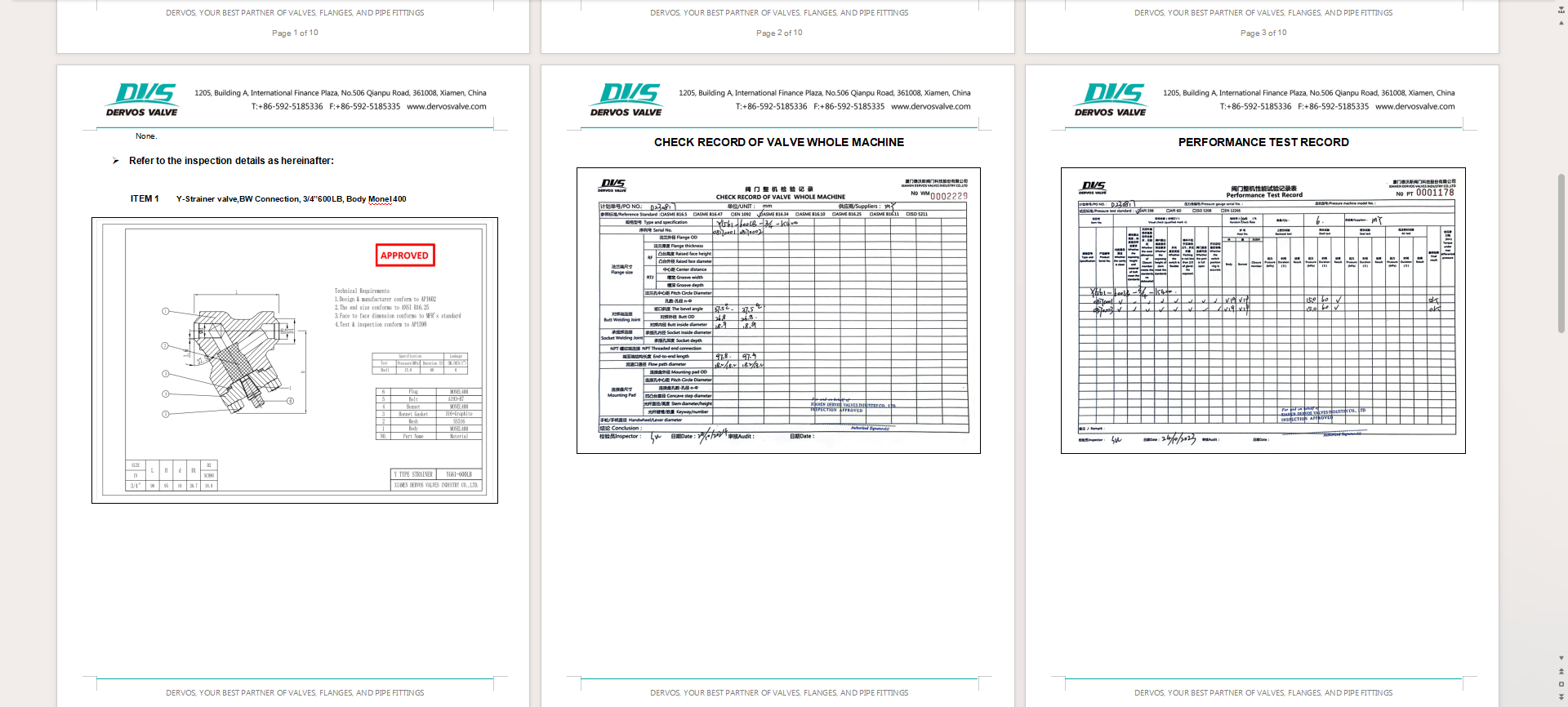

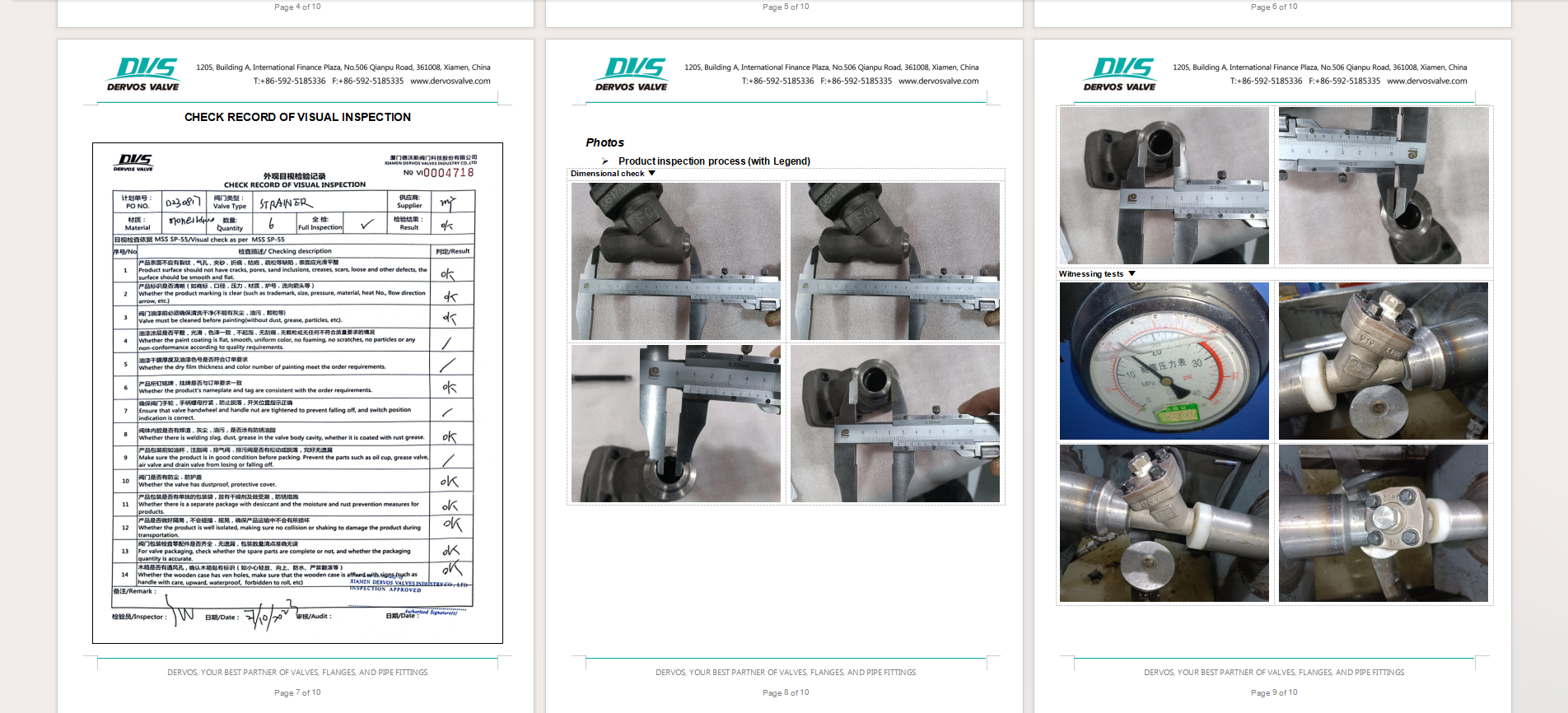

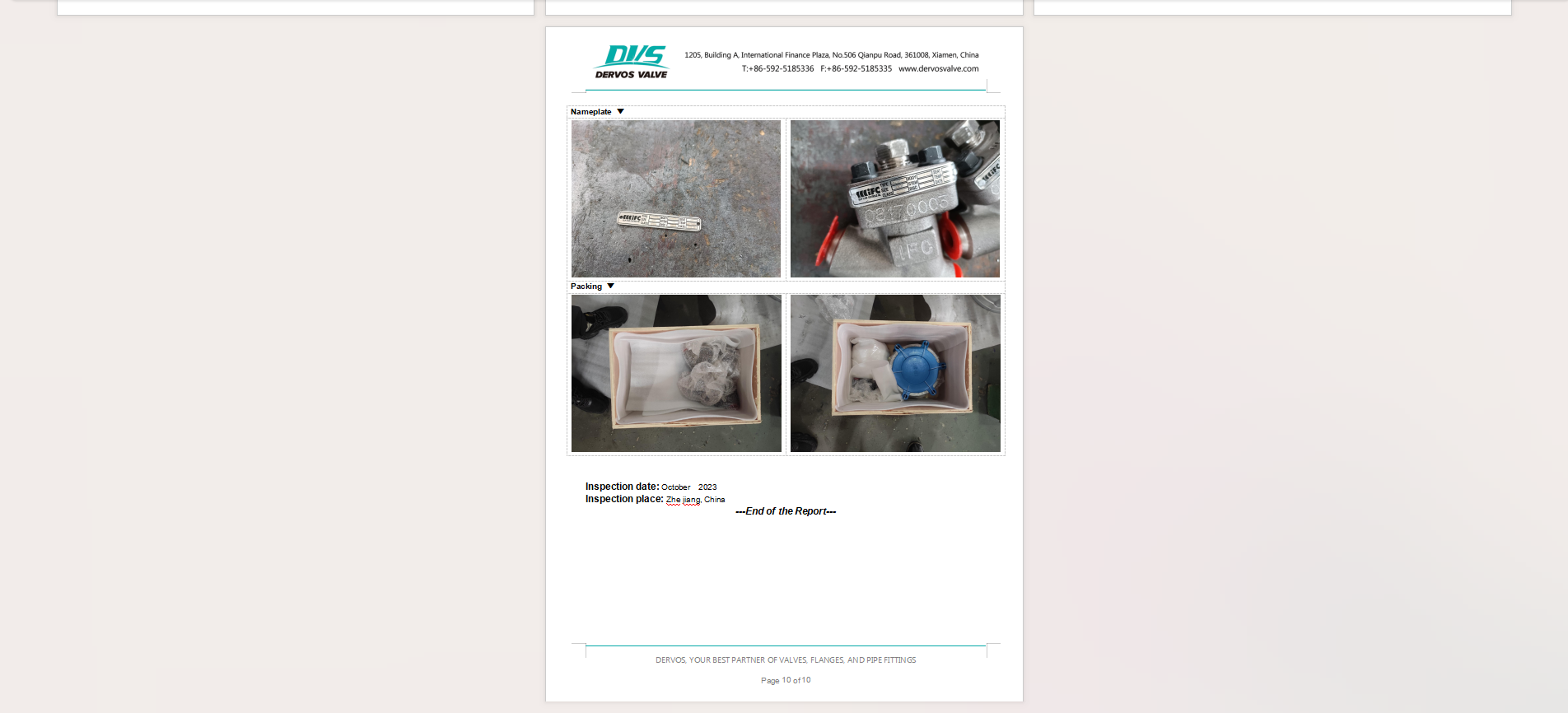

Inspection report
