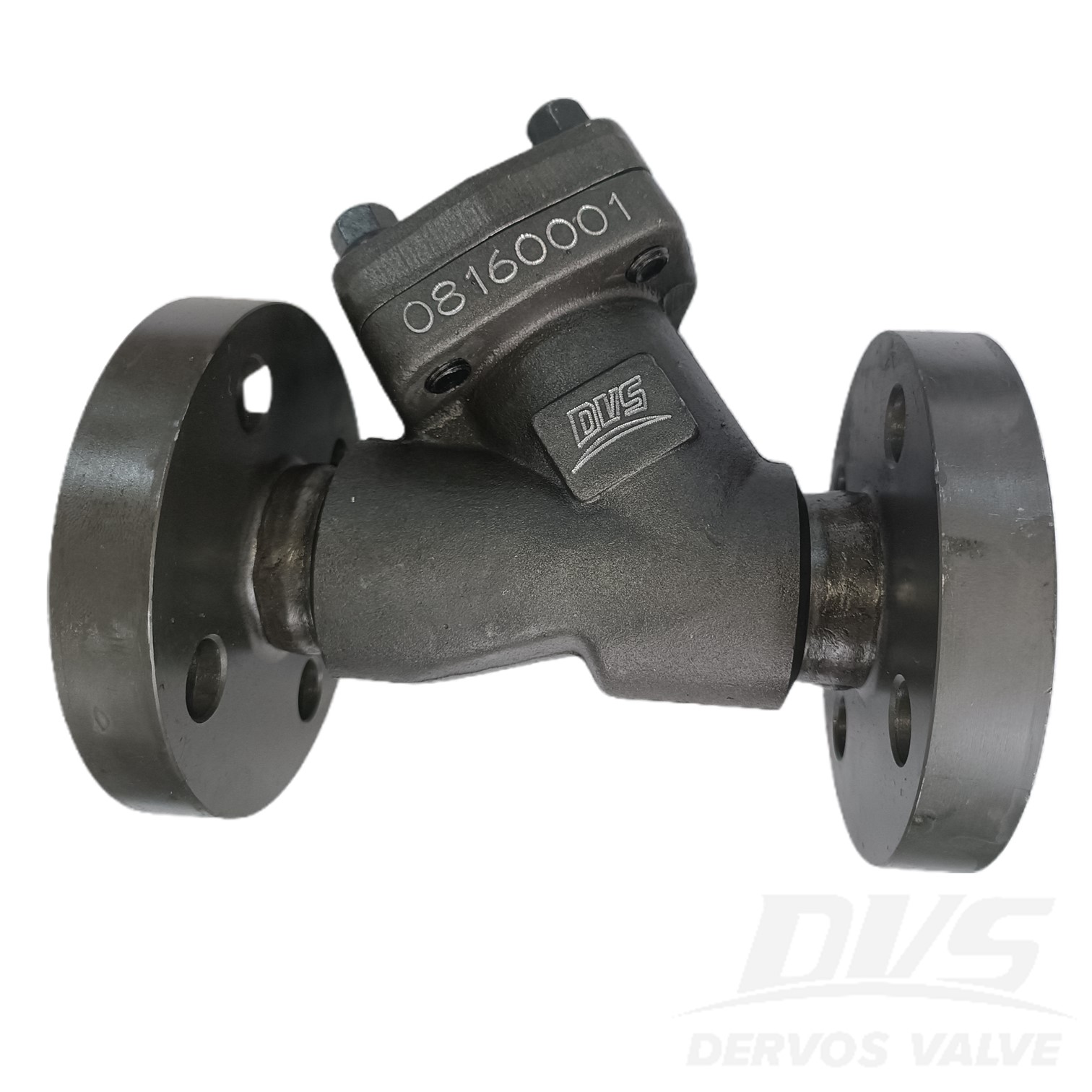

DN25 PN160 Y TYPE STRAINER A105N EN1092-1 B
Key Specifications / Features
Model No.: Hits: 0
DN25 PN160 Y TYPE STRAINER is made according to ASME B16.34 standard. The valve body is made of A105N. It has the structural characteristics of Cap mesh80. Its connection mode is EN1092-1 B.
Request a quote
Tags:
Next: Return to List
Previous: DN125 PN16 Y Type Strainer, RF, Body C95800, EN12516-1
Detail Information
Product Description
| Type | STRAINER |
| Size | DN25 |
| Pressure | PN160 |
| Connection | EN1092-1 B |
| Body Material | A105 |
| Design Norm | ASME B16.34 |
| Flange Dimension Conform | EN 1092 |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Made from durable A105N carbon steel, ensuring high strength and pressure resistance up to PN160.
2. Designed in a Y-shape with EN1092-1 B flange connection for efficient debris filtration and easy installation.

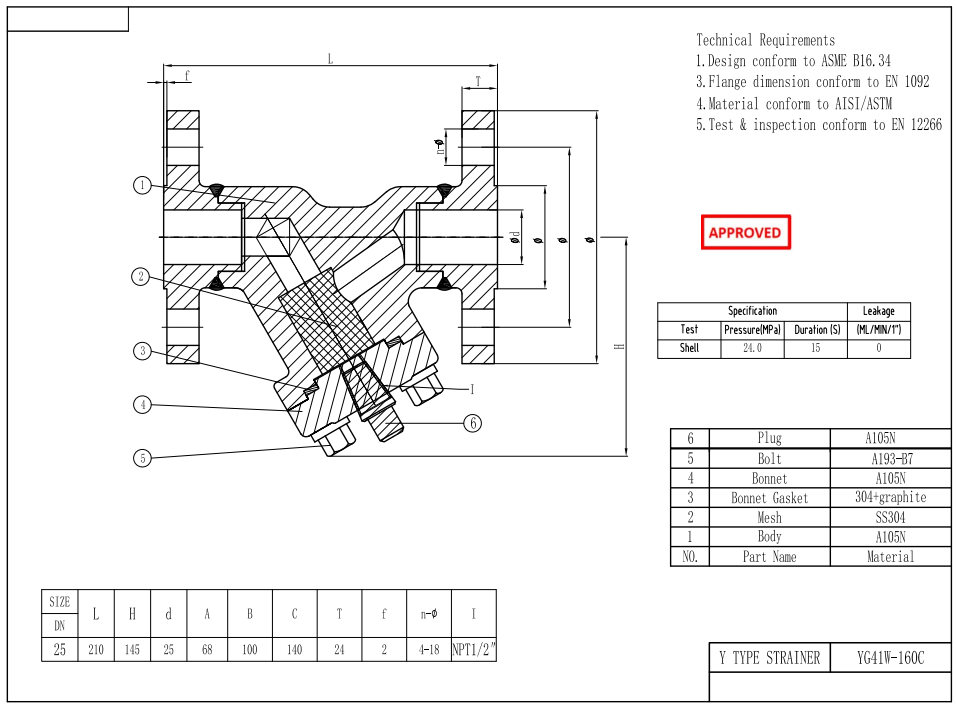

STRAINER Technical Drawing

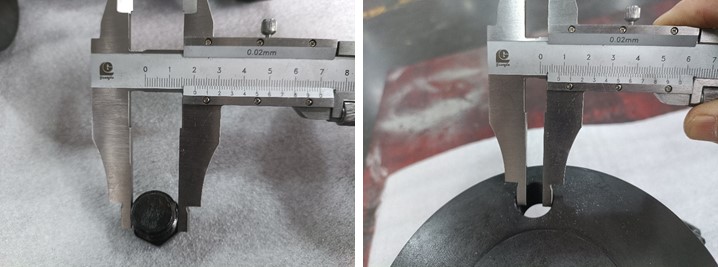

Dimension Checking

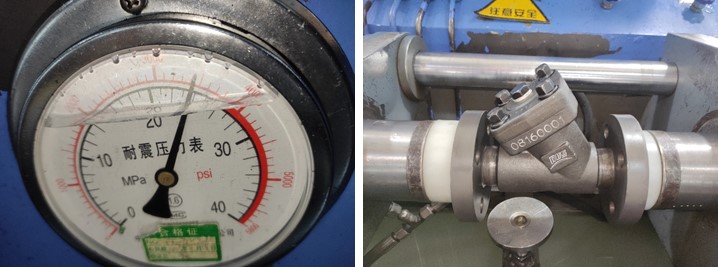

Pressure Testing

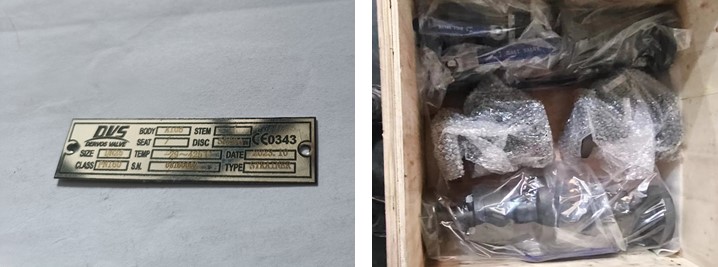

Nameplate & Packing

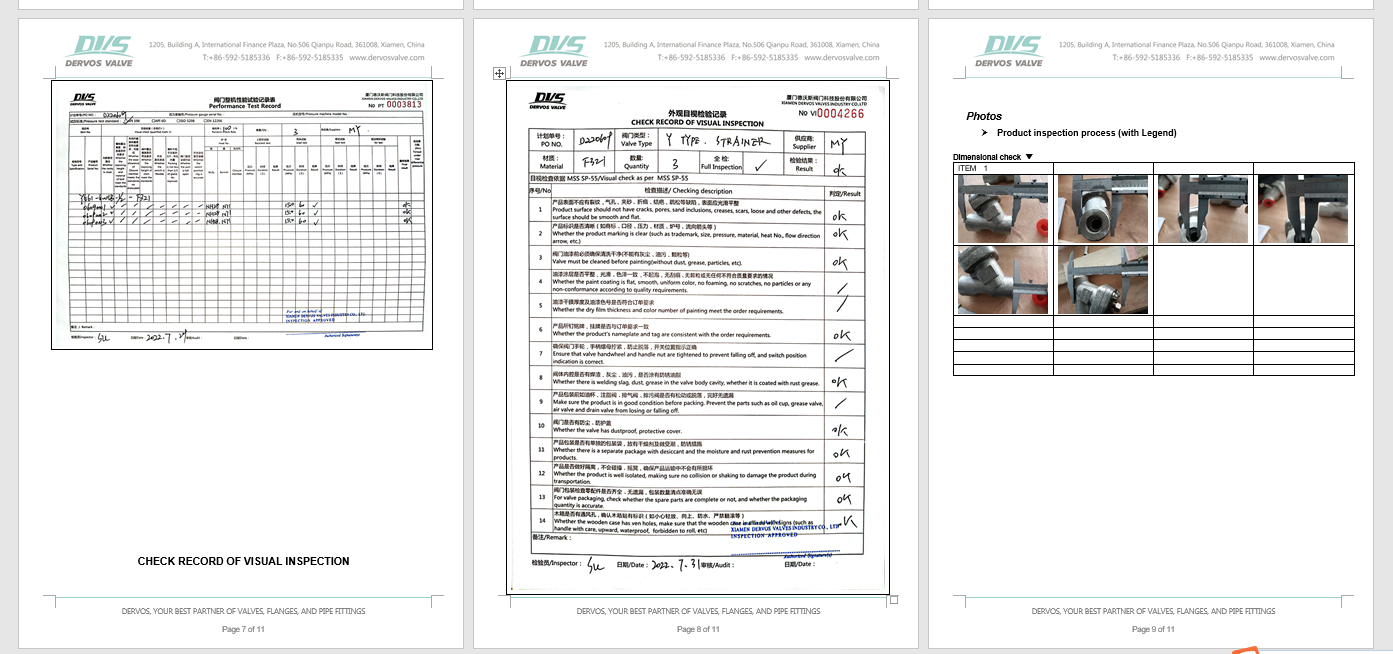

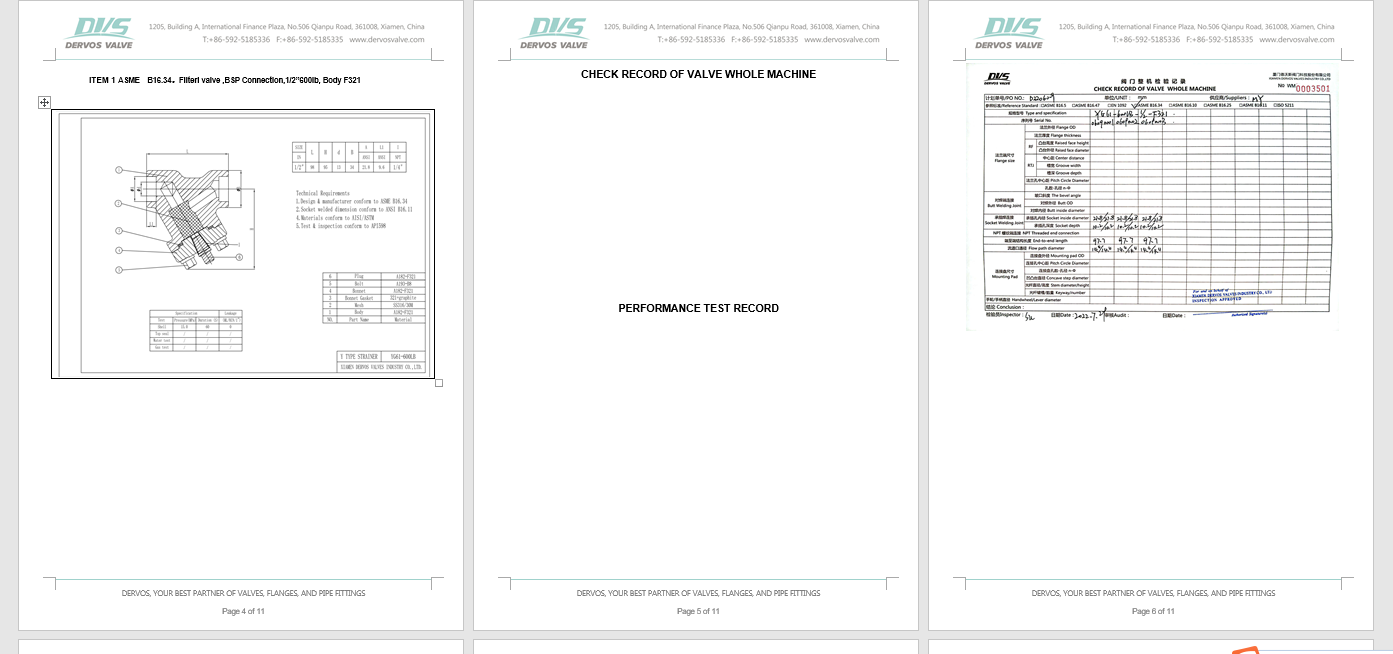

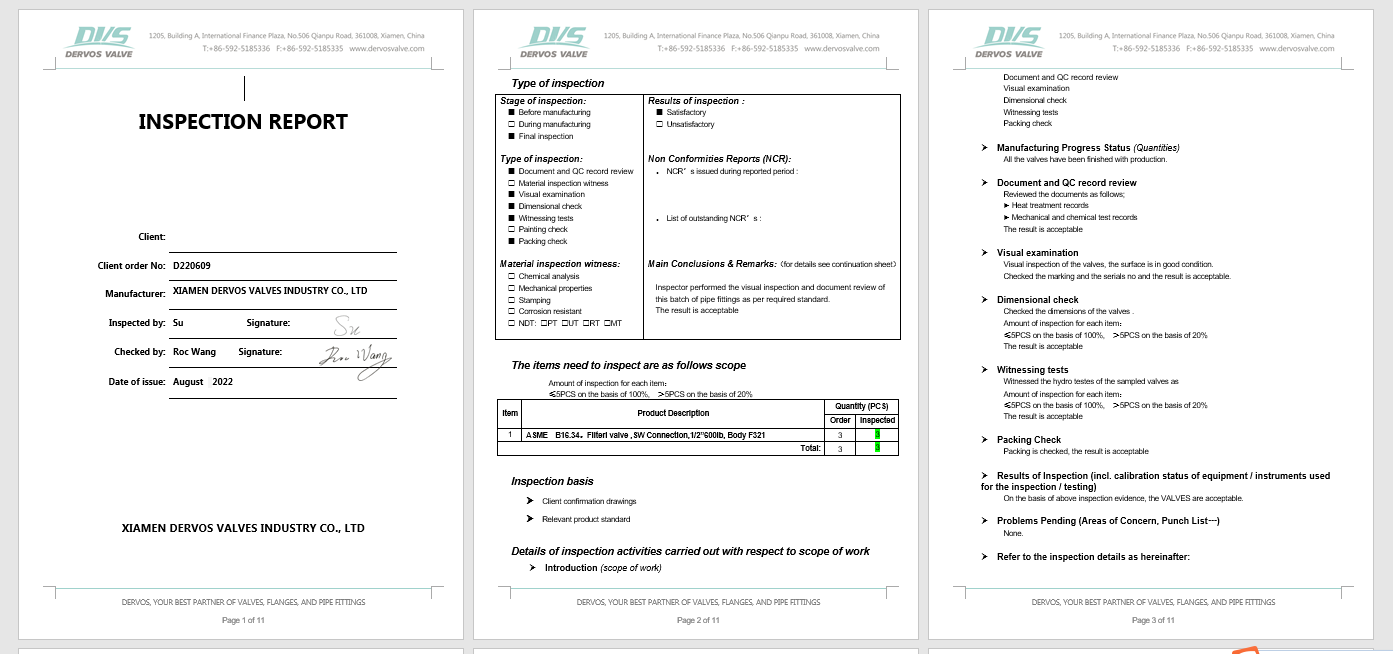

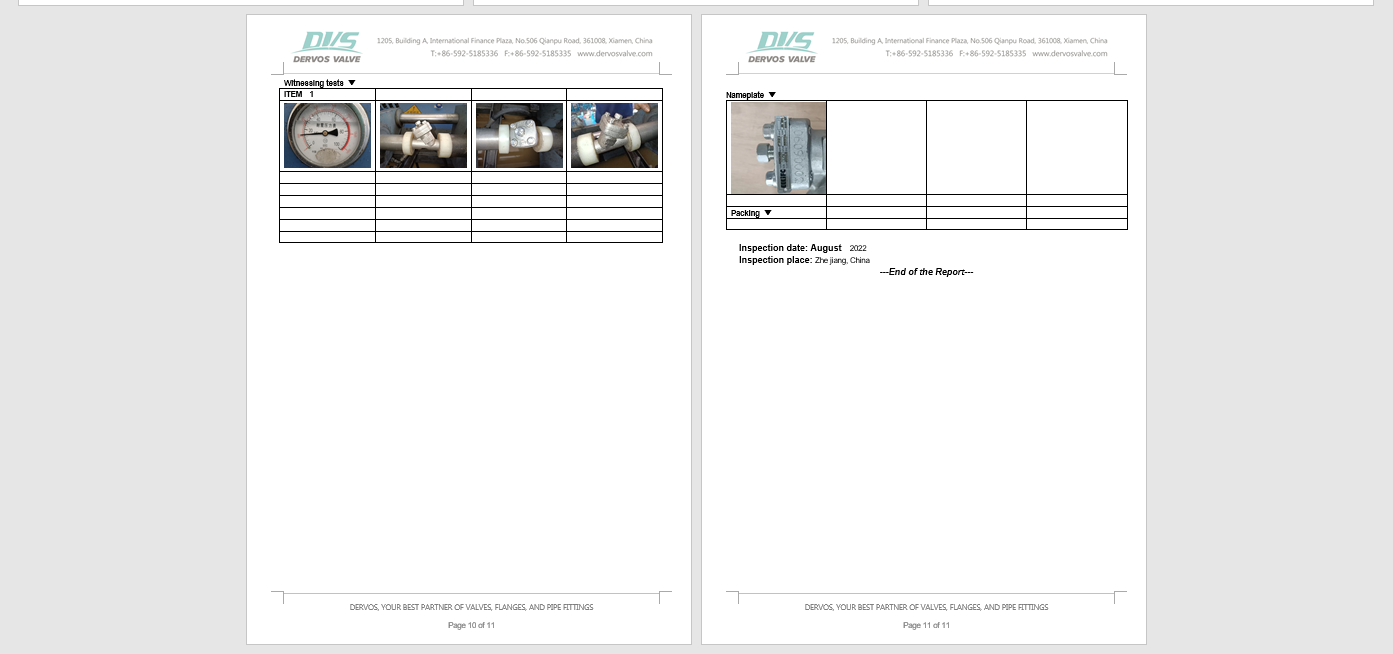

Inspection report
