Key Specifications / Features

Model No.: Hits: 0

DN125 PN16 Y Type Strainer is made according to EN12516-1 standard. The valve body is made of ASTM A148 C95800. It has the structural characteristics of Y-shaped, body cover bolted connection, suitable for seawater medium. Its connection mode is RF.
Request a quote

Next: Return to List

Previous: RTJ Connection, 2" 2500LB Y Type Strainer, Body LCC, ASME B16.34

Detail Information

Product Description

Type Y Type Strainer
Size DN125
Pressure PN16
Connection RF
Body Material ASTM A148 C95800
Design Norm EN12516-1
Face to Face Dimension DIN3202-F1
Flange Dimension EN1092-1/B1
Test & Inspection Code EN12266-1/2
Temperature -29 ~ 250°C
Applicable Medium Water, Oil and Gas

Features

1. Suitable for fluid pipeline systems such as water, steam, oil, gas, etc., effectively protecting downstream equipment;
2. Compact structure, high filtration accuracy, easy maintenance.

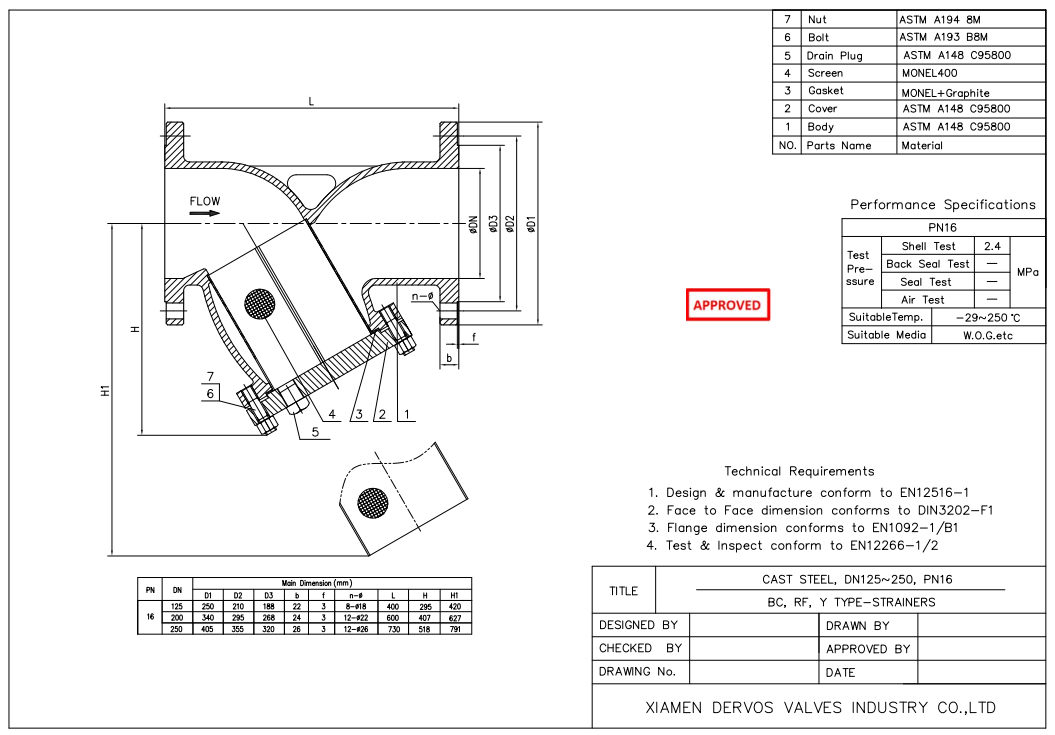

Technical Drawing

Y Type Strainer

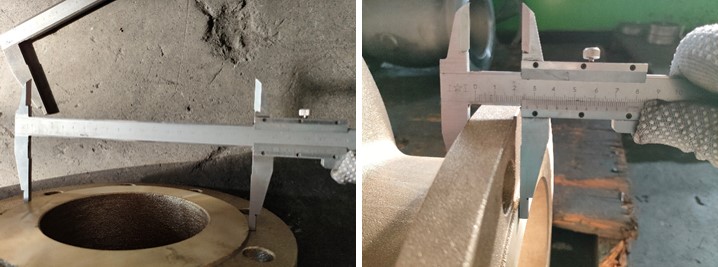

Dimension Checking

Y Type Strainer

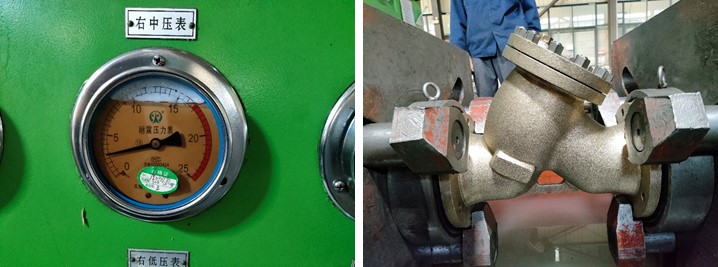

Pressure Testing

Y Type Strainer

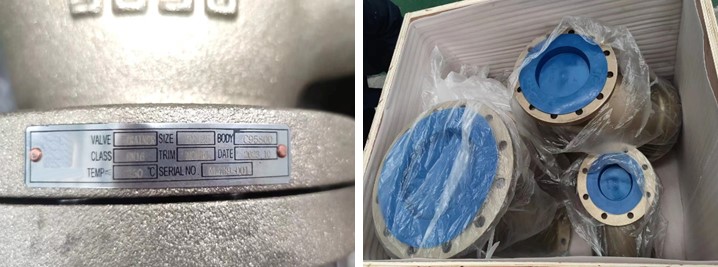

Nameplate & Packing

Y Type Strainer

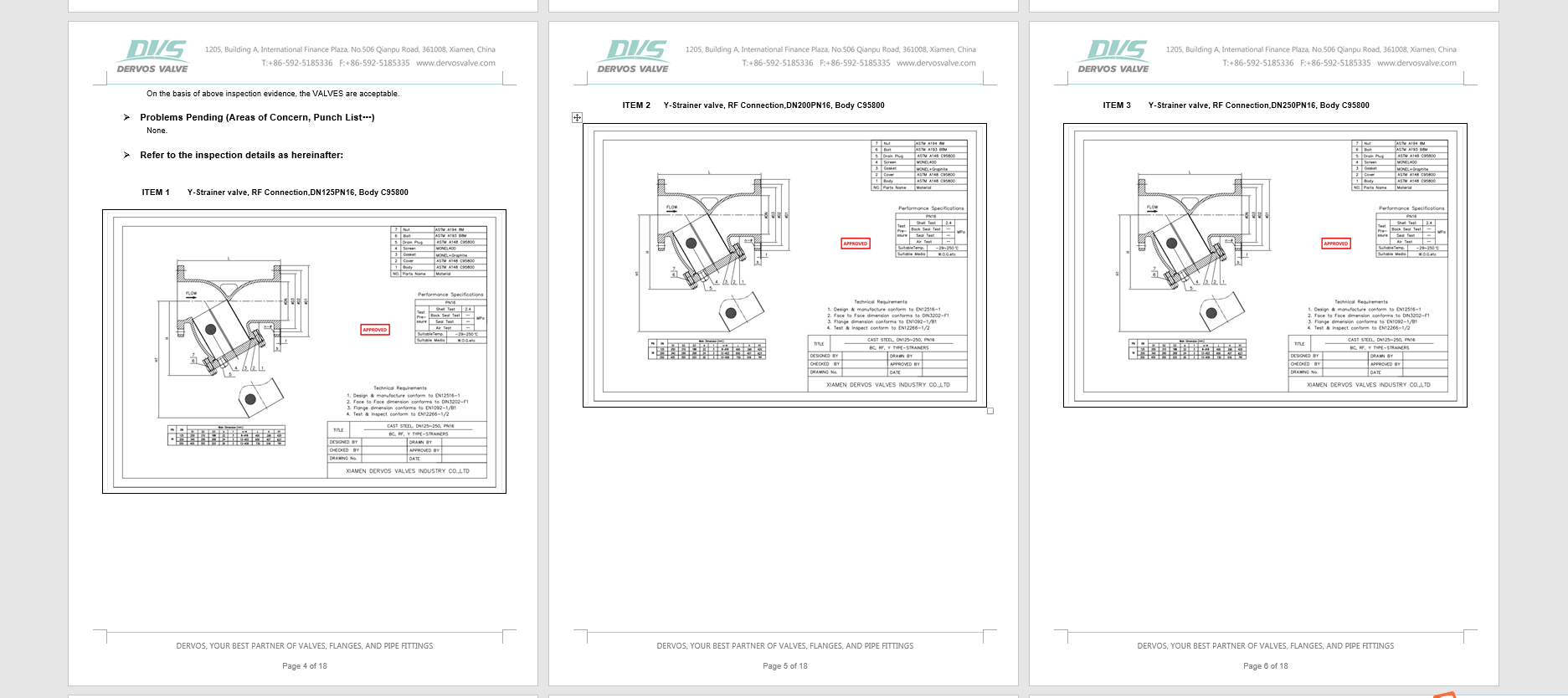

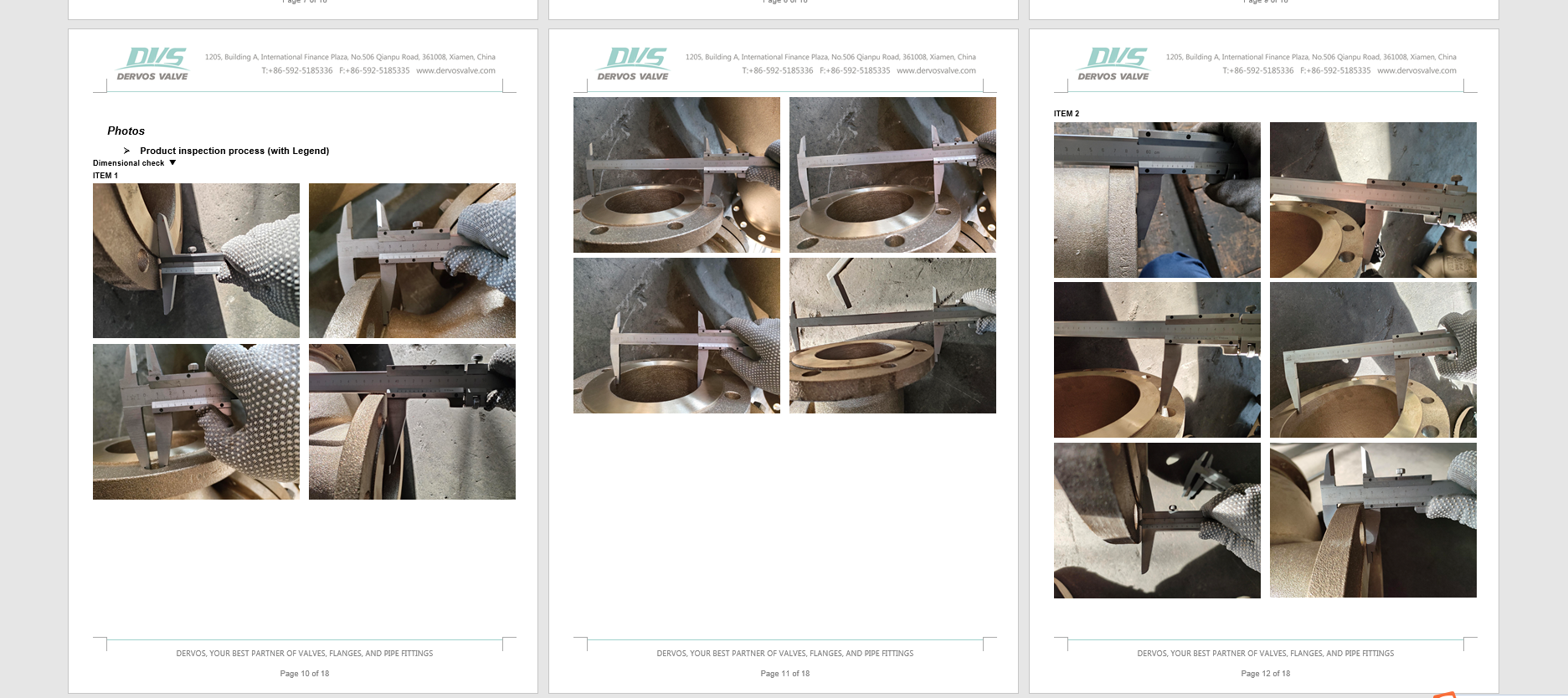

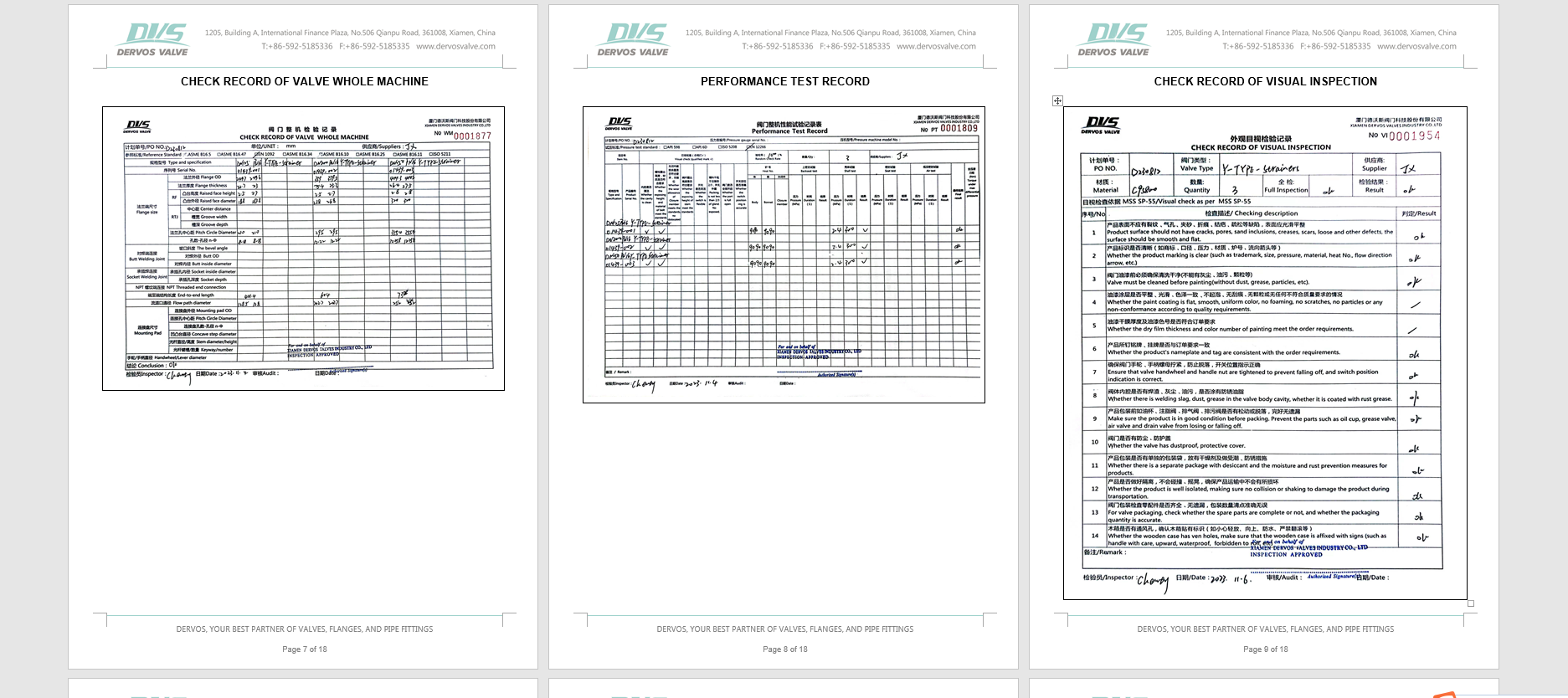

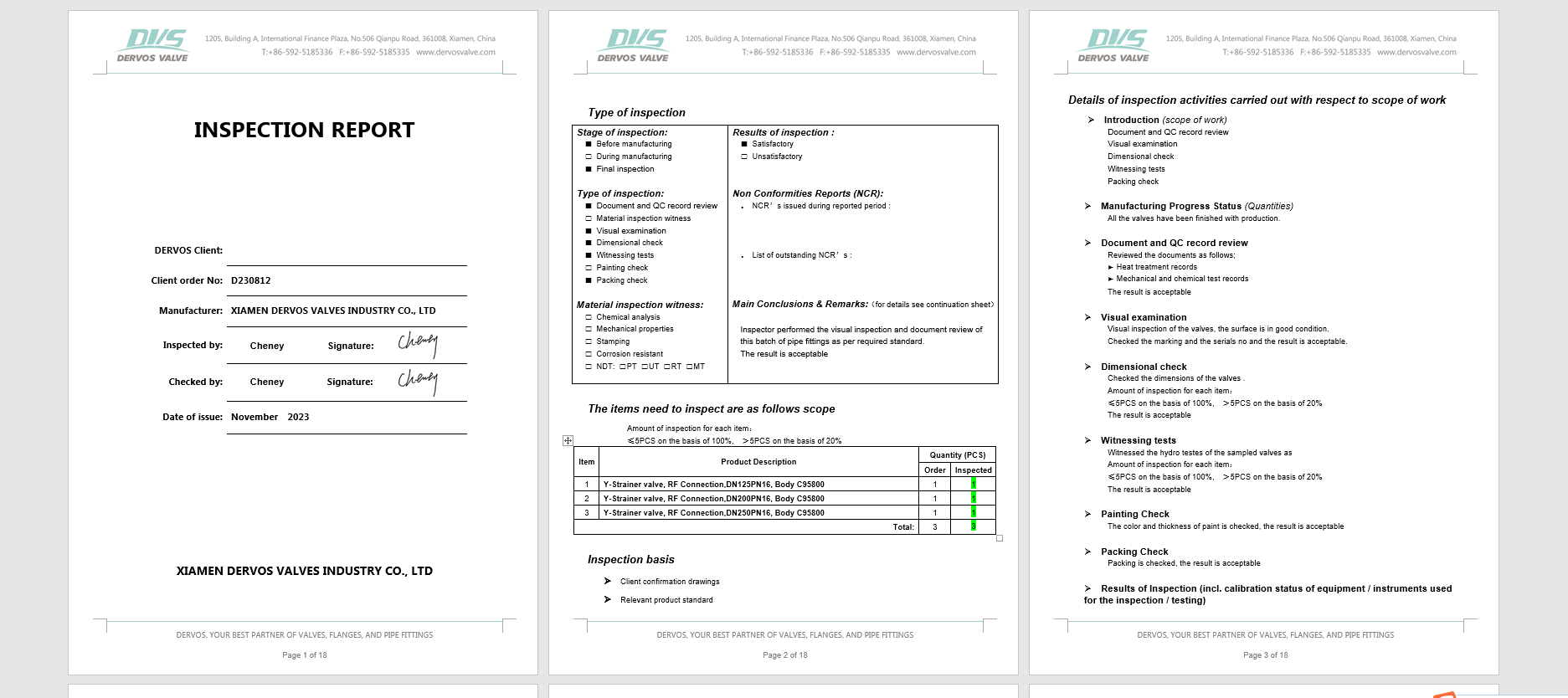

Inspection report

Y Type StrainerY Type Strainer
Y Type StrainerY Type Strainer
