RTJ Connection, 2" 2500LB Y Type Strainer, Body LCC, ASME B16.34
Key Specifications / Features
Model No.: Hits: 0
2" 2500LB Y type strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A352 LCC. It has the structural characteristics of Y-shaped, body cover bolt connection. Its connection mode is RTJ.
Request a quote
Tags:
Detail Information
Product Description
| Type | Y Type Strainer |
| Size | 2" |
| Pressure | 2500LB |
| Connection | RTJ |
| Body Material | ASTM A352 LCC |
| Design Norm | ASME B16.34 |
| Face to Face Dimension | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 345°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. By filtering solid impurities in the pipeline, the Y-strainer effectively protects equipment such as valves, pumps, and instruments, extending their service life;
2. It is suitable for various media, such as water, oil, and gases, and different filter element materials can be selected based on specific working conditions.
Technical Drawing

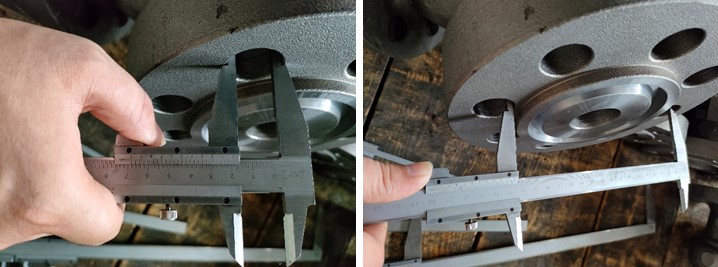

Dimension Checking

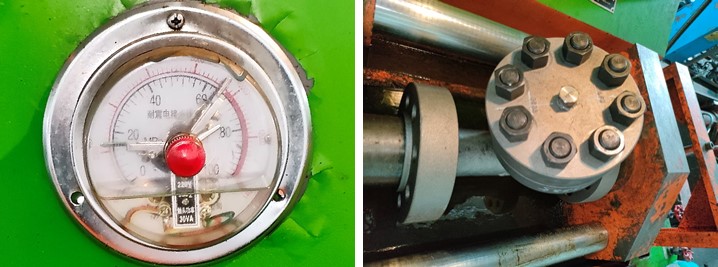

Pressure Testing

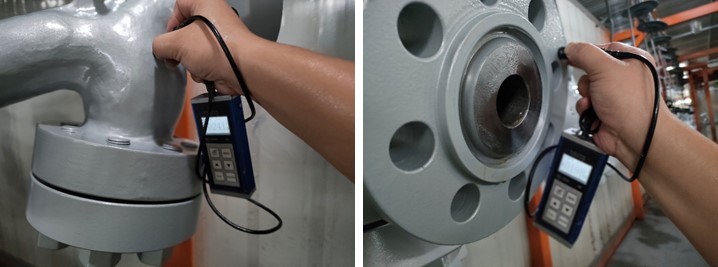

Painting

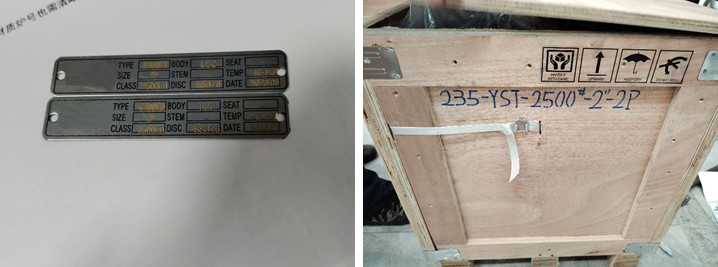

Nameplate & Packing

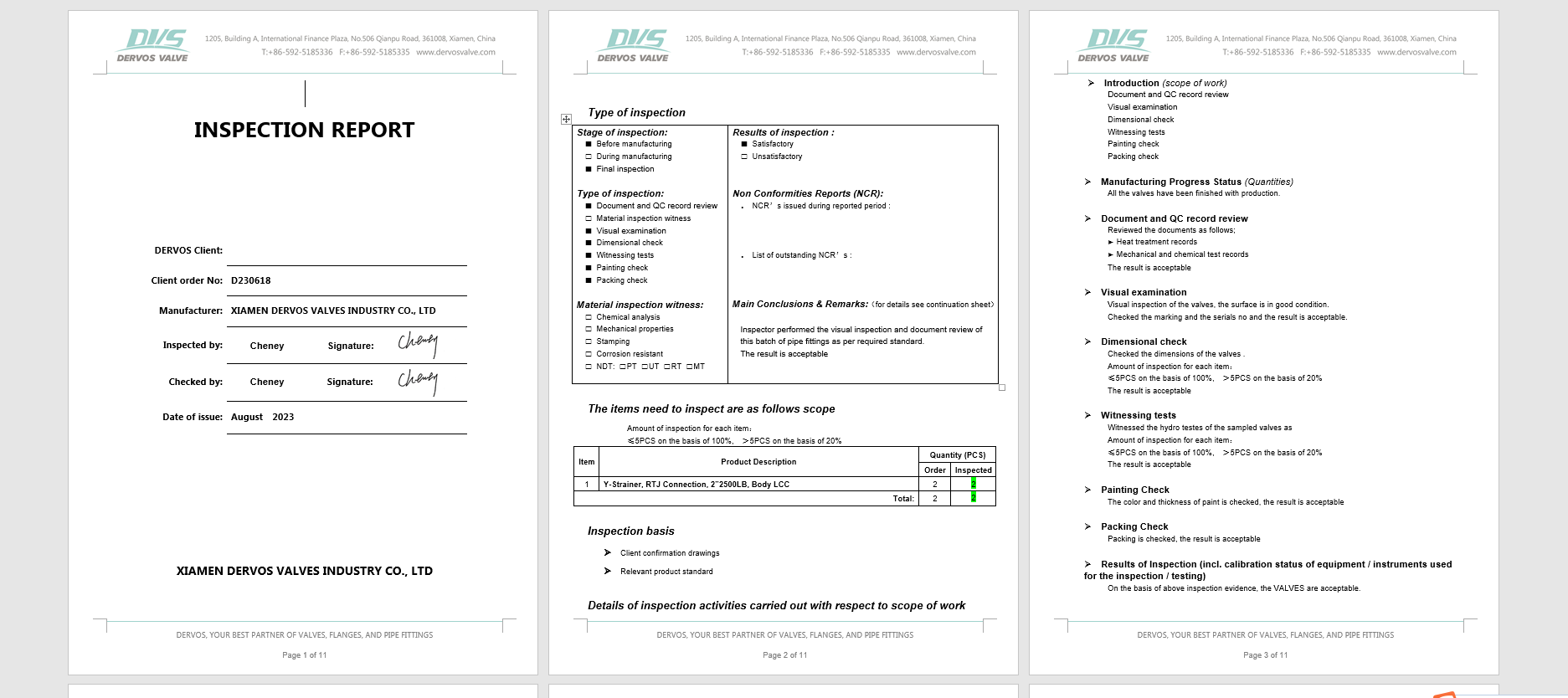

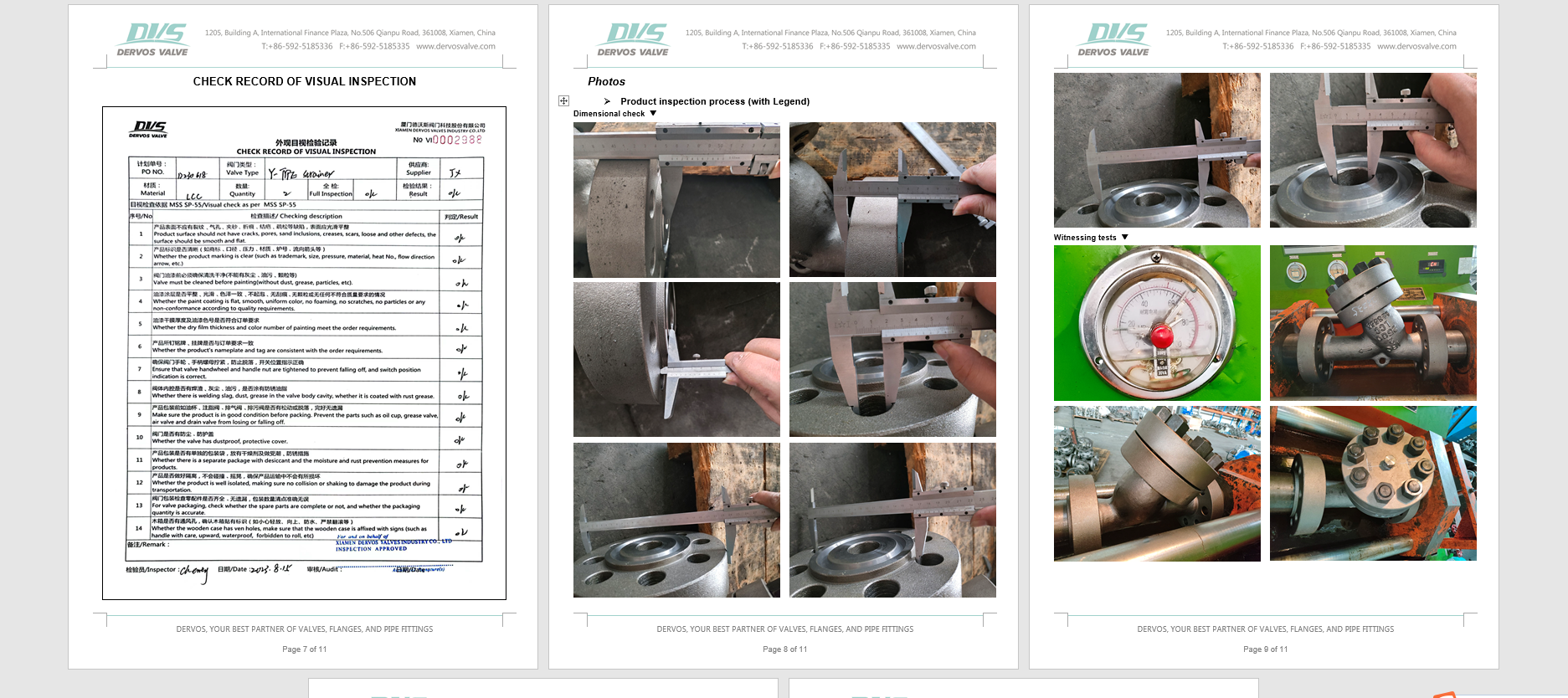

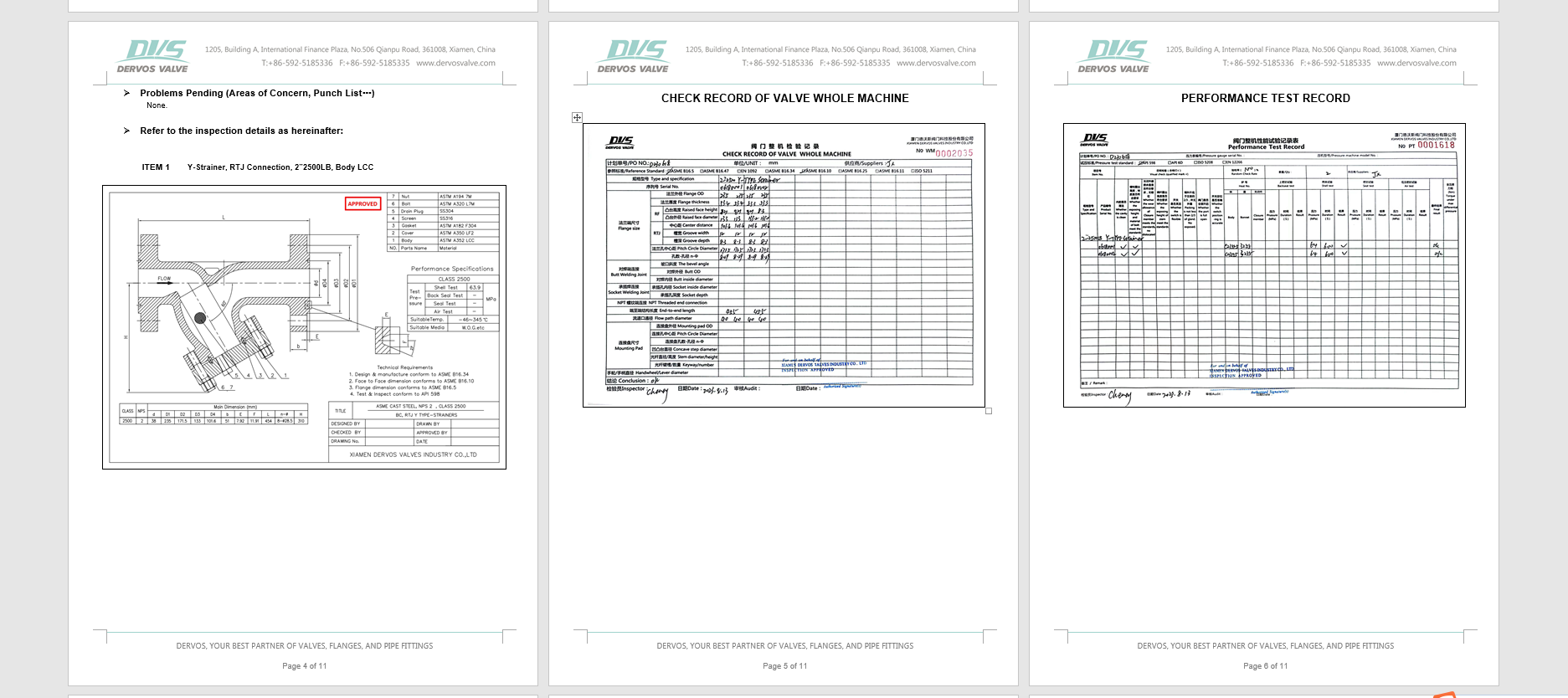

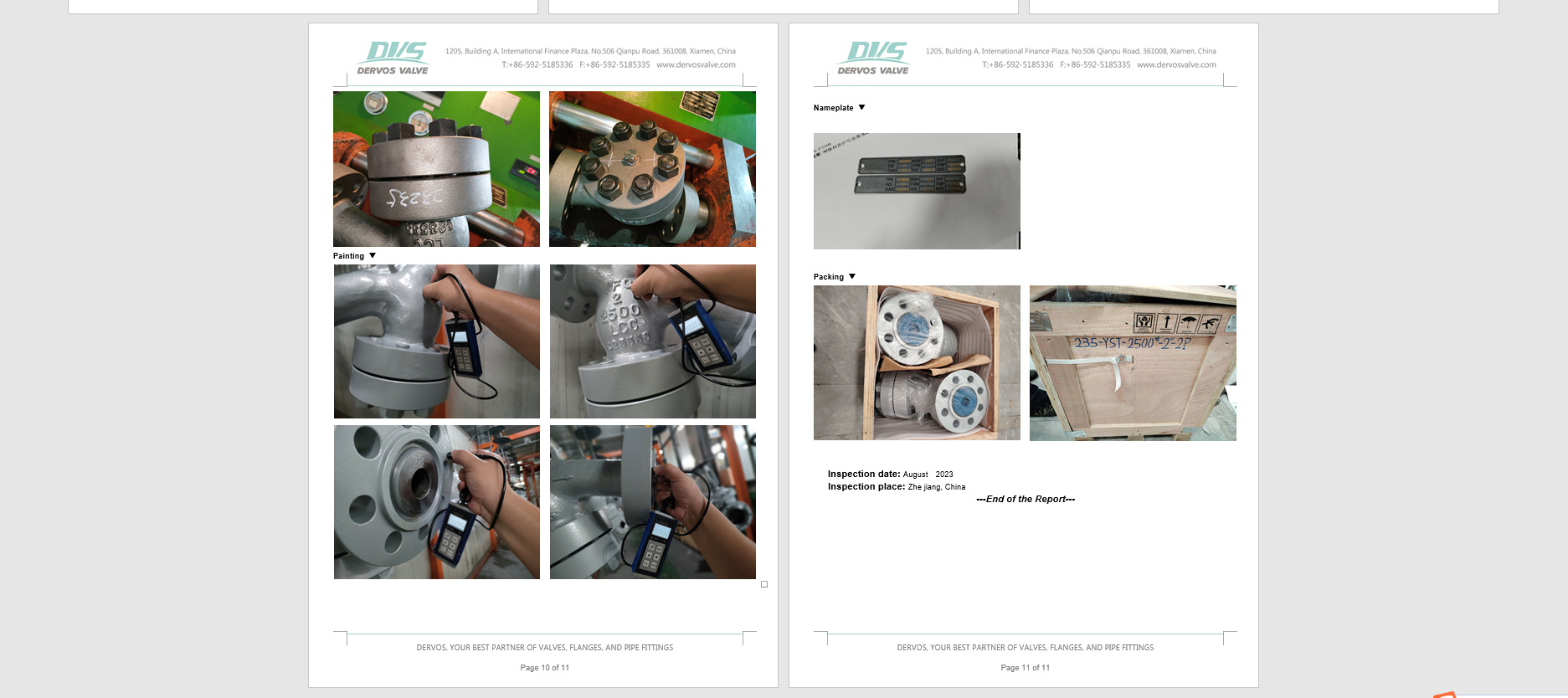

Inspection report
