3/4" 800LB Forged Steel Floating Ball Valve A105 SWxFNPT
Key Specifications / Features
Model No.: Hits: 0
3/4" 800LB Floating Ball Valve is made according to ASME B16.34 standard. The valve body is made of A105. It has the structural characteristics of Split Body, Side Entry, Floating Ball, Reduced Bore. Its connection mode is SWxFNPT. And it has Lever operation mode.
Request a quote
Tags:
Next: Return to List
Previous: 1/2" 150LB F51 Two-Piece Floating Ball Valve RF API6D
Detail Information
Product Parameters
| Type | Floating Ball Valve |
| Size | 3/4” |
| Pressure | 800LB |
| Connection | SWxFNPT |
| Operation | LEVER OP. |
| Body Material | A105 |
| Design Norm | ASME B16.34 |
| End to End | MANUFACTURER STANDARD |
| End connection | SWxNPT |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Floating ball design ensures tight shutoff and reliable sealing performance under high pressure.2.Forged A105 steel body with SW and FNPT ends offers strong durability and flexible installation options.

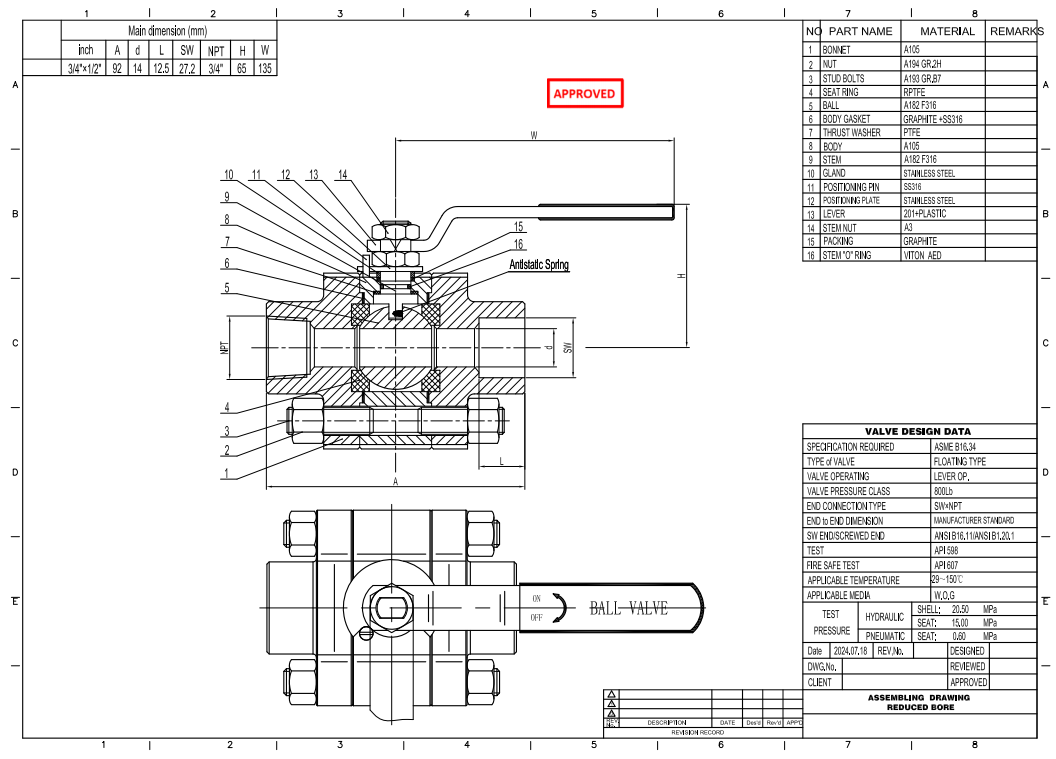

Technical Drawing

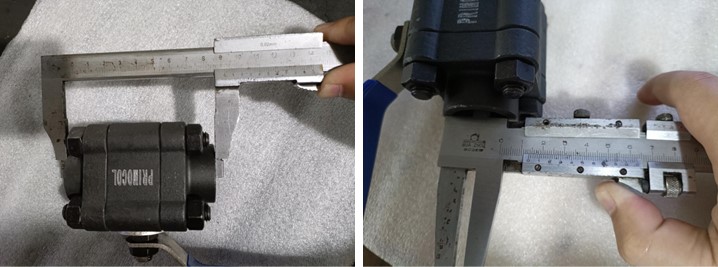

Dimension Checking

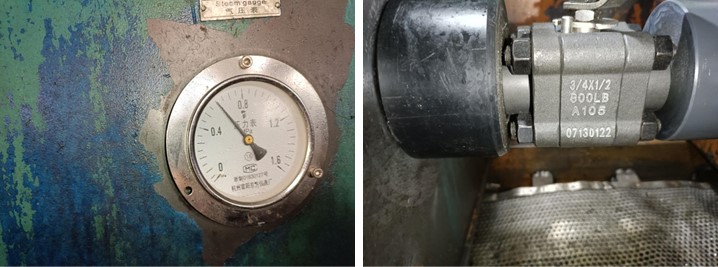

Pressure Testing

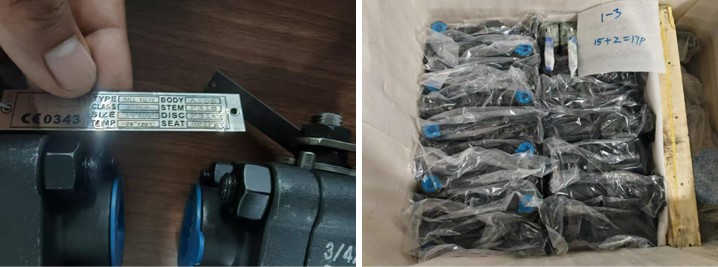

Nameplate & Packing

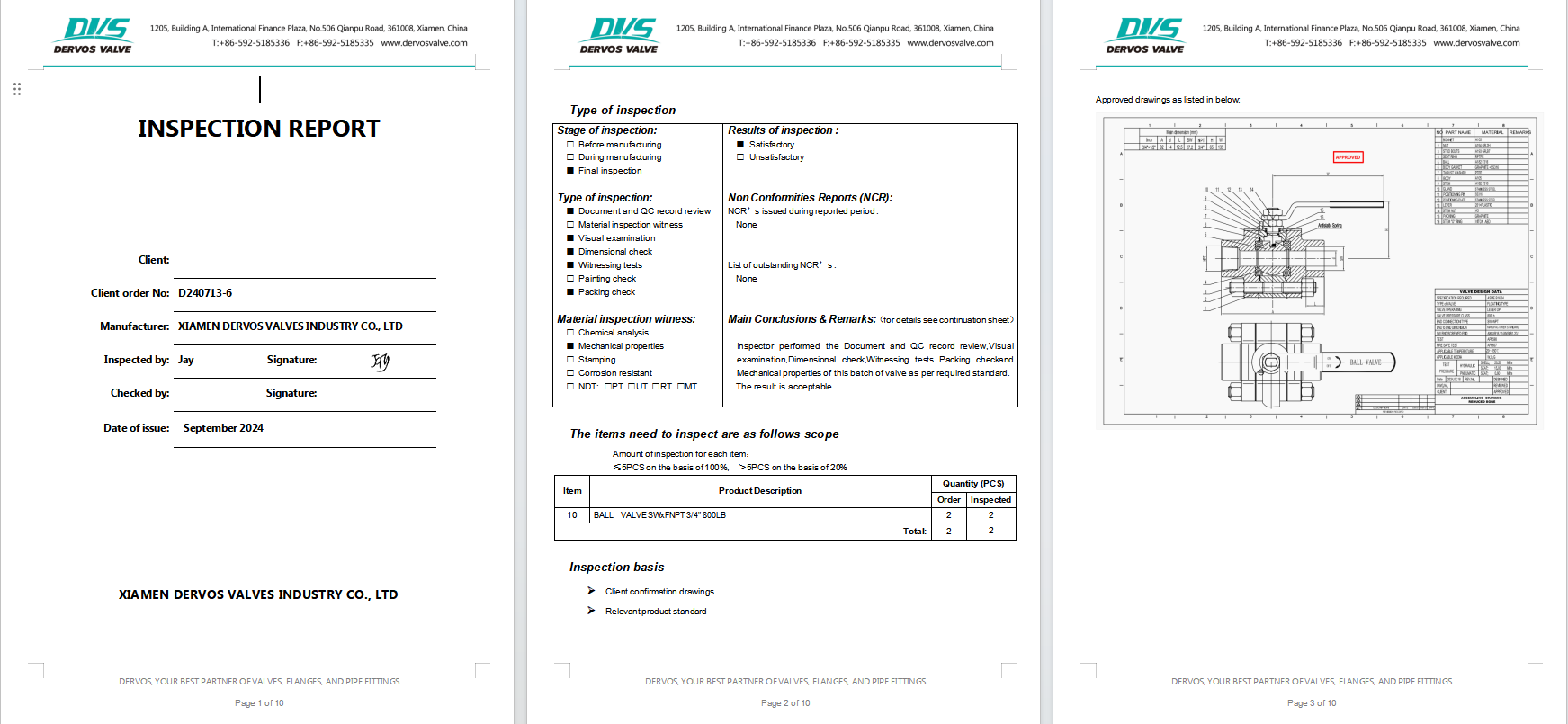

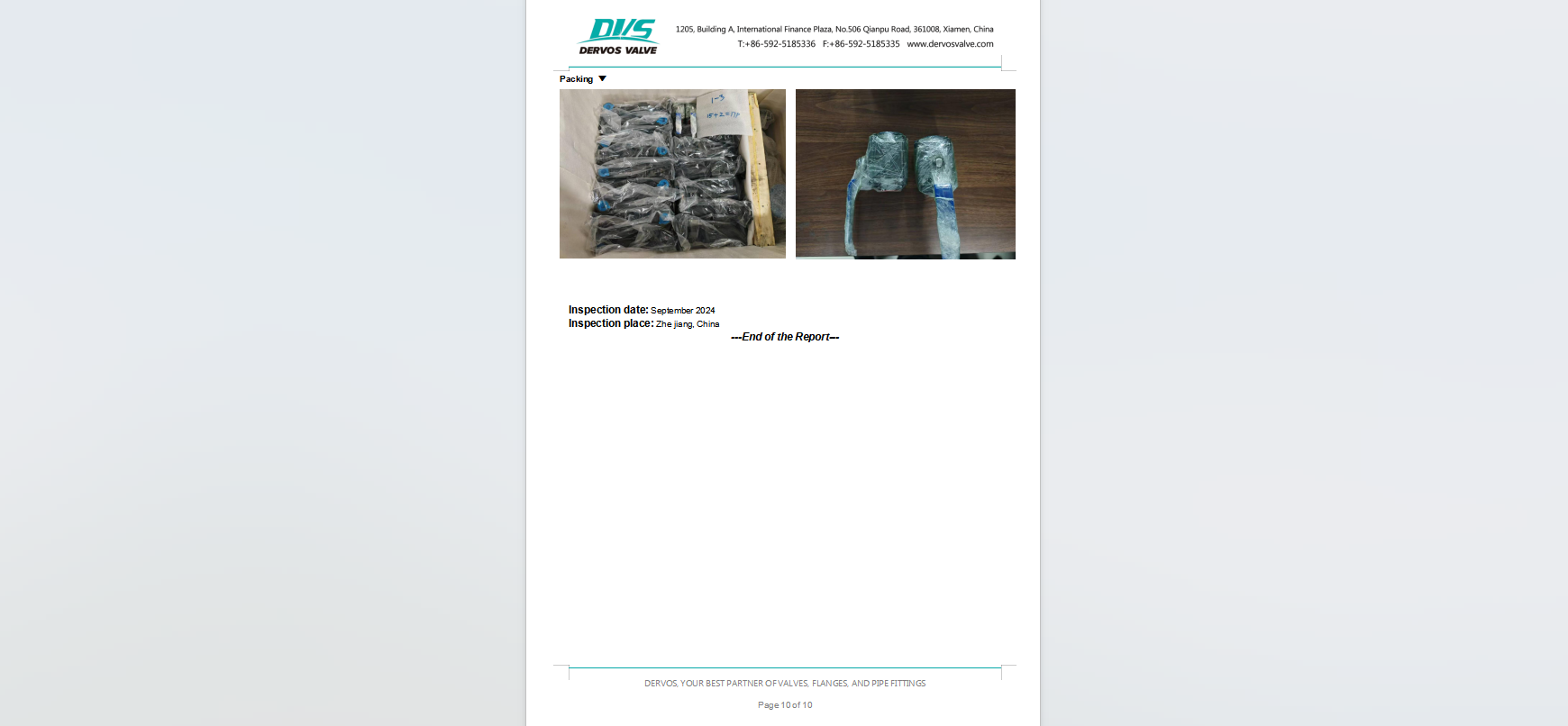

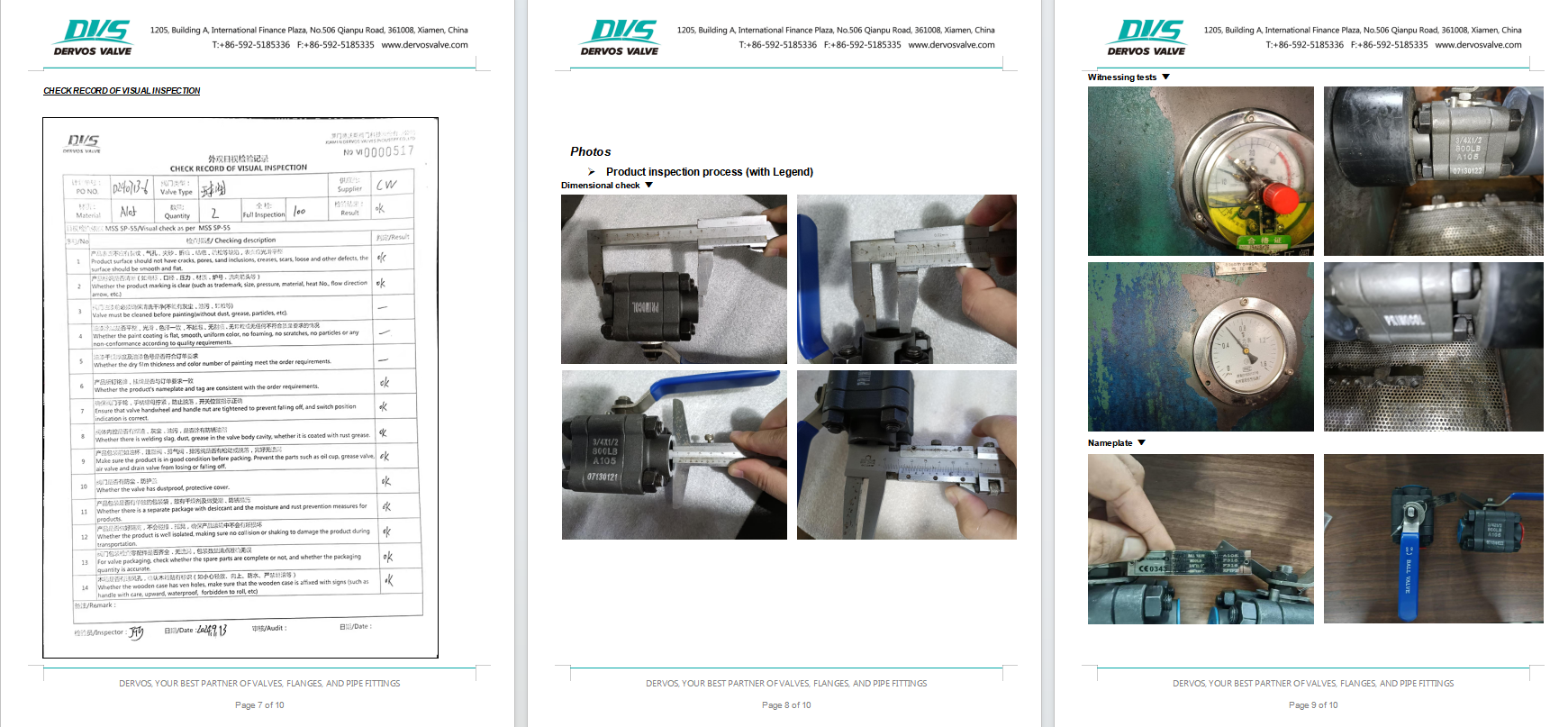

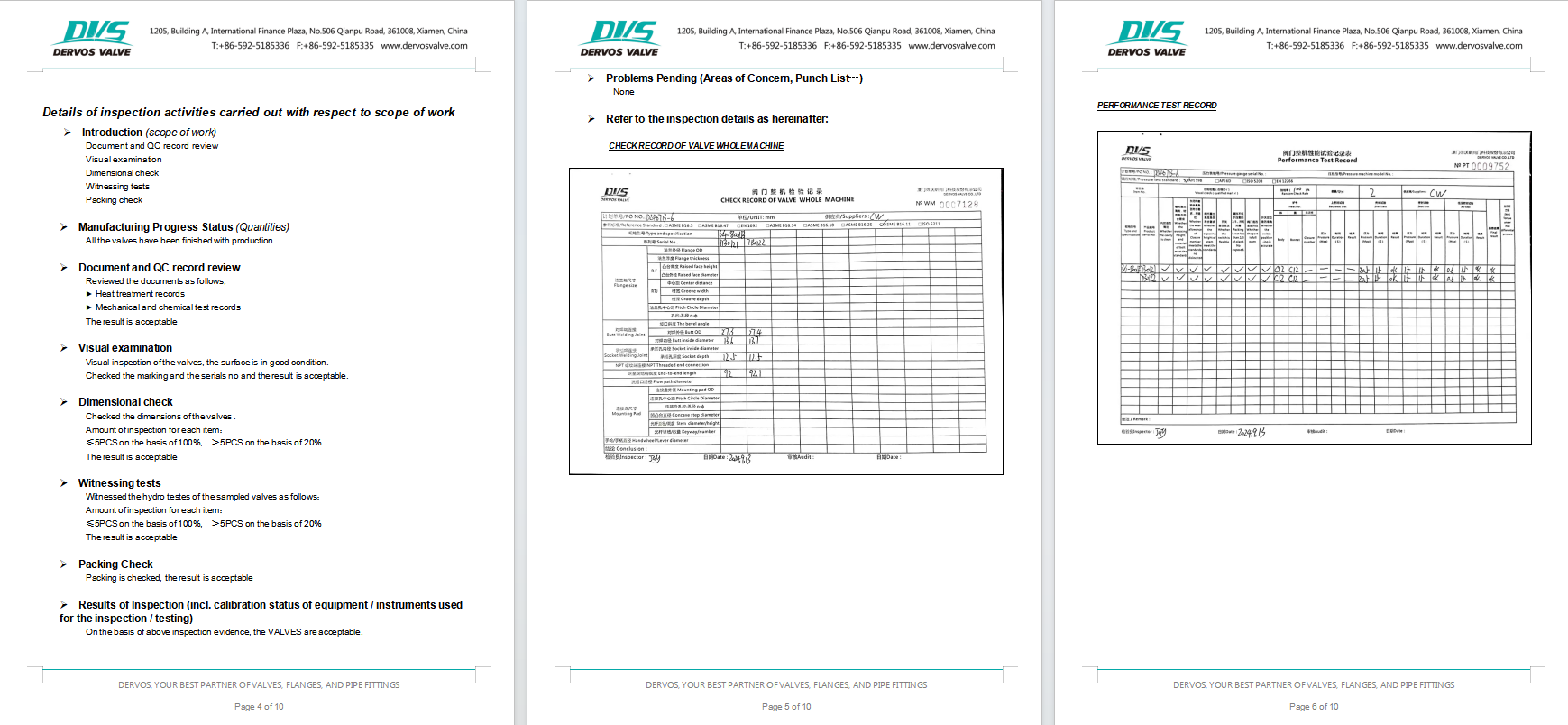

Inspection Report
