1/2" 150LB F51 Two-Piece Floating Ball Valve RF API6D
Key Specifications / Features
Model No.: Hits: 0
1/2" 150LB Floating Ball Valve is made according to API6D standard. The valve body is made of ASTM A182 F51. This two-piece full bore floating ball valve is compliant with NACE MR0175 and features fire-safe and anti-static design with a blow-out proof stem. It is operated by a lever handle with a locking device for secure operation. Its connection mode is RF. And it has handle operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Floating Ball Valve |
| Size | 1/2" |
| Pressure | 150LB |
| Connection | RF |
| Operation | Handle |
| Body Material | ASTM A182 F51 |
| Design Norm | API 6D |
| Face to face | ASME B16.10 |
| Flange | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Two-piece floating ball design ensures tight sealing and reliable shutoff performance.2.F51 duplex stainless steel body offers excellent corrosion resistance and durability in harsh environments.

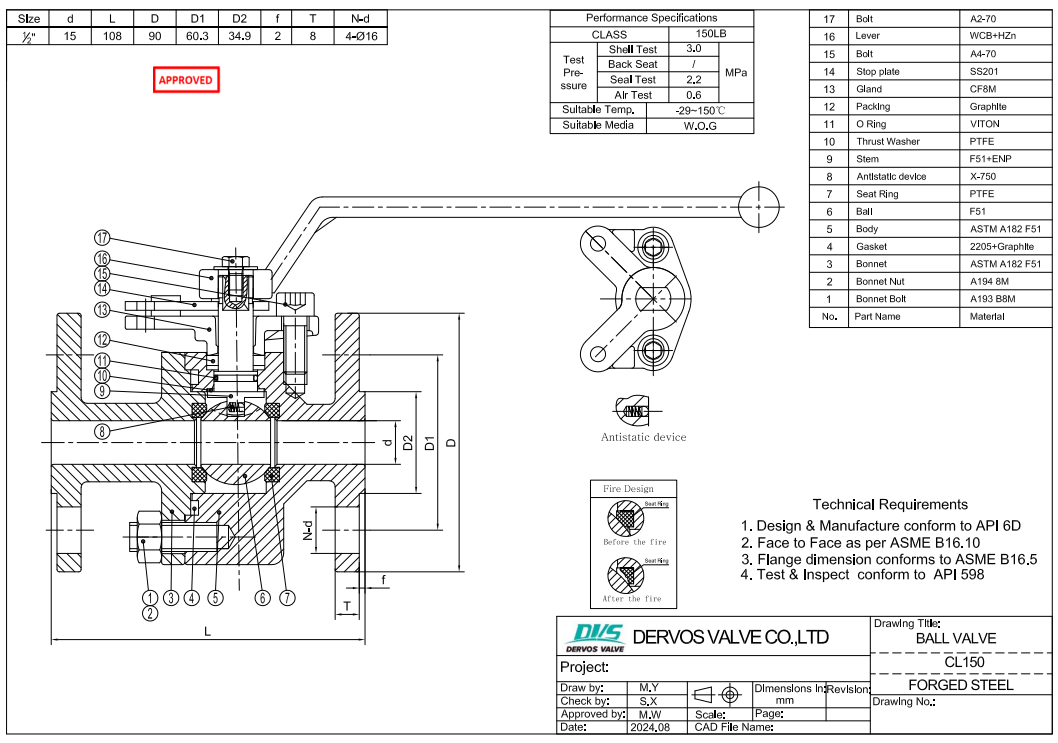

Technical Drawing

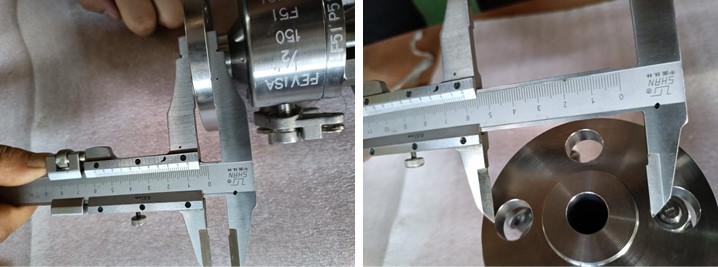

Dimension Checking

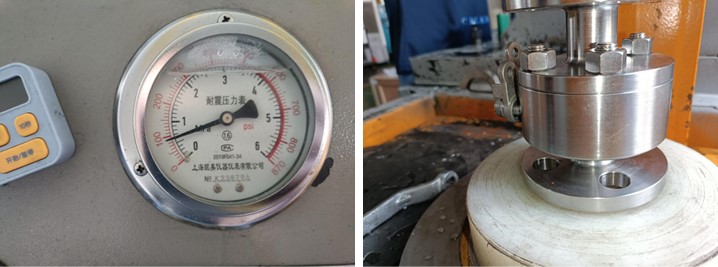

Pressure Testing

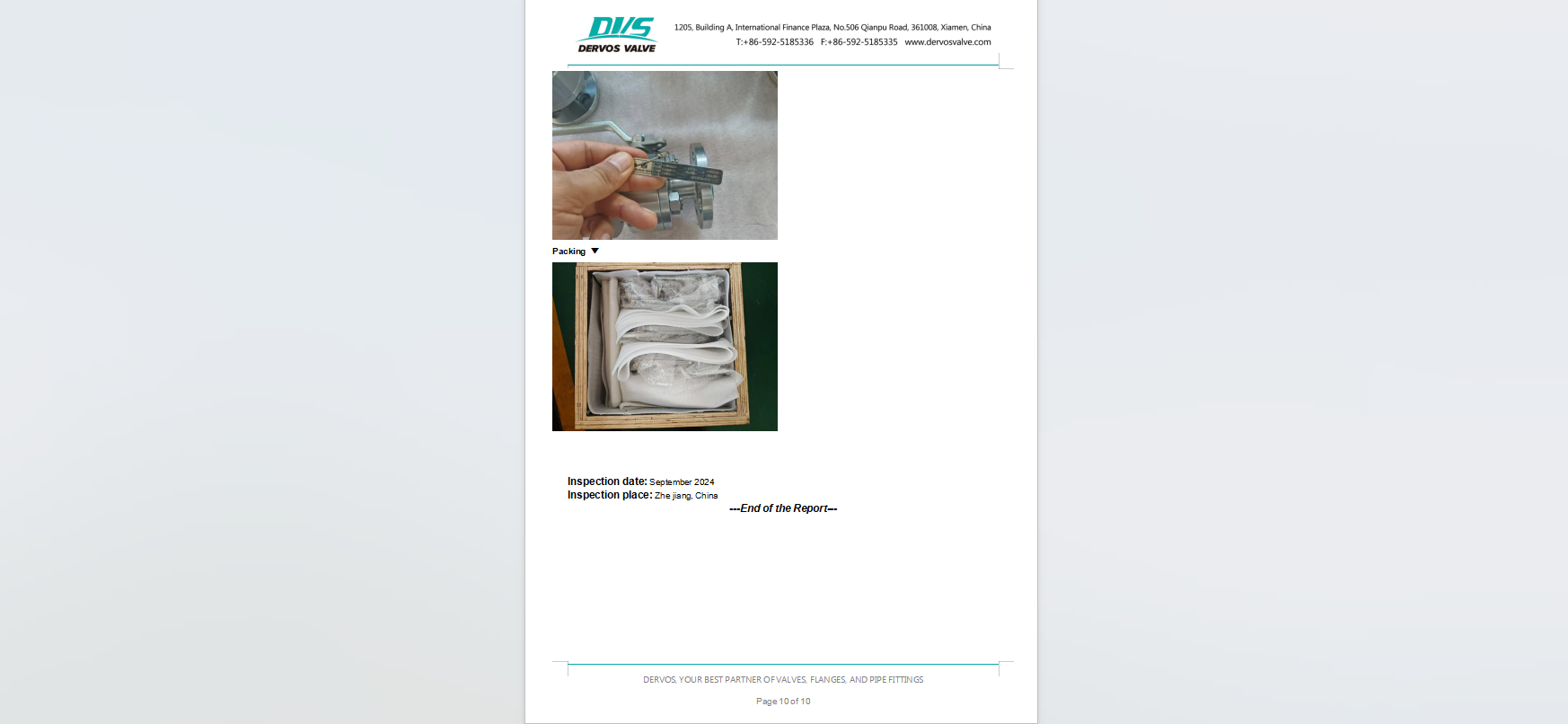

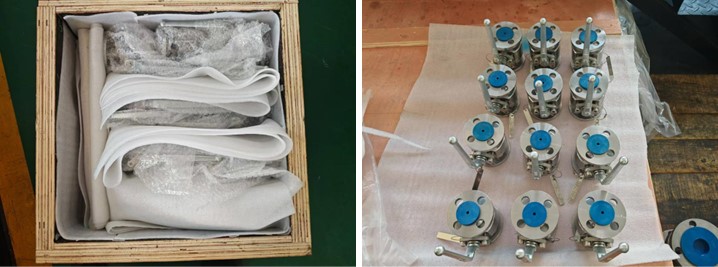

Nameplate & Packing

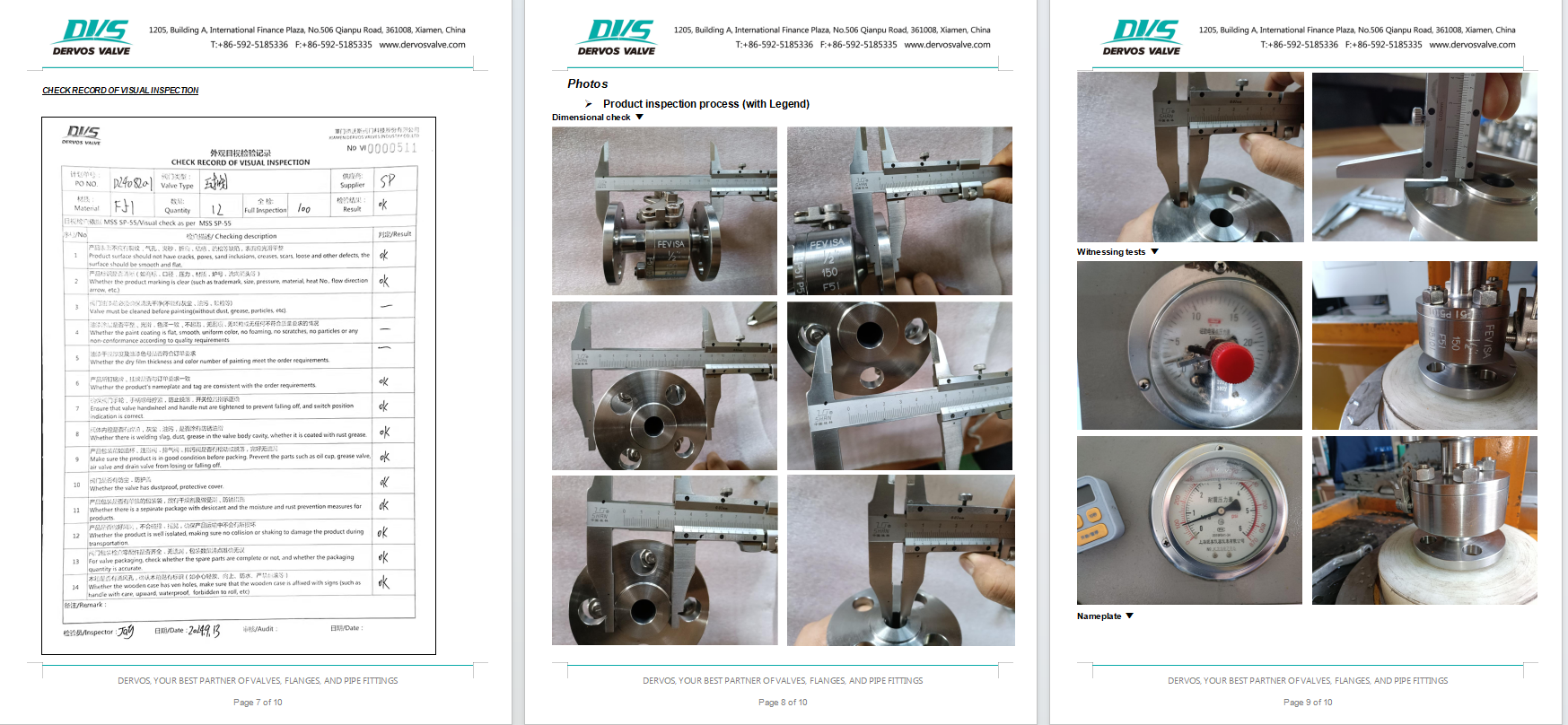

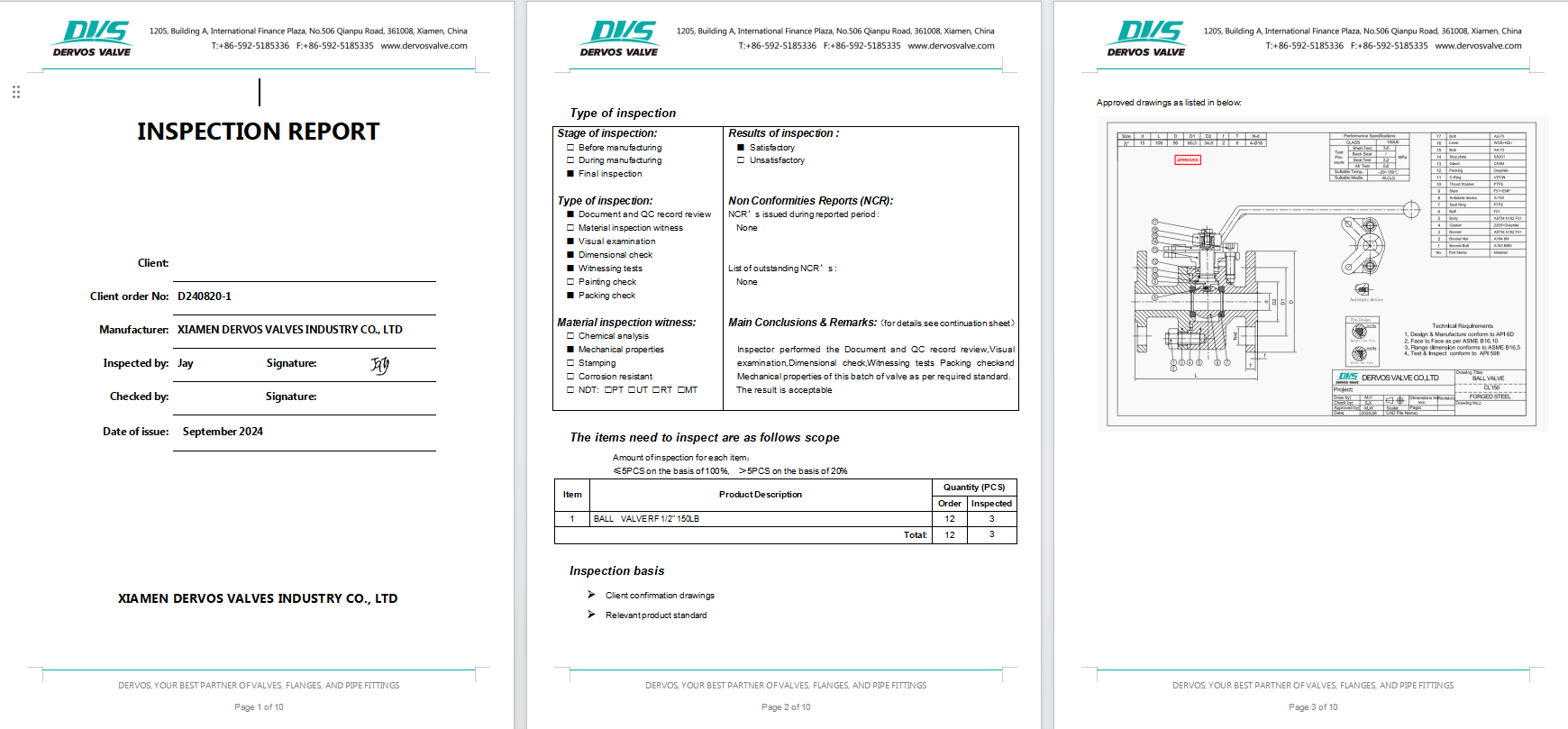

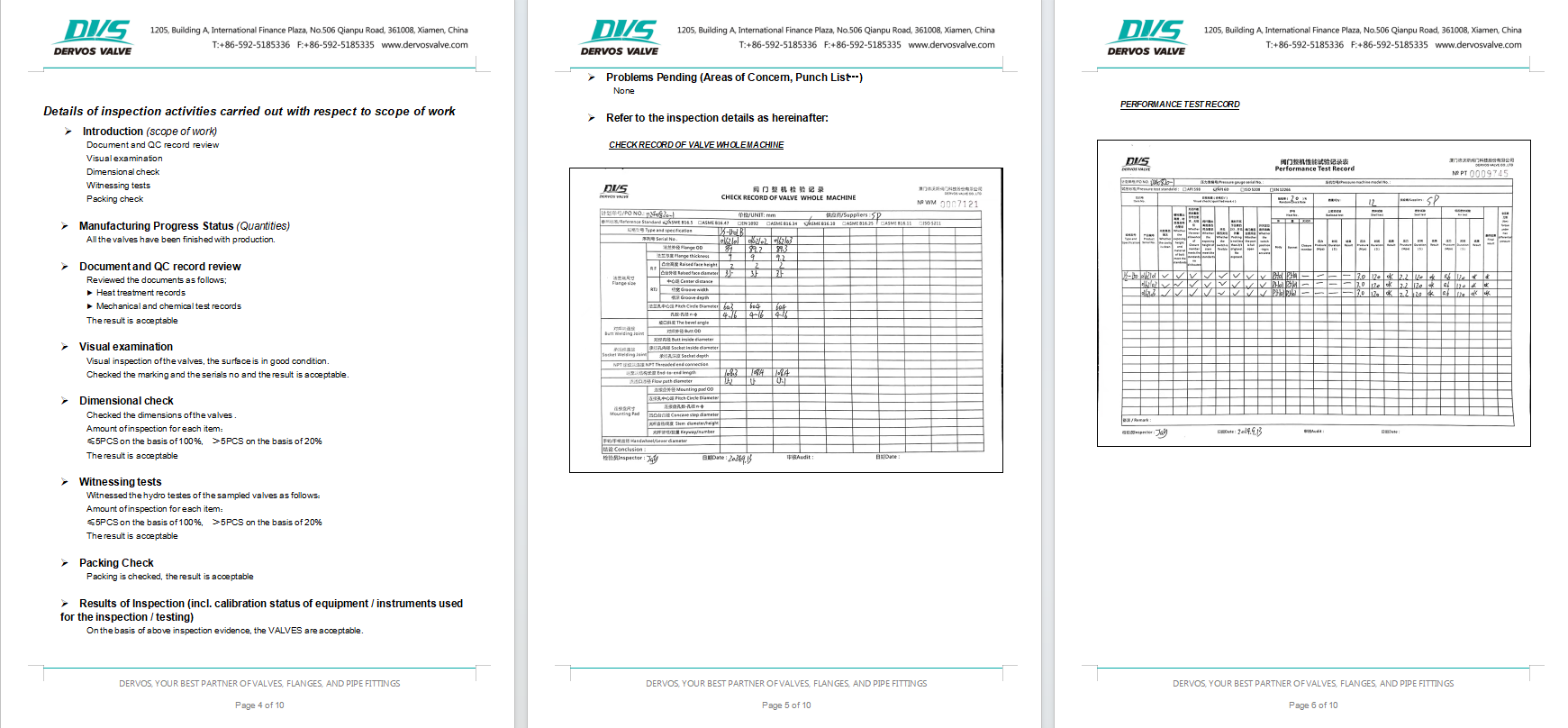

Inspection Report
