1/2” 2000PSI Floating Ball Valve A105 NPT BS5351
Key Specifications / Features
Model No.: Hits: 0
1/2” 2000PSI Floating Ball Valve is made according to BS5351 standard. The valve body is made of A105. It has the structural characteristics of Full Bore, Two-Piece, Floating Solid Ball, Fire-Safe and Anti-Static, Blow-Out Proof Stem. Its connection mode is NPT. And it has handle operation mode.
Request a quote
Tags:
Next: Return to List
Previous: 2" 600LB Casting Floating Ball Valve Hand Wheel API6D
Detail Information
Product Parameters
| Type | Floating Ball Valve |
| Size | 1/2” |
| Pressure | 2000PS |
| Connection | NPT |
| Operation | Handle |
| Body Material | ASTM A105 |
| Design Norm | BS5351 |
| Screw ends | ANSIB1.12.1 |
| Test & Inspection Code | API 598 |
| Temperature | -20 ~ 115°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Floating ball design ensures tight shut-off and smooth operation under high-pressure conditions.2.Constructed from A105 steel with NPT connection, rated 2000PSI, and compliant with BS 5351 for reliable performance.

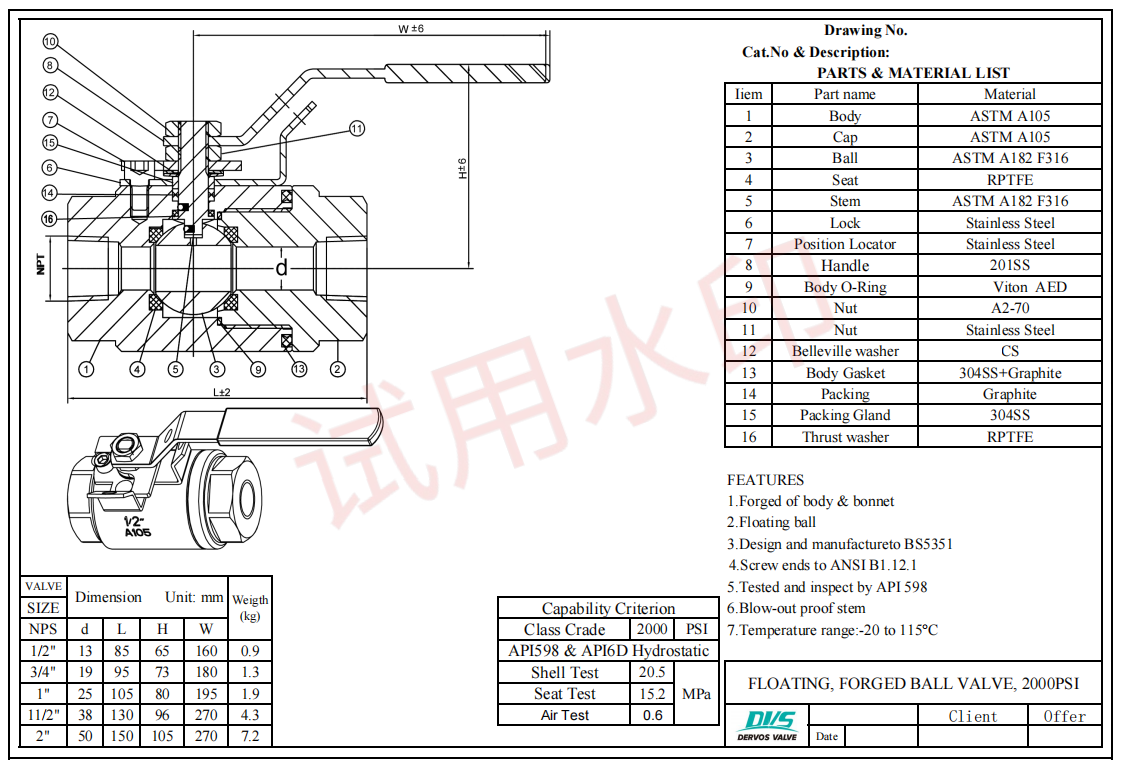

Technical Drawing

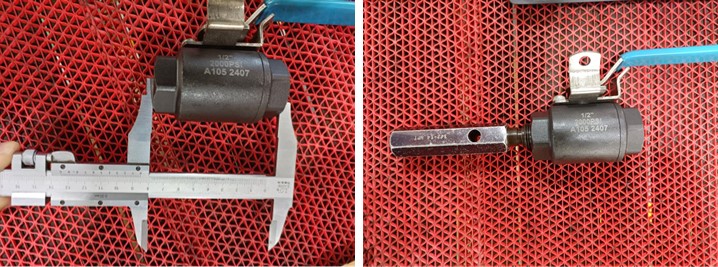

Dimension Checking

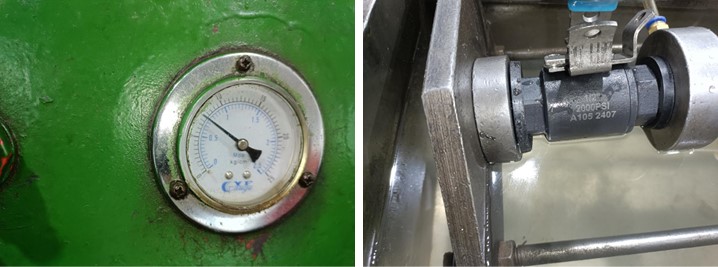

Pressure Testing

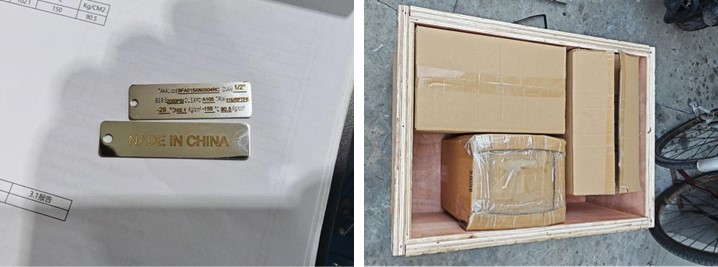

Nameplate & Packing

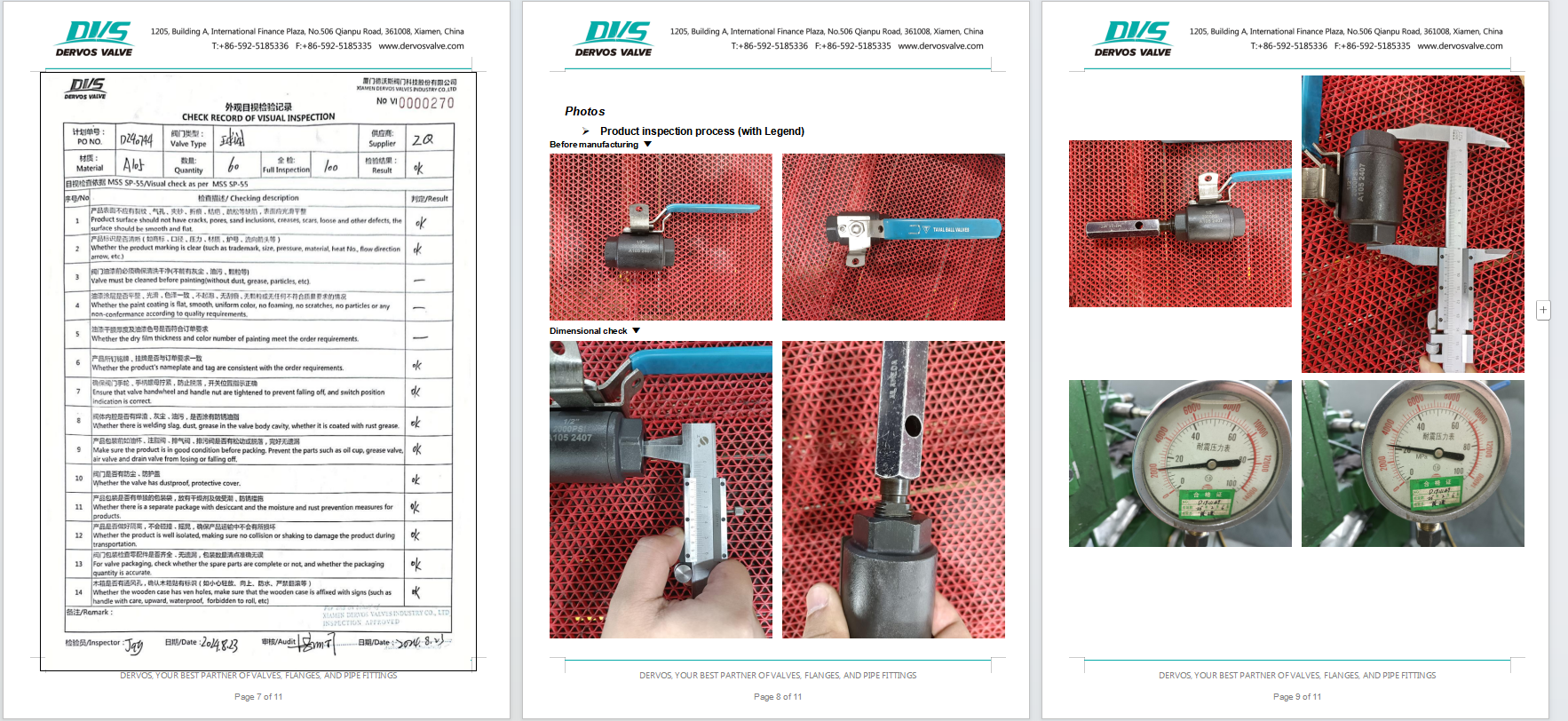

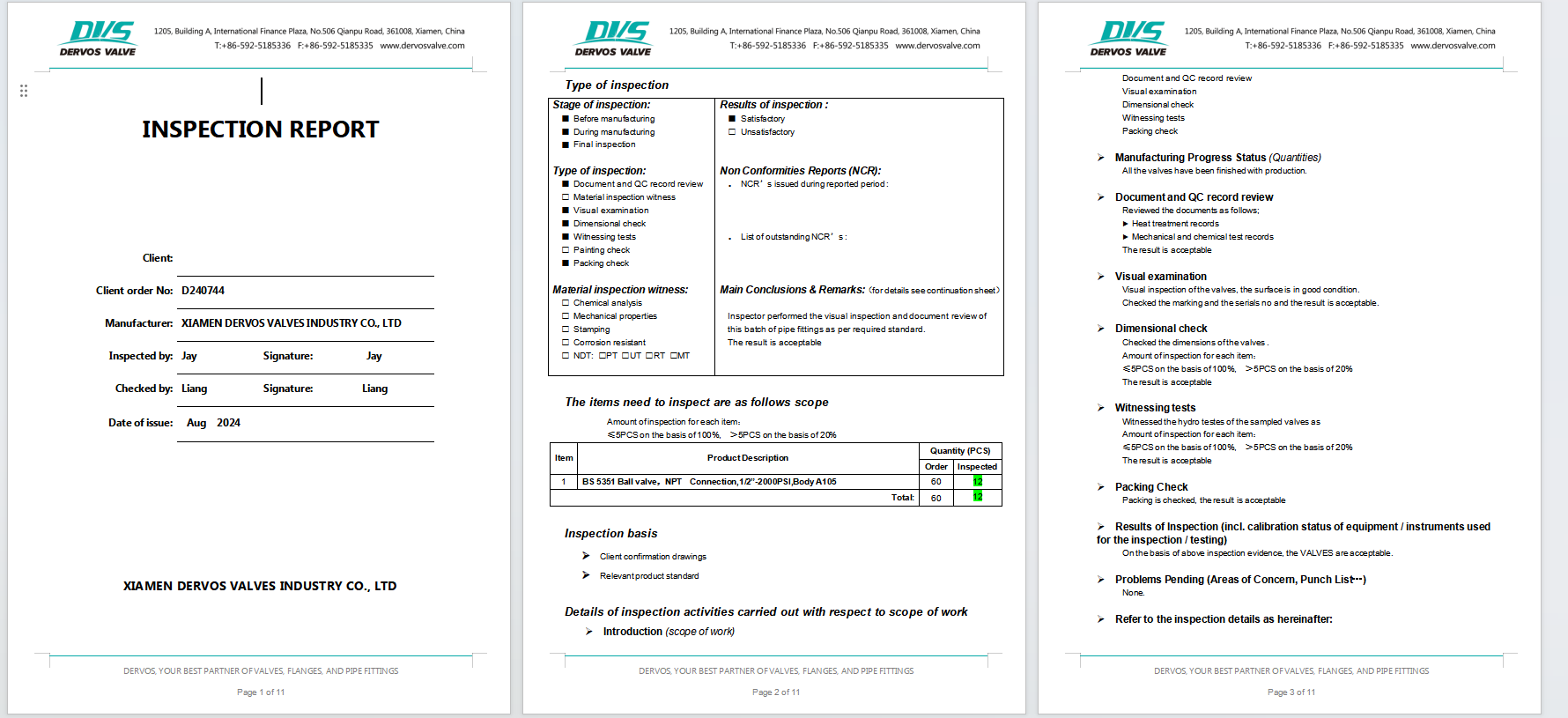

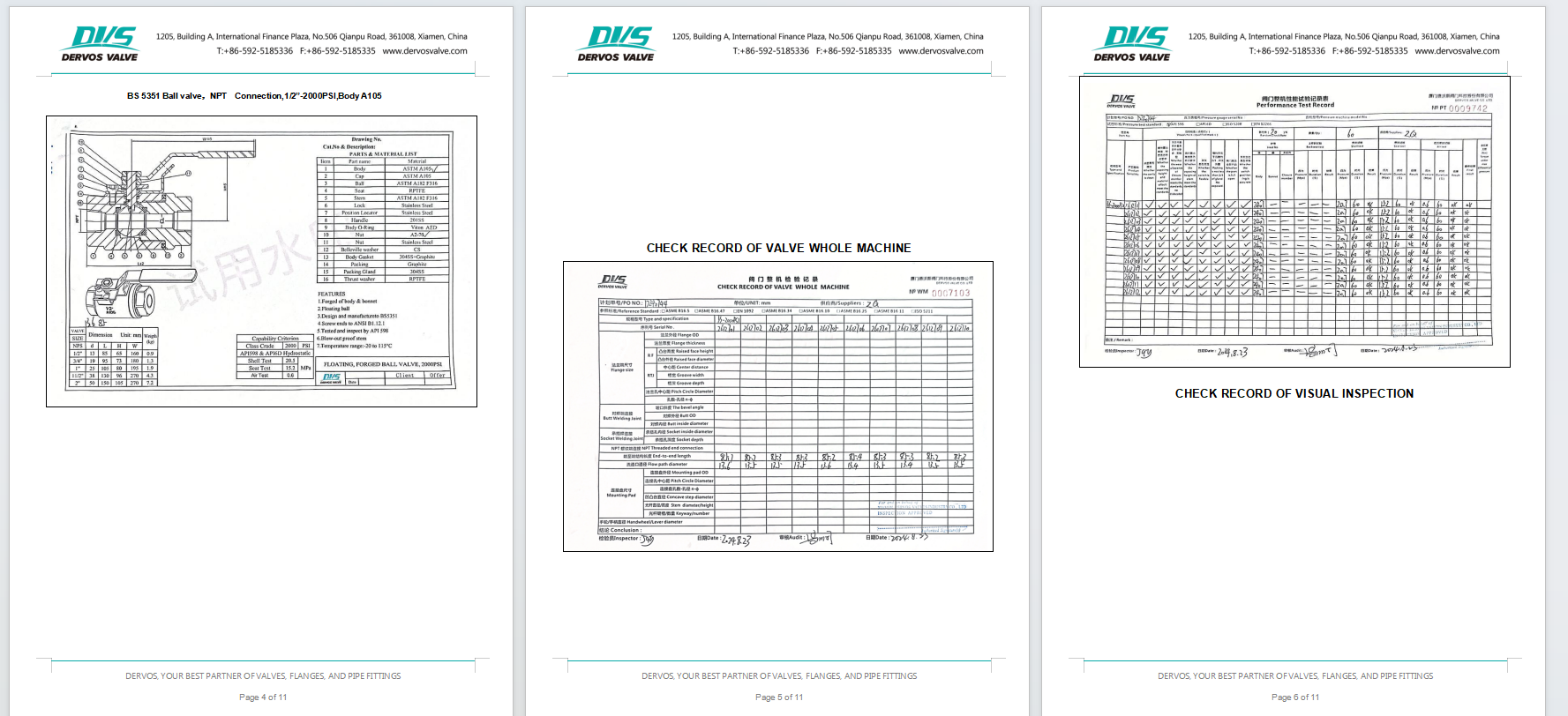

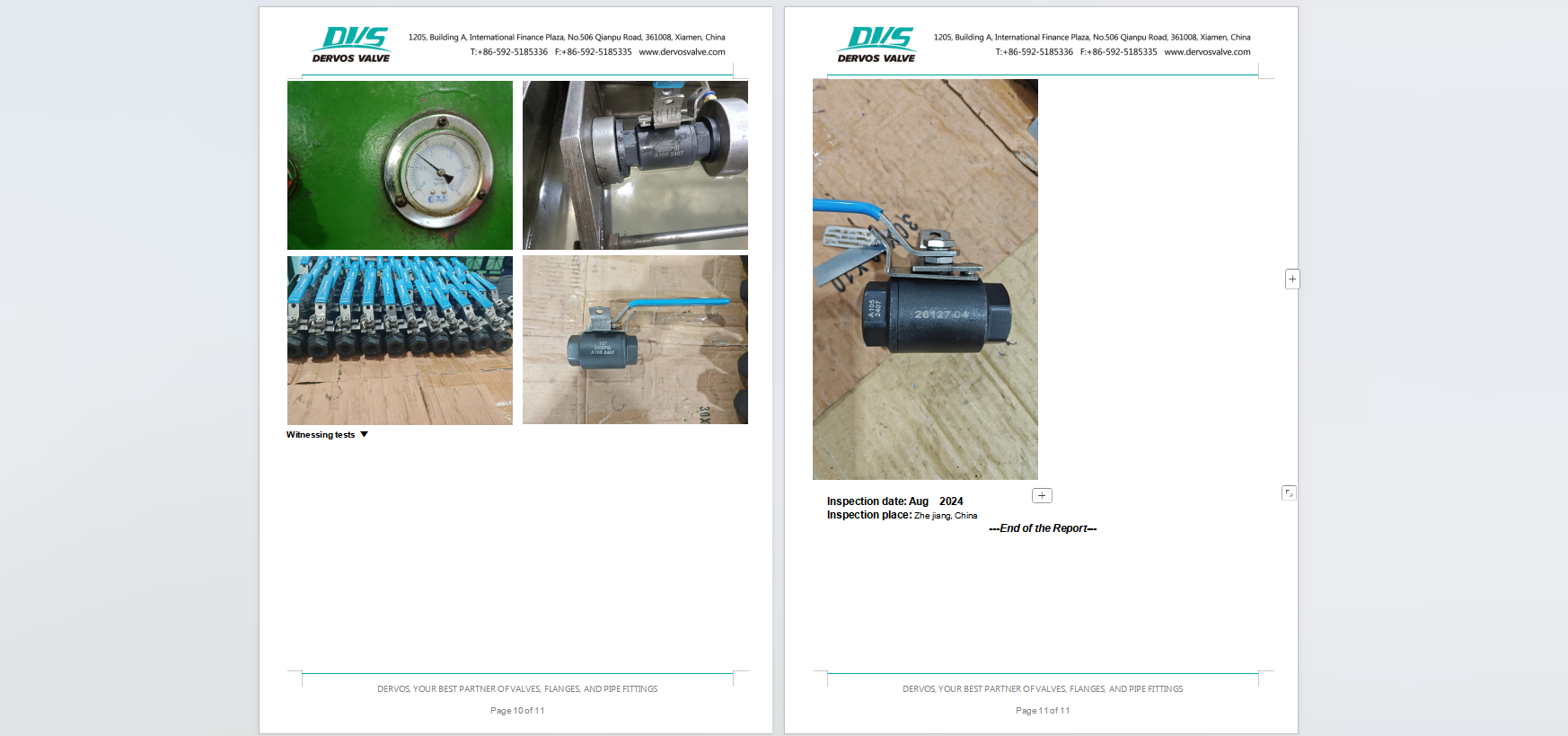

Inspection Report
