2" 600LB Casting Floating Ball Valve Hand Wheel API6D
Key Specifications / Features
Model No.: Hits: 0
2" 600LB Casting Floating Ball Valve is made according to API6D standard. The valve body is made of ASTM A494 CU5MCuC. It has the structural characteristics of Floating ball design with API 6FA fire-safe construction, anti-static and anti-blowout stem design, with materials fully compliant with NACE MR0175 requirements.. Its connection mode is RTJ. And it has Hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Casting Floating Ball Valve |
| Size | 2” |
| Pressure | 600LB |
| Connection | RTJ |
| Operation | Hand Wheel |
| Body Material | CU5MCuC |
| Design Norm | API 6D |
| End to End | ASME B16.10 |
| End connection | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -32 ~ 149°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.High-Pressure Floating Ball Design: The casting floating ball valve is designed to withstand Class 600 pressure, ensuring reliable shut-off and stable sealing performance.2.Manual Hand Wheel Operation: Equipped with a hand wheel and manufactured in accordance with API 6D, it provides precise control and dependable operation in pipeline systems.

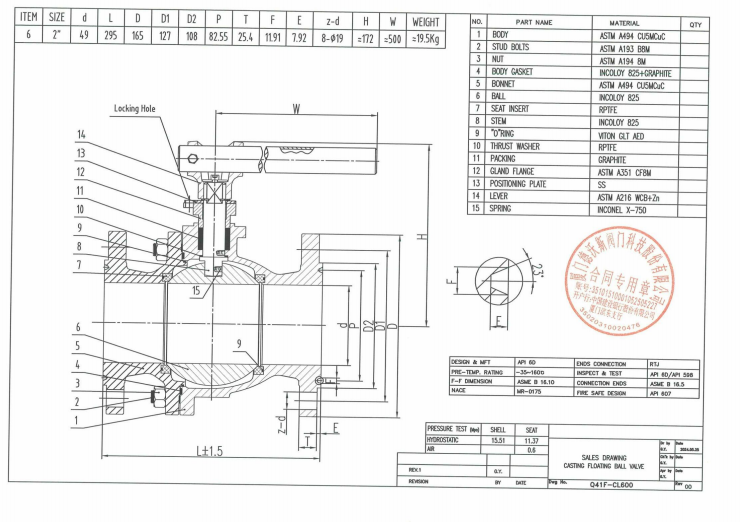

Technical Drawing

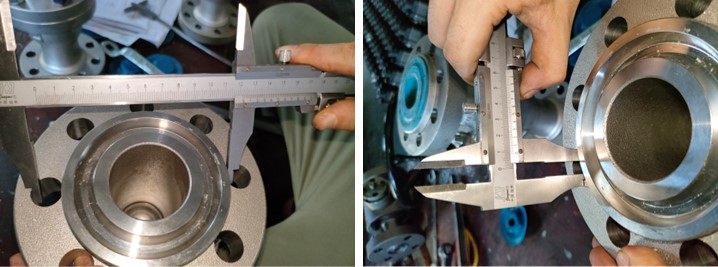

Dimension Checking

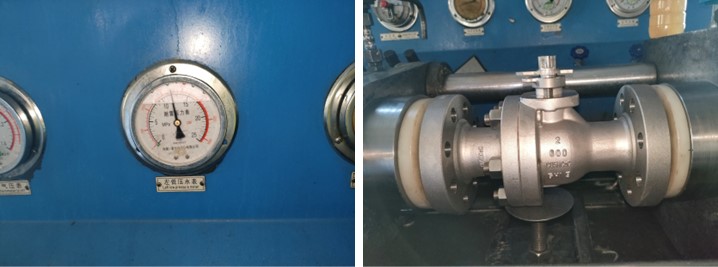

Pressure Testing

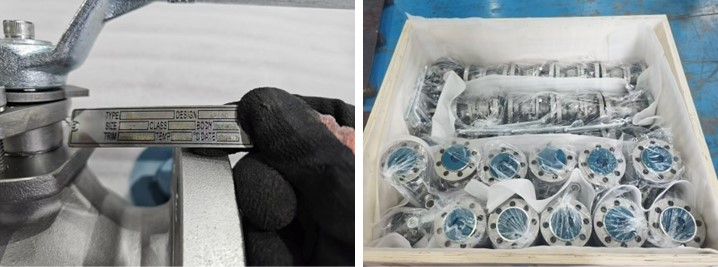

Nameplate & Packing
