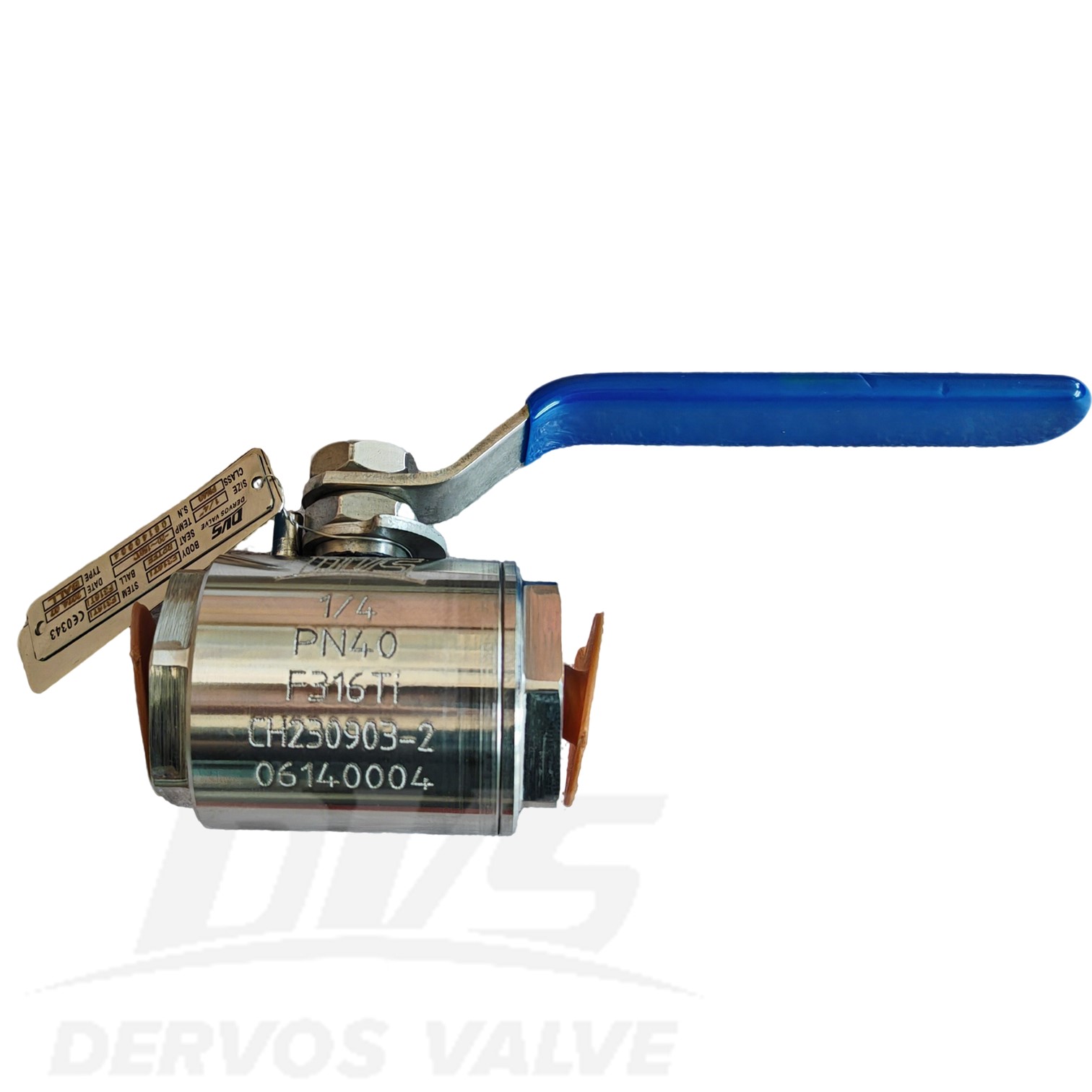

1/4” PN40 Forged Steel Floating Ball Valve F316TI FNPT ASME B16.34
Key Specifications / Features
Model No.: Hits: 0
1/4” PN40 Forged Steel Floating Ball Valve is made according to ASME B16.34 standard. The valve body is made of A182 F316TI. It has the structural characteristics of Floating Ball, Full Port, Fire-safe & Anti-static. Its connection mode is FNPT. And it has hand wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Forged Steel Floating Ball Valve |
| Size | 3/4” |
| Pressure | 150LB |
| Connection | NPT |
| Operation | Hand wheel |
| Body Material | A182 F316Ti |
| Design Norm | ASME B16.34 |
| End to End Dimension | MFG |
| Screwed End | ASME B1.20.1 |
| Test & Inspection Code | ISO5208 |
| Temperature | -29 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged from F316Ti stainless steel, offering excellent corrosion resistance and stability for PN40 pressure applications.2.Floating ball design with FNPT connection and ASME B16.34 compliance ensures reliable sealing and smooth operation.

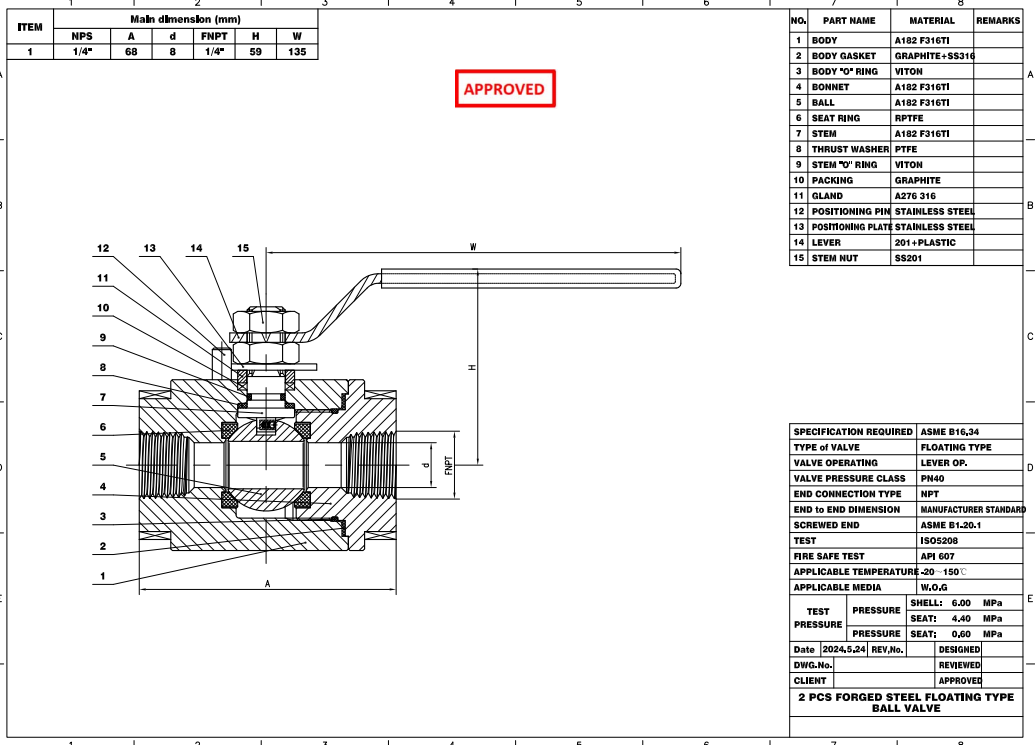

Technical Drawing

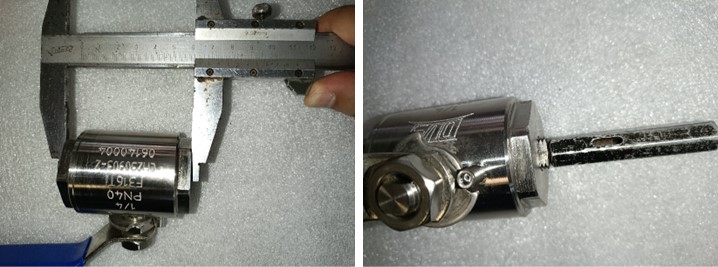

Dimension Checking

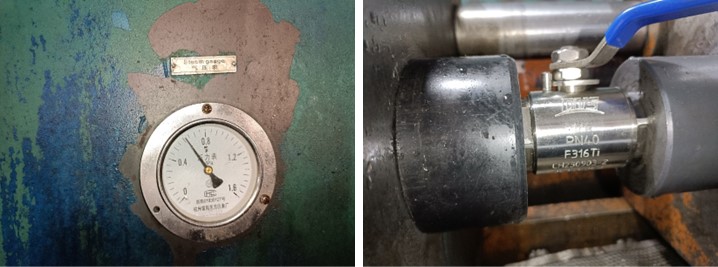

Pressure Testing
Painting
Spectrum

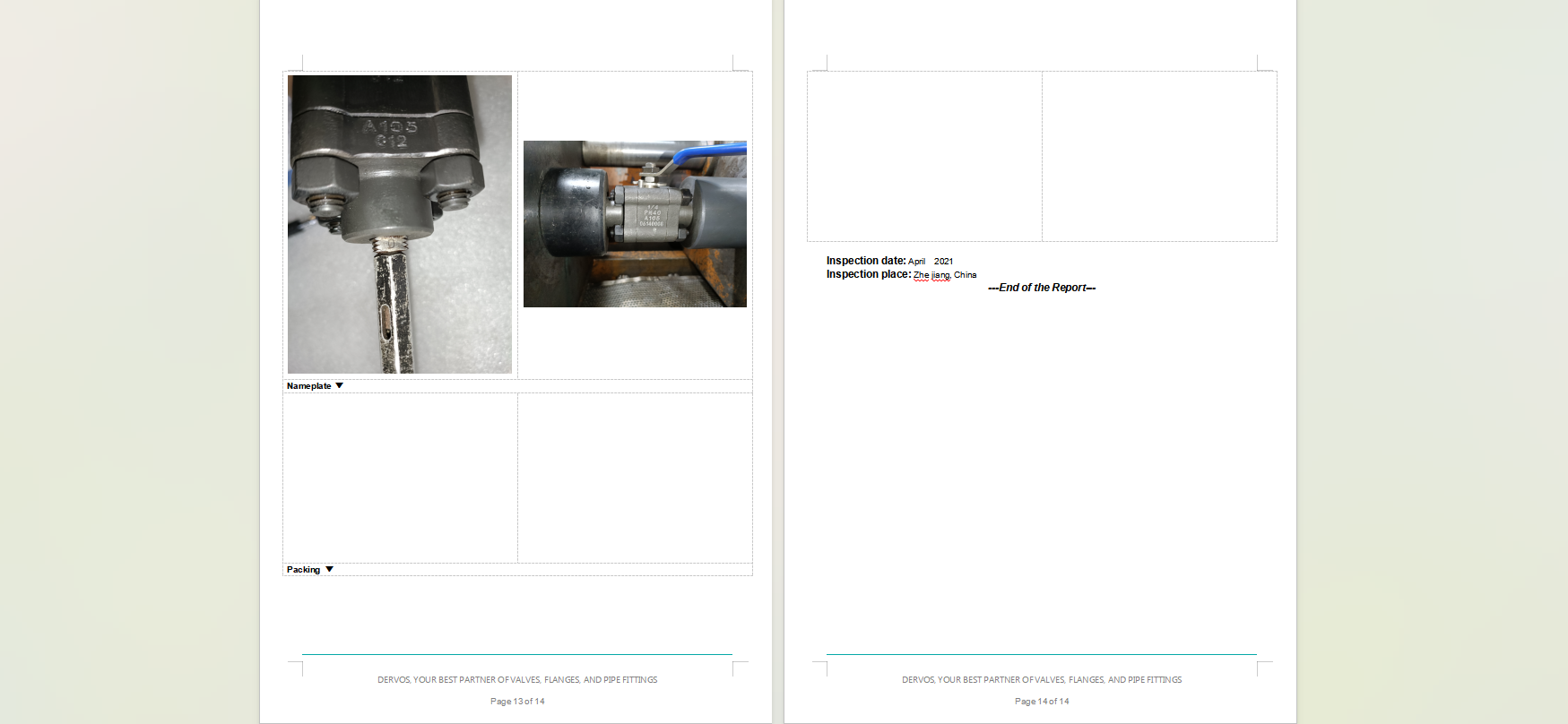

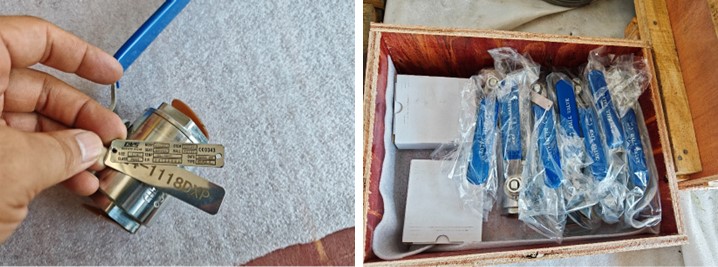

Nameplate & Packing

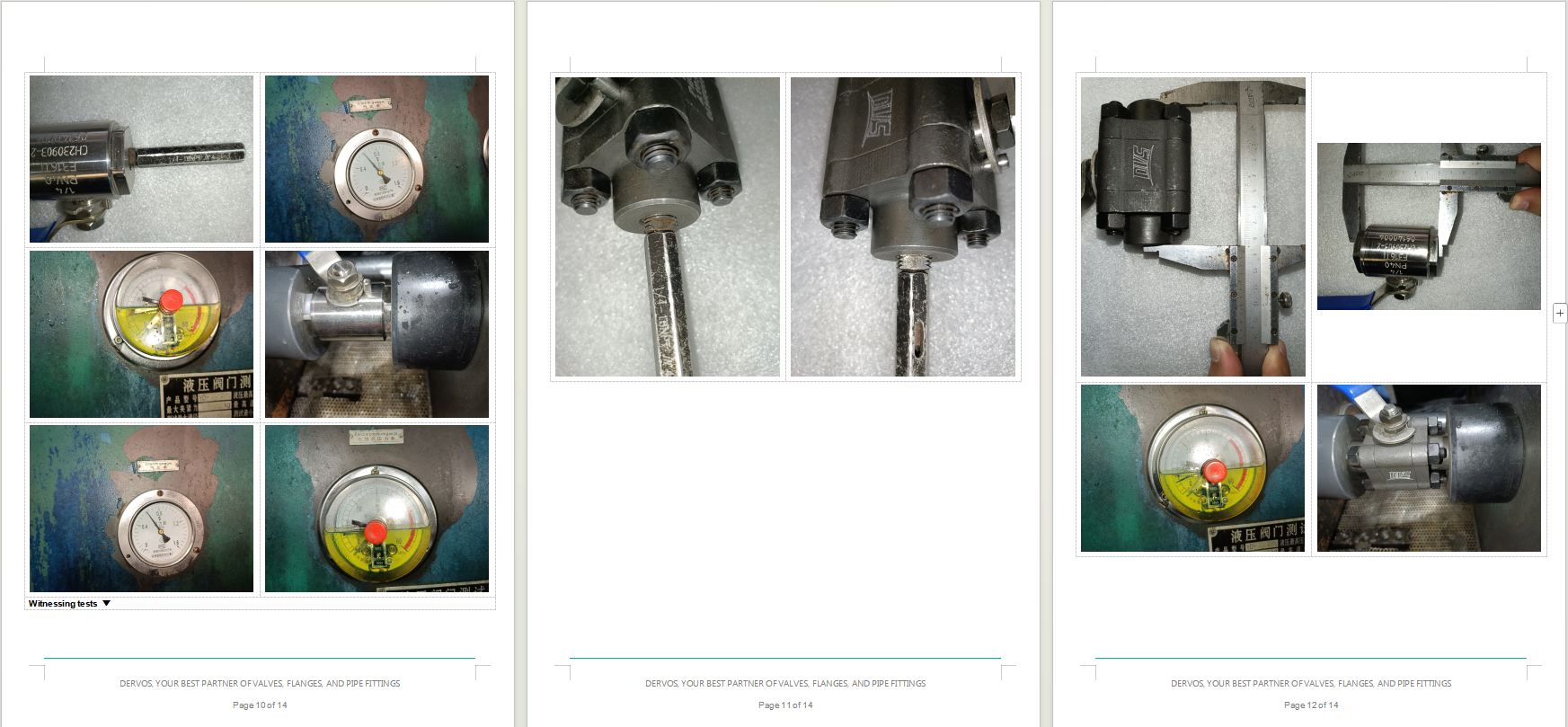

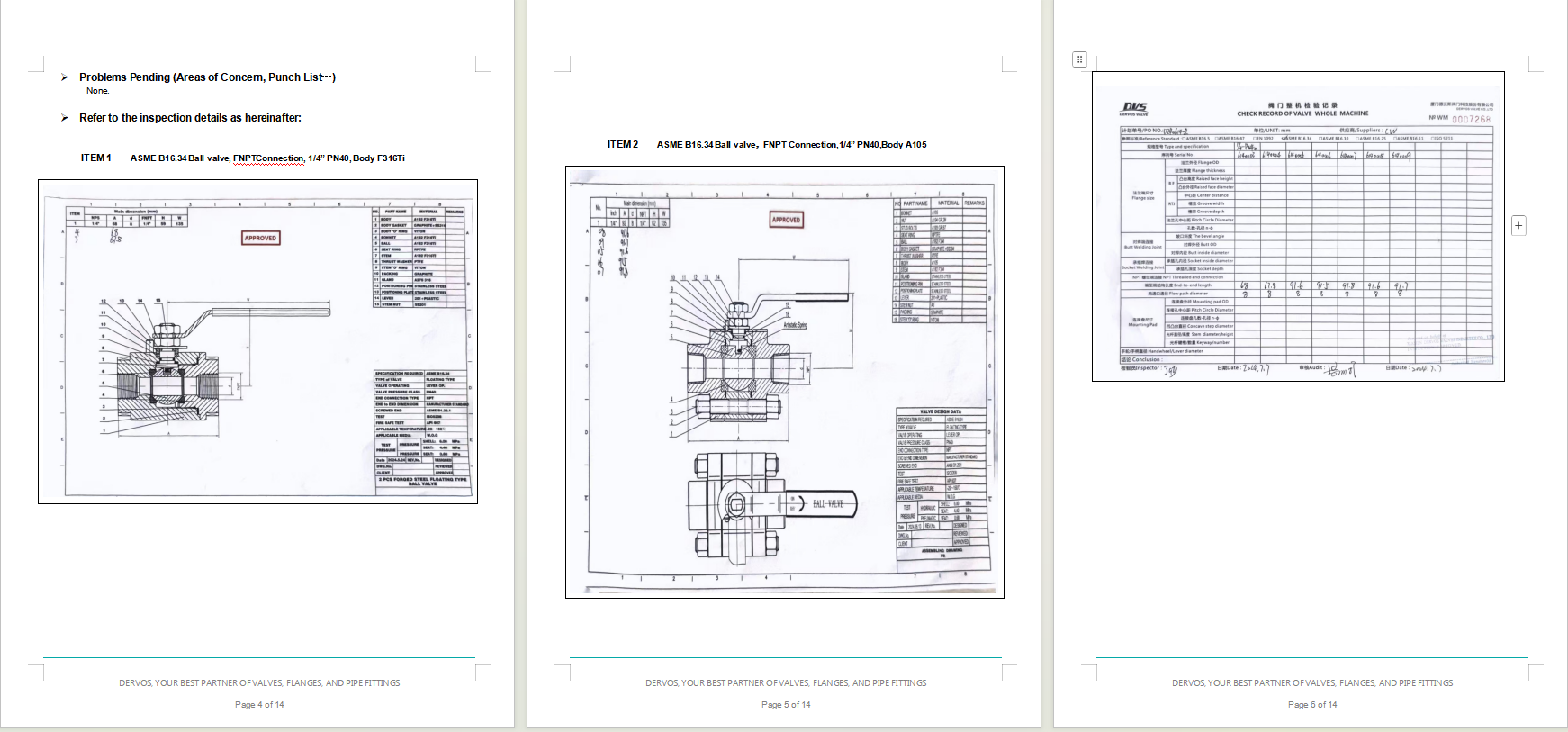

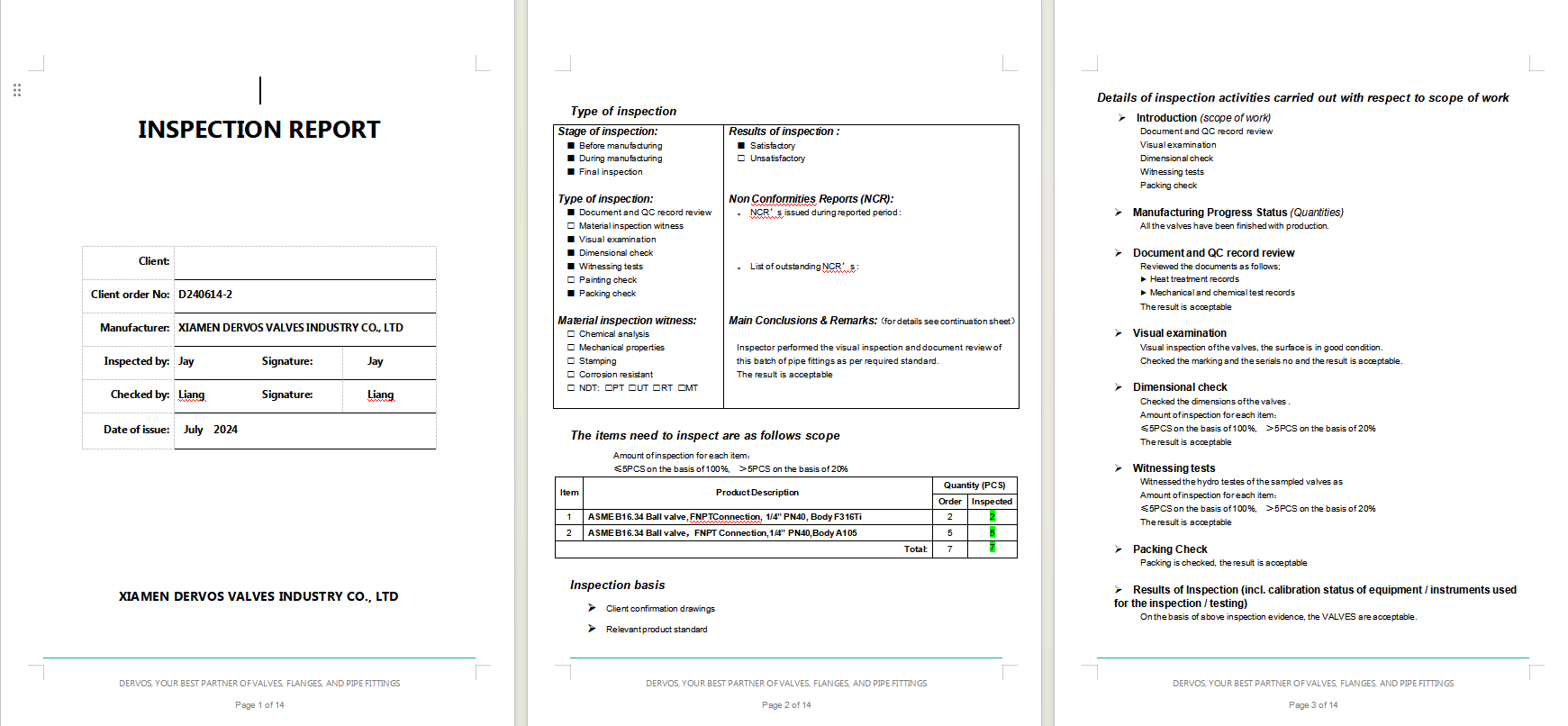

Inspection Report
