3” 300LB Floating Ball Valve A105 API 6D RF H.W.
Key Specifications / Features
Model No.: Hits: 0
3” 300LB Floating Ball Valve is made according to API 6D standard. The valve body is made of ASTM-A105. It has the structural characteristics of Full Bore, Floating Ball, Fire-safe and Anti-static, Blow-out Proof Stem. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Floating Ball Valve |
| Size | 3" |
| Pressure | 300LB |
| Connection | RF |
| Operation | H.W. |
| Body Material | ASTM-A105 |
| Design Norm | API 6D |
| Face to Face | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.A105 forged steel body provides high strength and reliable performance for medium-pressure oil, gas, and industrial applications.2. Floating ball design ensures tight, dependable sealing, while the RF flange connection offers easy installation and secure pipeline integration.

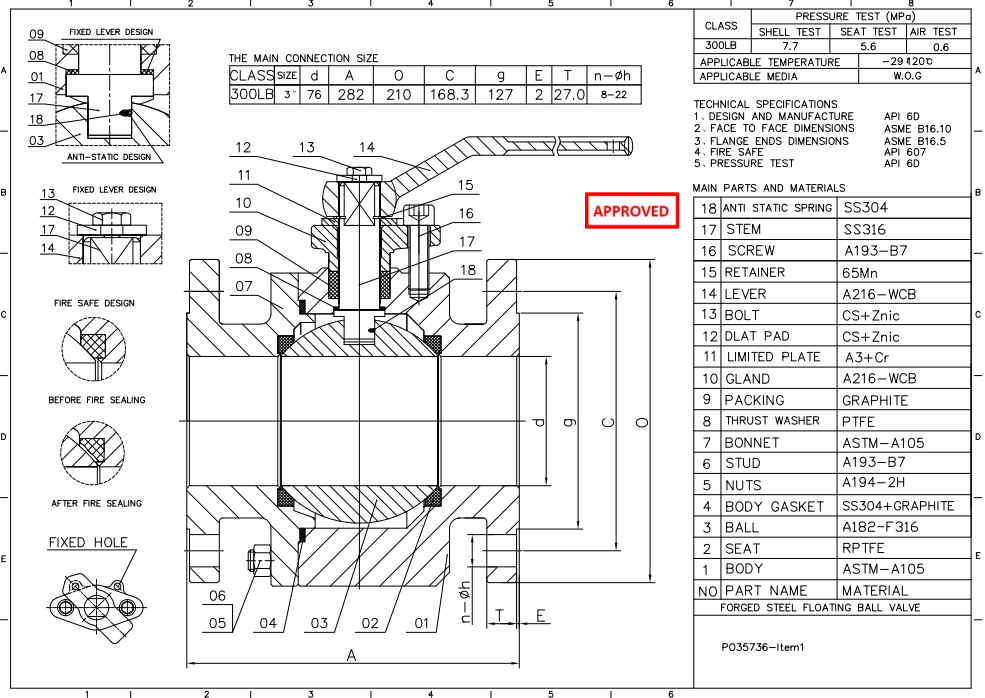

Technical Drawing

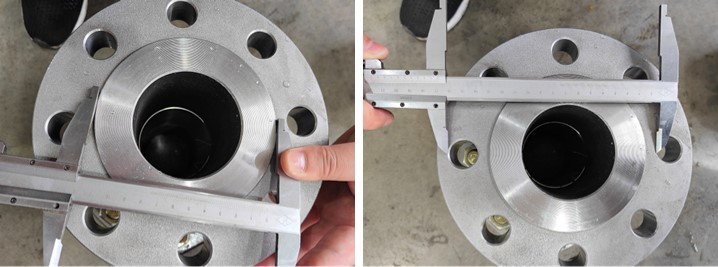

Dimension Checking

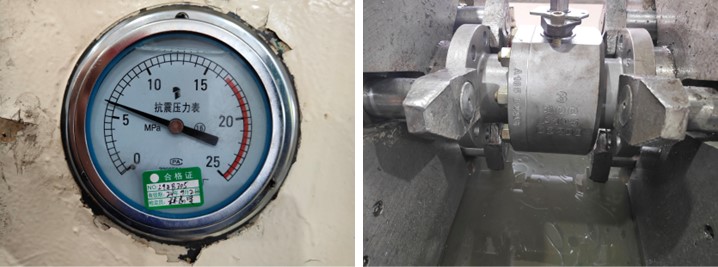

Pressure Testing
Painting
Spectrum

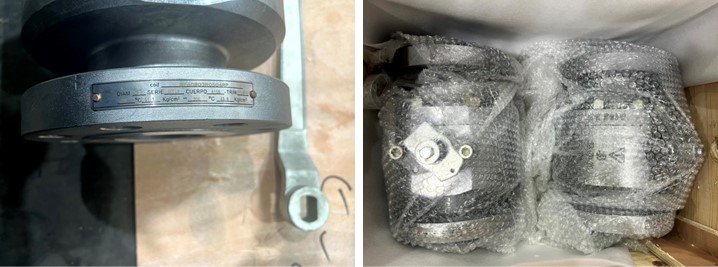

Nameplate & Packing

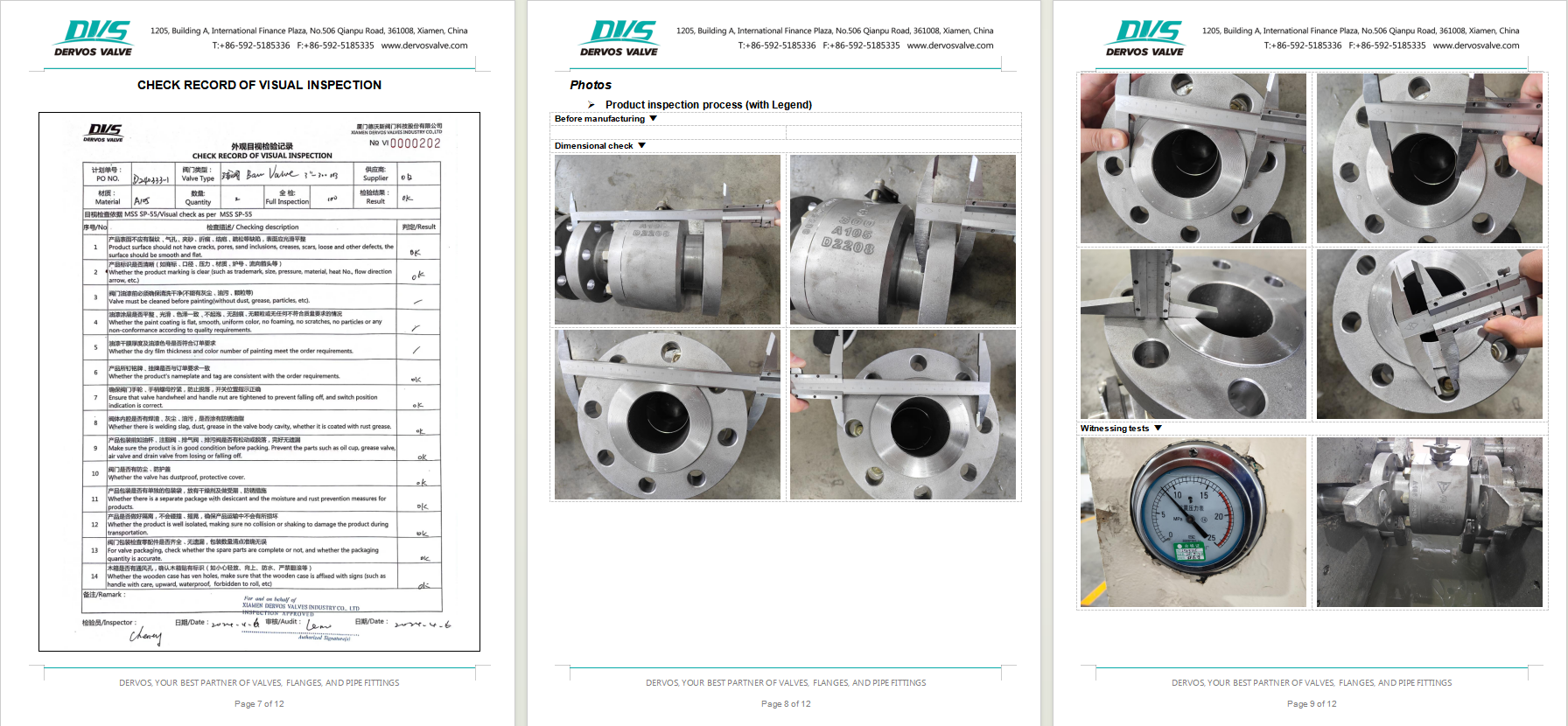

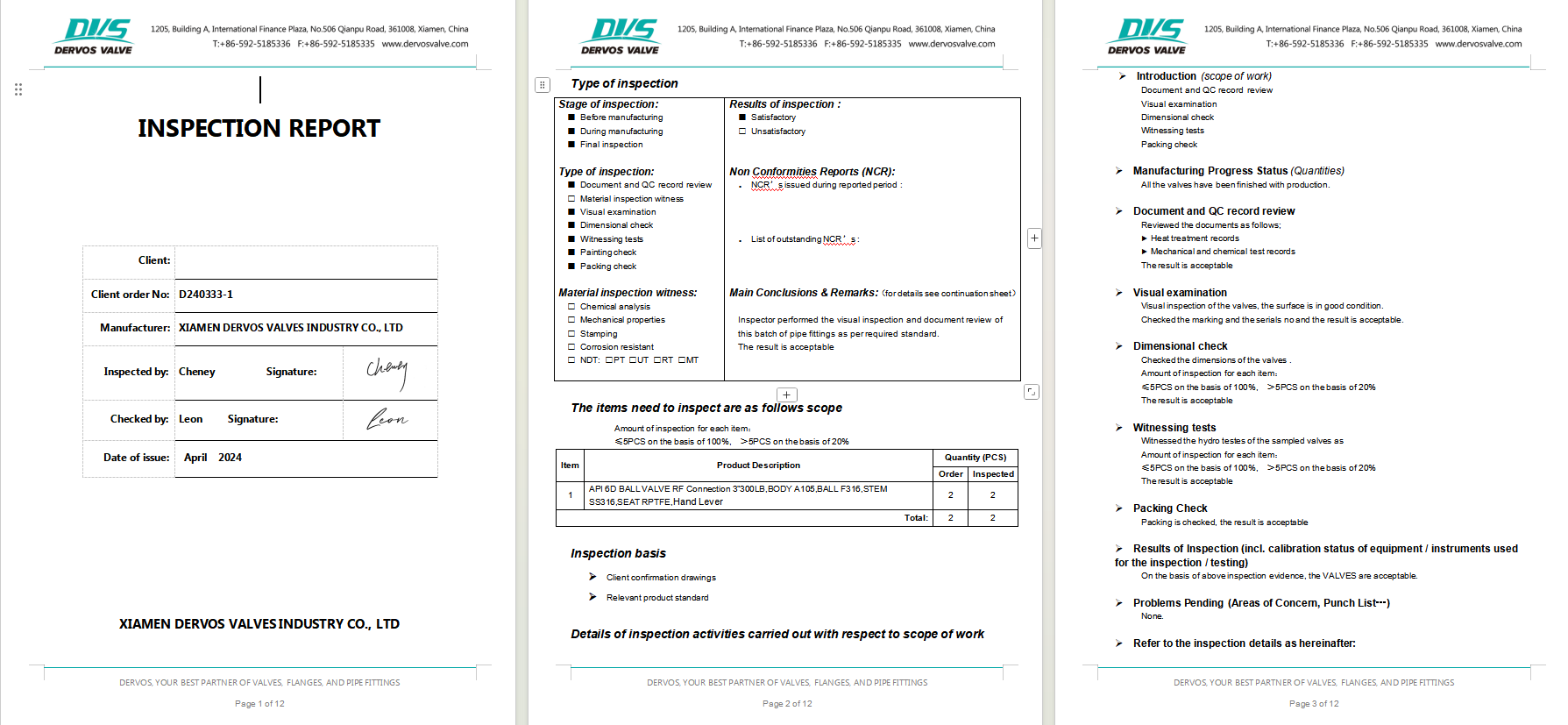

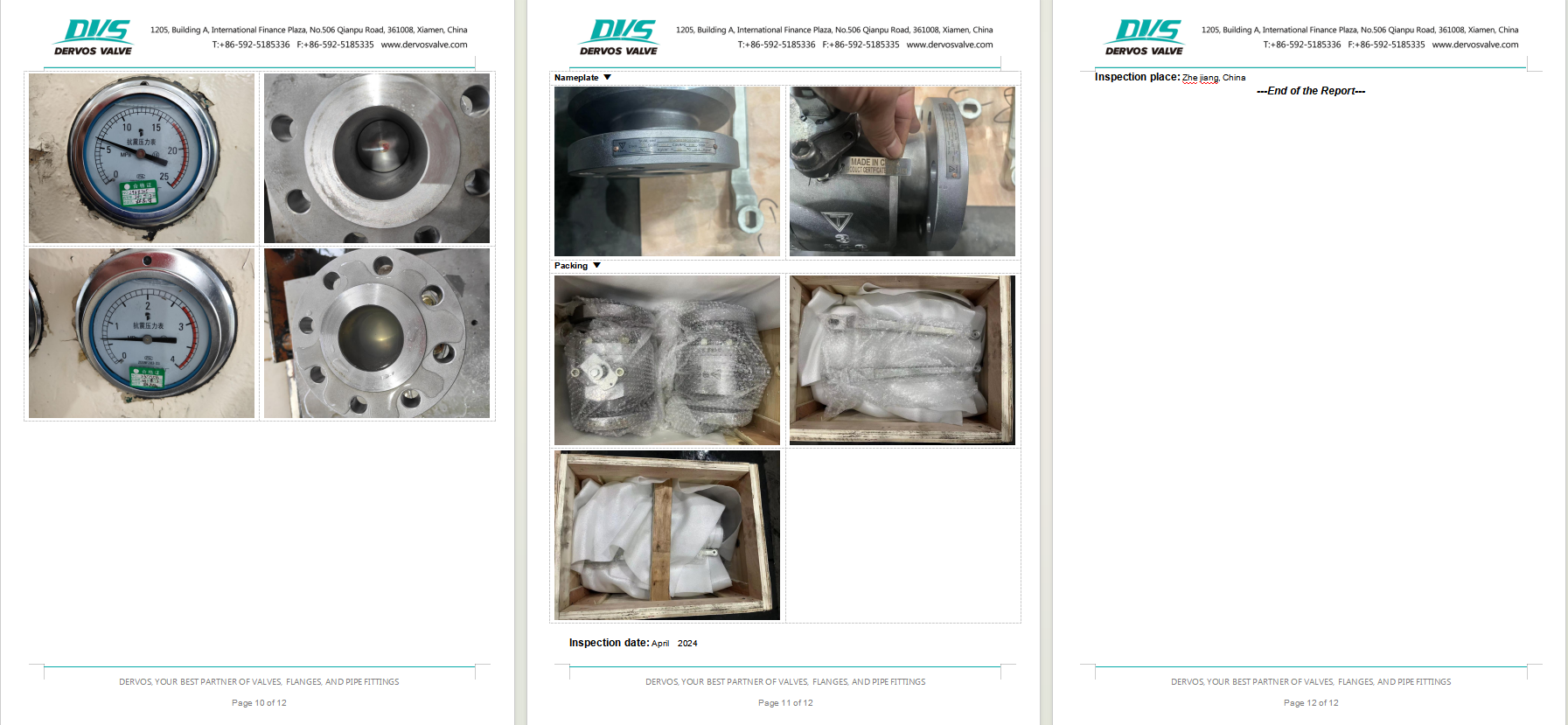

Inspection Report
