DN25 PN100 Forged Floating Ball Valve EN1092-1/D A105 EN 12266
Key Specifications / Features
Model No.: Hits: 0

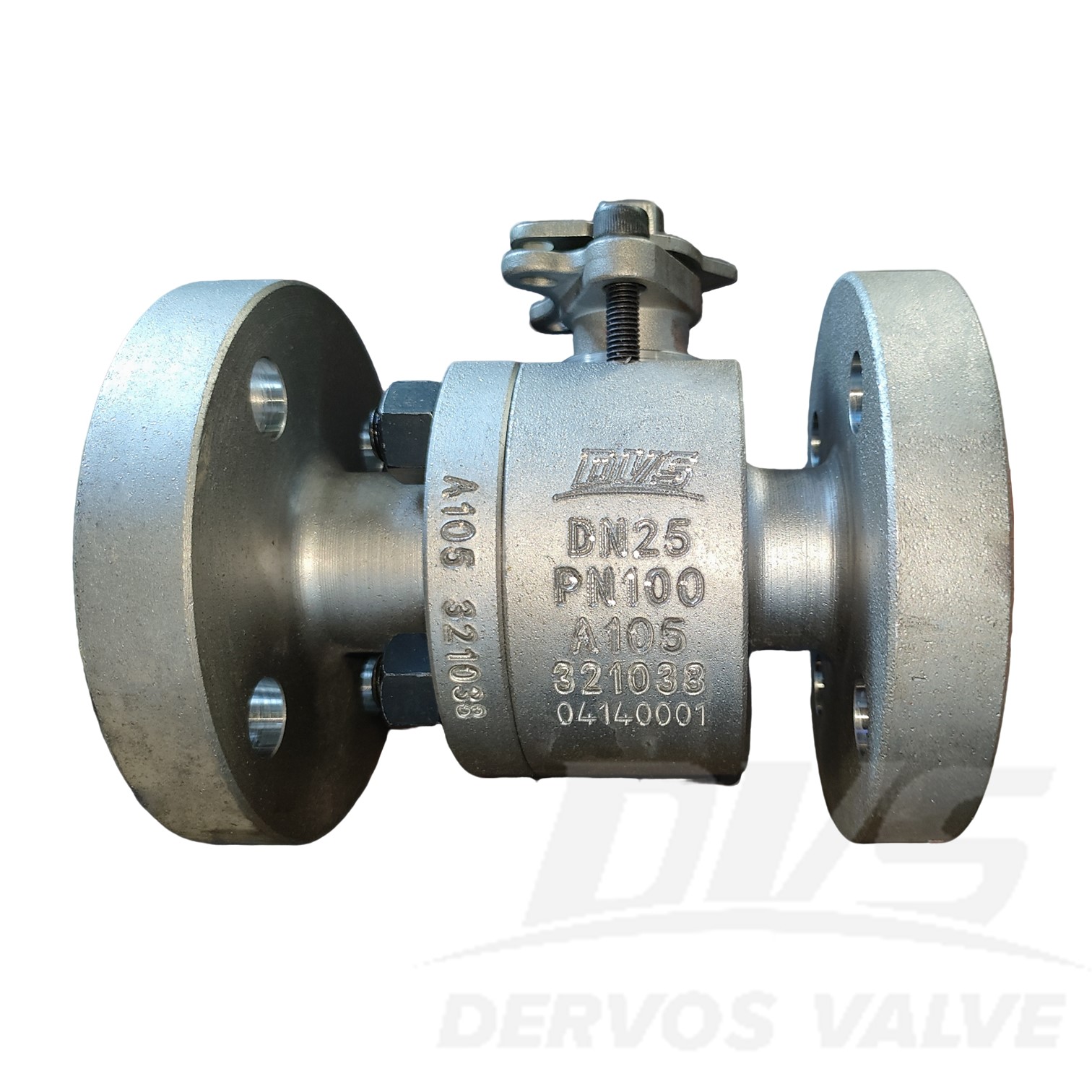

DN25 PN100 Forged Floating Ball Valve is made according to ISO17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of Full Bore, Floating Ball, Anti-static, Blow-out Proof Stem. Its connection mode is EN1092-1/D. And it has Hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Floating Ball Valve |
| Size | DN25 |
| Pressure | PN100 |
| Connection | EN1092-1/D |
| Body Material | ASTM A105 |
| Design Norm | ISO17292 |
| Face to Face | EN 558 |
| End Connection | LG |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Constructed from A105 forged steel, this DN25 floating ball valve offers high strength and excellent durability under PN100 pressure.2.Compliant with EN1092-1/D and tested to EN 12266 standards, it ensures reliable sealing and safe operation in industrial piping systems.

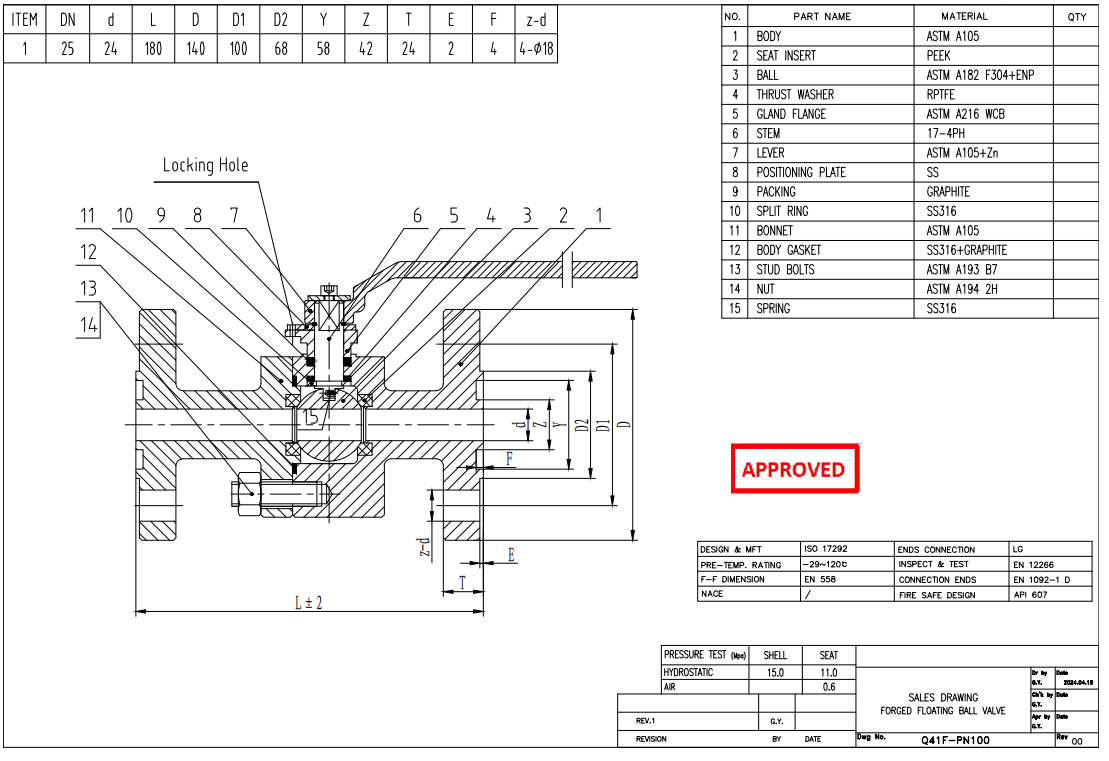

Technical Drawing

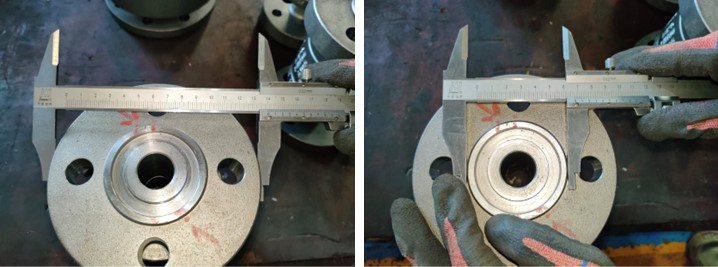

Dimension Checking

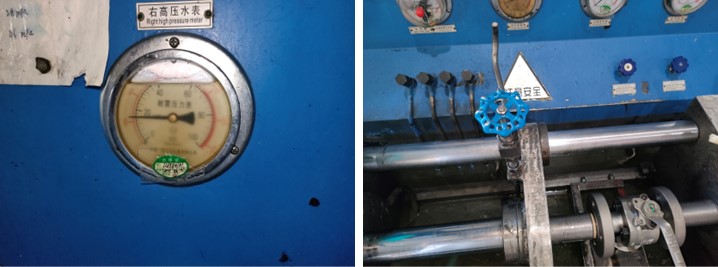

Pressure Testing

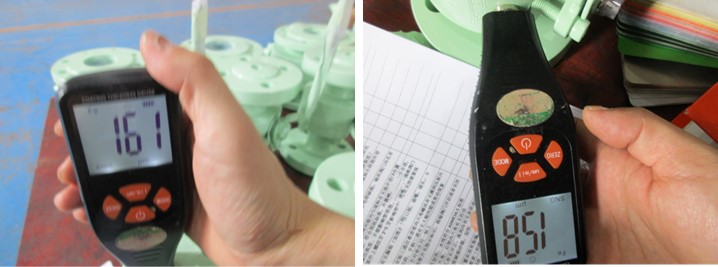

Painting

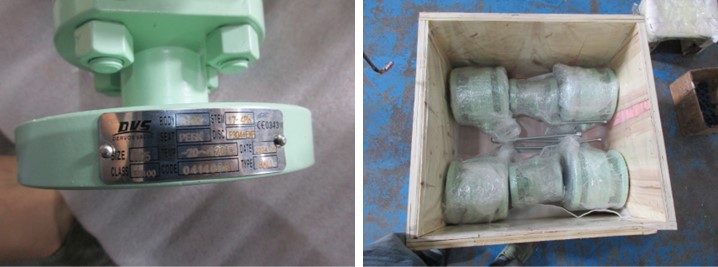

Nameplate & Packing

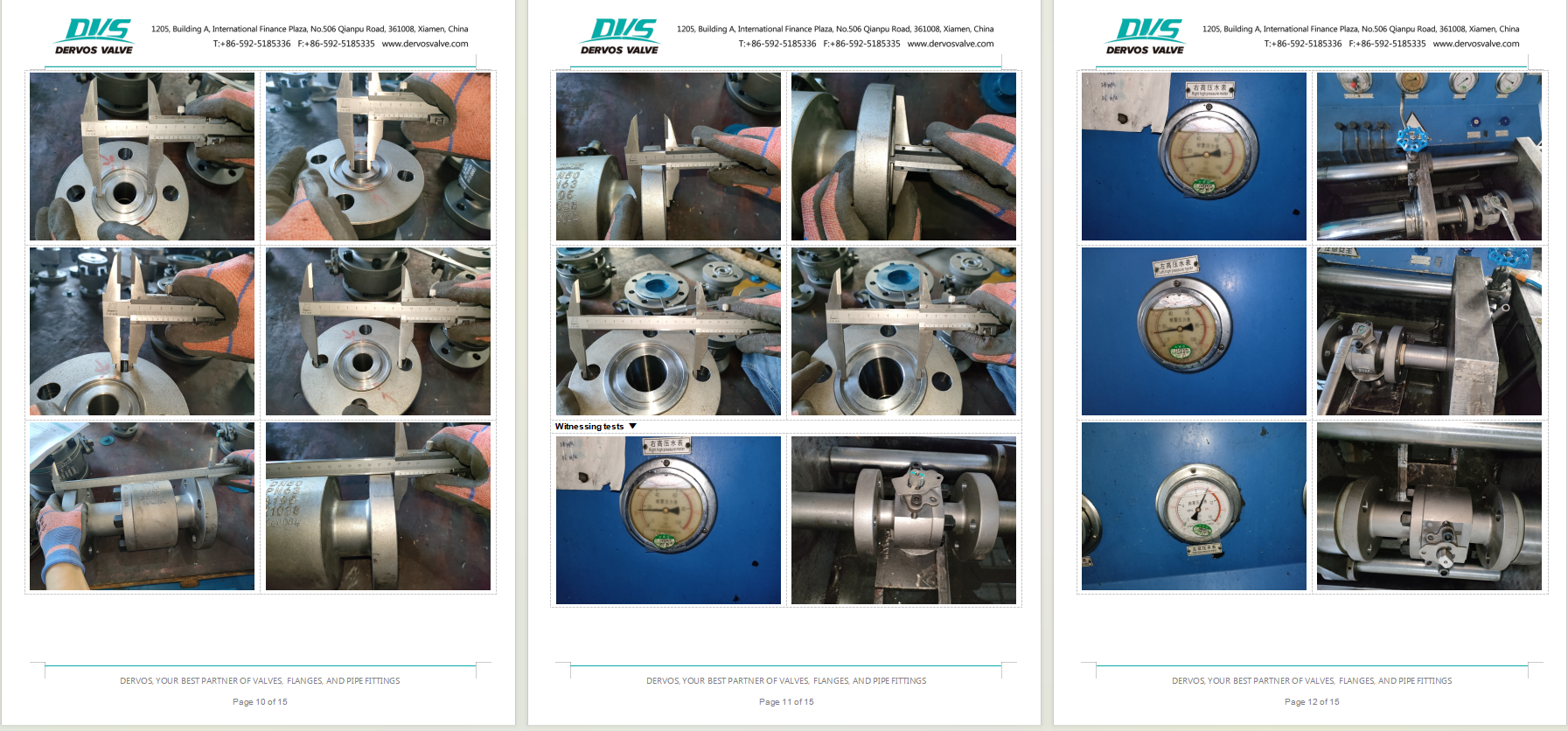

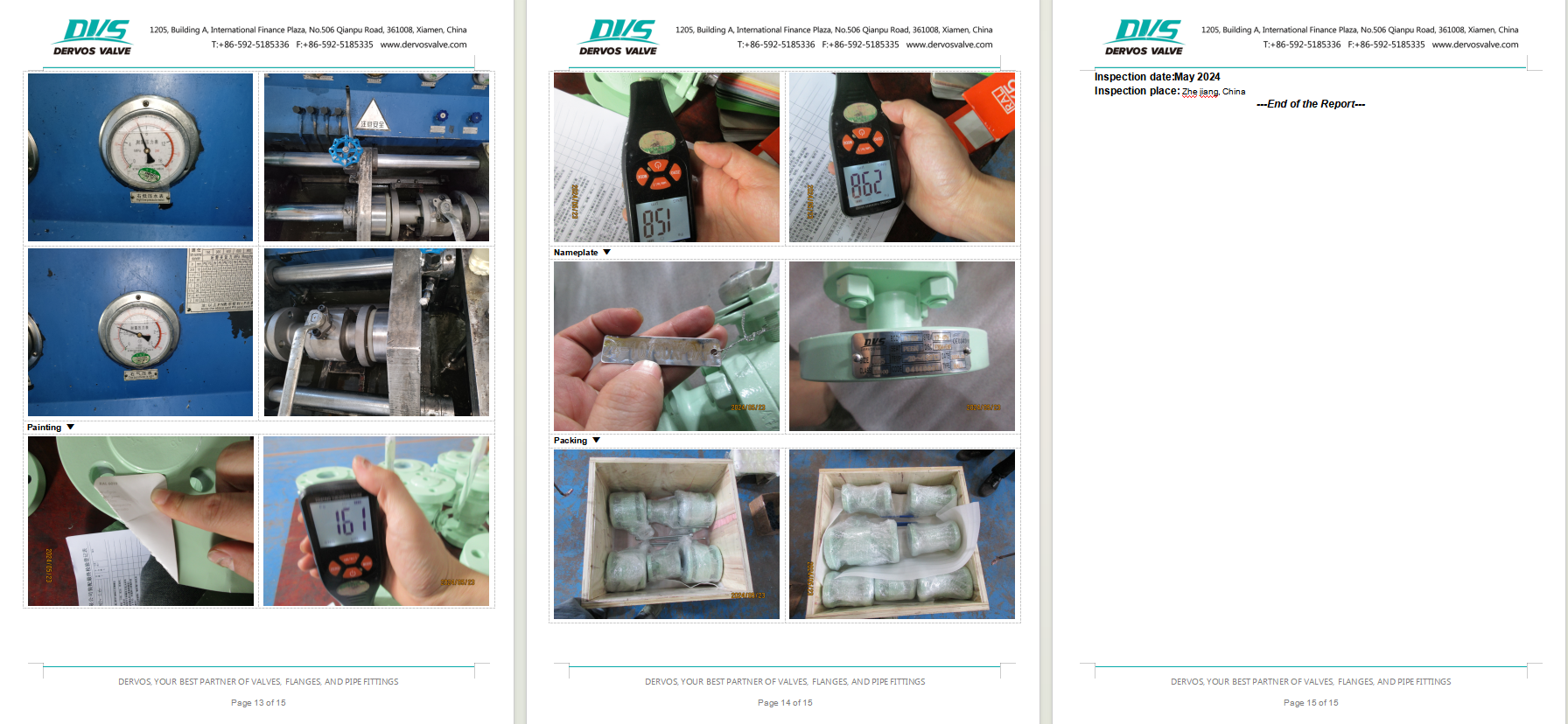

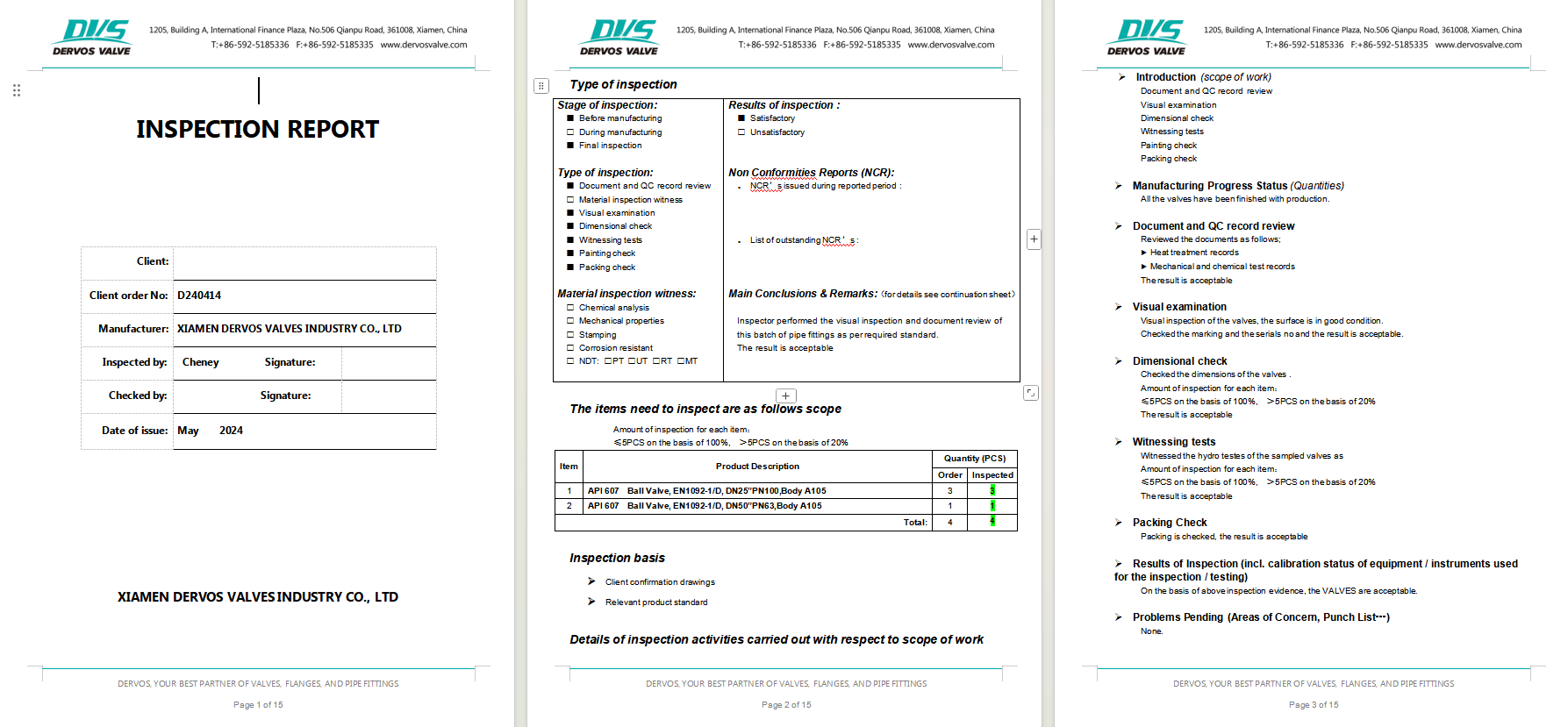

Inspection Report
