DN25 PN160 Forged Steel Floating Ball Valve A105 API6D EN1092-1 D
Key Specifications / Features
Model No.: Hits: 0
DN25 PN160 Forged Steel Floating Ball Valve is made according to API6D standard. The valve body is made of ASTM A105. It has the structural characteristics of Full Bore, Floating Ball, Fire-safe and Anti-static. Its connection mode is EN1092-1 D. And it has Hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Floating Ball Valve |
| Size | DN25 |
| Pressure | PN160 |
| Connection | EN1092-1 D |
| Body Material | ASTM A105 |
| Design Norm | API6D |
| Face to Face | ASME customer requirements |
| Flange dimension | EN1092-1D |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Made of A105 forged steel, this DN25 floating ball valve provides high strength and reliable performance under PN160 pressure.2.Designed to meet API 6D standards with EN1092-1 D flange, it ensures tight sealing and compatibility with industrial piping systems.

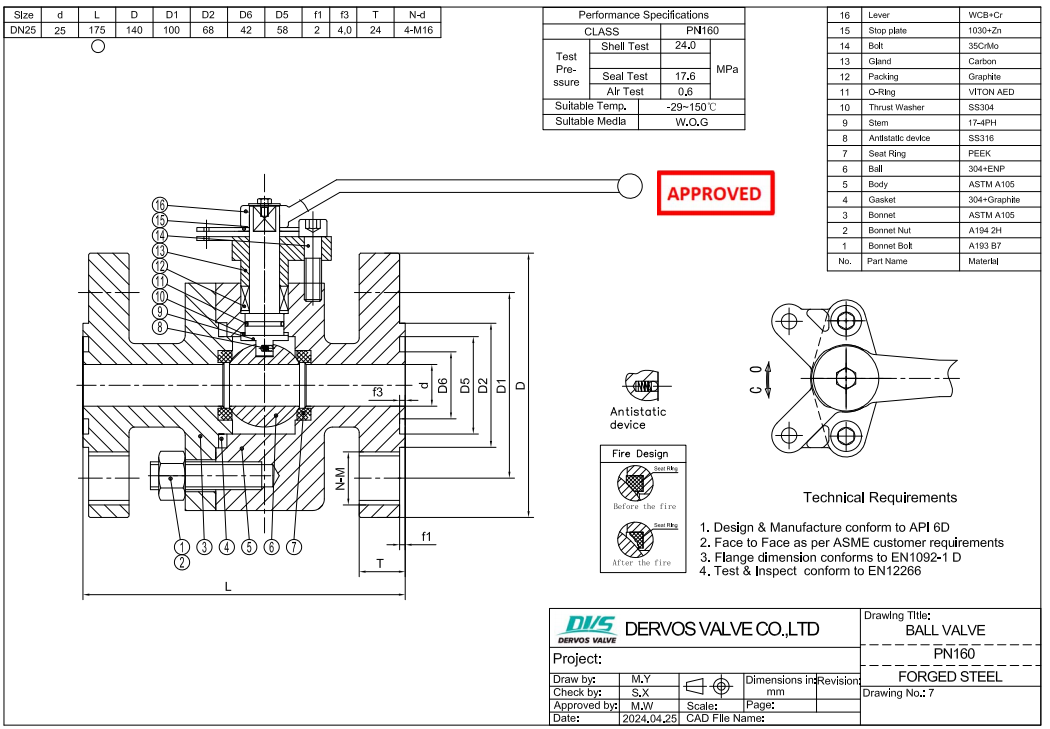

Technical Drawing

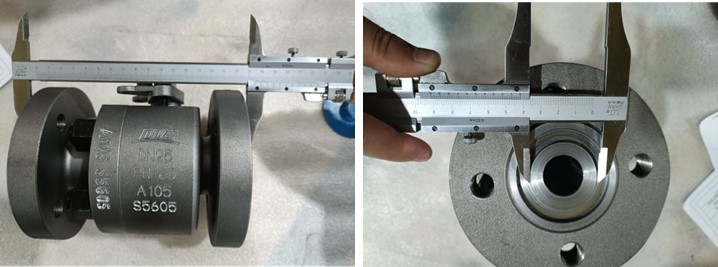

Dimension Checking
Pressure Testing

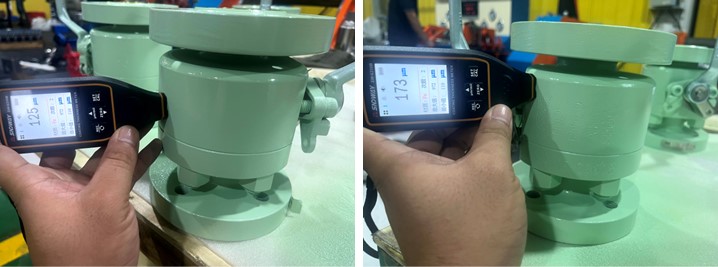

Painting
Spectrum
Nameplate & Packing

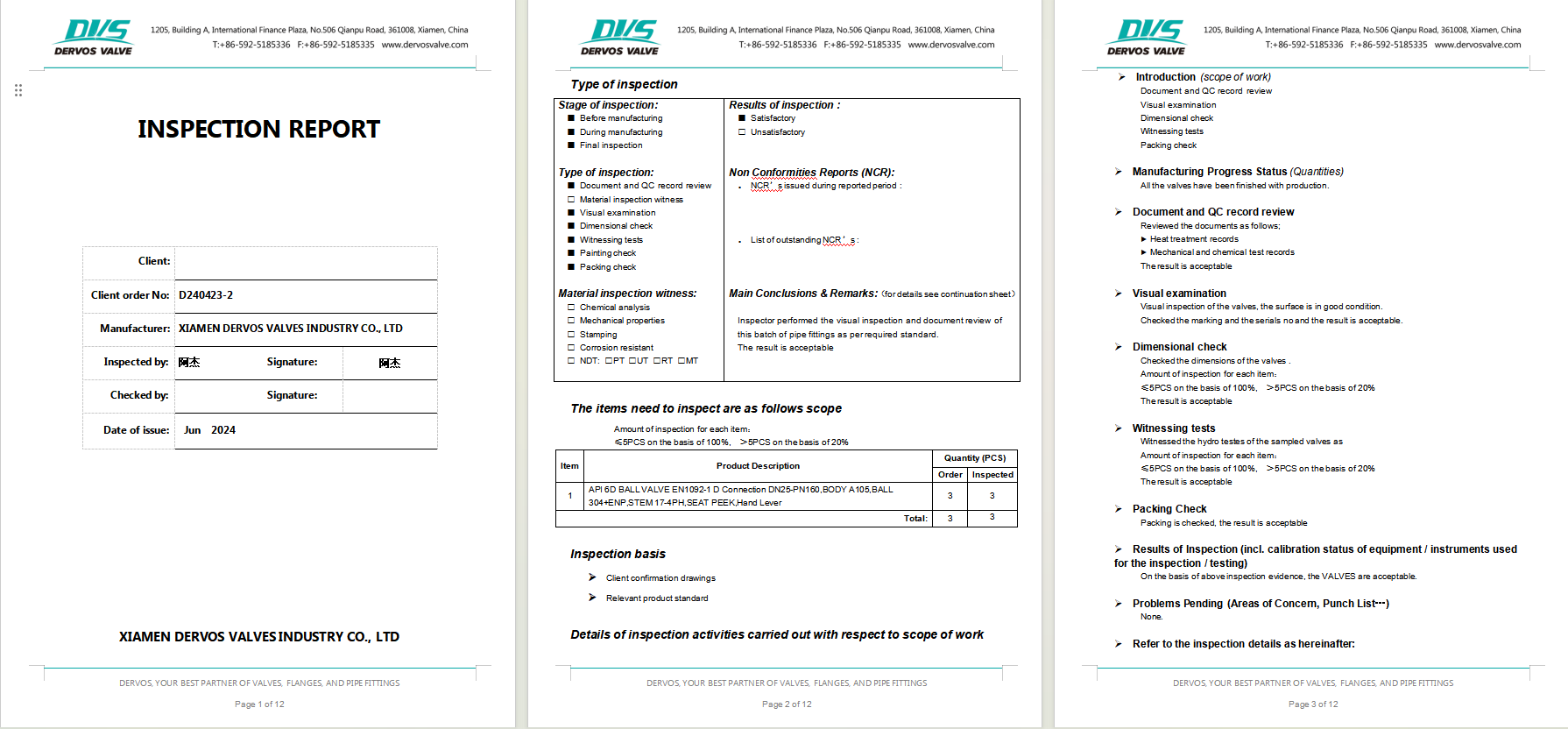

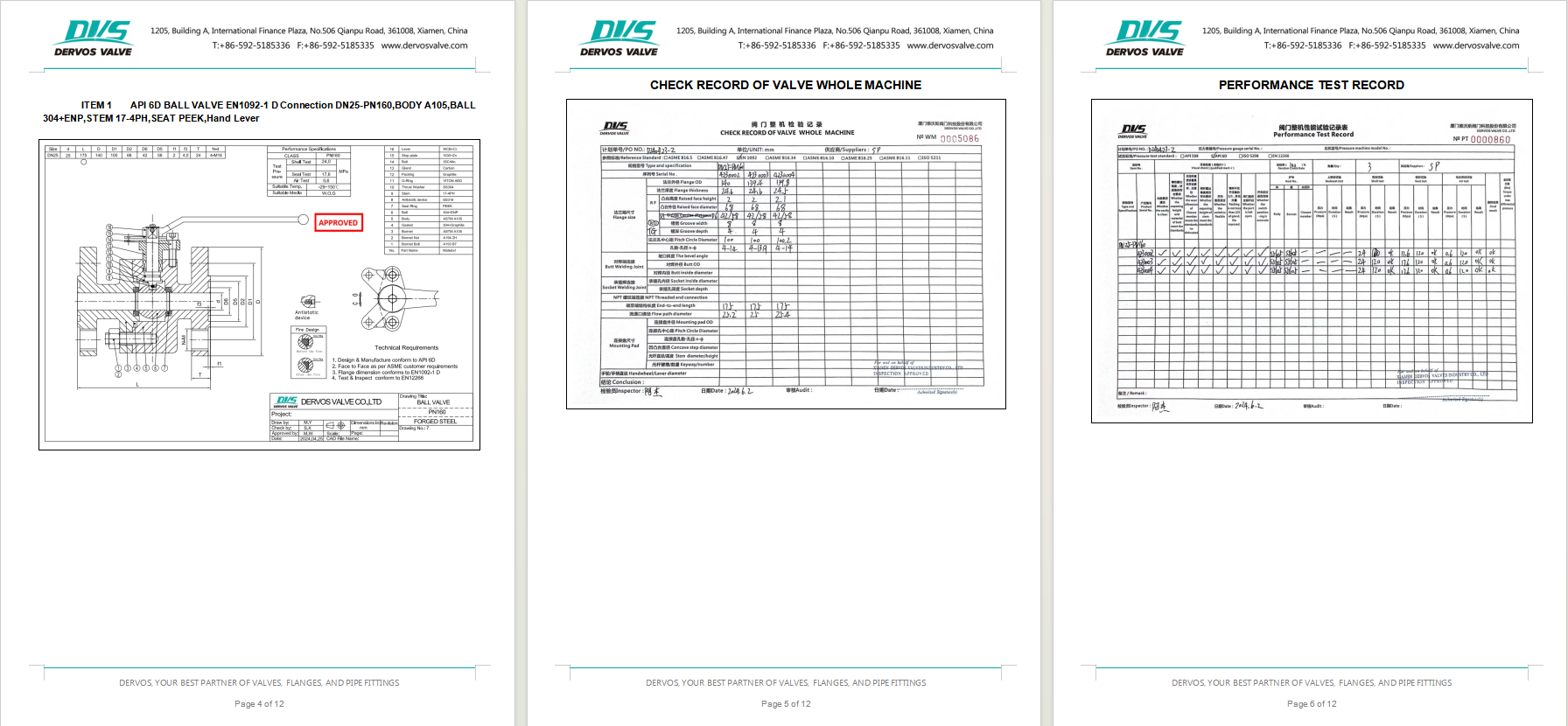

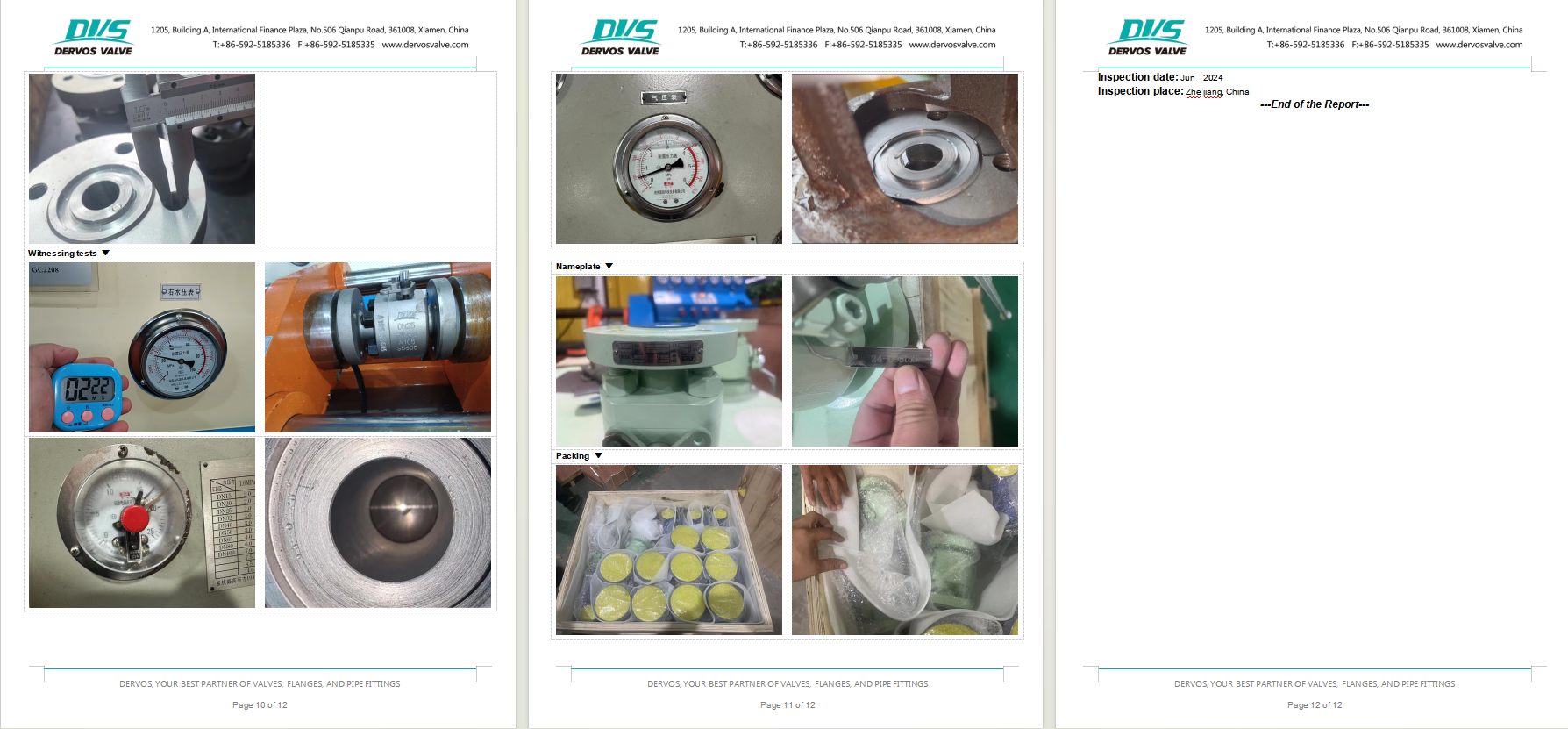

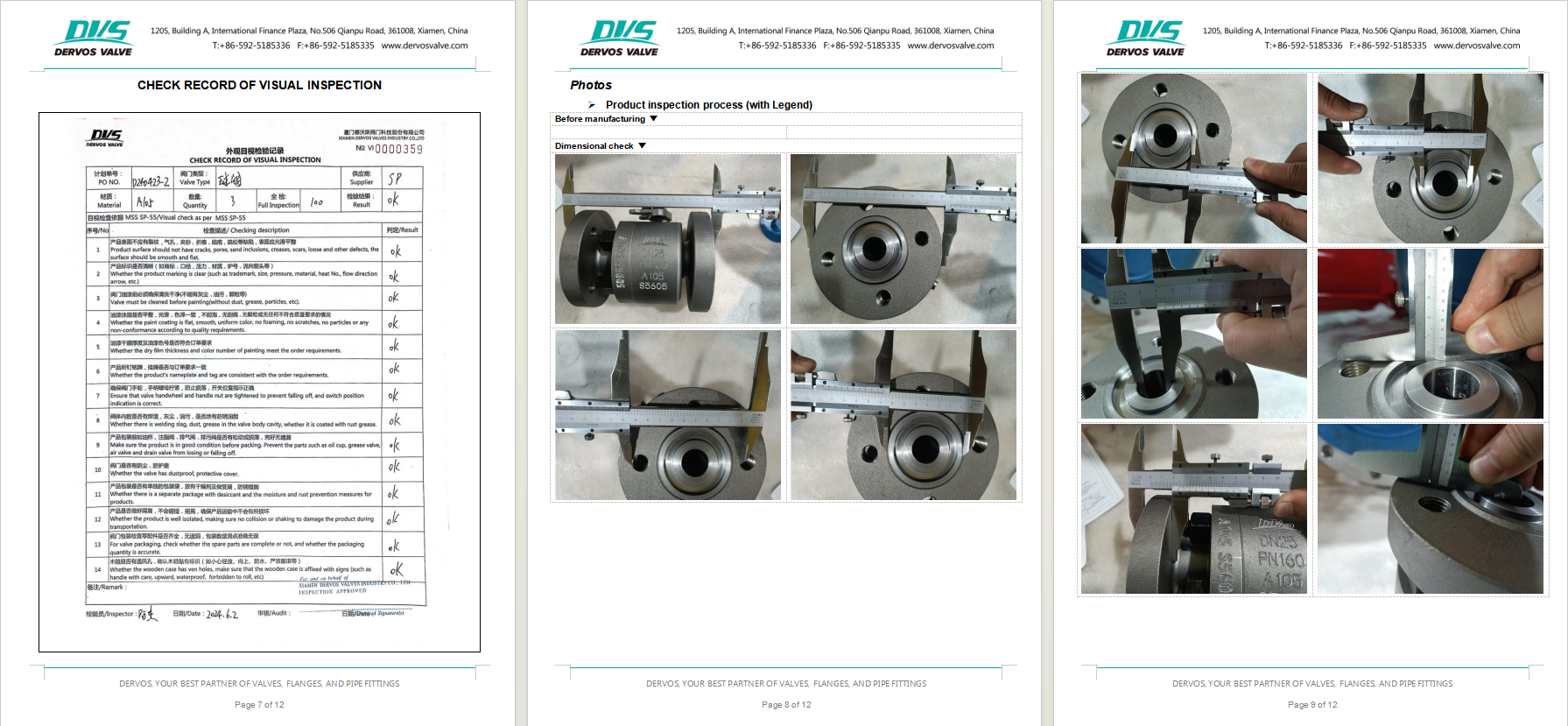

Inspection Report
