DN50 PN16 Forged Floating Ball Valve A105 RF ISO 17292 EN1092-1/B
Key Specifications / Features
Model No.: Hits: 0
DN50 PN16 Forged Floating Ball Valve is made according to ISO 17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of Full Port, Floating Ball, Anti-static Design, Blow-out Proof Stem. Its connection mode is EN1092-1/B. And it has Handwheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Floating Ball Valve |
| Size | DN50 |
| Pressure | PN16 |
| Connection | EN1092-1/B |
| Body Material | ASTM A105 |
| Design Norm | ISO 17292 |
| Face to Face | EN 558 |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged from A105 carbon steel, providing high strength and reliable performance for PN16 pressure systems.2.Floating ball design with RF flange, compliant with ISO 17292 and EN1092-1/B, ensures smooth operation and tight sealing.

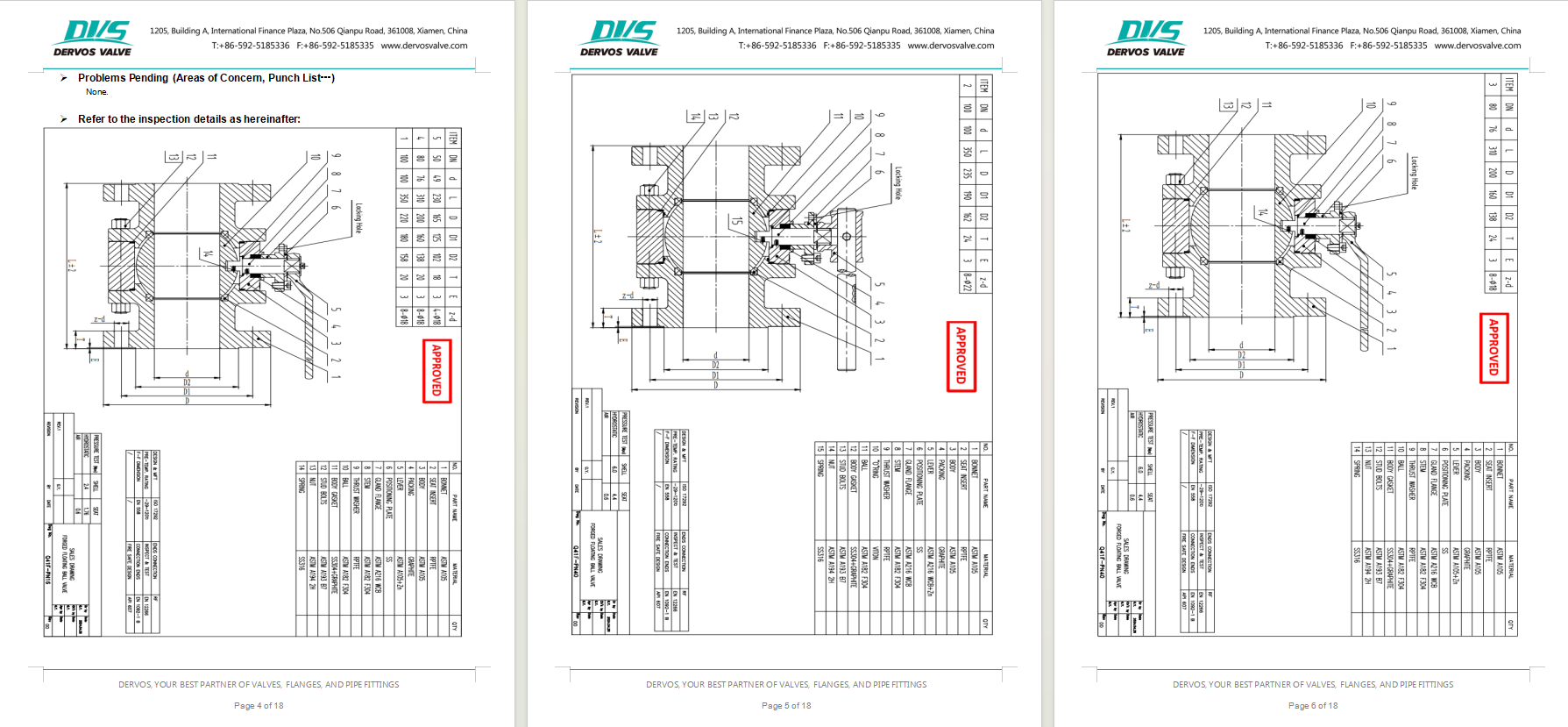

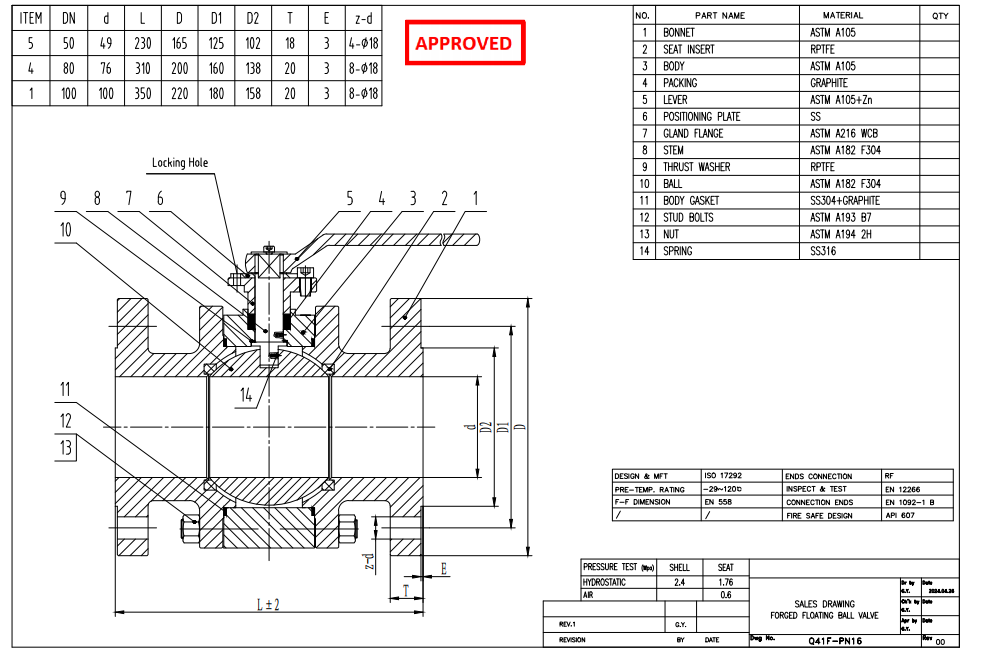

Technical Drawing

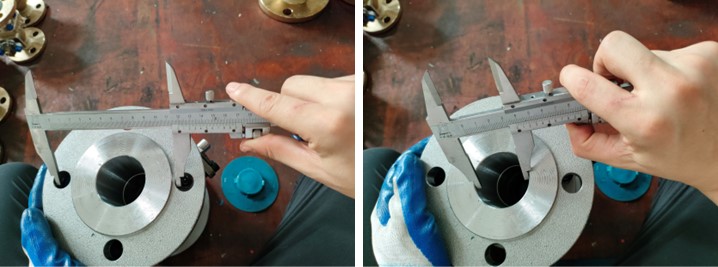

Dimension Checking

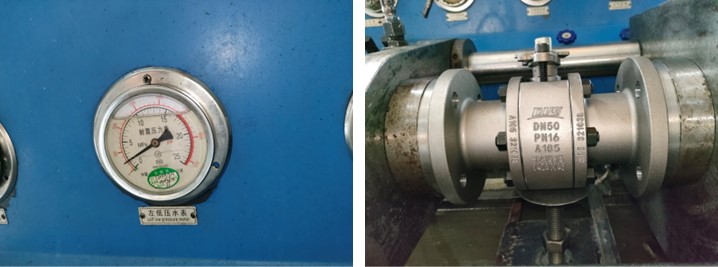

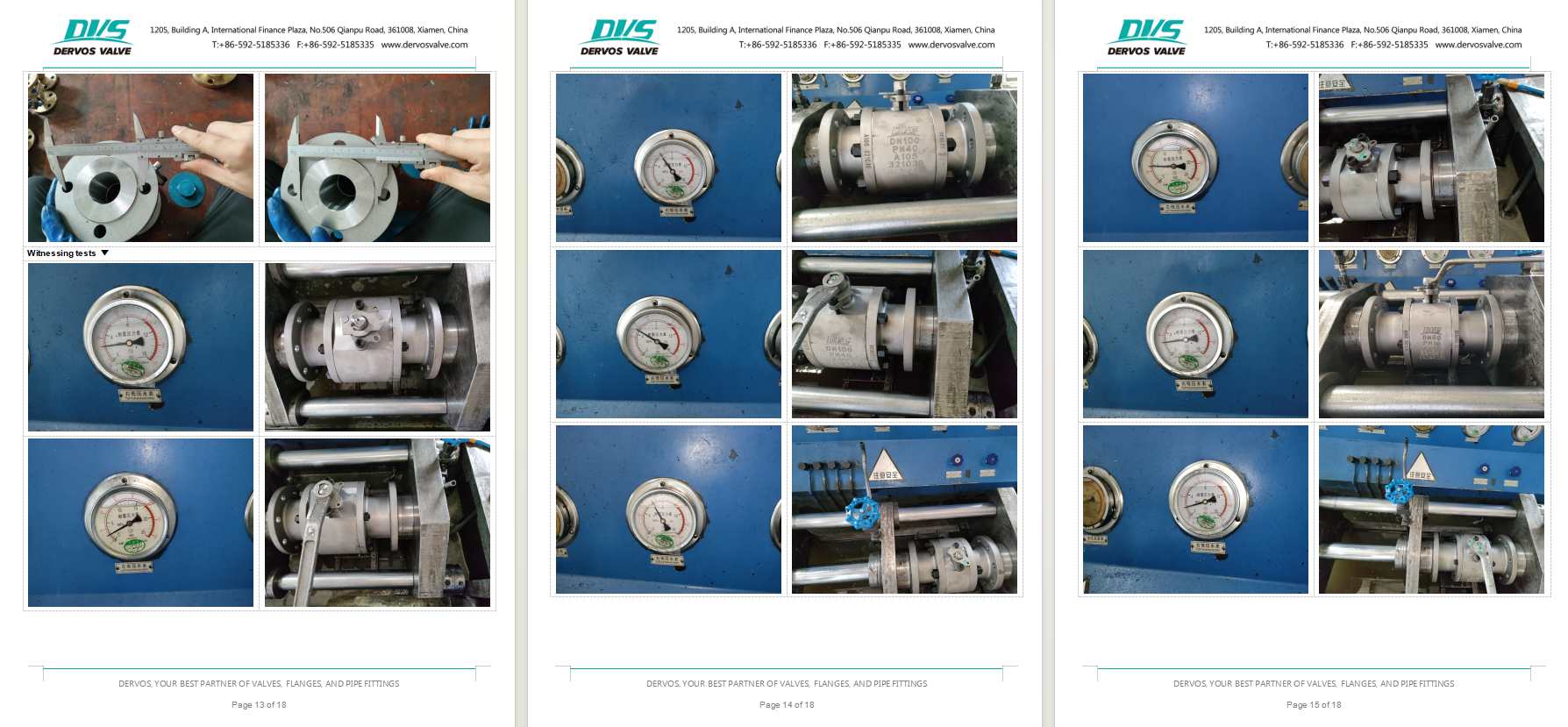

Pressure Testing

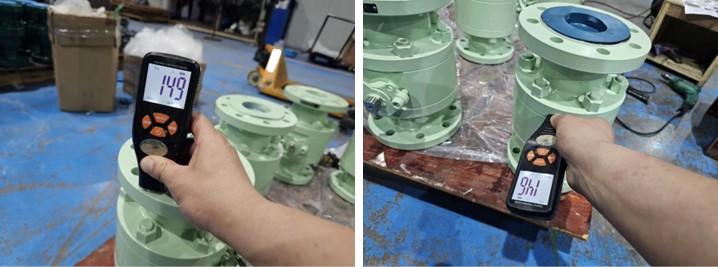

Painting

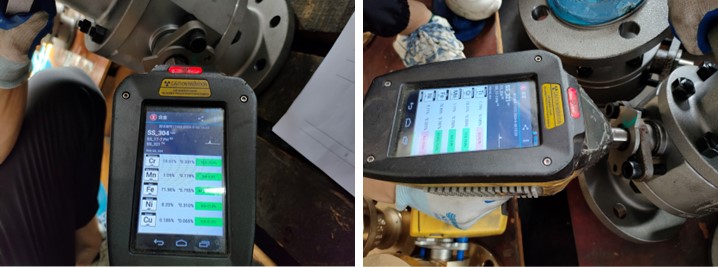

Spectrum

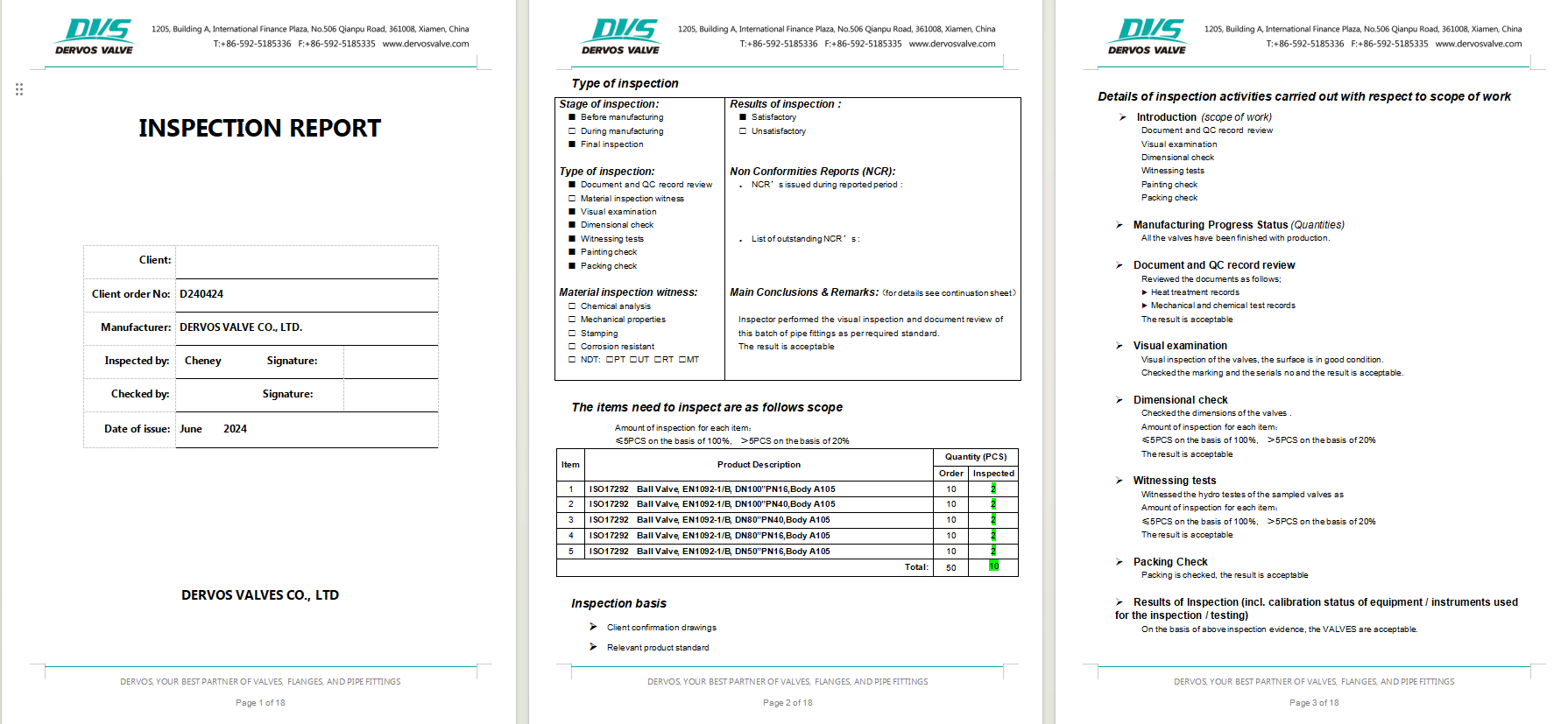

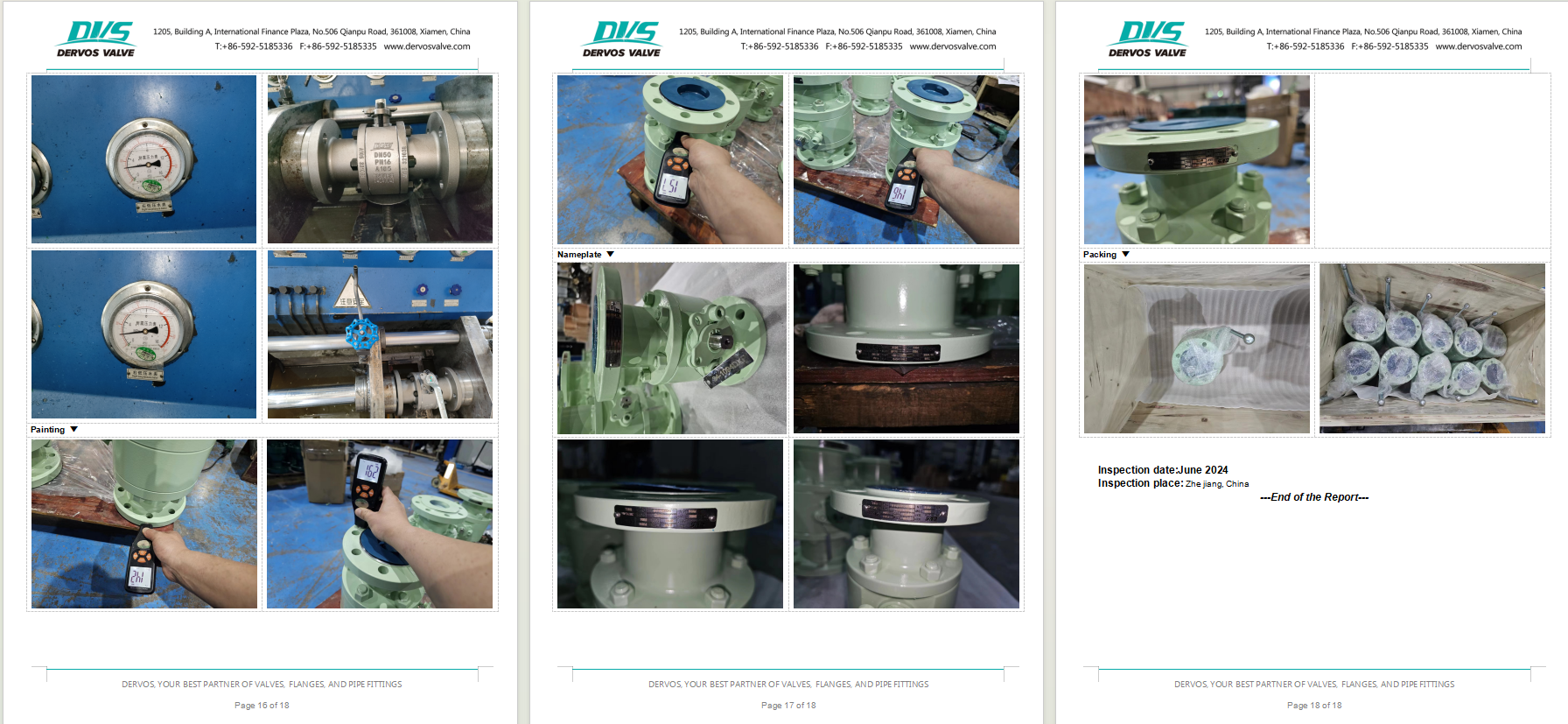

Inspection Report
