1/2" 800LB 2 PCS Forged Steel Floating Ball Valve F316 FNPT LEVER OP.
Key Specifications / Features
Model No.: Hits: 0
1/2" 800LB Forged Steel Floating Ball Valve is made according to ASME B16.34 standard. The valve body is made of A182 F316. It has the structural characteristics of 2-Piece Full Bore Floating Ball Valve, Fire Safe and Anti-Static Design. Its connection mode is FNPT. The valve is operated by LEVER OP..
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Floating Ball Valve |
| Size | 1/2” |
| Pressure | 800LB |
| Connection | FNPT |
| Body Material | A182 F316 |
| Design Norm | ASME B16.34 |
| End to End Dimension | Manufacturer Standard |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Made from A182 F11 alloy steel, providing excellent strength and heat resistance for 600LB pressure systems.2.Y-type strainer design with SW ends and ASME B16.34 compliance ensures efficient debris filtration and reliable pipeline protection.

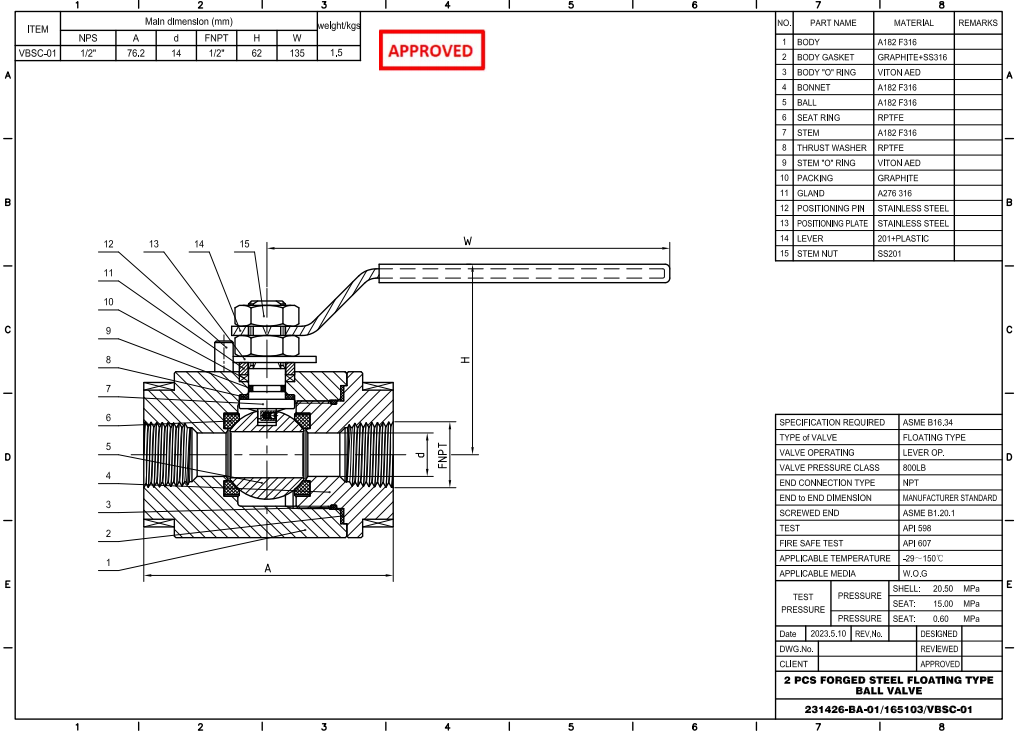

Technical Drawing

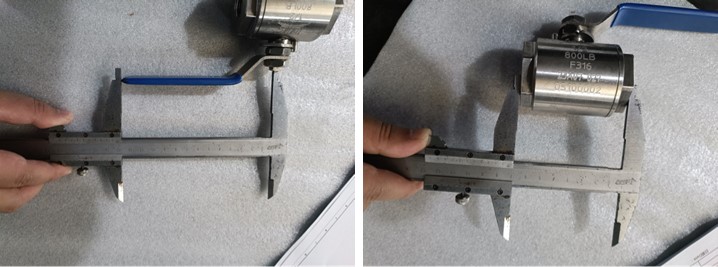

Dimension Checking

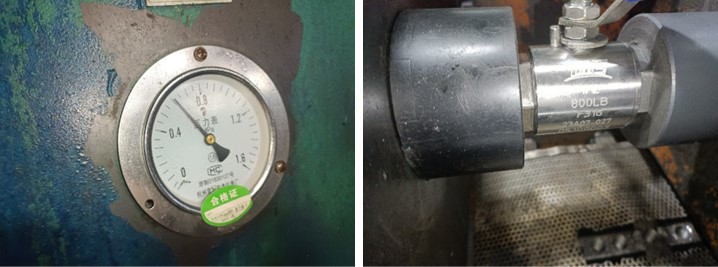

Pressure Testing

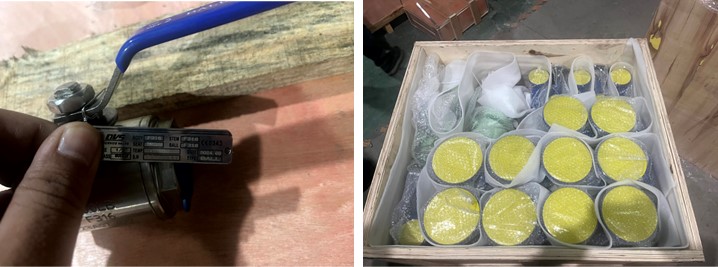

Nameplate & Packing

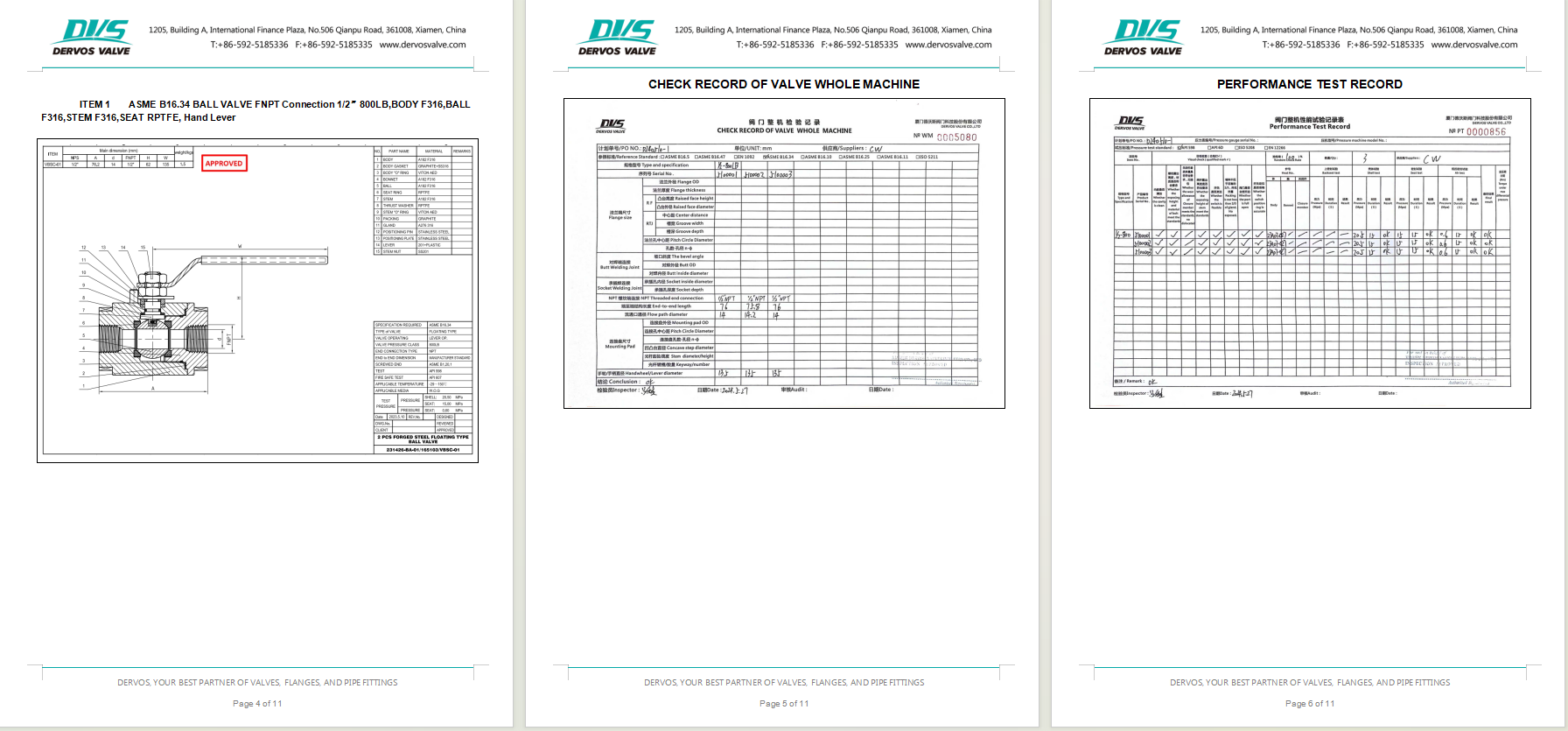

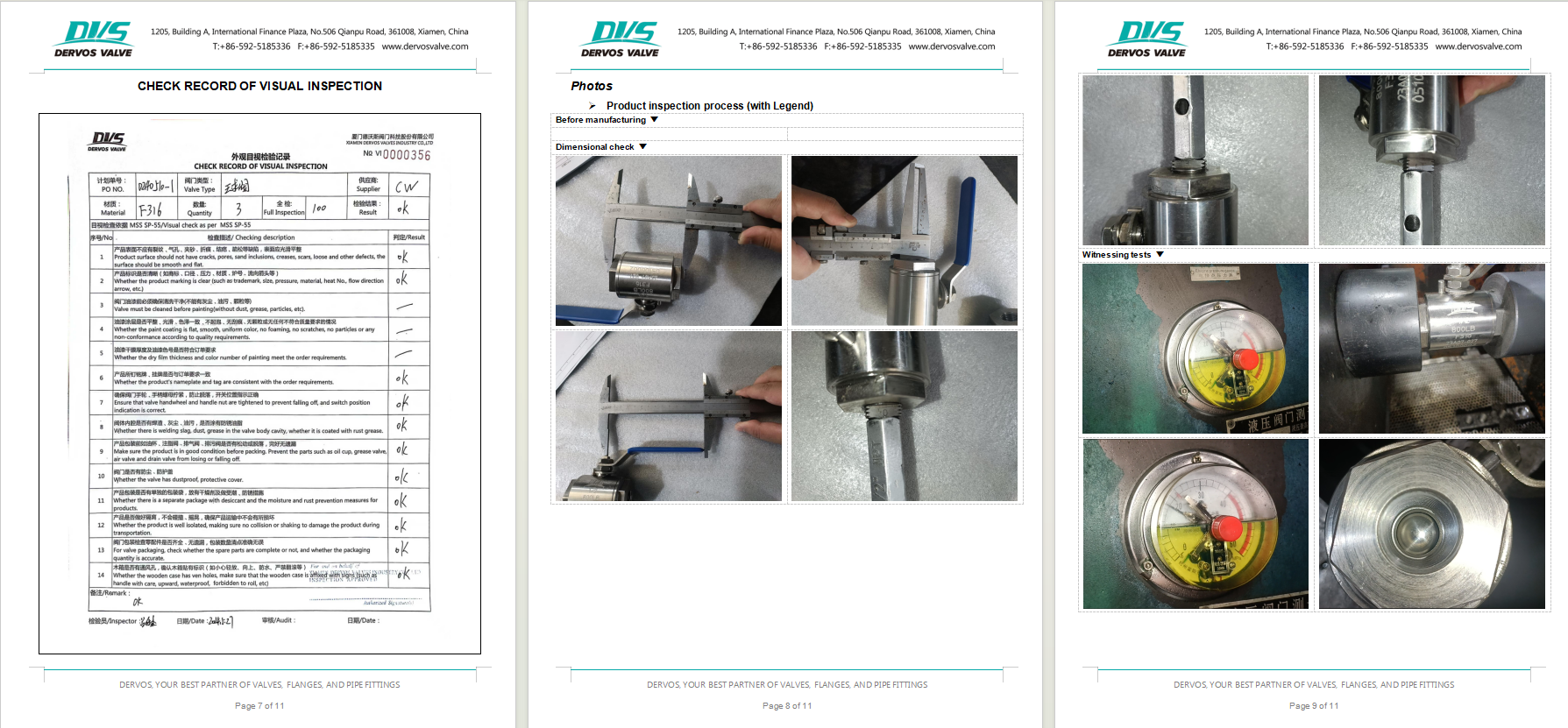

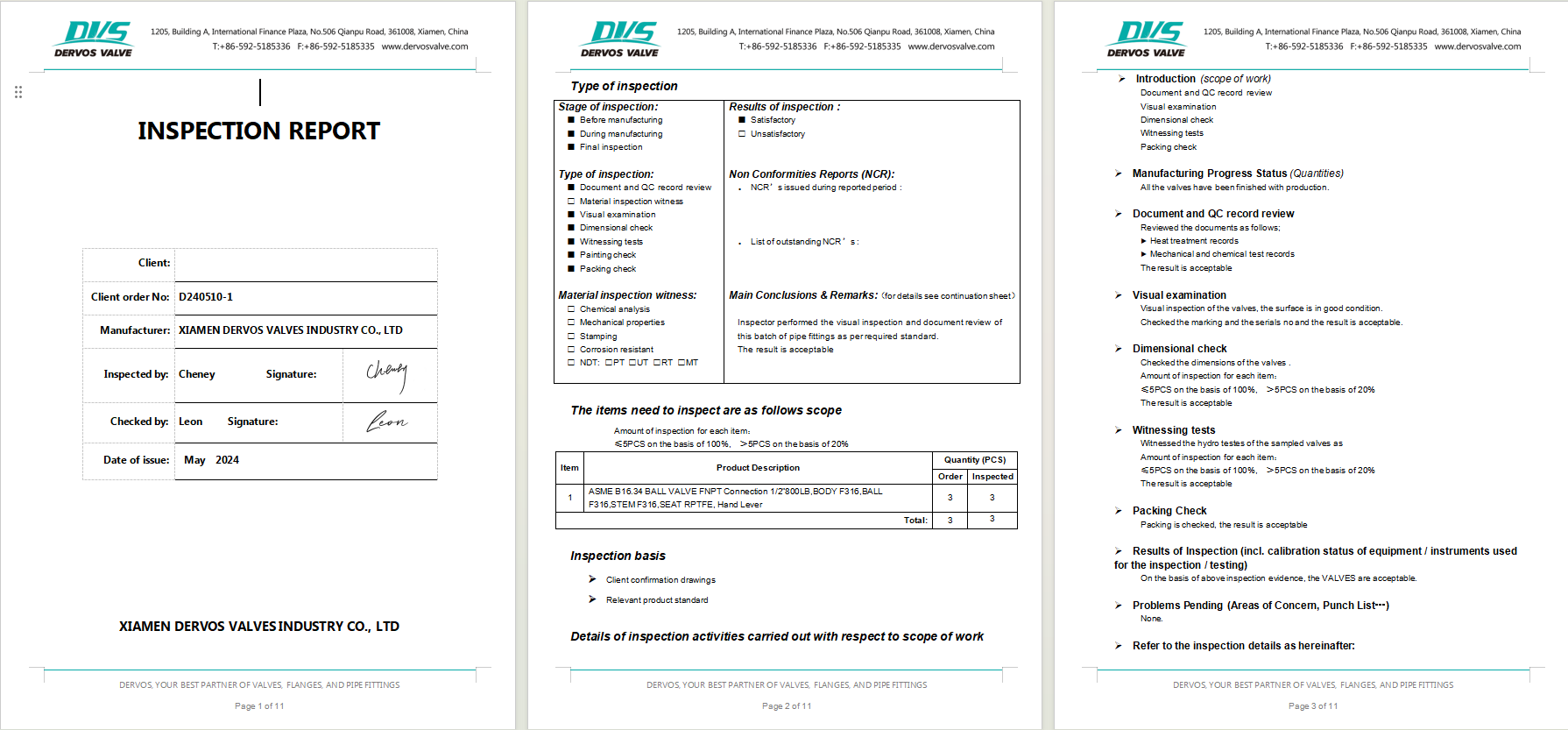

Inspection Report
