3/4” 150LB Forged Steel Floating Ball Valve LF2 API 598 LEVER OP.
Key Specifications / Features
Model No.: Hits: 0
3/4” 150LB Forged Steel Floating Ball Valve is made according to API 598 standard. The valve body is made of A350 LF2. It has the structural characteristics of Full Bore, Floating Ball, Split Body, Side Entry. Its connection mode is RF. The valve is operated by LEVER OP.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Floating Ball Valve |
| Size | 3/4” |
| Pressure | 150LB |
| Connection | RF |
| Body Material | A350 LF2 |
| Design Norm | API 598 |
| End to End | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -30 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Constructed from LF2 forged steel, this 3/4” floating ball valve delivers excellent durability and corrosion resistance.2.Featuring a lever-operated design and API 598 tested, it provides easy manual operation with reliable leak-proof performance.

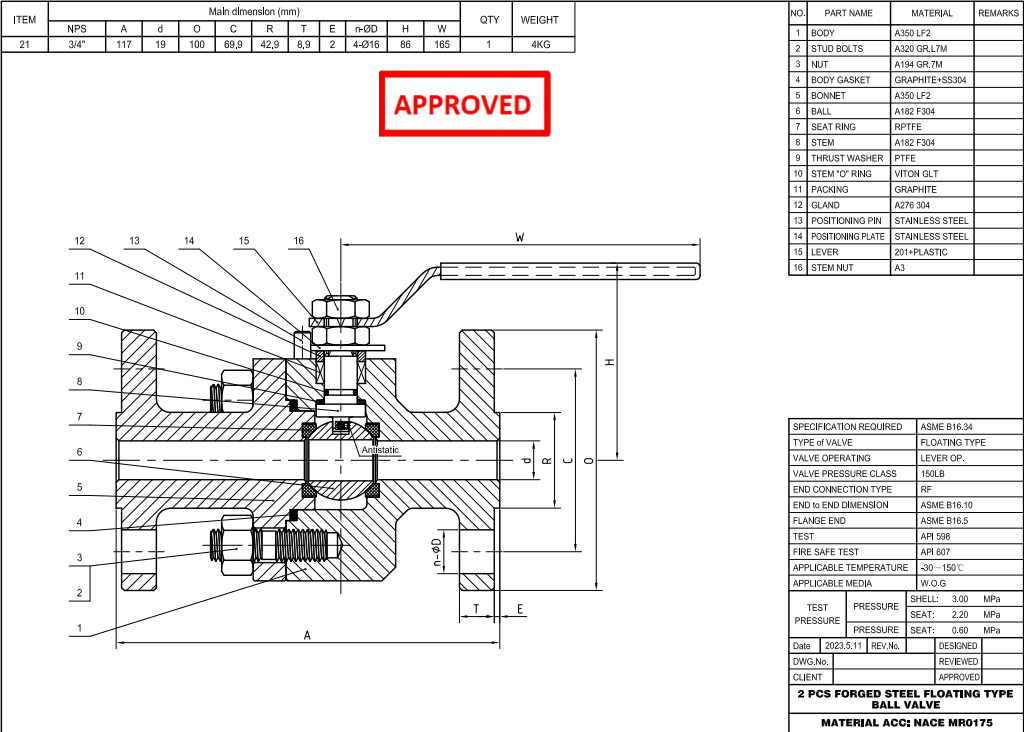

Technical Drawing

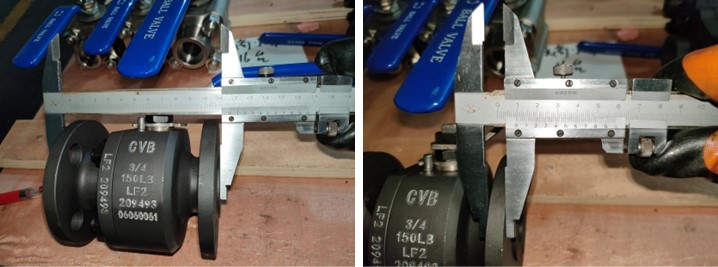

Dimension Checking

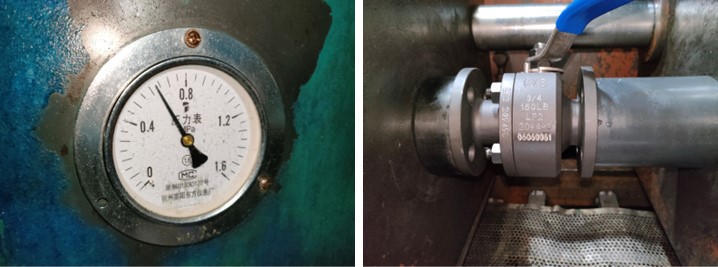

Pressure Testing

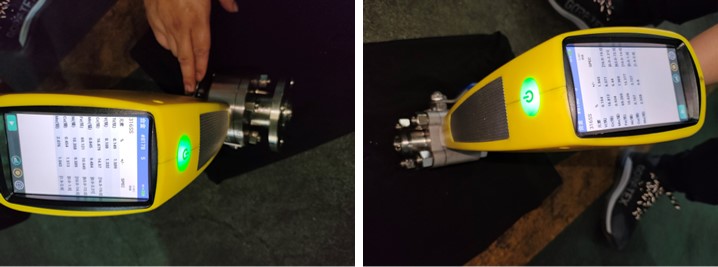

Spectrum

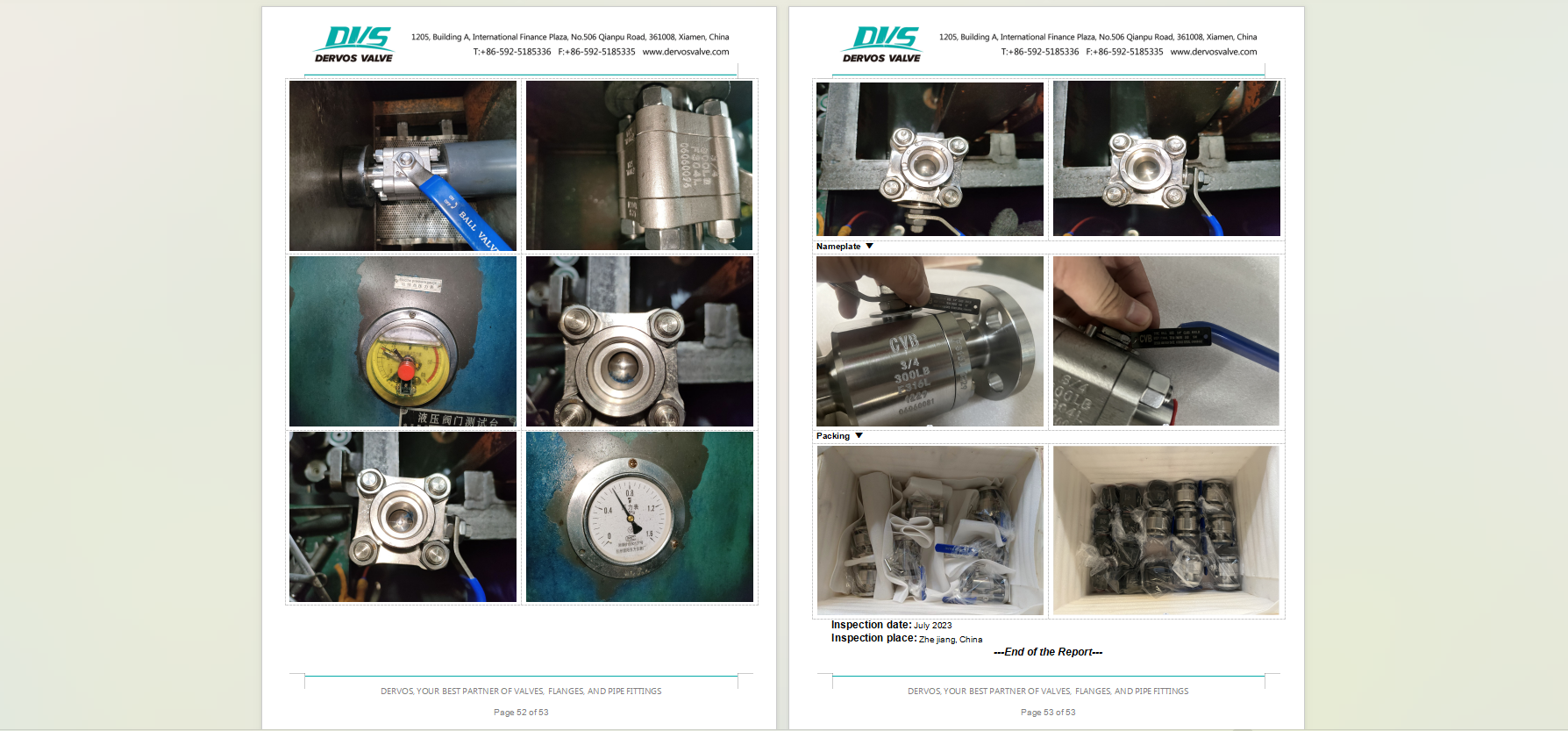

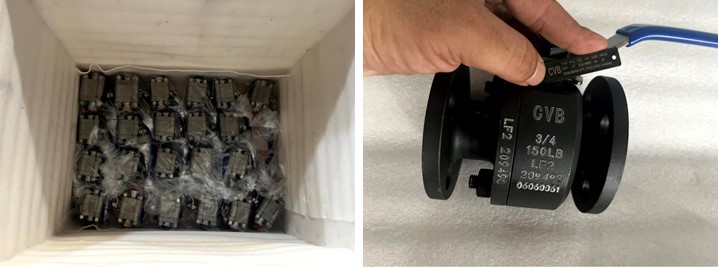

Nameplate & Packing

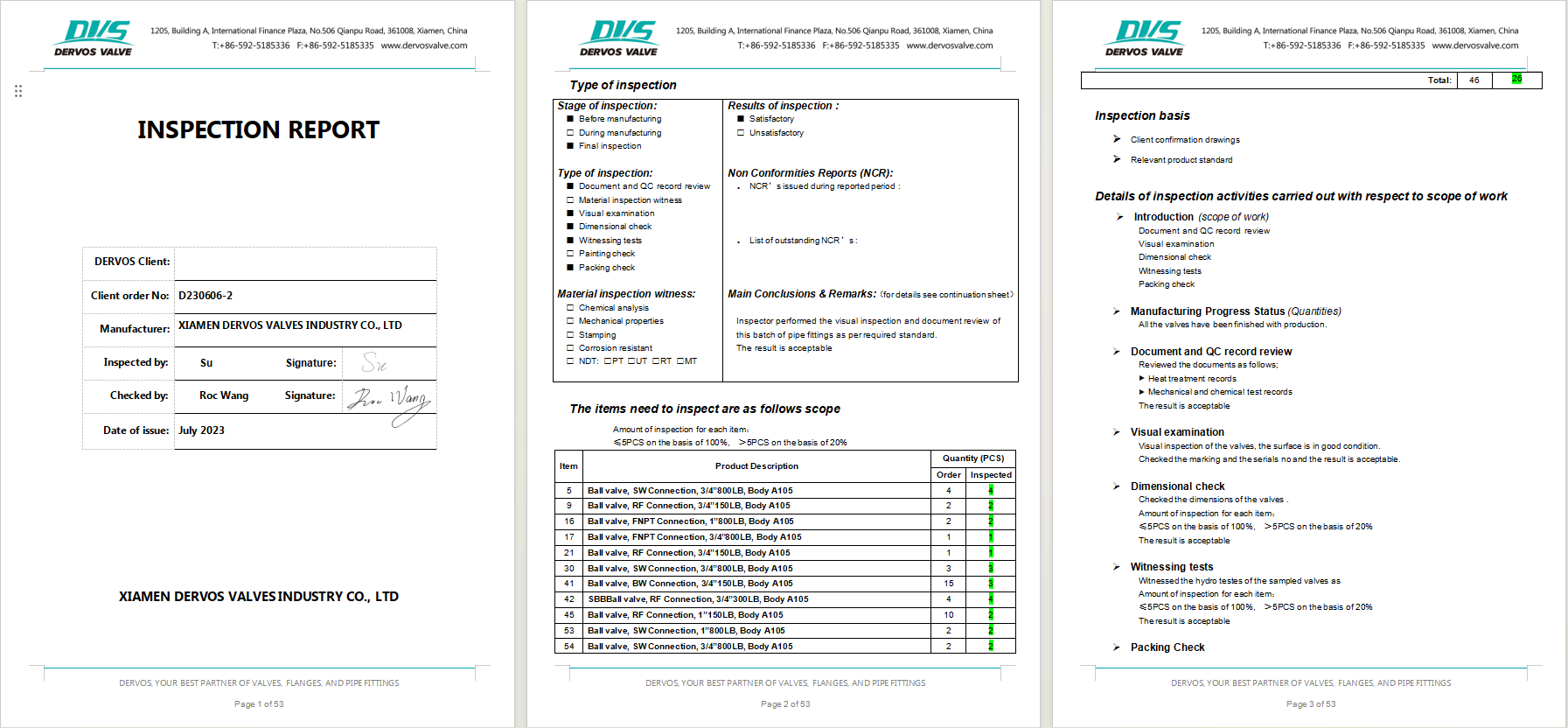

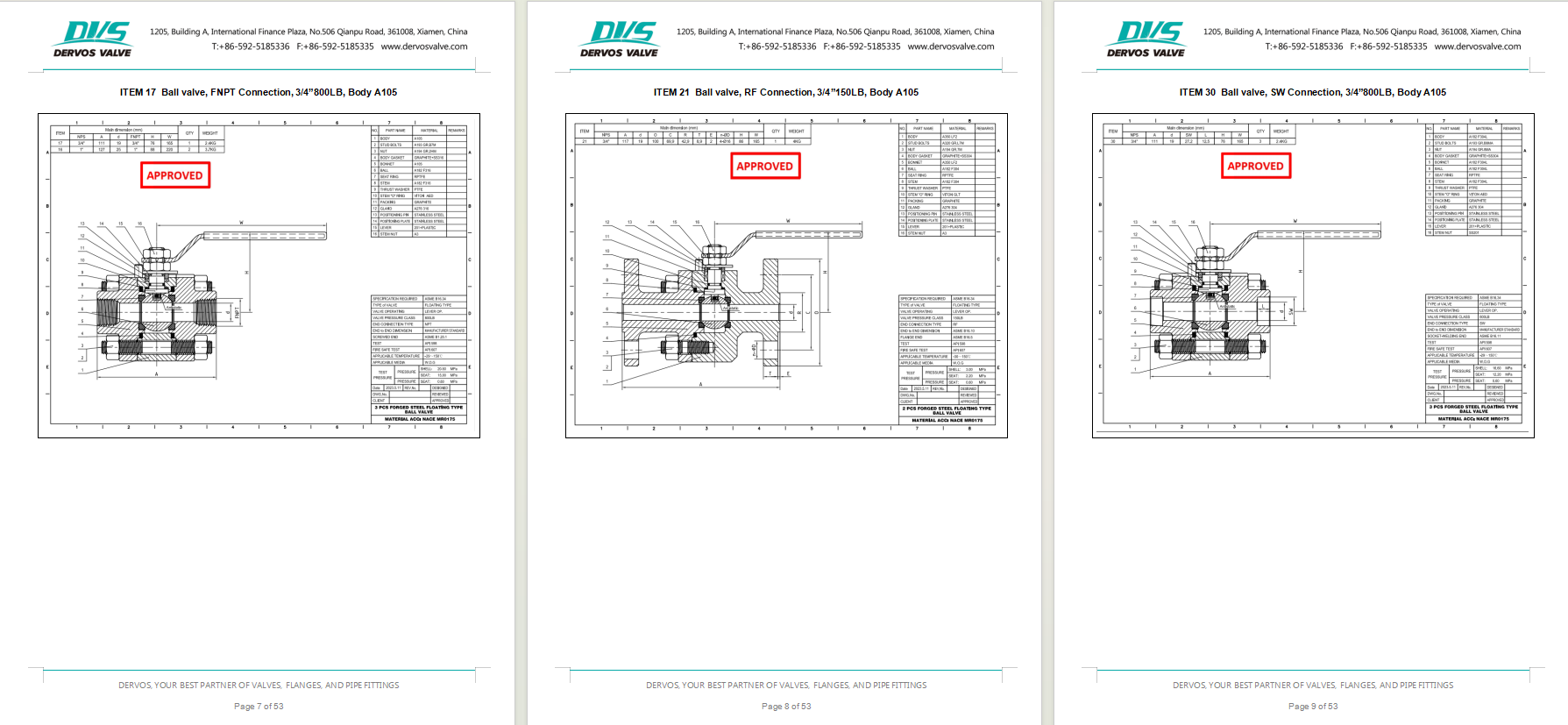

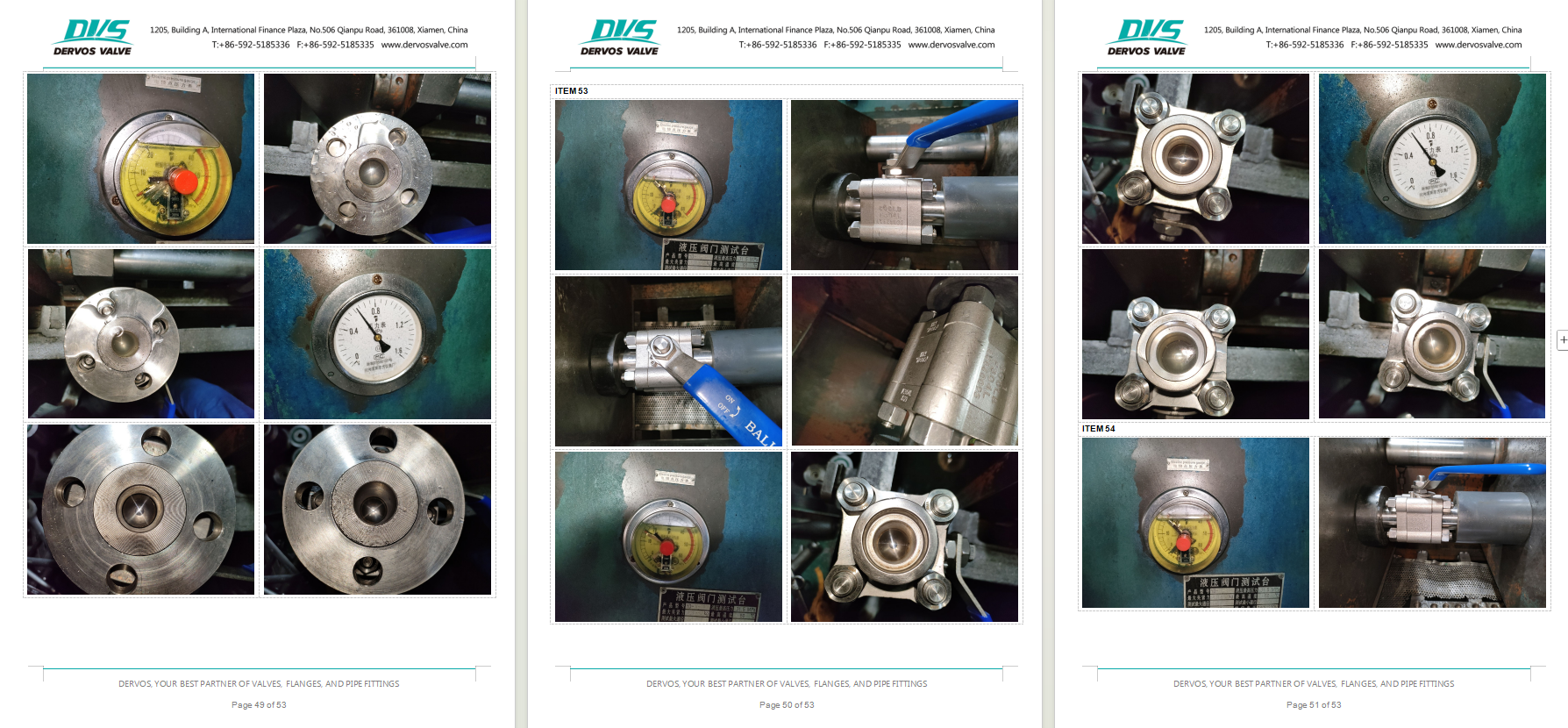

Inspection Report
