DN125 PN40 Floating Ball Valve F316 API 598 Plain Stem
Key Specifications / Features
Model No.: Hits: 0
DN125 PN40 Forged Floating Ball Valve is made according to API 598 standard. The valve body is made of A182 F316. This sanitary full bore floating ball valve features fire-safe and anti-static functions with a blow-out proof stem. It has a stem diameter of 39 mm, a torque rating of 490 N·m including a 30% safety factor, and conforms to ISO 5211: F14 mounting standards. Its connection mode is Wafer.The valve is operated by Plain Stem.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Floating Ball Valve |
| Size | DN125 |
| Pressure | PN40 |
| Connection | Wafer |
| Body Material | A182 F316 |
| Design Norm | API 598 |
| Face to Face | Client requirements |
| Flange dimension | EN1092-B1 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 121°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Made of F316 stainless steel, this DN125 floating ball valve offers excellent corrosion resistance and long service life.2.Designed with a plain stem and tested to API 598 standards, it ensures reliable sealing and smooth operation under PN40 pressure.

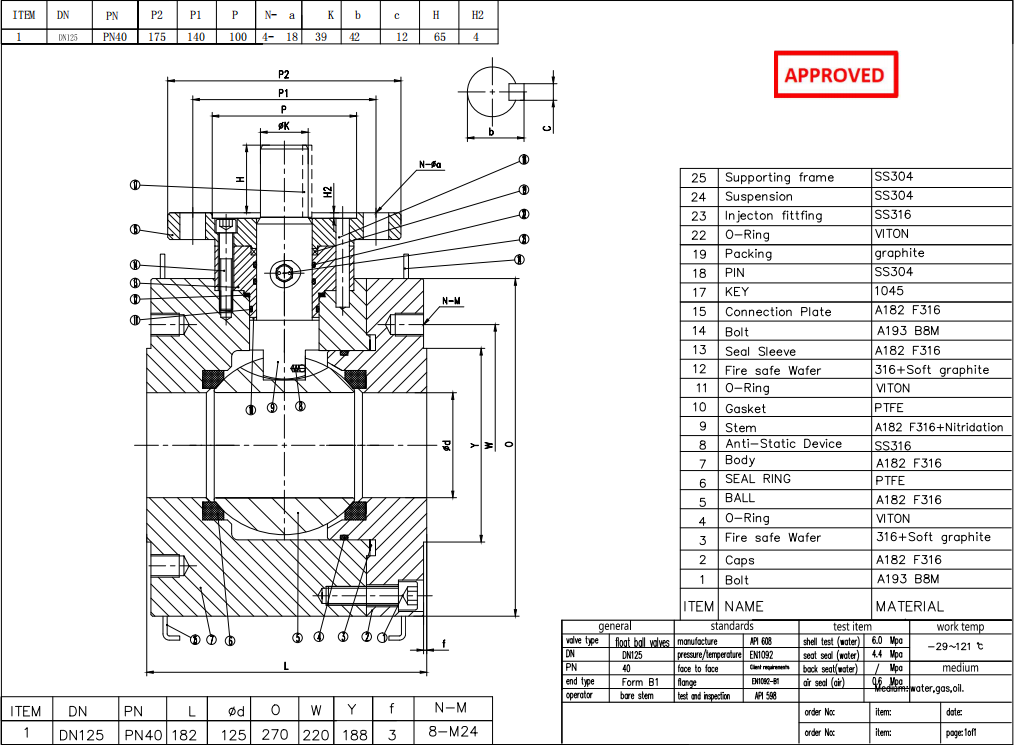

Technical Drawing

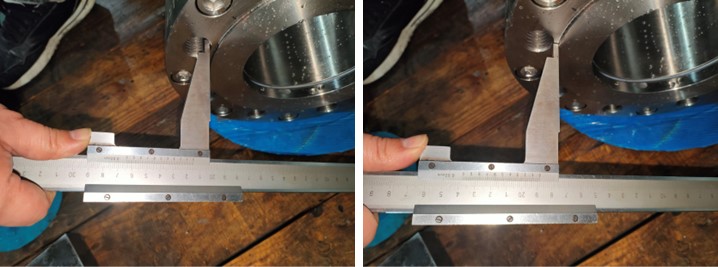

Dimension Checking

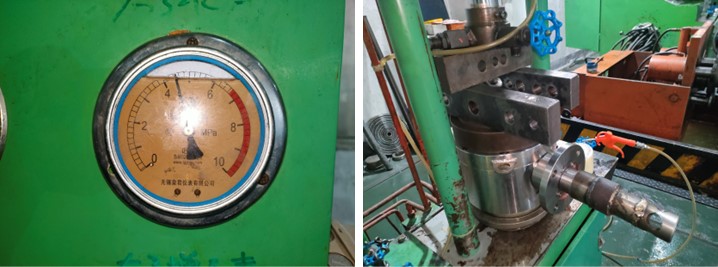

Pressure Testing

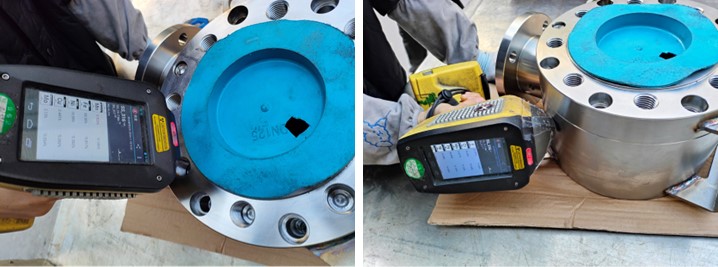

Spectrum

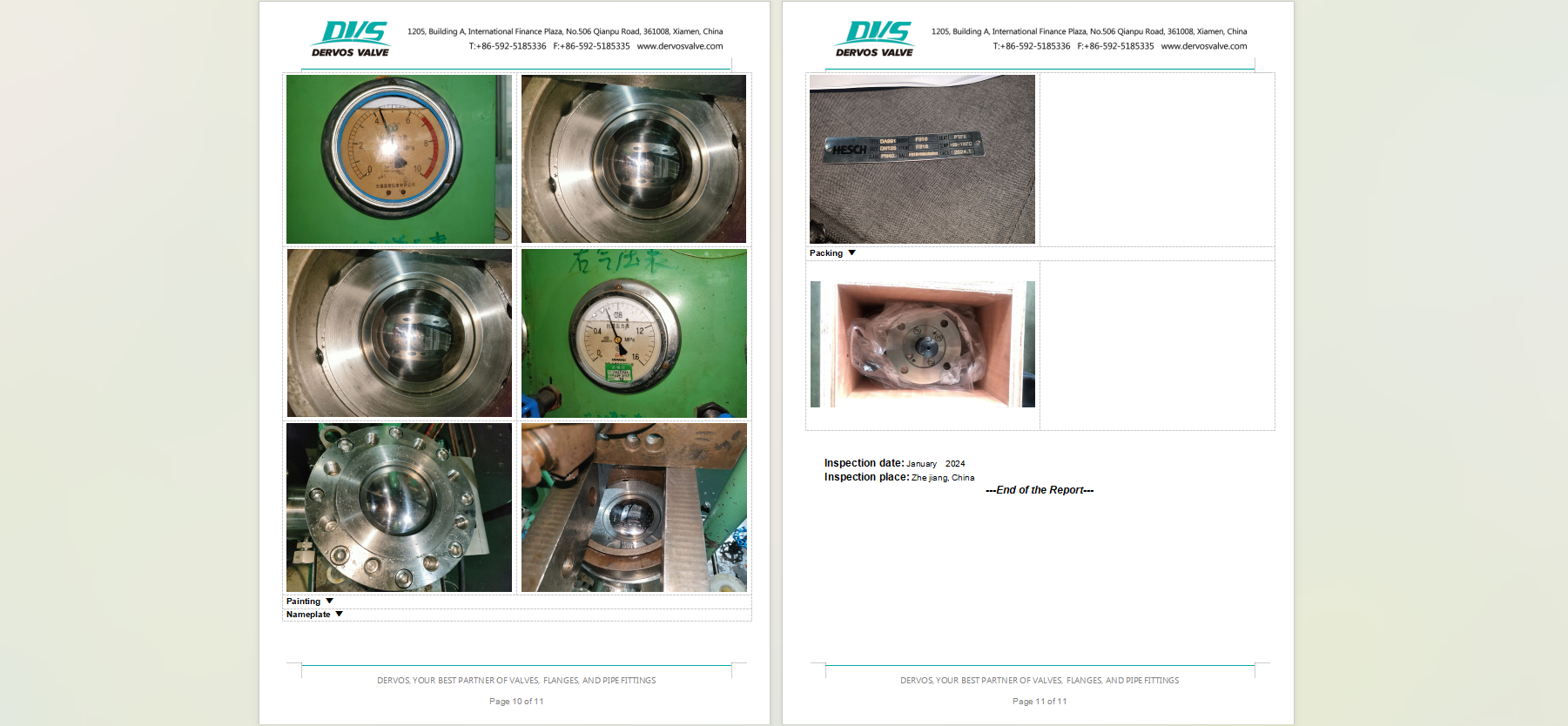

Nameplate & Packing

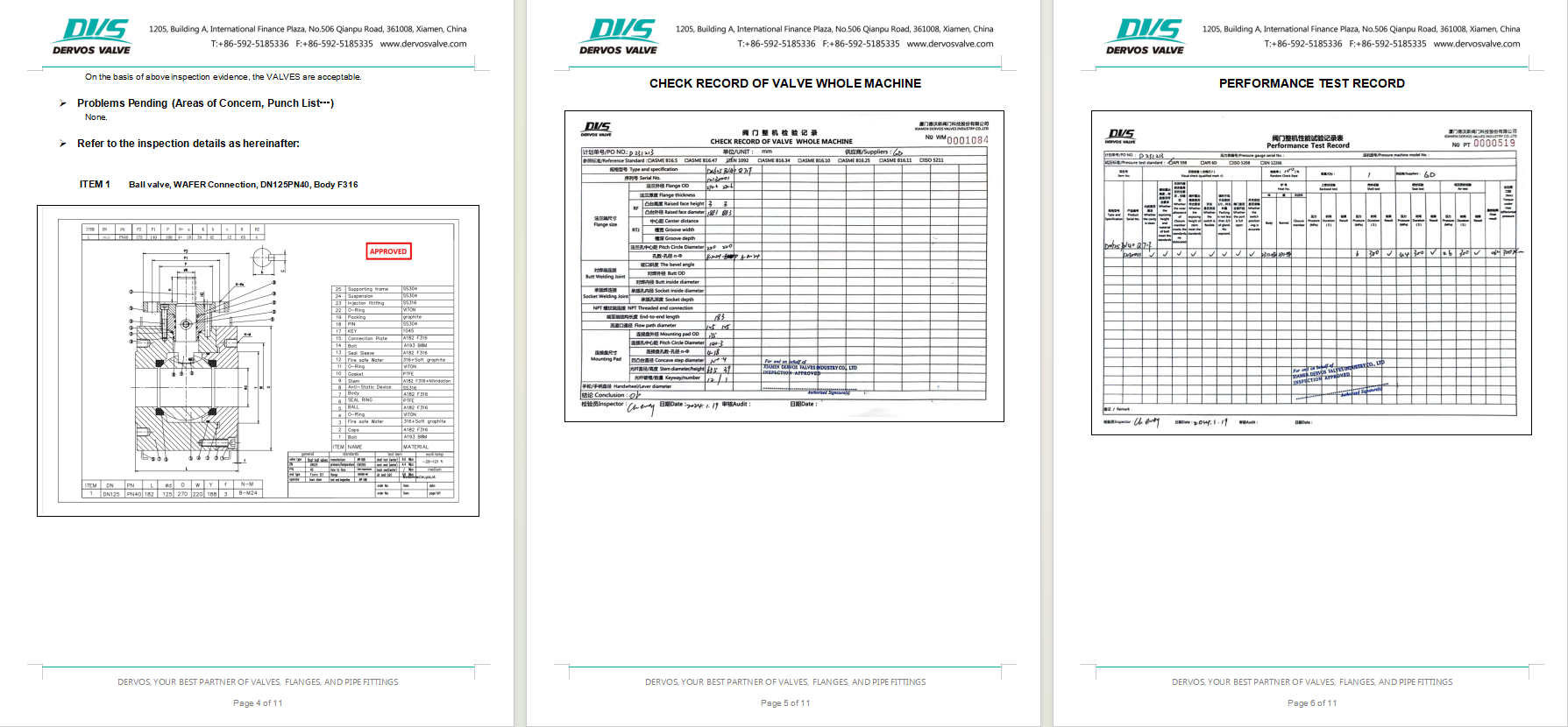

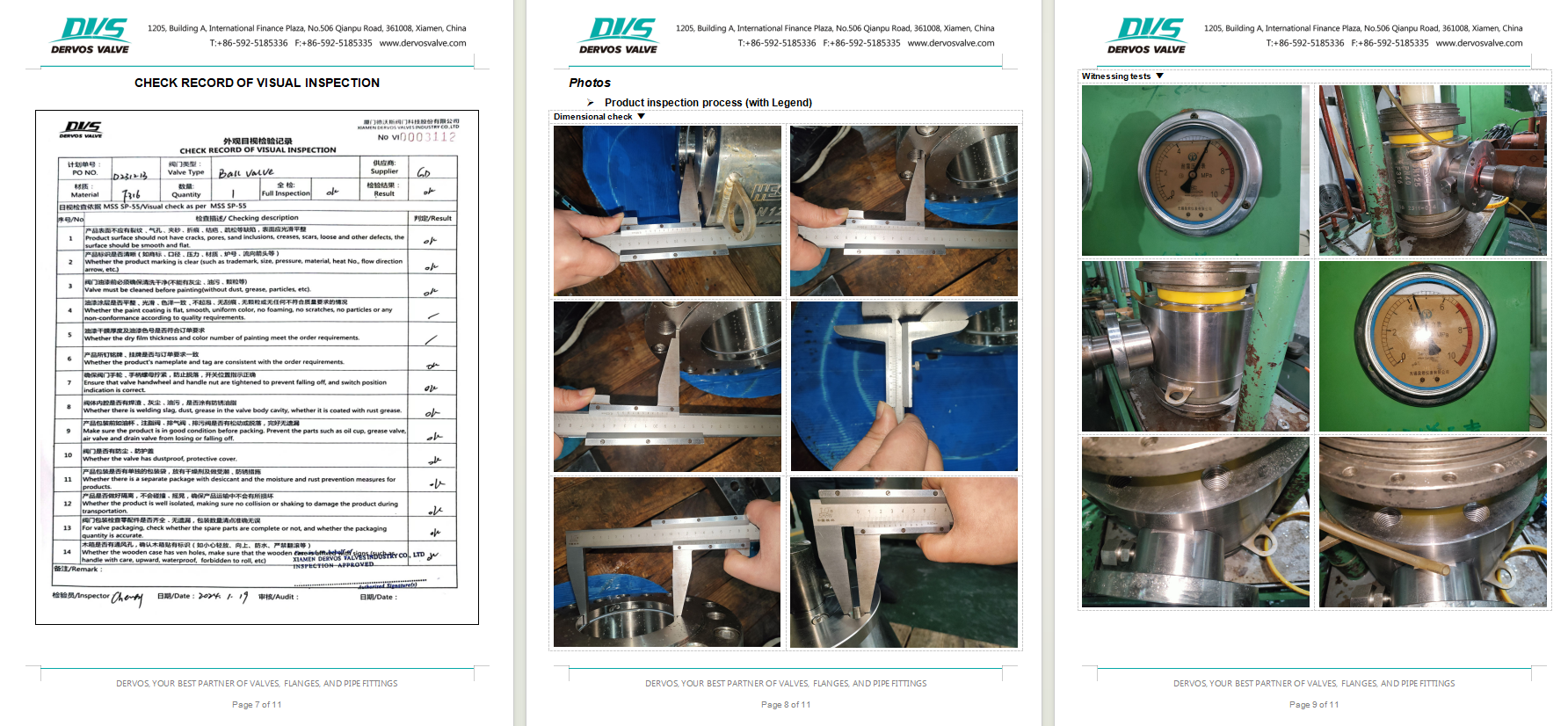

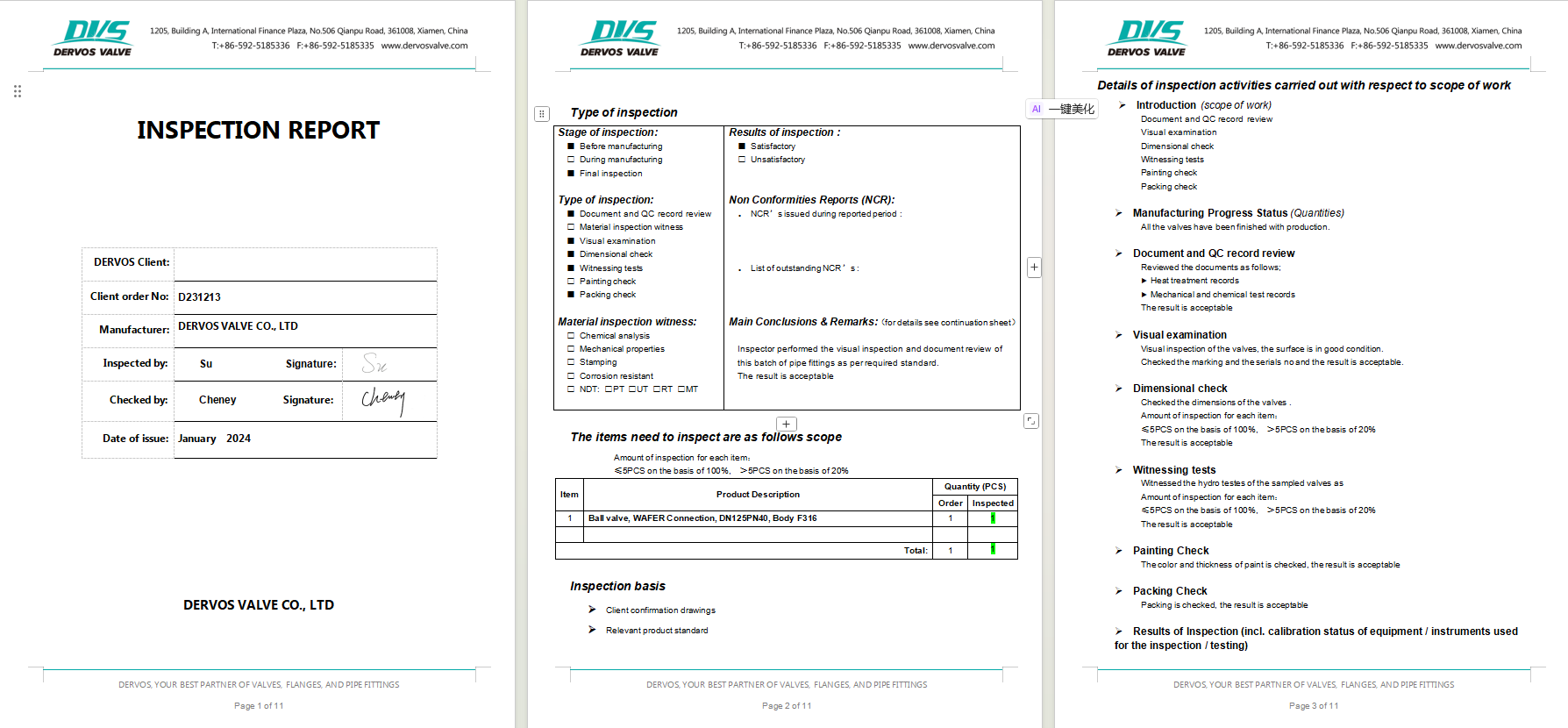

Inspection Report
