Body A105, DN400 PN25 Trunnion Mounted Ball Valve, API6D, Worm Gear
Key Specifications / Features
Model No.: Hits: 0
DN400 PN25 Trunnion Mounted Ball valve is made according to API 6D standard. The valve body is made of A105. It has the structural characteristics of fixed ball, full bore, fireproof, anti-static, anti-blowing valve stem. Its connection mode is EN1092-1 B. And it has Worm Gear operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Trunnion Mounted Ball Valve |
| Size | DN400 |
| Pressure | PN25 |
| Connection | EN1092-1 B |
| Operation | Worm Gear |
| Body Material | A105 |
| Design Norm | API 6D |
| Pressure / Temperature | EN 1092 |
| Face to Face | Customer Requirements |
| Flange | EN 1092 B1 |
| Test & Inspection Code | API 6D |
| Temperature | -20 ~ 121°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Symmetrical structure, capable of bi-directional pressure bearing, not limited by installation direction, suitable for installation in bi-directional flow or backflow pipelines;2. The sphere is fixed, the seal is reliable, the opening and closing torque is small, and the operation is easy.

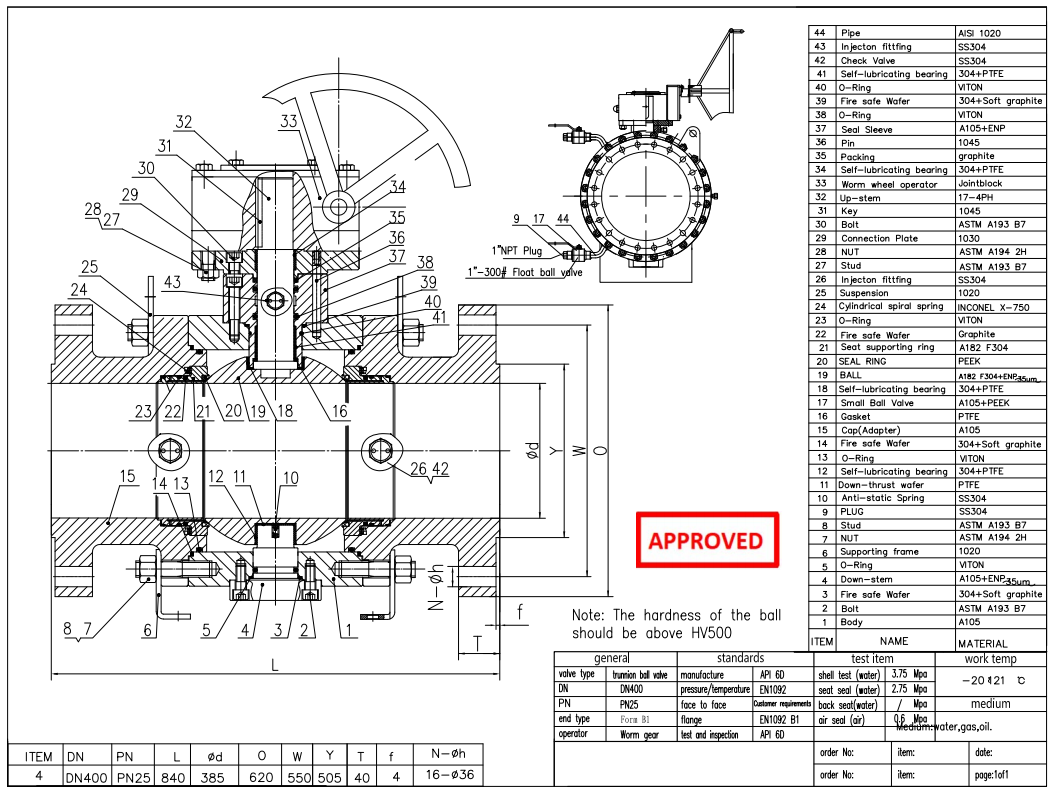

Technical Drawing

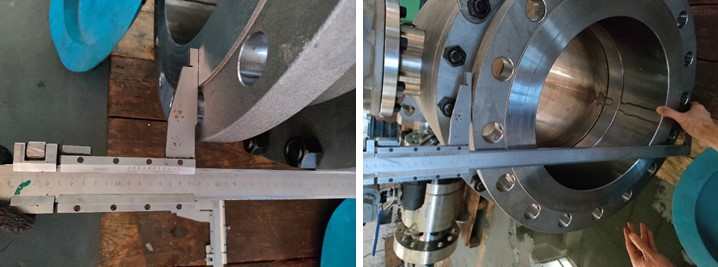

Dimension Checking

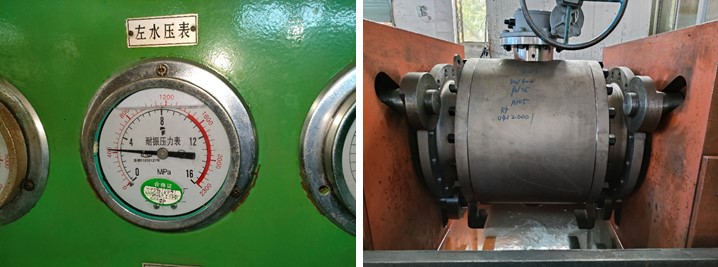

Pressure Testing

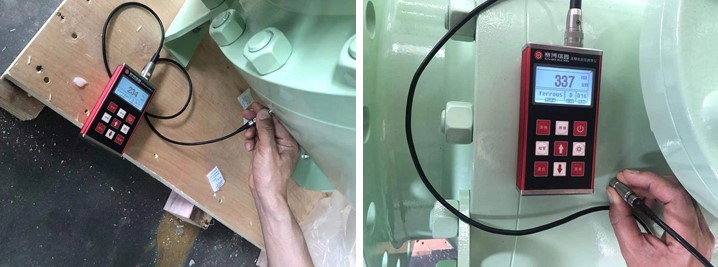

Painting

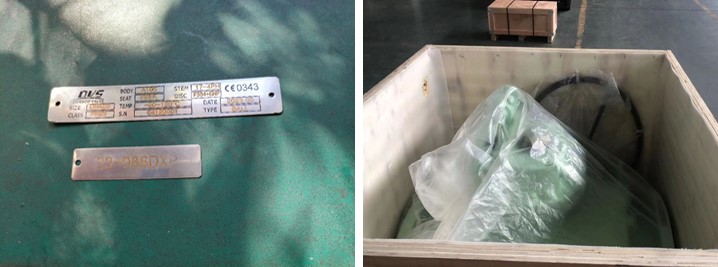

Nameplate & Packing

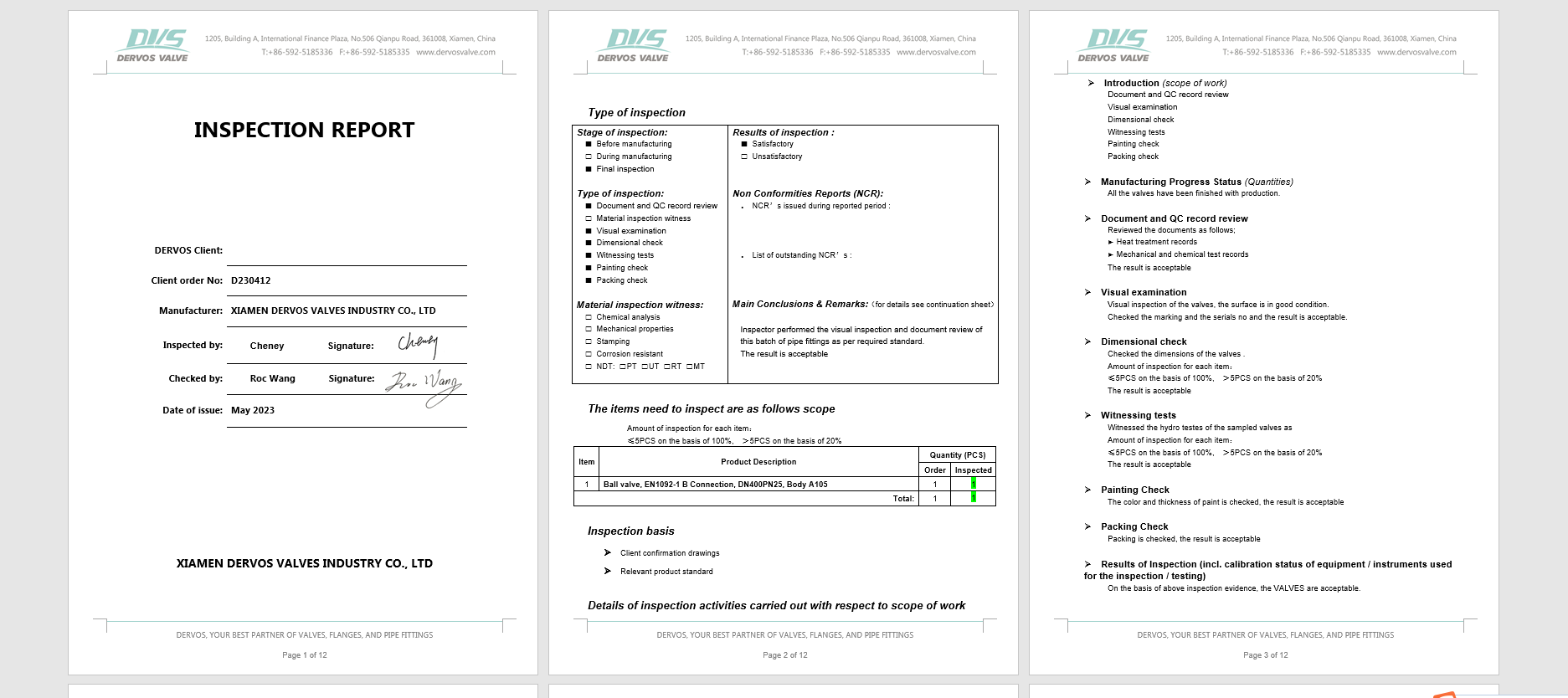

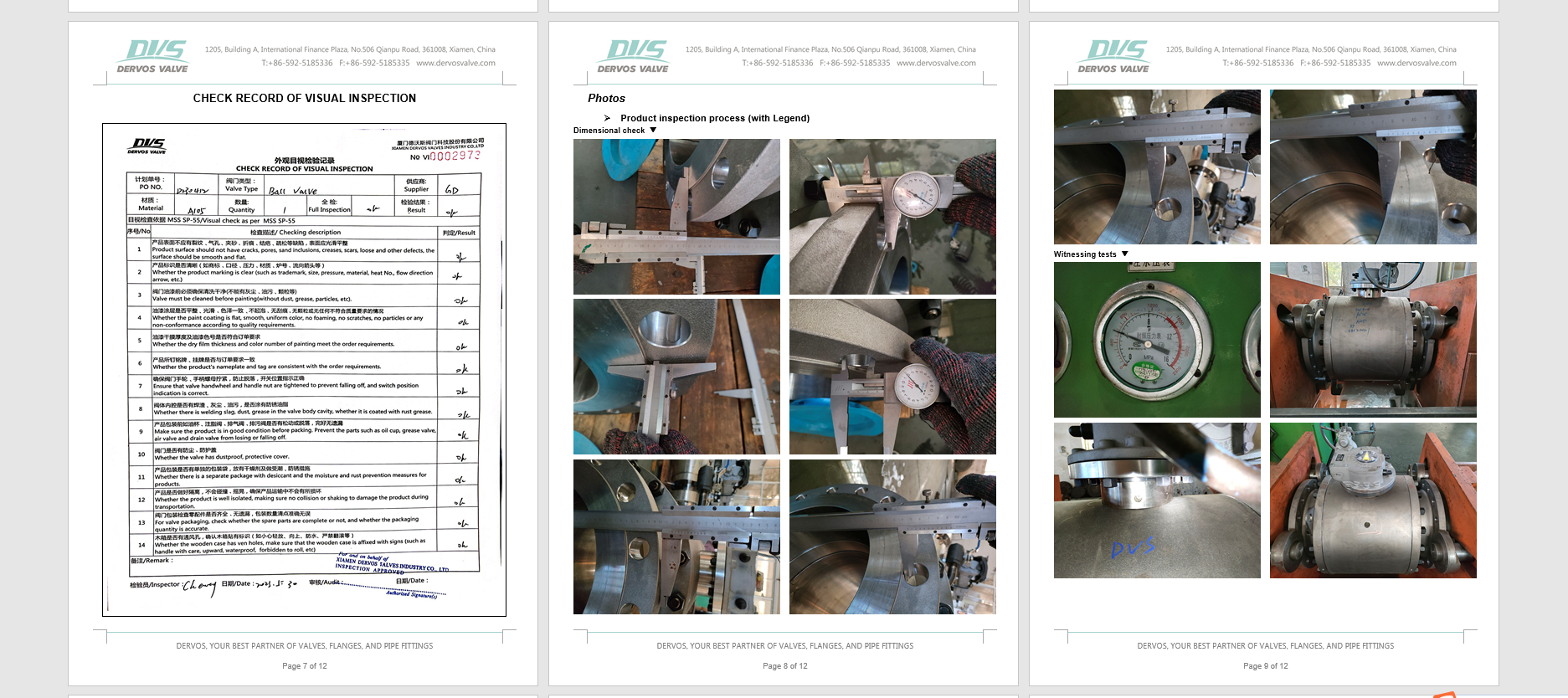

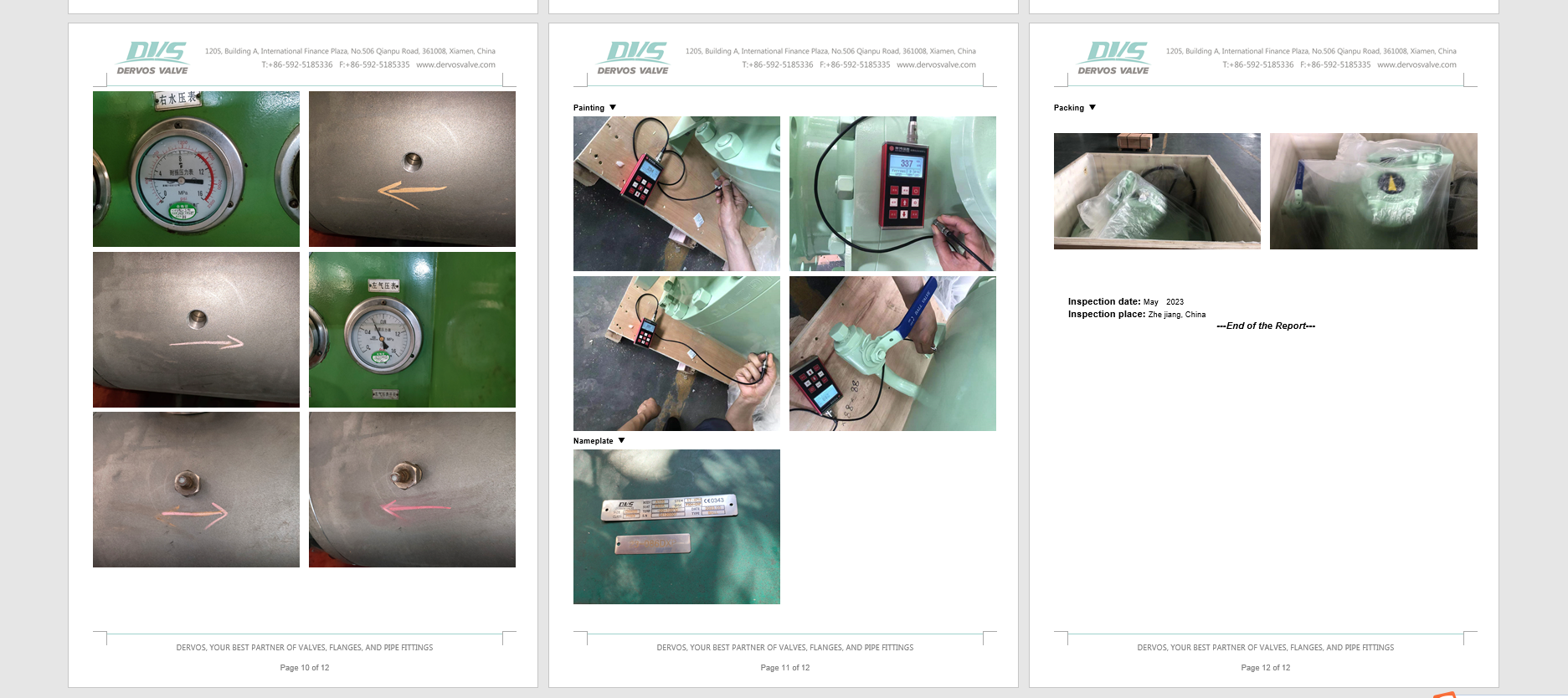

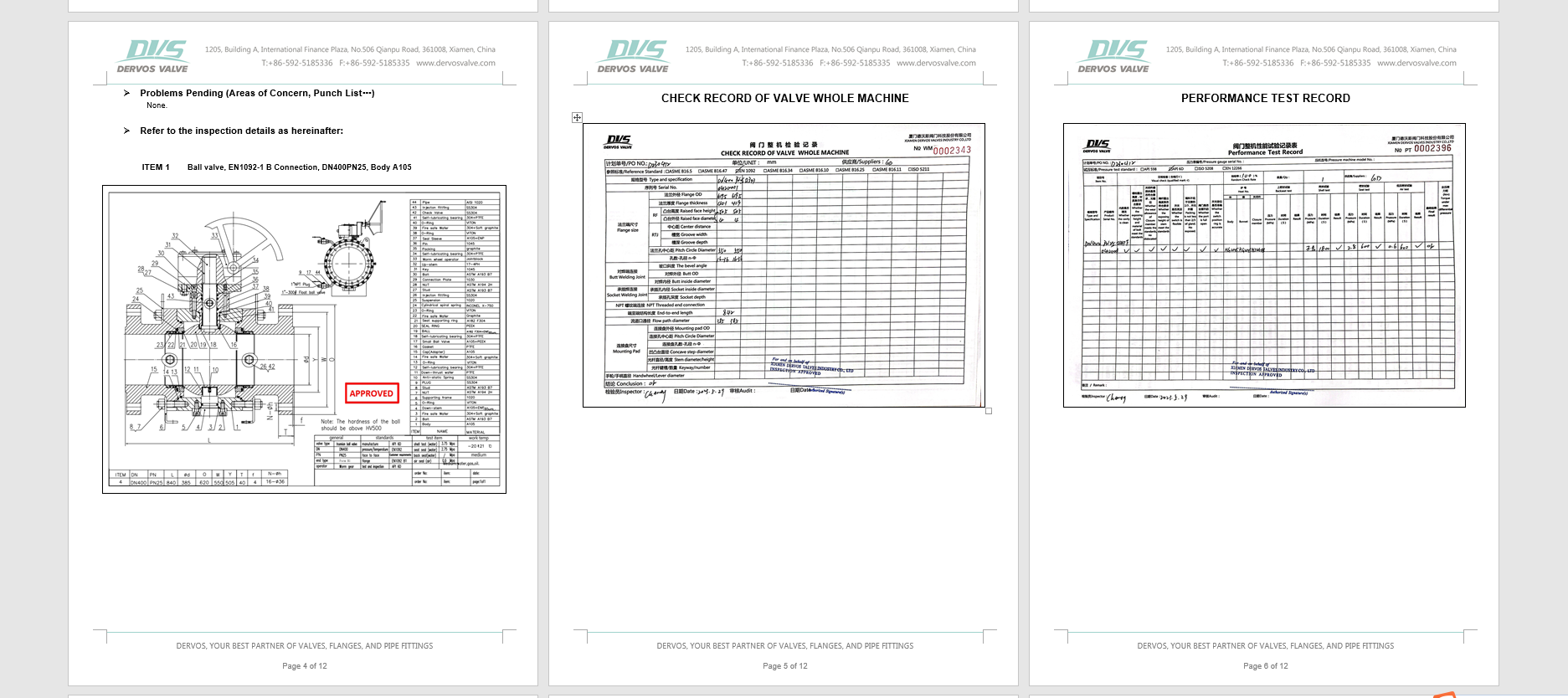

Inspection report
