6" 600LB Trunnion Mounted Ball Valve, RF, Body WCB, Turbine, API6D
Key Specifications / Features
Model No.: Hits: 0
6" 600LB Trunnion Mounted Ball valve is made according to API 6D standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of Full bore, fixed ball, fireproof, anti-static, anti-blowing valve stem. Its connection mode is RF. And it has Turbine operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Trunnion Mounted Ball Valve |
| Size | 6" |
| Pressure | 600LB |
| Connection | RF |
| Operation | Turbine Operation |
| Body Material | ASTM A216 WCB |
| Design Norm | API 6D |
| Connection Ends | ASME B16.5 |
| Fire Safe Design | API 607 |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The ball is supported by bearings and does not require medium pressure to push, effectively reducing the torque demand of the valve stem. It is particularly suitable for large-diameter or automatic control (electric/pneumatic) operations;2. Symmetrical structure, capable of bi-directional pressure bearing, not limited by installation direction. Suitable for installation in bidirectional or reverse flow pipelines.

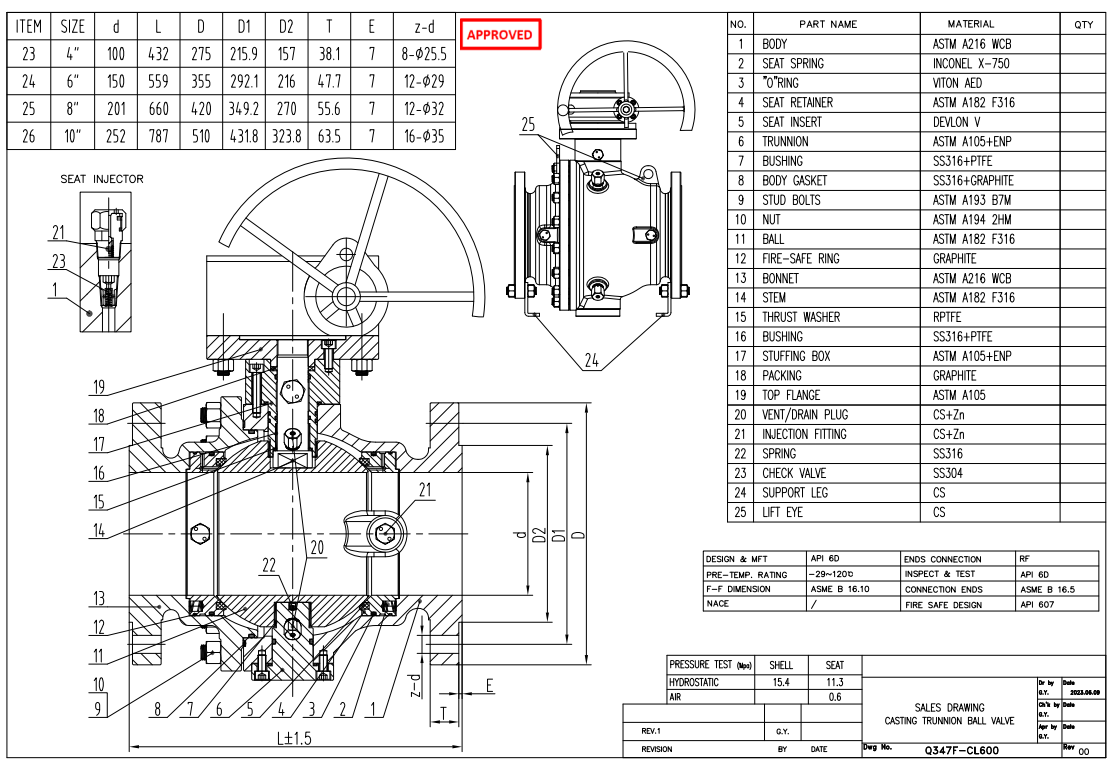

Technical Drawing

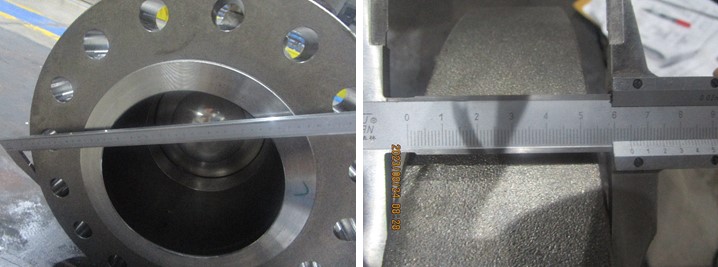

Dimension Checking

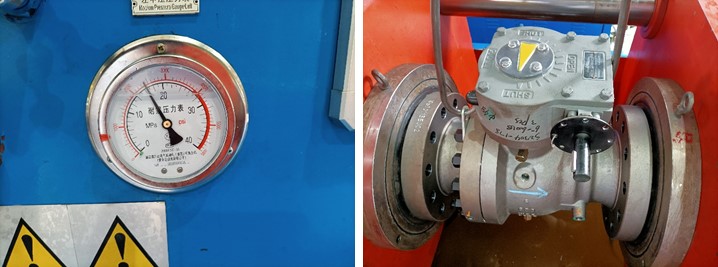

Pressure Testing

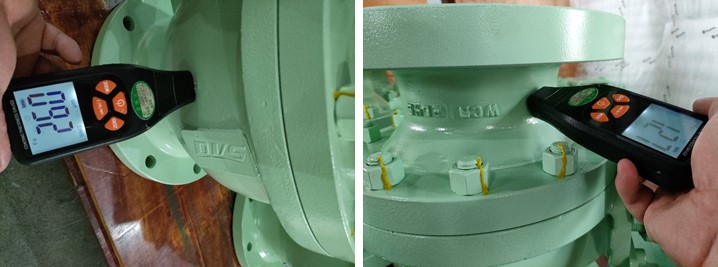

Painting

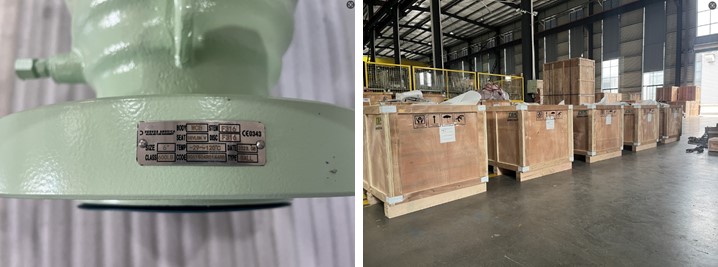

Nameplate & Packing

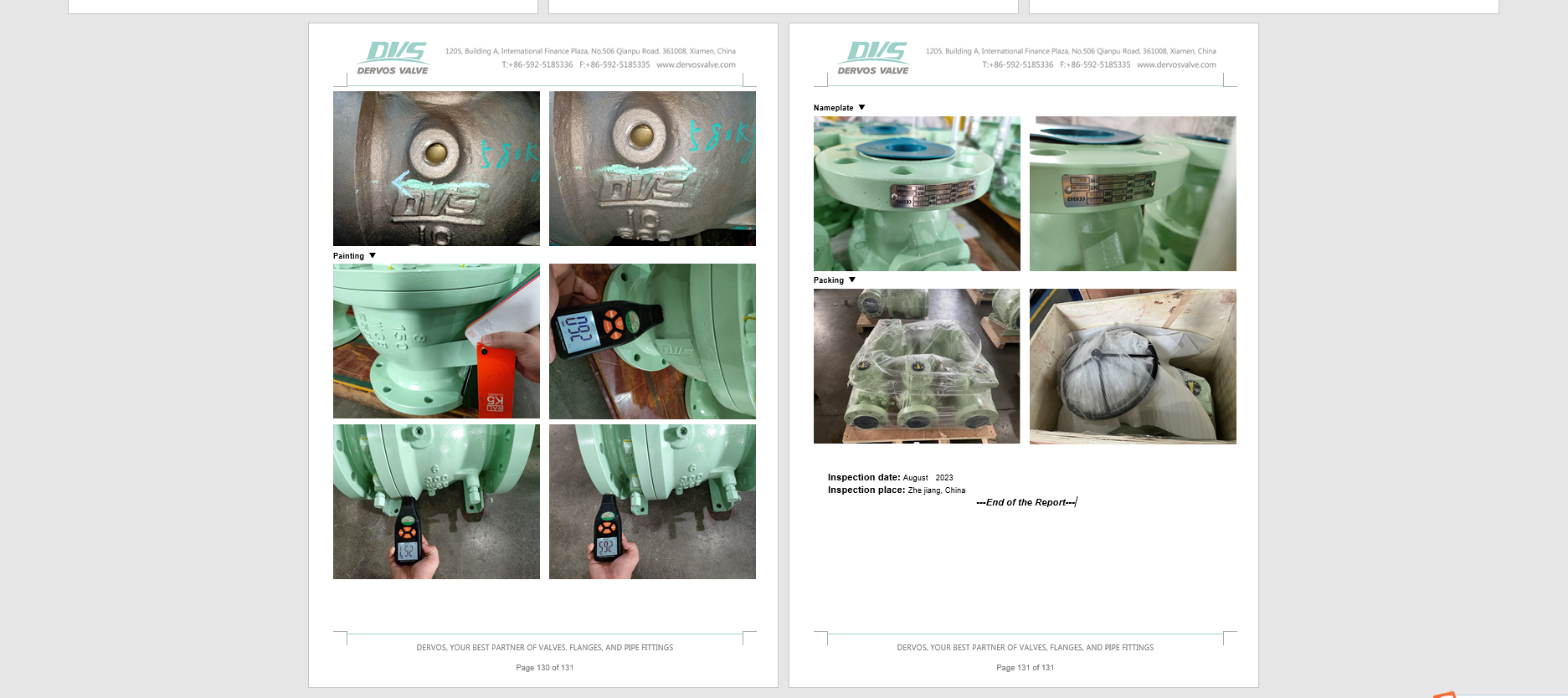

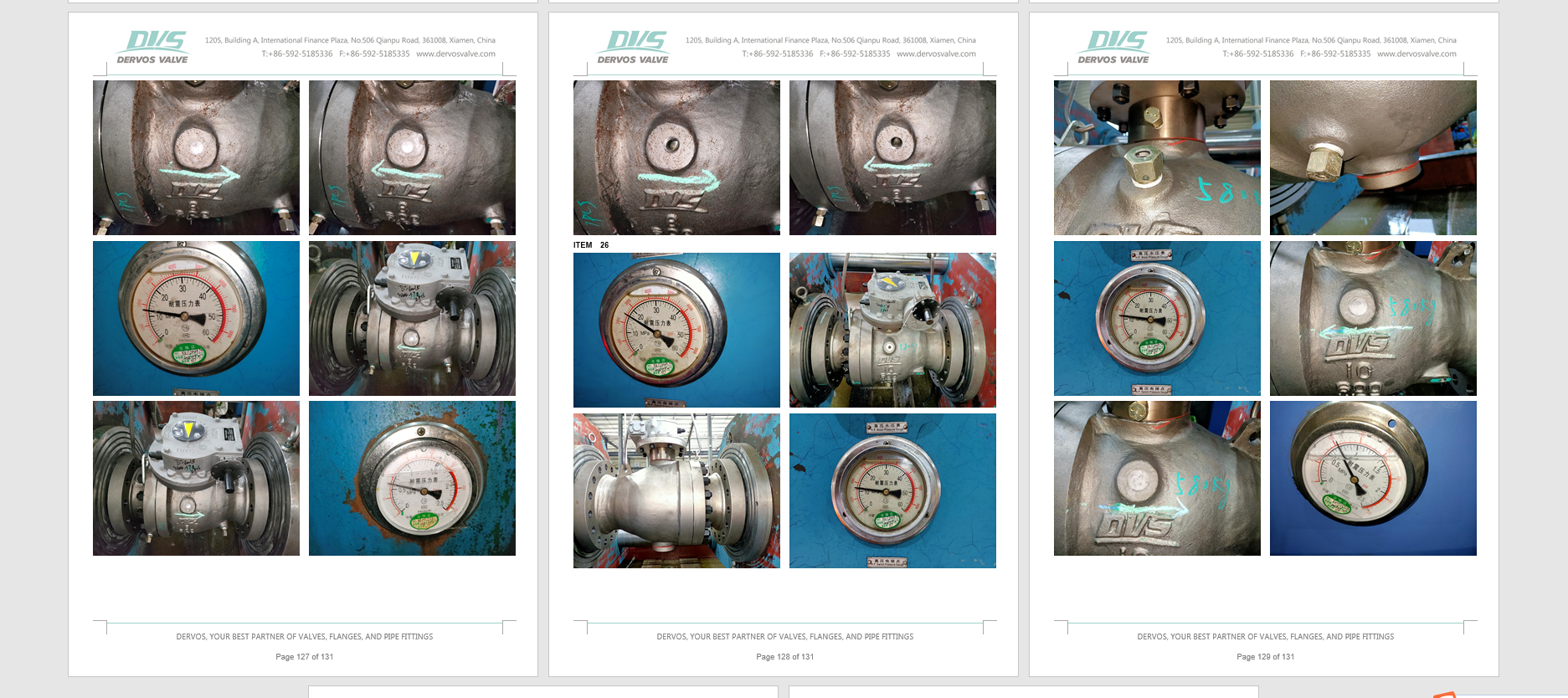

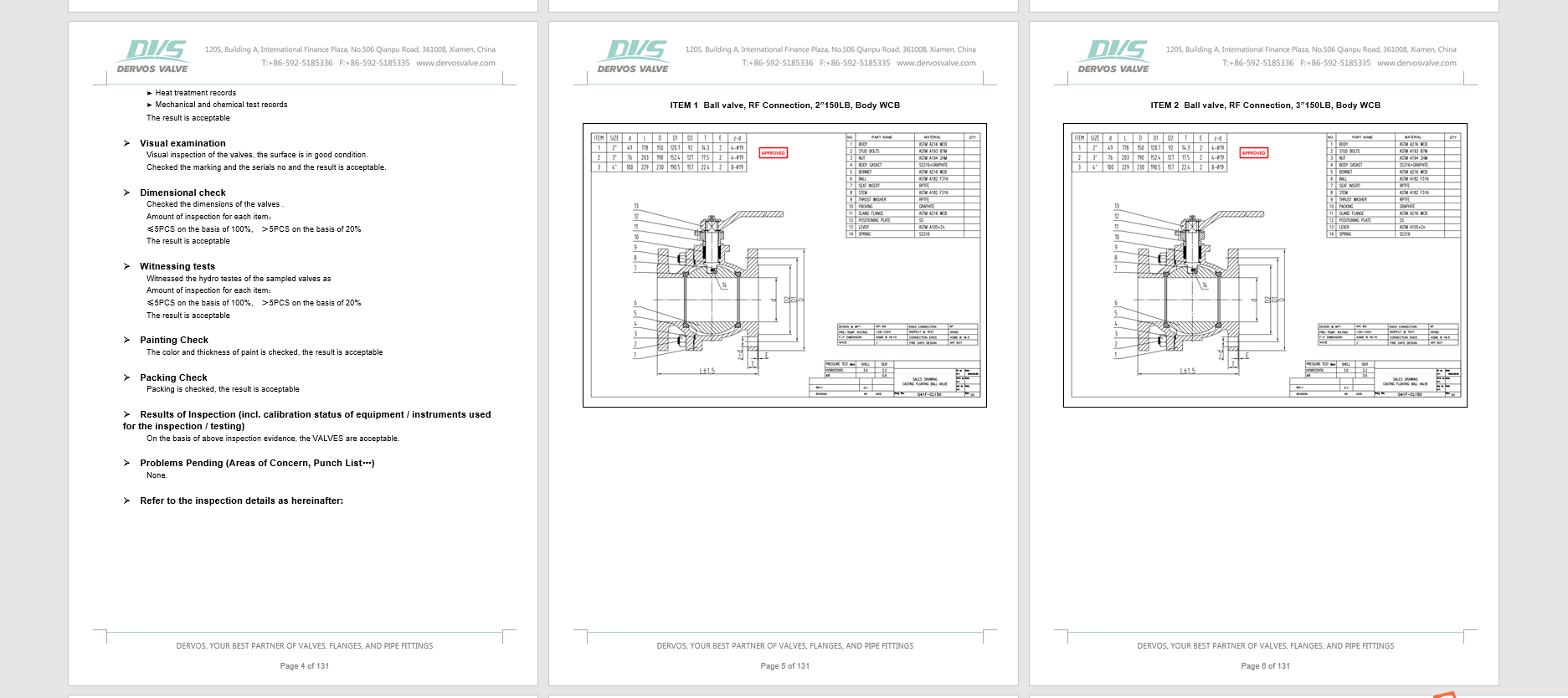

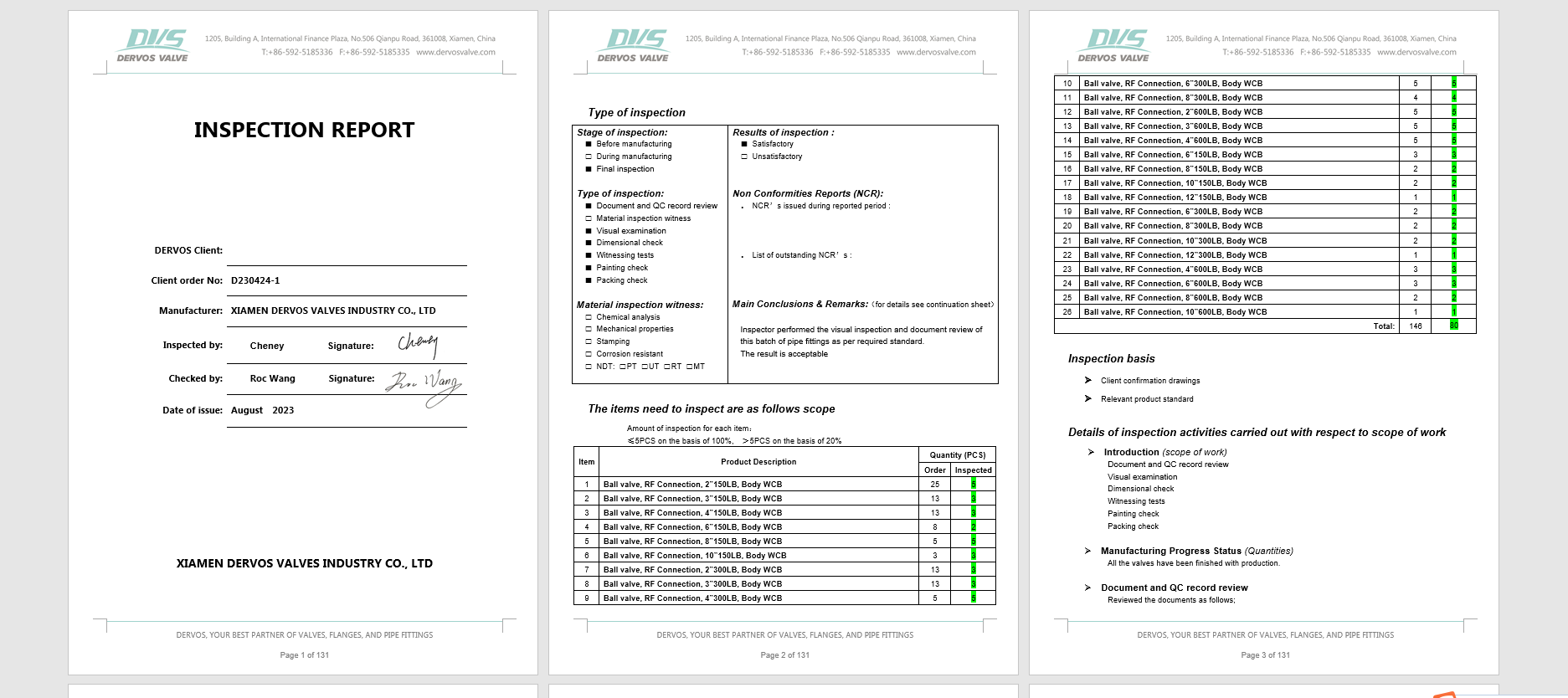

Inspection report
