2” 600LB Trunnion Ball Valve A216 WCB API 6D H.W.
Key Specifications / Features
Model No.: Hits: 0
2” 600LB Trunnion Ball Valve is made according to API6D standard. The valve body is made of A216 WCB. It has the structural characteristics of Fire-safe and anti-static design, blow-out proof stem. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Trunnion Ball Valve |
| Size | 2" |
| Pressure | 800LB |
| Connection | RF |
| Operation | H.W. |
| Body Material | A216 WCB |
| Design Norm | API 6D |
| Face to Face | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. A216 WCB cast steel body offers reliable strength and durability for high-pressure service.
2. Fixed ball design ensures stable operation and reduced torque under heavy-duty conditions.

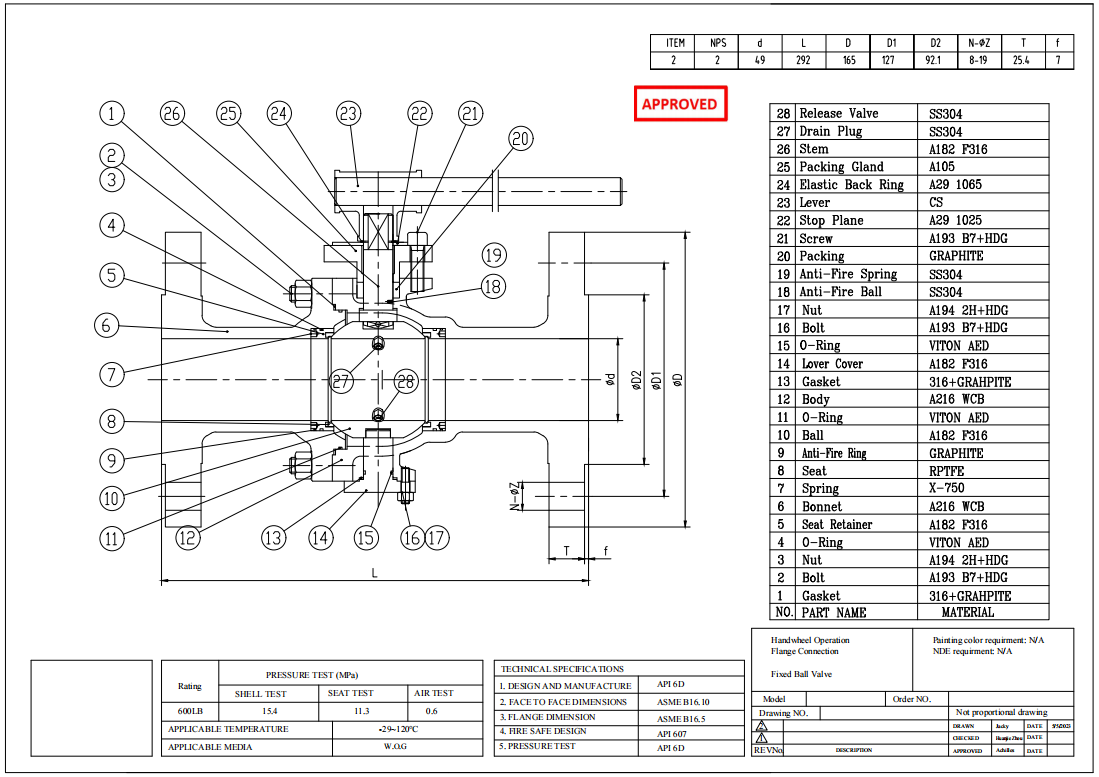

Trunnion Ball Valve Technical Drawing

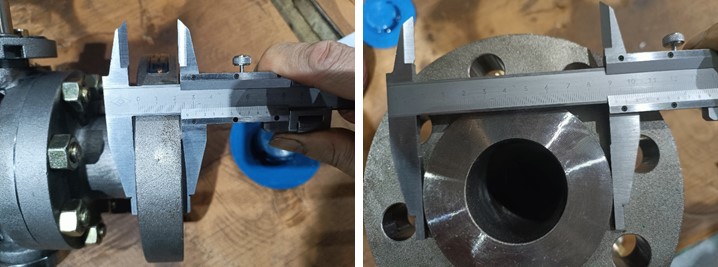

Dimension Checking

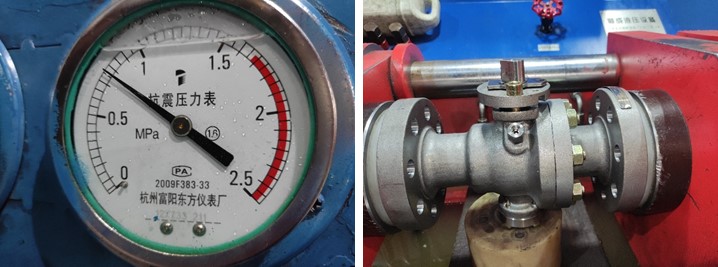

Pressure Testing

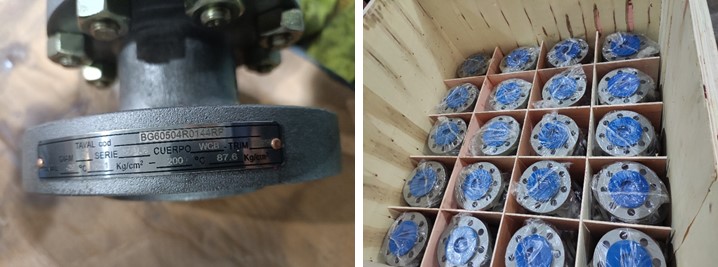

Nameplate & Packing

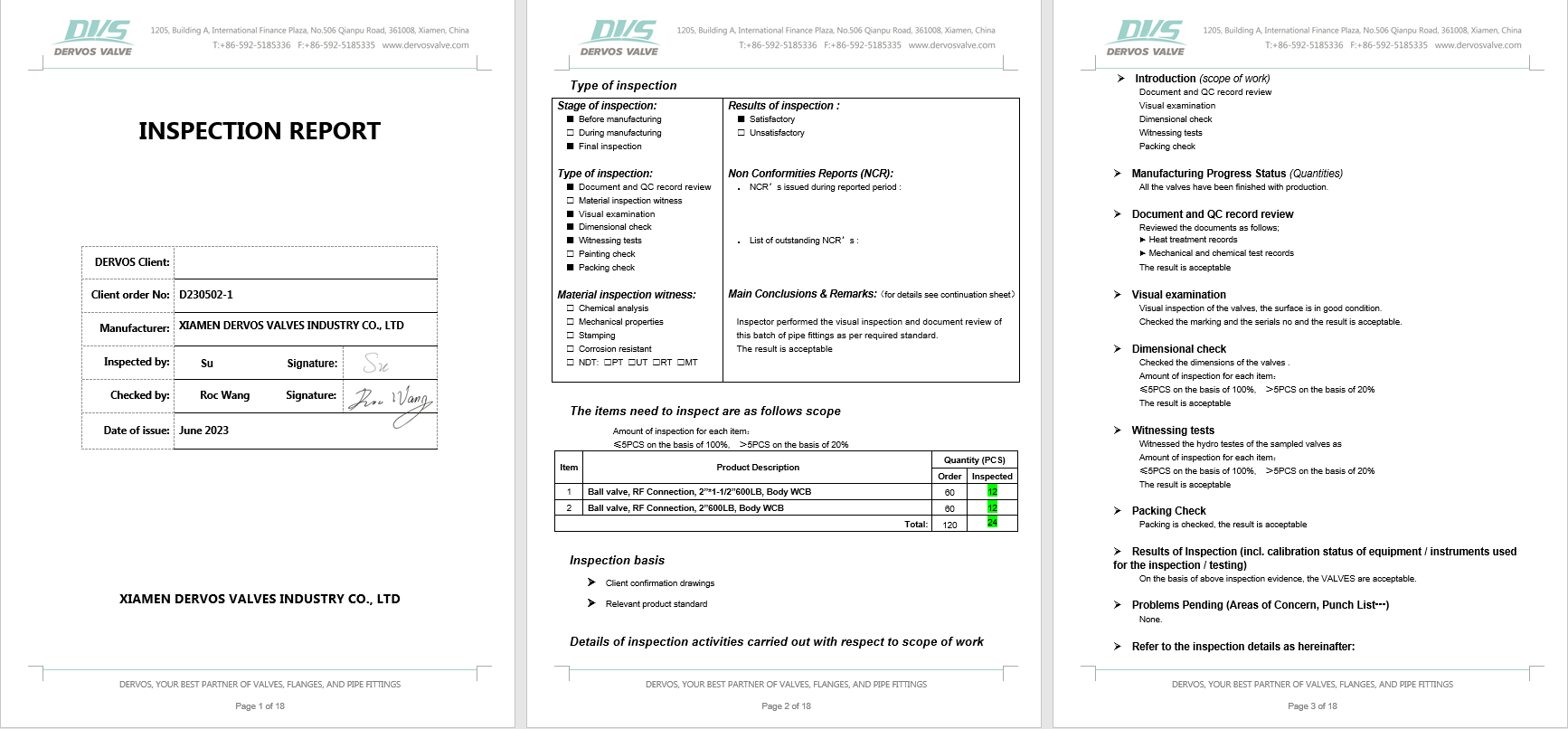

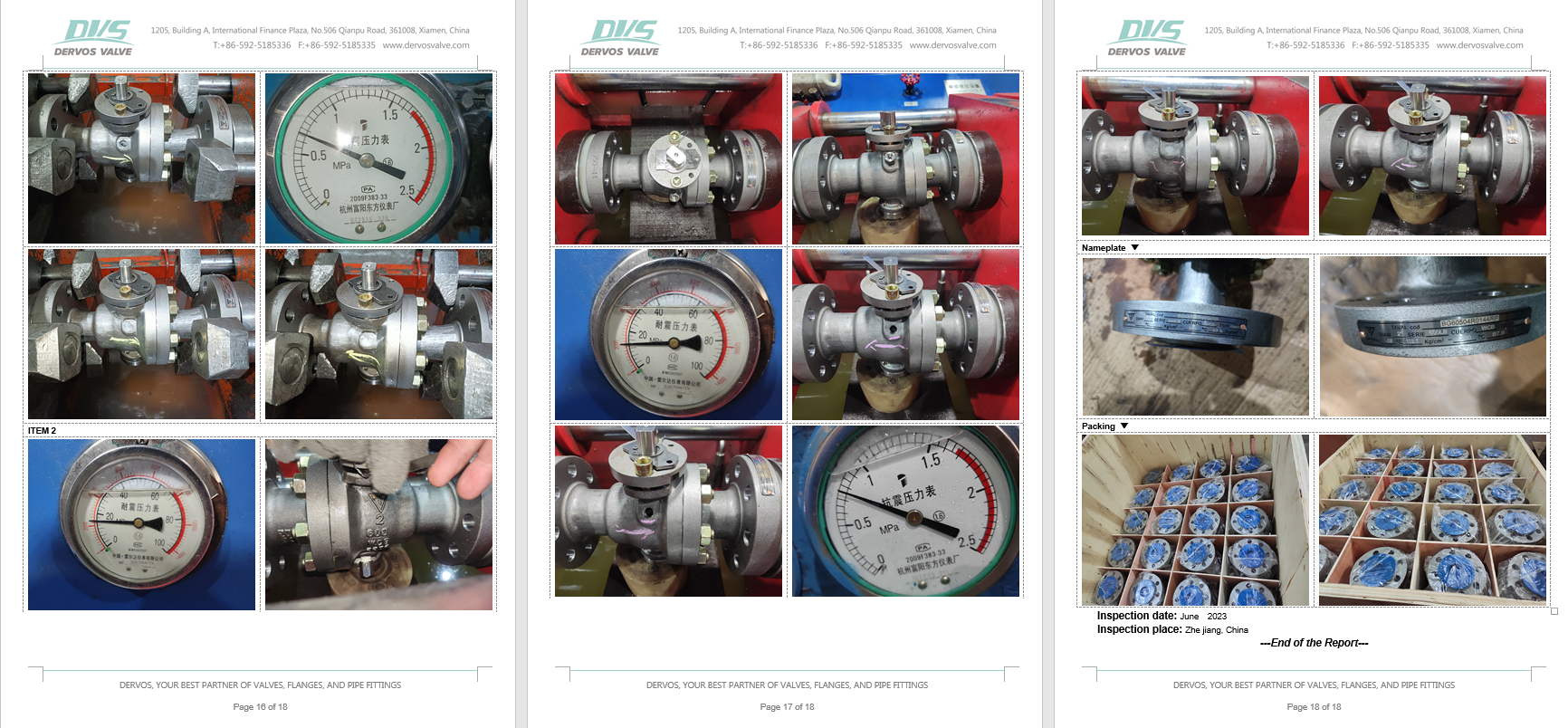

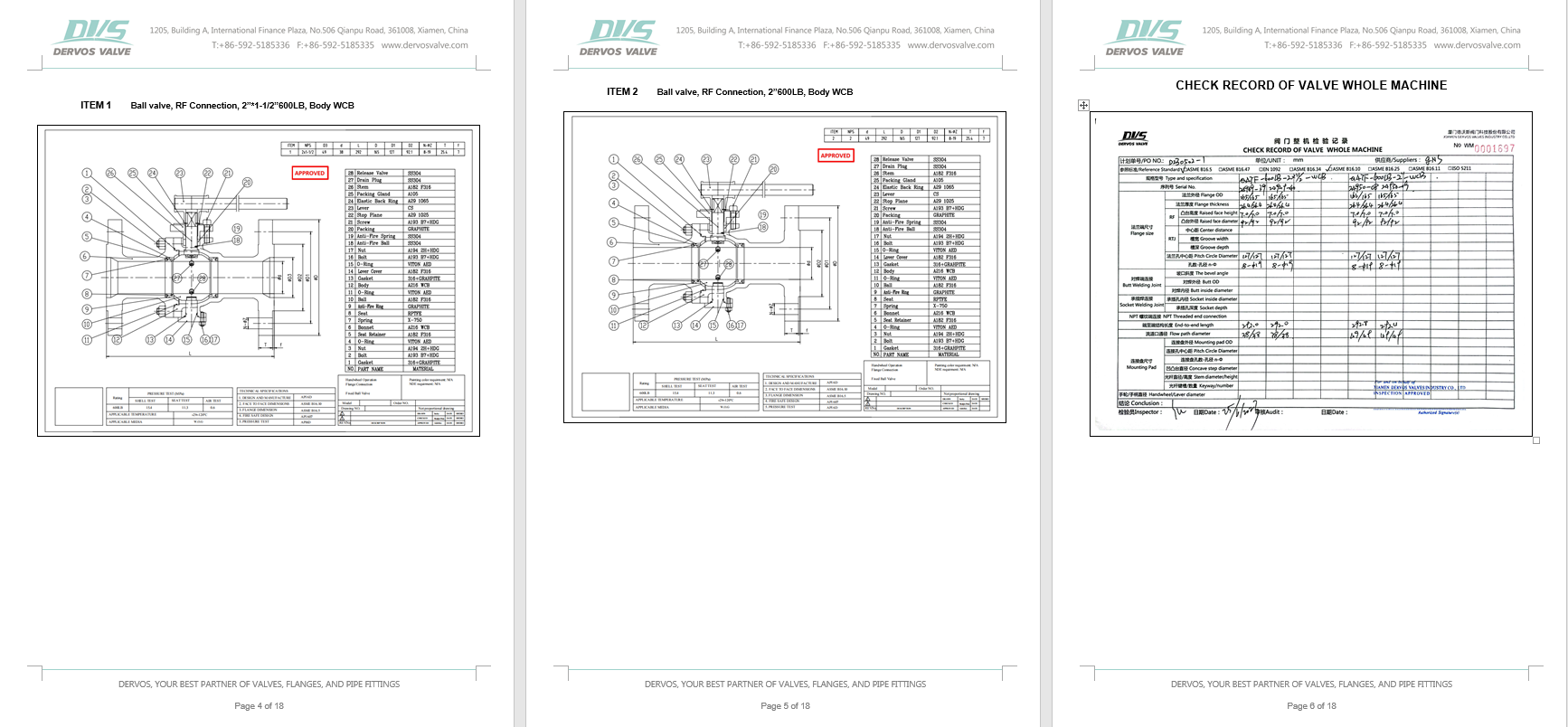

Inspection report
