8" 150LB Cast Steel Trunnion Mounted Ball Valve WCB RF
Key Specifications / Features
Model No.: Hits: 0
8" 150LB Cast Steel Trunnion Mounted Ball Valve is made according to API 6D standard. The valve body is made of A216-WCB. It has the structural characteristics of Reduced Bore, Trunnion Mounted Ball, DBB (Double Block and Bleed) Design, Fire-safe and Anti-static, Blow-out Proof Stem. Its connection mode is RF. And it has turbine operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Trunnion Mounted Ball Valve |
| Size | 8" |
| Pressure | 150LB |
| Connection | RF |
| Operation | Turbine |
| Body Material | A216-WCB |
| Design Norm | API6D |
| Face to Face | ASME B16.10 |
| End connection | ASME B16.5 |
| Fire Safe Design | API 607 |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. WCB cast steel body offers excellent strength and corrosion resistance for high-pressure applications.2. Trunnion-mounted ball design with RF ends ensures stable operation and secure sealing in critical pipeline systems.

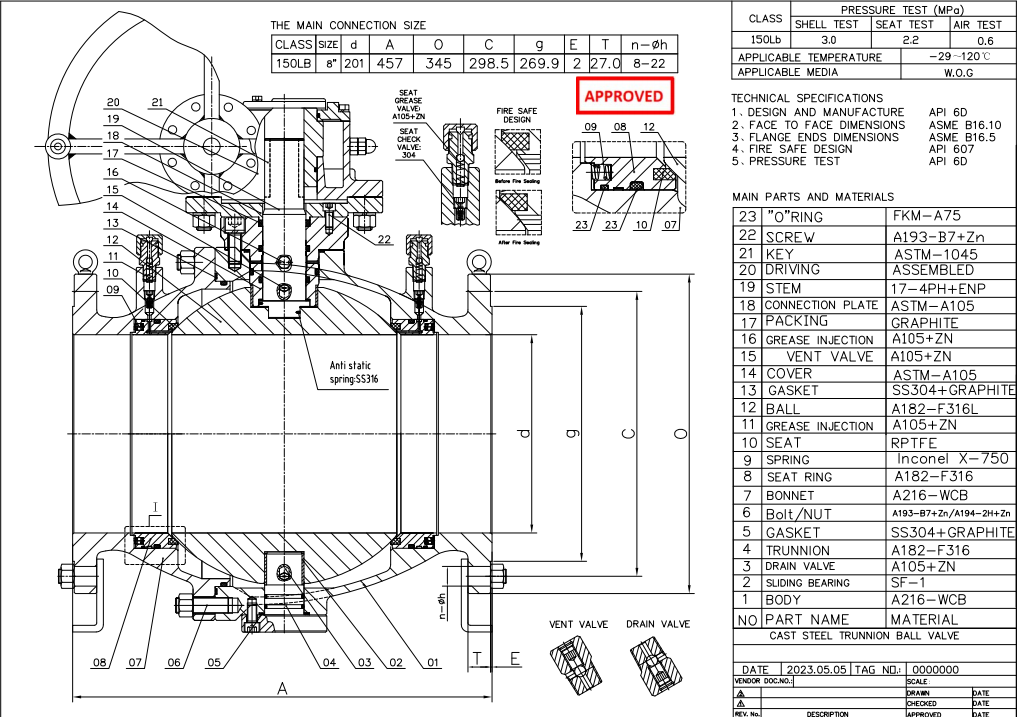

Technical Drawing

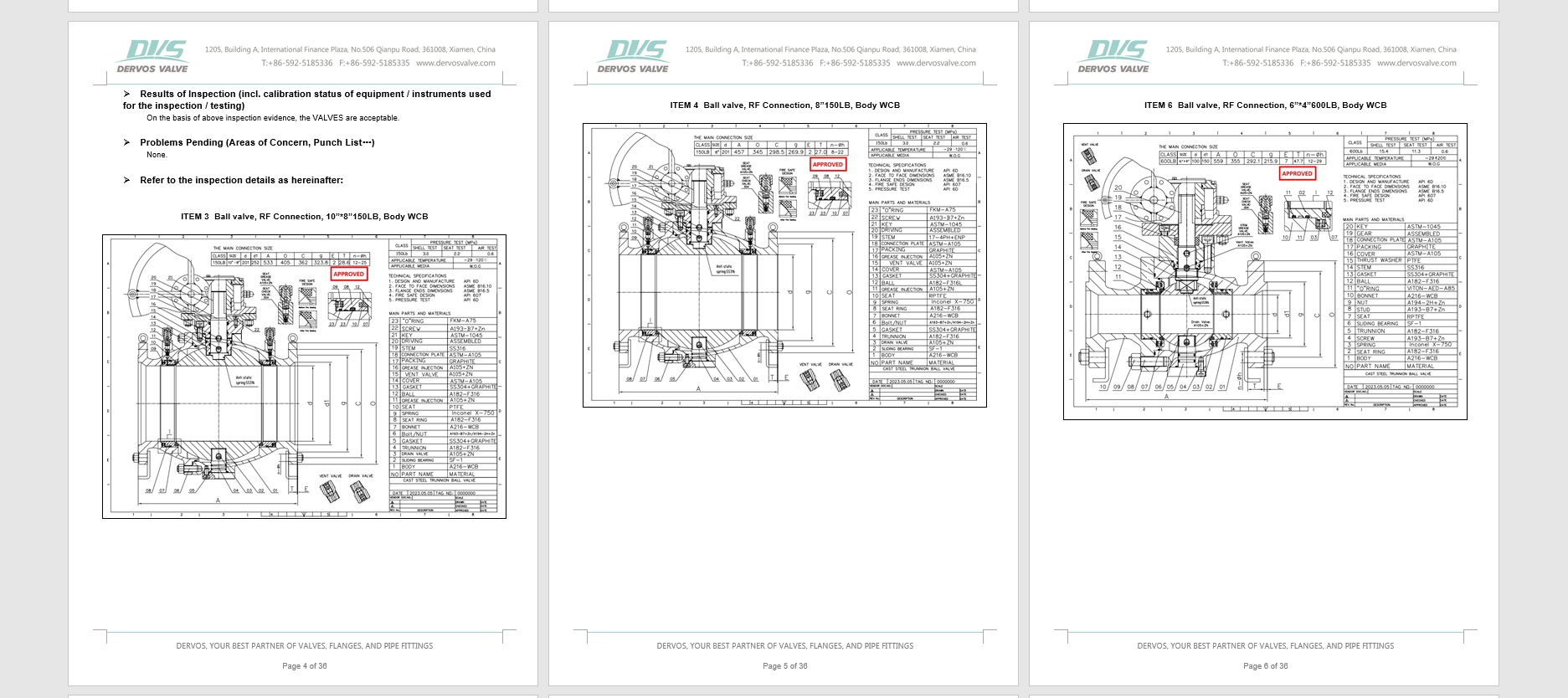

Dimension Checking

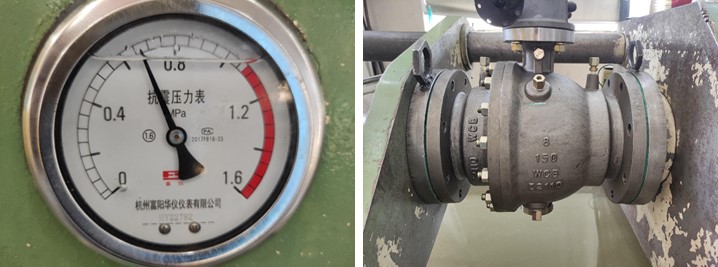

Pressure Testing

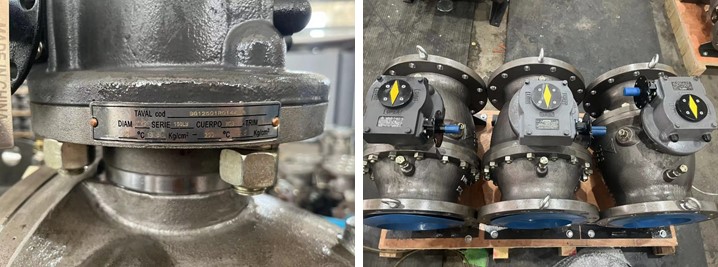

Nameplate & Packing

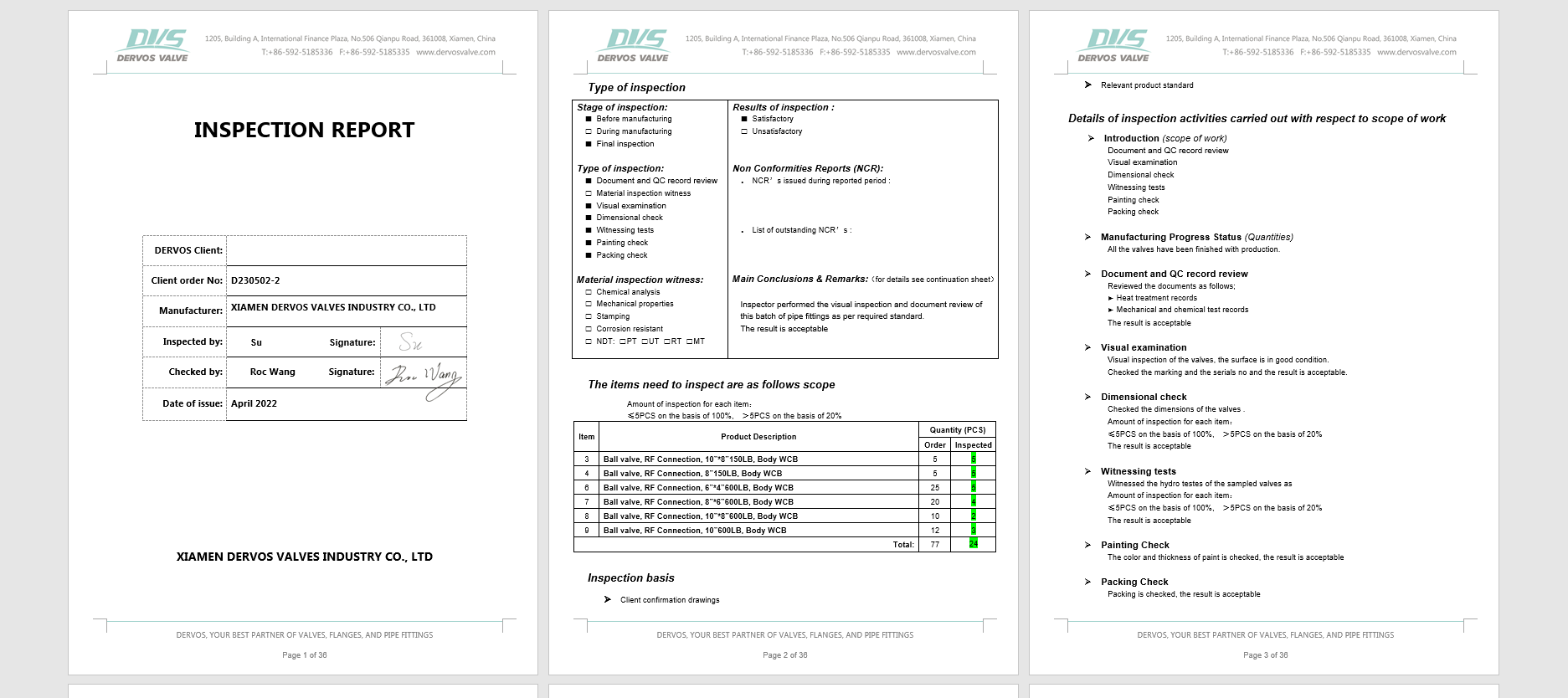

Inspection report
