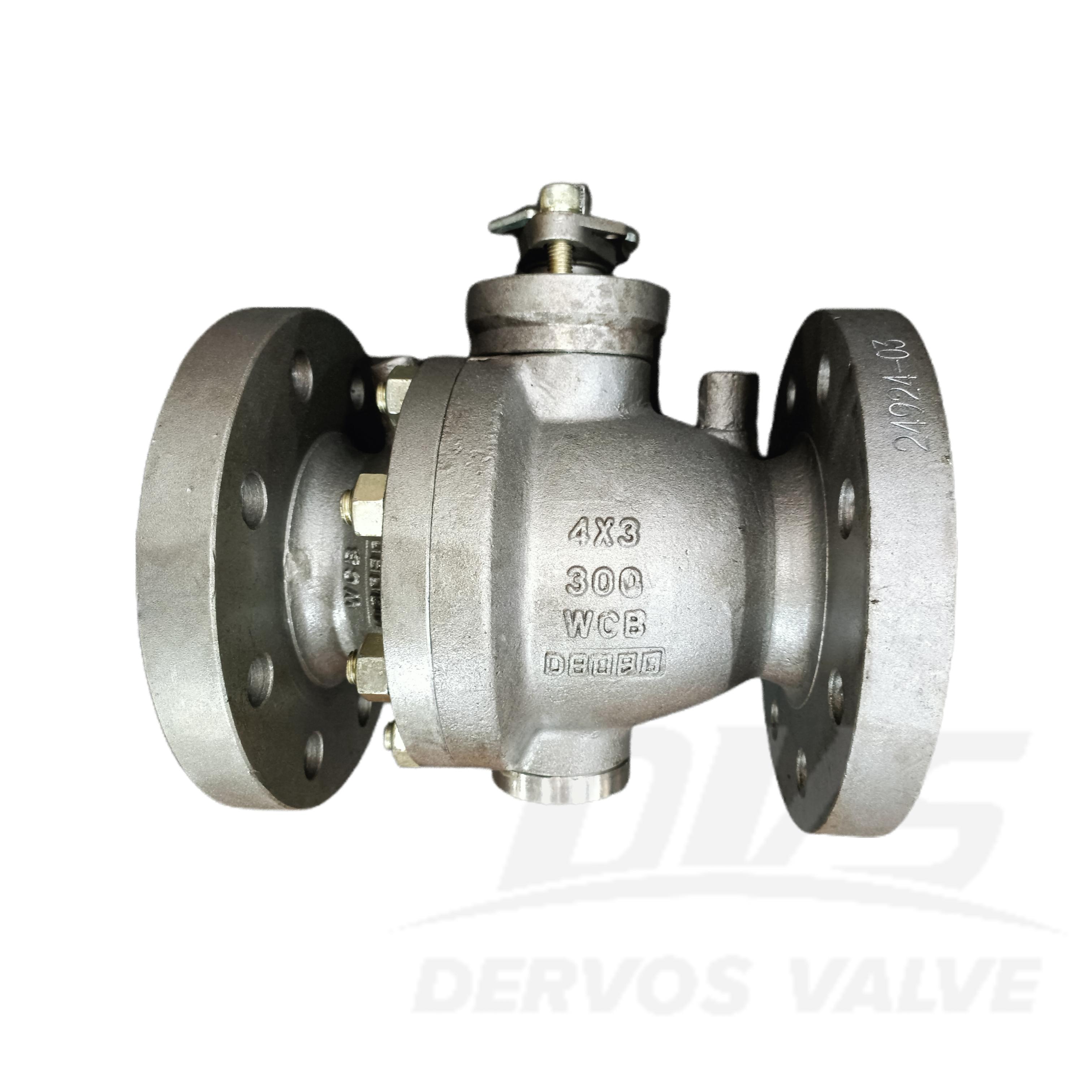

4”x 3” 300LB Cast Steel Trunnion Mounted Ball Valve WCB Turbine RF
Key Specifications / Features
Model No.: Hits: 0
4”x 3” 300LB Cast Steel Ball Valve is made according to API 6D standard. The valve body is made of A216-WCB. It has the structural characteristics of Reduced Bore, Trunnion Mounted Ball, DBB (Double Block and Bleed) Design, Fire-safe and Anti-static, Blow-out Proof Stem. Its connection mode is RF. And it has turbine operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Cast Steel Ball Valve |
| Size | 4" X3” |
| Pressure | 300LB |
| Connection | RF |
| Operation | Turbine |
| Body Material | A216-WCB |
| Design Norm | API 6D |
| Face to Face | ANSI B16.10 |
| Flange Ends | ANSI B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Steam |
Features
1. Trunnion-mounted ball design ensures reliable sealing and reduced operating torque for high-pressure service.2. WCB cast steel body with RF ends provides strength, durability, and secure turbine gear operation.

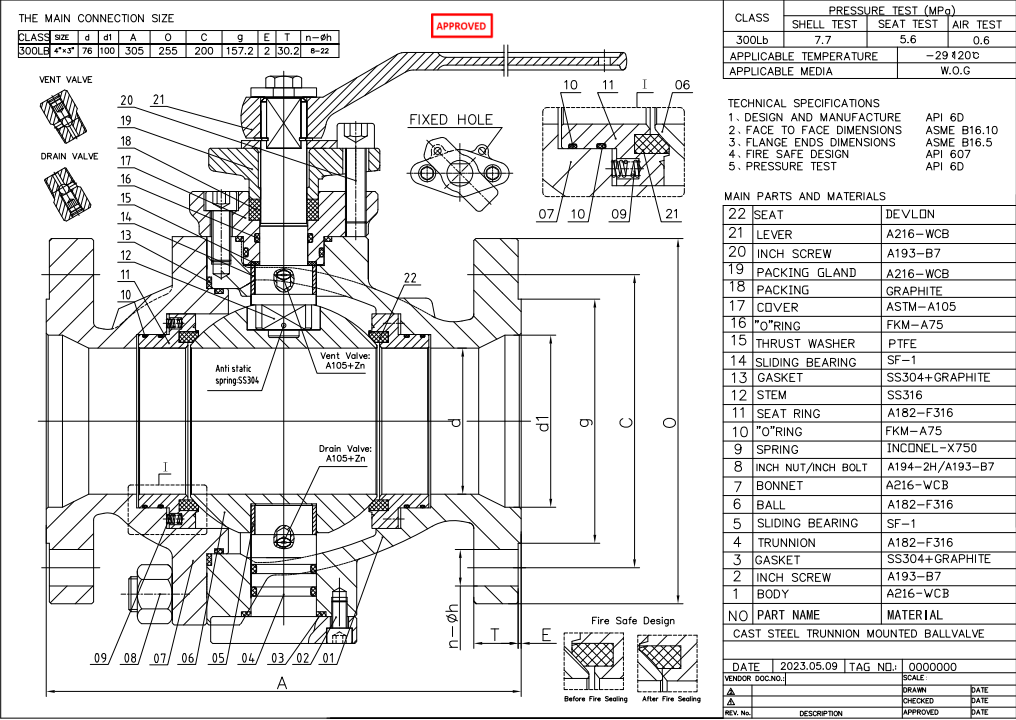

Technical Drawing

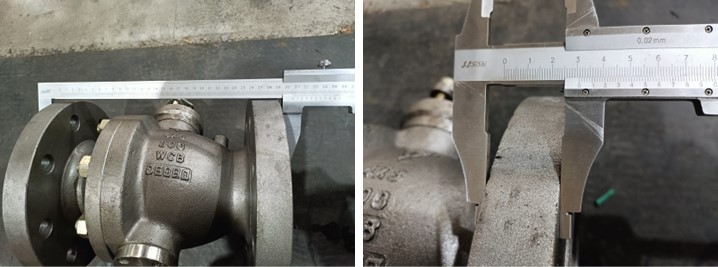

Dimension Checking

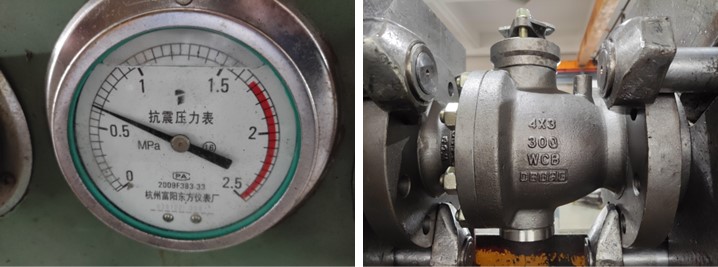

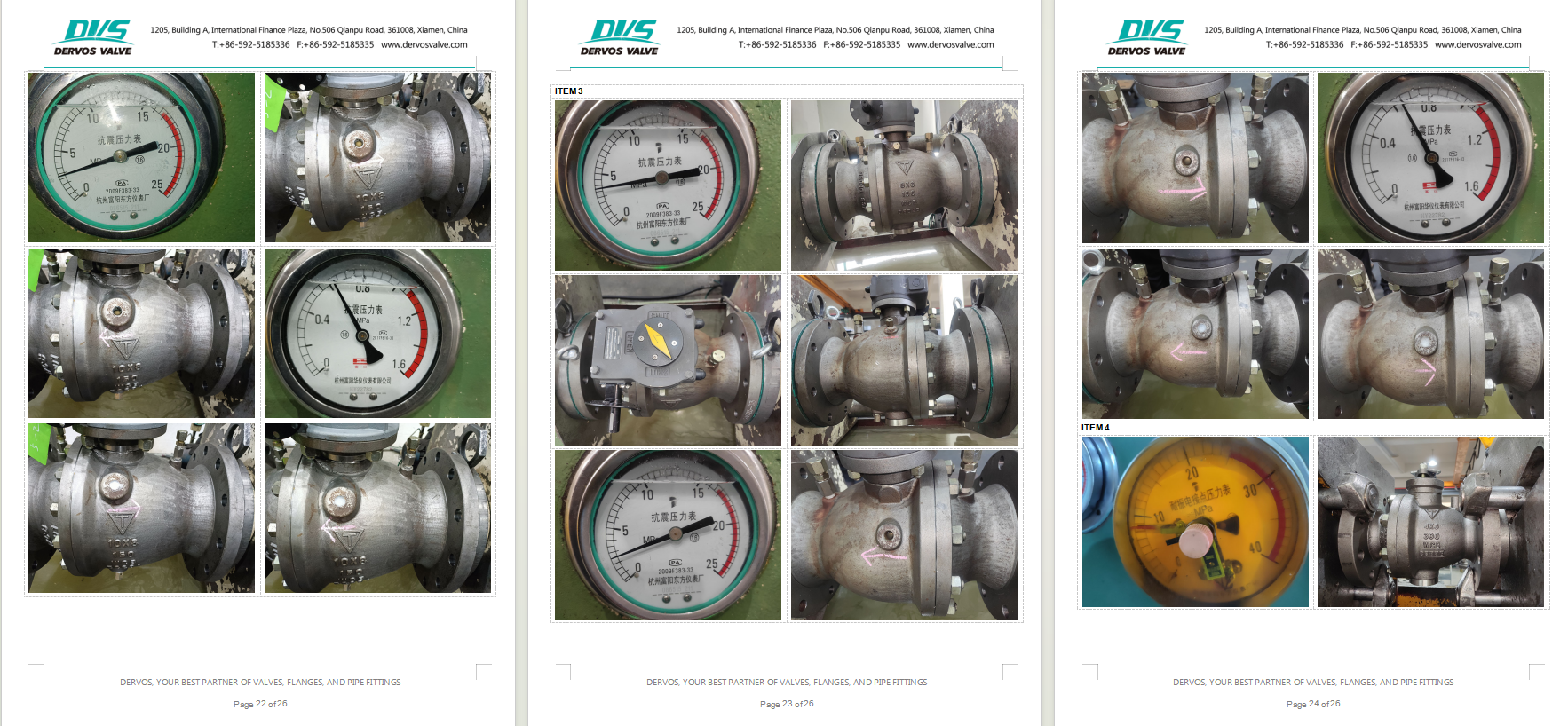

Pressure Testing

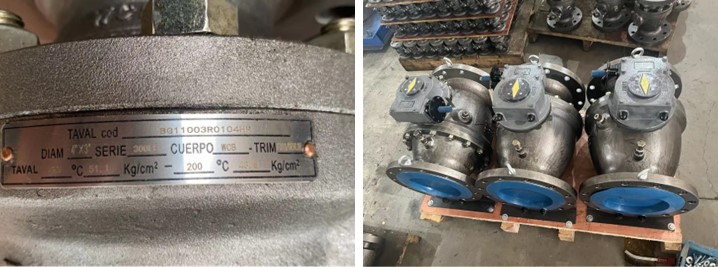

Nameplate & Packing

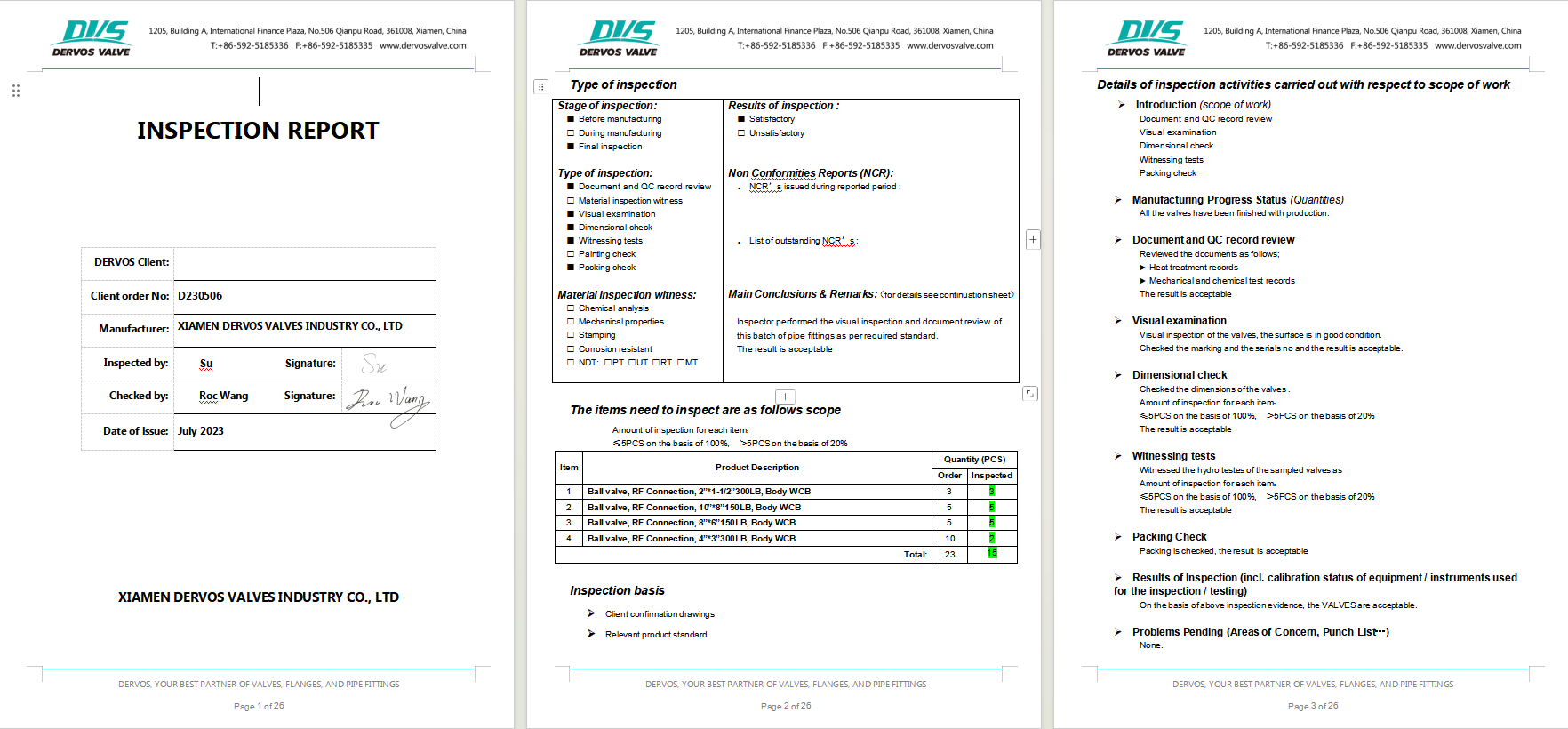

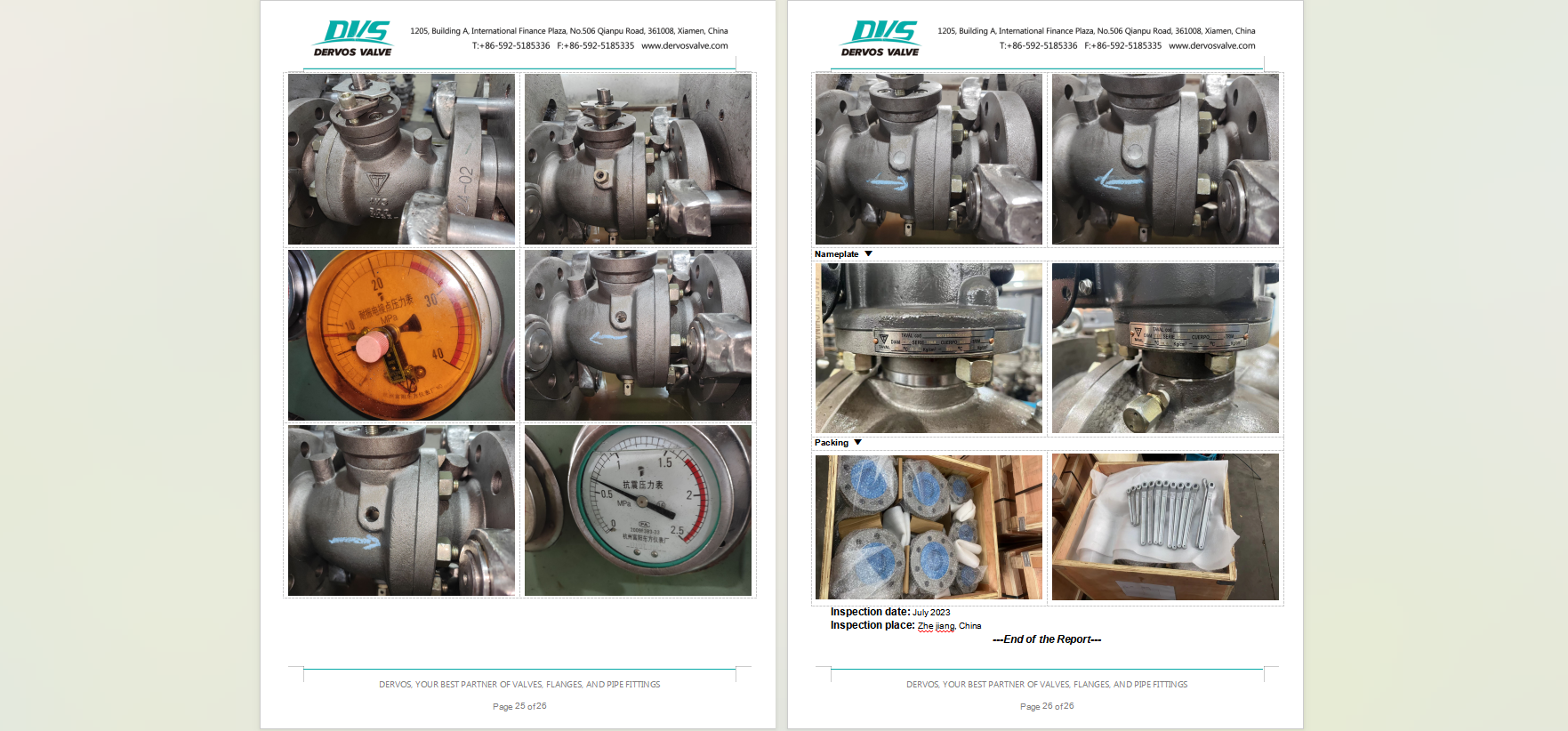

Inspection report
