4”X 3” 150LB Trunnion Ball Valve A351-CF8M API6D RF
Key Specifications / Features
Model No.: Hits: 0
4”X 3” 150LB Trunnion Mounted Ball Valve, Trunnion Mounted Ball Valve, API6D Trunnion Mounted Ball Valve, RF Trunnion Mounted Ball Valve, Trunnion Mounted Ball Valve Manufacturer, CE Certification Trunnion Mounted Ball Valve.
Request a quote
Tags:
Detail Information
Product Description
| Type | Trunnion Mounted Ball Valve |
| Size | 4” X 3” |
| Pressure | 150LB |
| Connection | RF |
| Body Material | A351-CF8M |
| Design Norm | API 6D |
| Face to Face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Made from A351-CF8M stainless steel, providing excellent corrosion resistance and durability.2. Trunnion-mounted ball design with API 6D compliance and RF ends ensures smooth operation and reliable sealing under 150LB pressure.

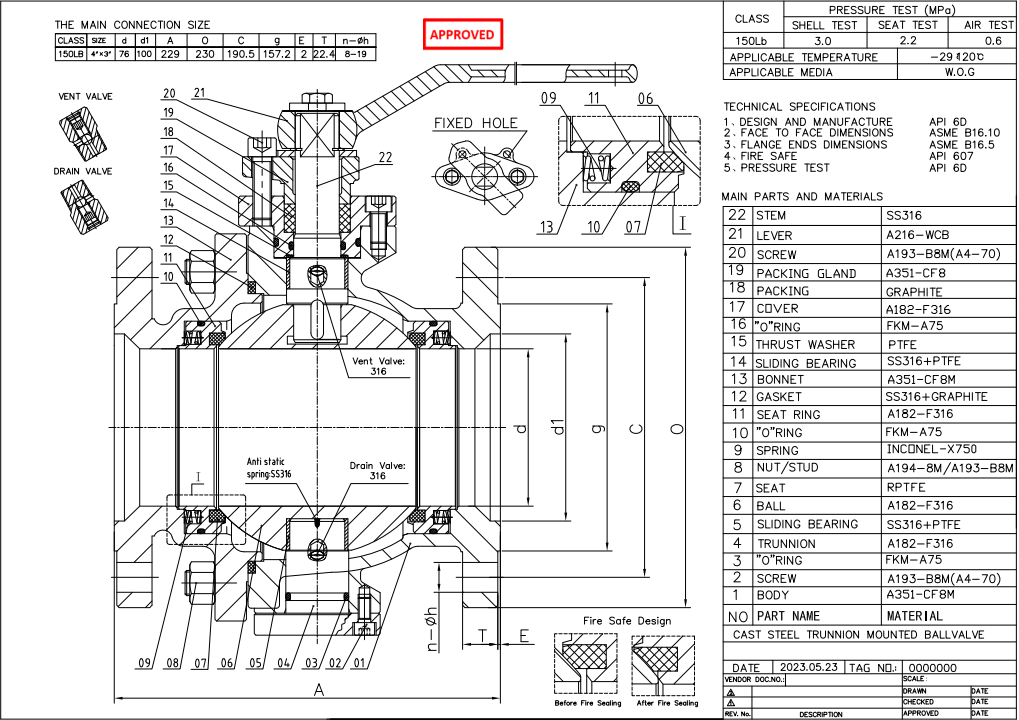

Technical Drawing

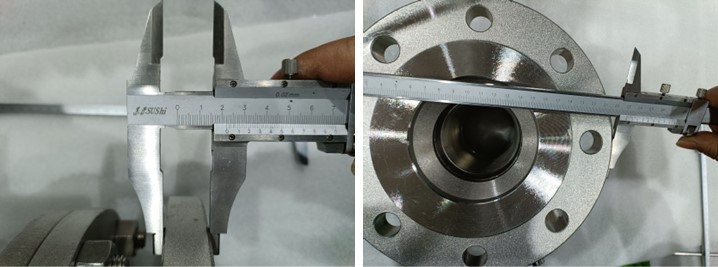

Dimension Checking

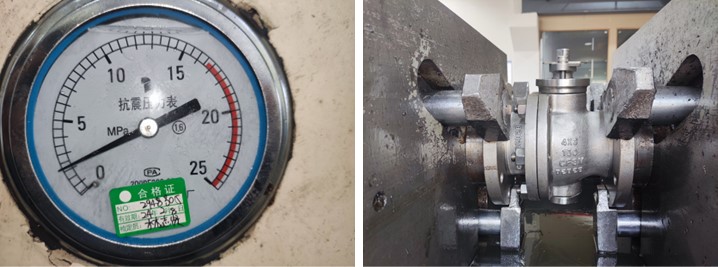

Pressure Testing
Spectrum
