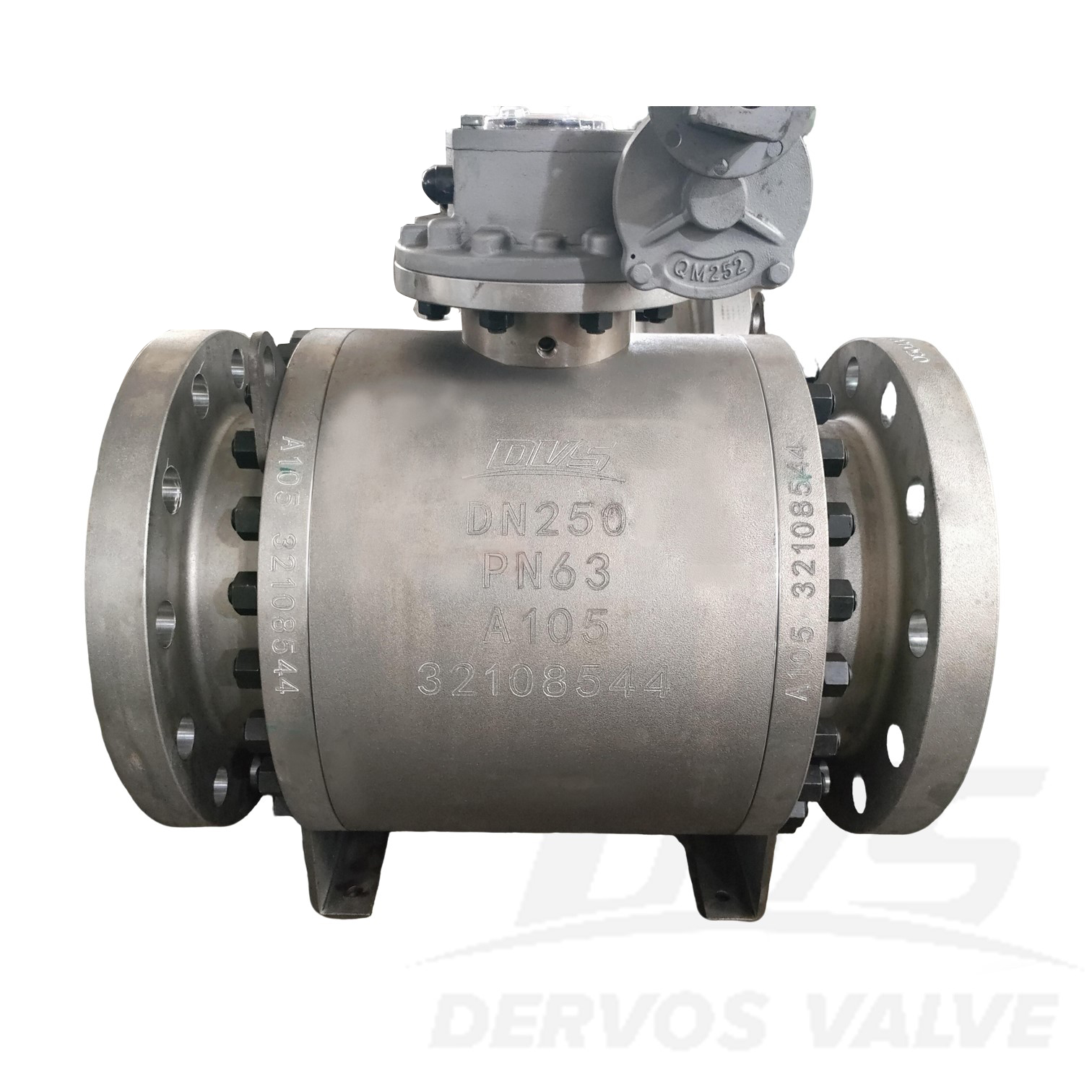

DN250 PN63 Trunnion Ball Valve ASTM A105 API 6D
Key Specifications / Features
Model No.: Hits: 0
DN250 PN63 Trunnion Ball Valve is made according to API 6D standard. The valve body is made of ASTM A105. It has the structural characteristics of Full Bore, Trunnion Mounted Ball, Fire-safe and Anti-static, Blow-out Proof Stem. Its connection mode is EN1092-1 D. And it has Turbine operation mode.
Request a quote
Tags:
Next: Return to List
Previous: 4”X 3” 150LB Trunnion Ball Valve A351-CF8M API6D RF
Detail Information
Product Description
| Type | Trunnion Ball Valve |
| Size | DN250 |
| Pressure | PN63 |
| Connection | EN1092-1 D |
| Operation | Turbine |
| Body Material | ASTM A105 |
| Design Norm | API 6D |
| Face to Face | API 6D |
| Flange | EN1092-1 D |
| Pressure-temperature | EN 1092 |
| Test & Inspection Code | API 6D |
| Temperature | -20 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. ASTM A105 forged carbon steel body, designed for high-pressure PN63 service with excellent strength and reliability.2. Trunnion-mounted design per API 6D, offering stable sealing performance and reduced operating torque.

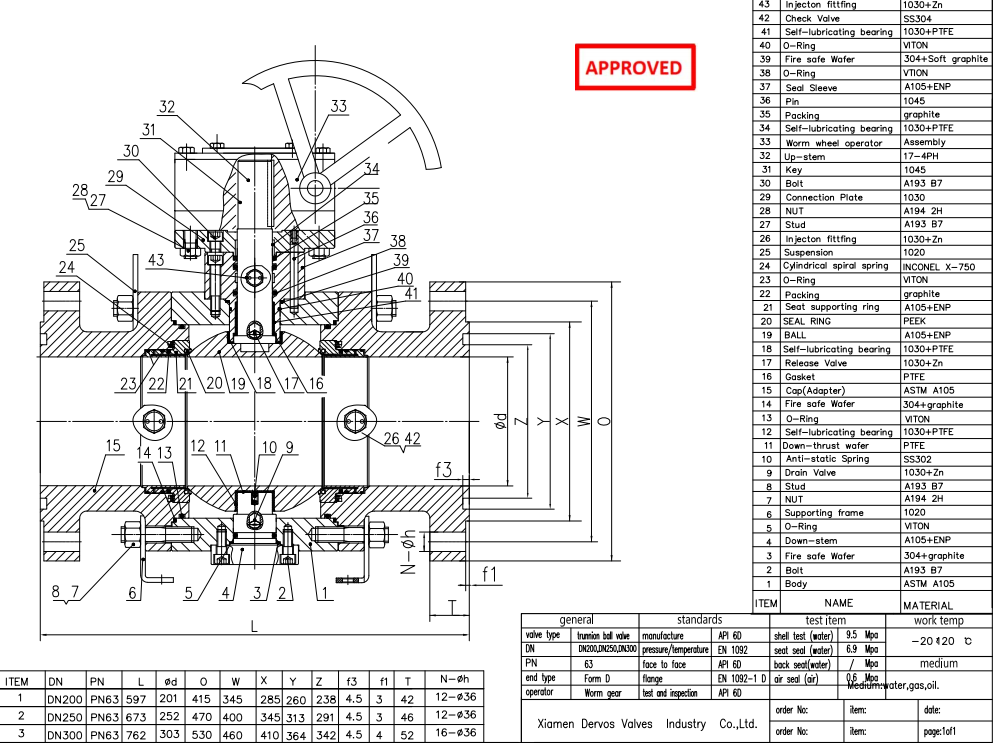

Technical Drawing

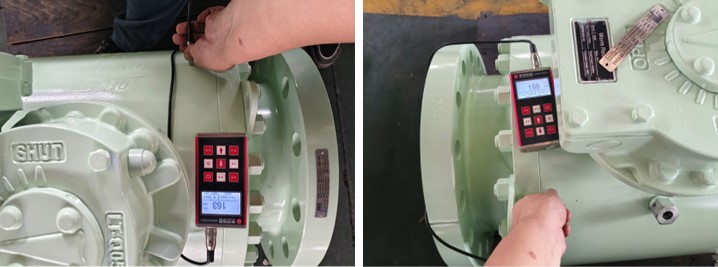

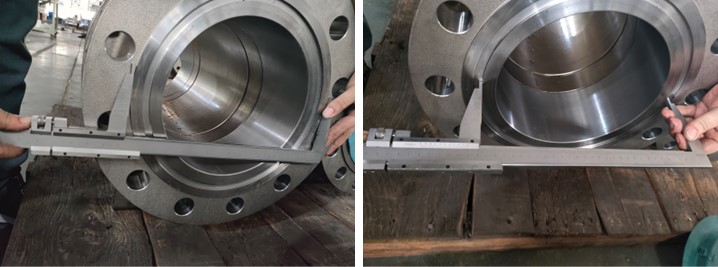

Dimension Checking

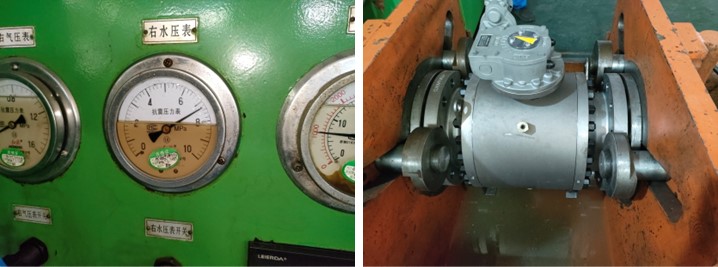

Pressure Testing
Painting

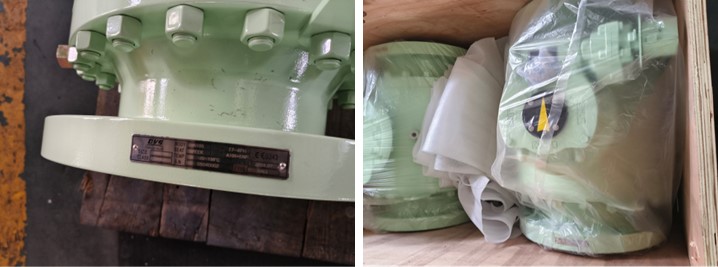

Nameplate & Packing

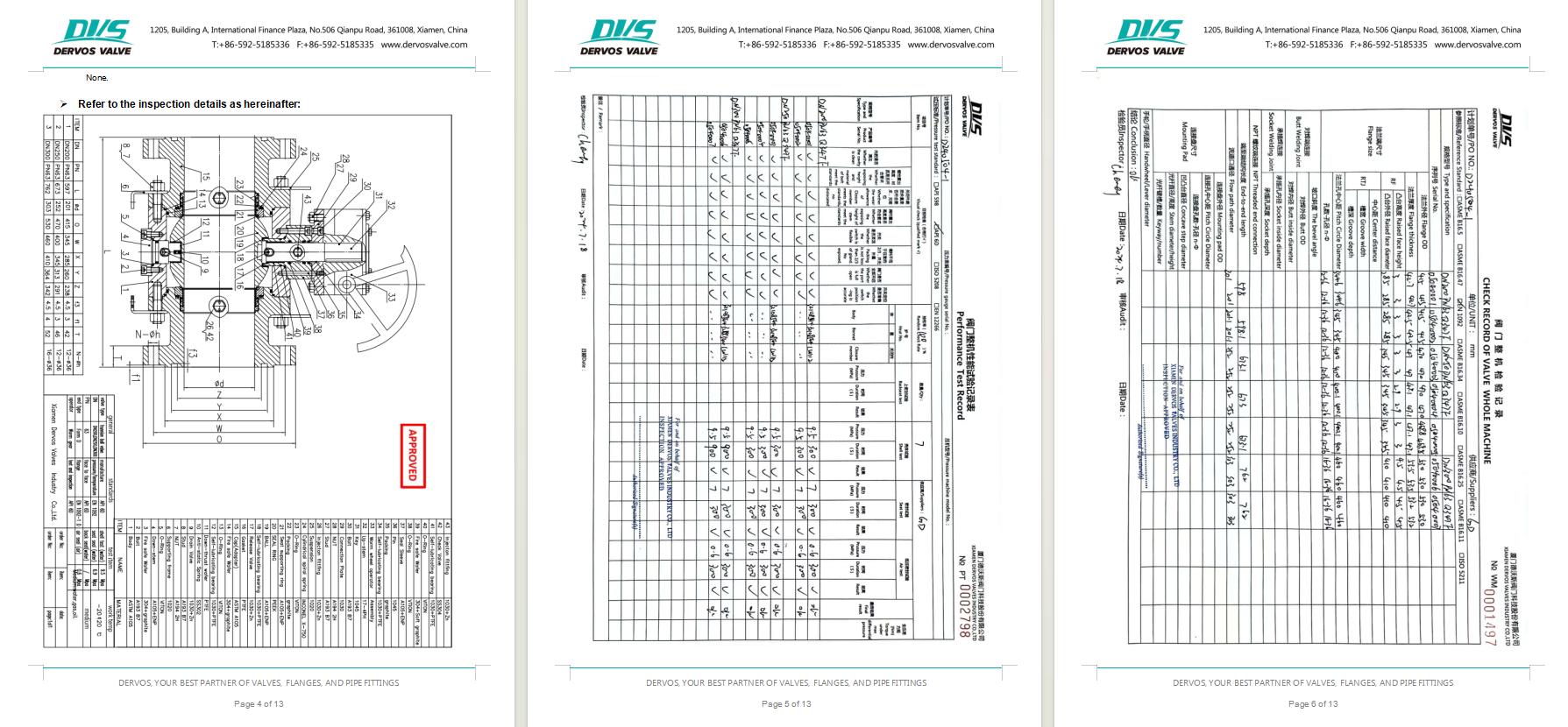

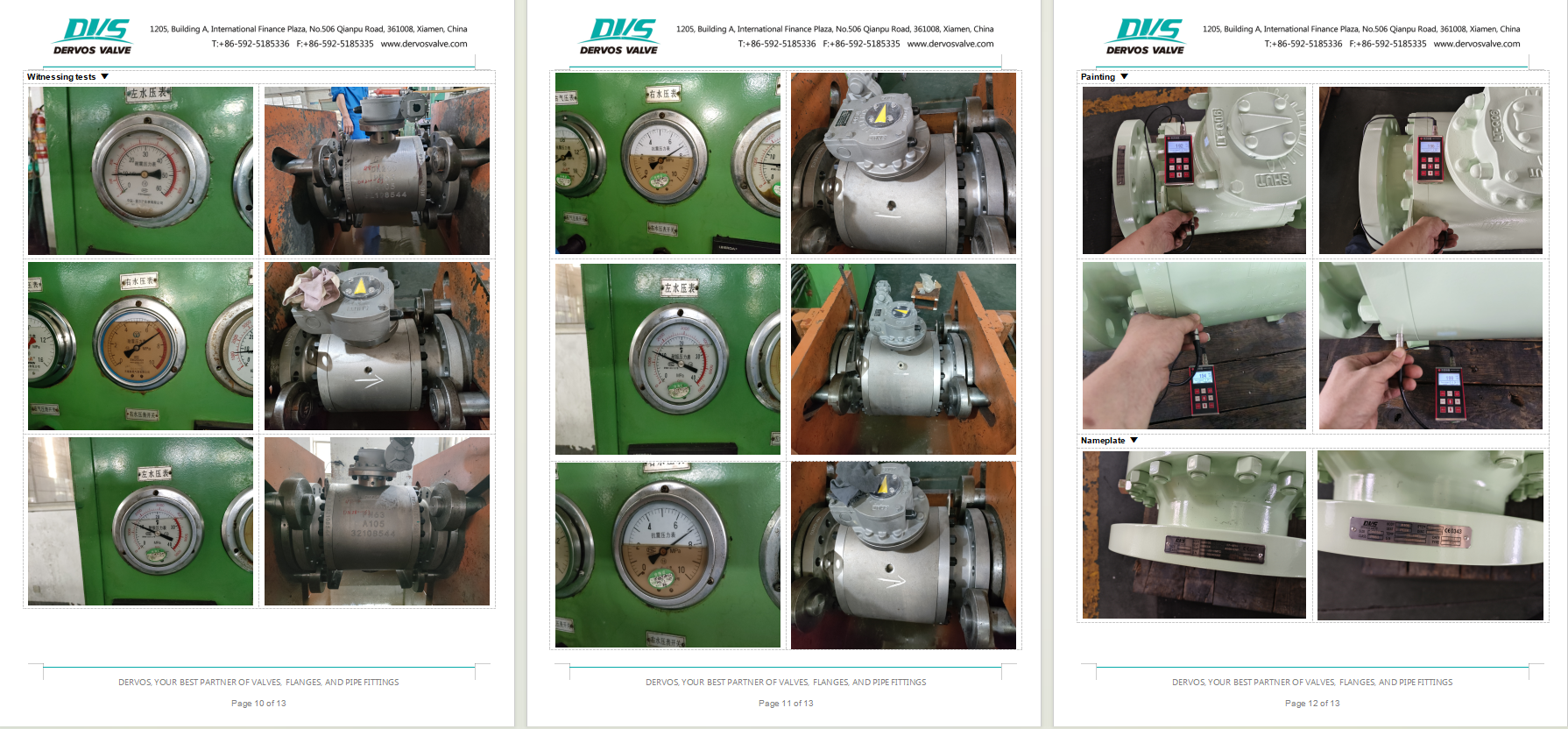

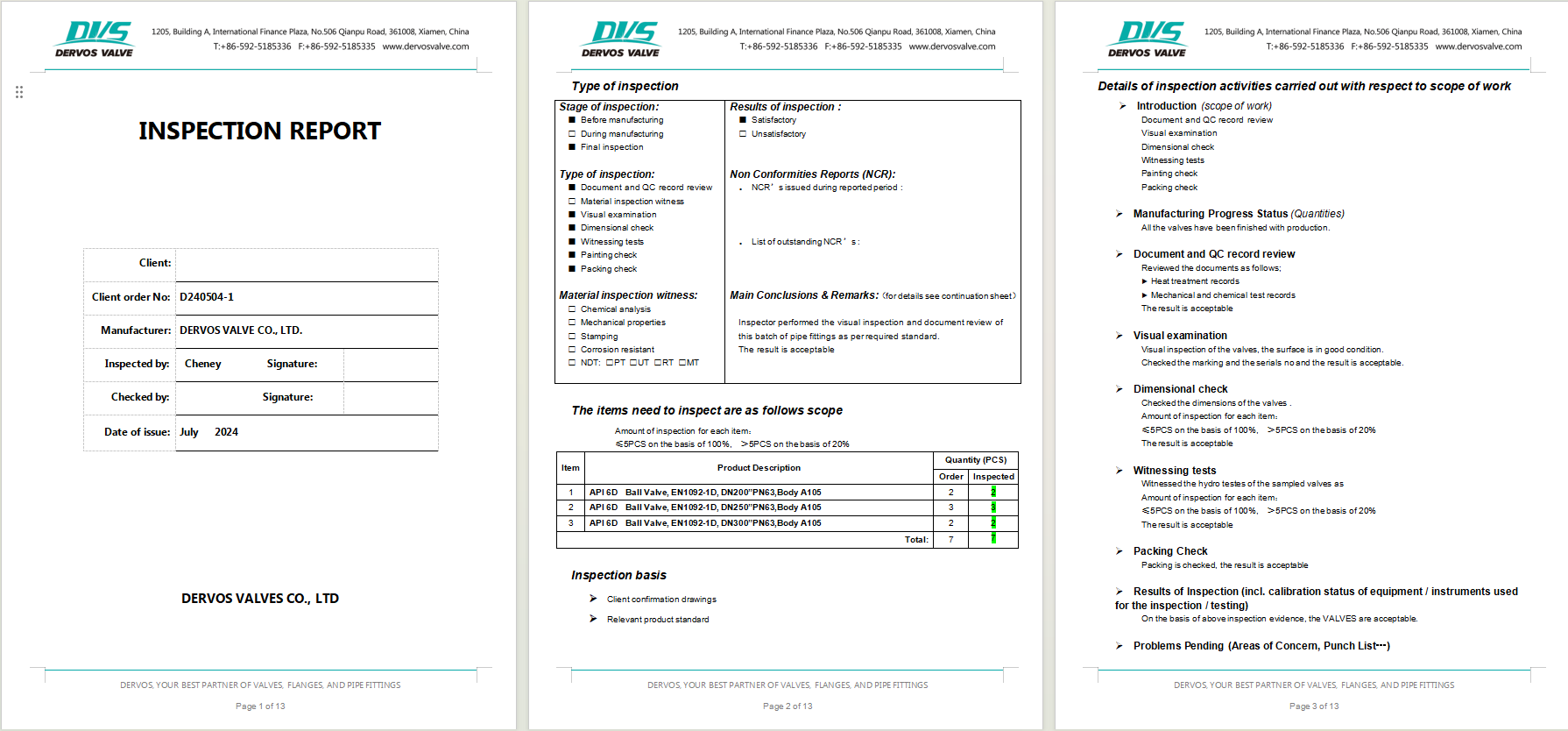

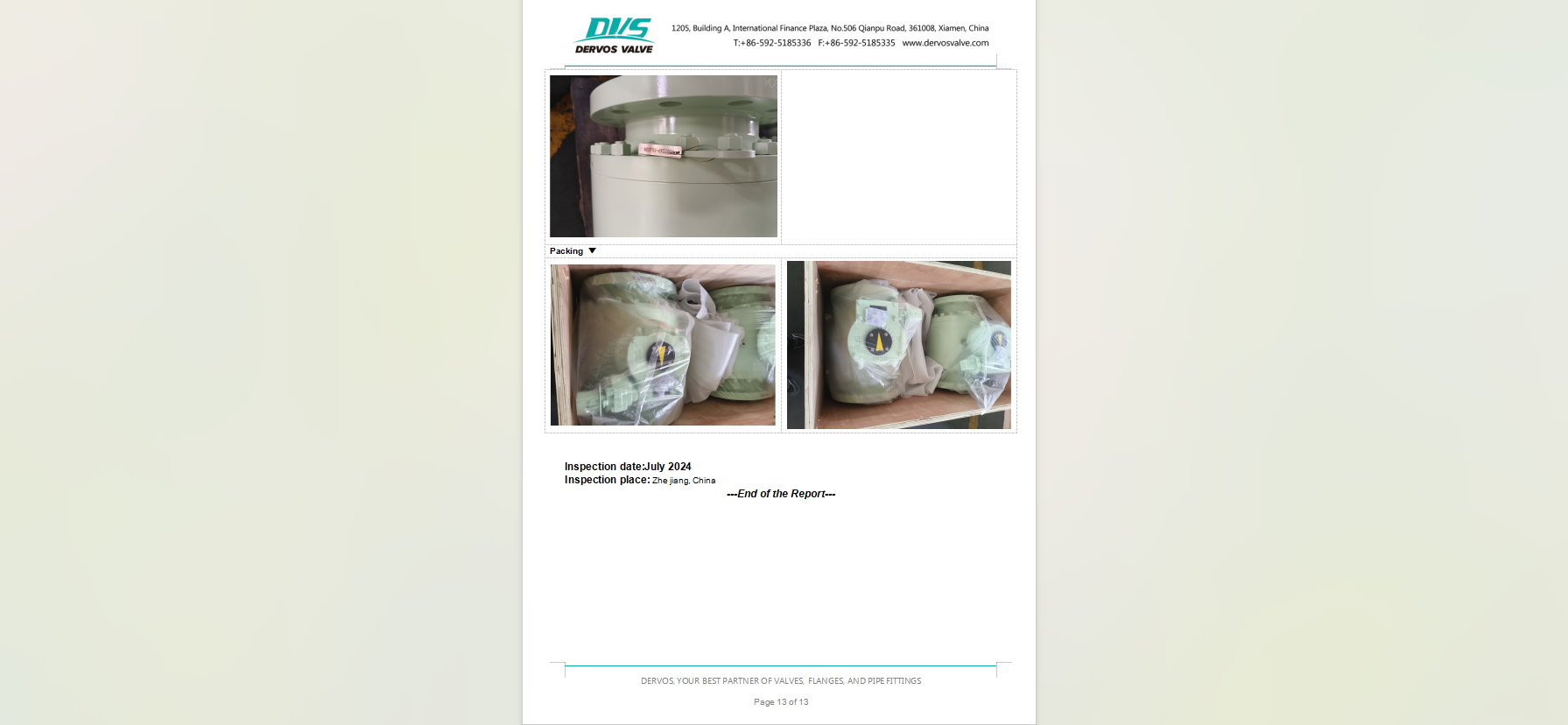

Inspection Report
