Body CF8M, 8" 900LB Stainless Steel Gate Valve, RF, API600, Handwheel

Body CF8M, 8" 900LB Stainless Steel Gate Valve, RF, API600, Handwheel

Key Specifications / Features

Model No.: Hits: 0

8" 900LB Stainless Steel gate valve is made according to API 600 standard. The valve body is made of A351 CF8M. It has the structural characteristics of Plug cover, elastic gate, rising stem, bracket, with bypass valve and exhaust valve. Its connection mode is RF. And it has Hand wheel operation mode.
Request a quote

Detail Information

Product Description

Type Stainless Steel Gate Valve
Size 8"
Pressure 900LB
Connection RF
Operation Hand wheel
Body Material A351 CF8M
Design Norm API 600
Test & Inspection Code API 598
End Connection ASME B16.5 RF
Face-to-Face Dimension ASME B16.10
Temperature -29 ~ 425°C
Applicable Medium Water, Oil and Gas

Features

1. Using metal or soft seals, with low leakage rate and good sealing performance, suitable for high demand working conditions;
2. Direct flow channel, low flow resistance, reduces energy loss.

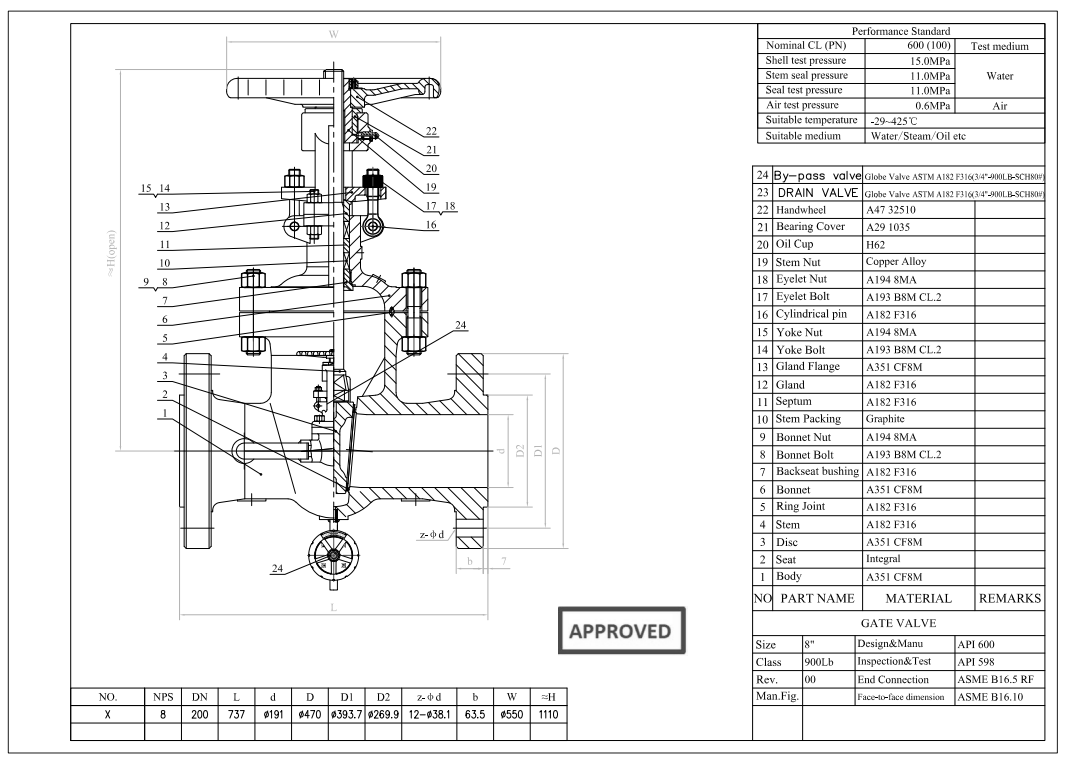

Technical Drawing

Body CF8M, 8" 900LB Stainless Steel Gate Valve, RF, API600, Handwheel

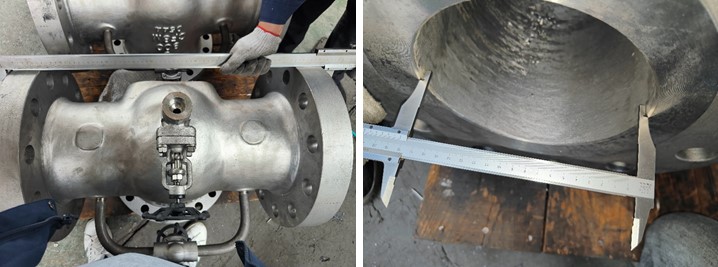

Dimension Checking

Body CF8M, 8" 900LB Stainless Steel Gate Valve, RF, API600, Handwheel

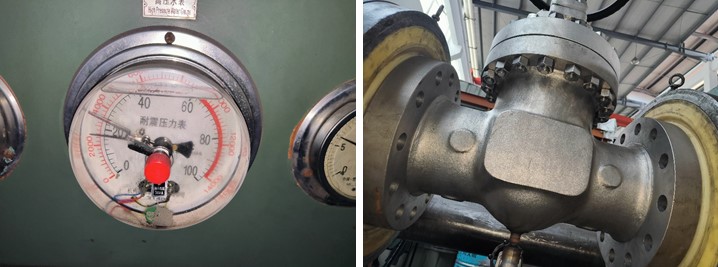

Pressure Testing

Body CF8M, 8" 900LB Stainless Steel Gate Valve, RF, API600, Handwheel

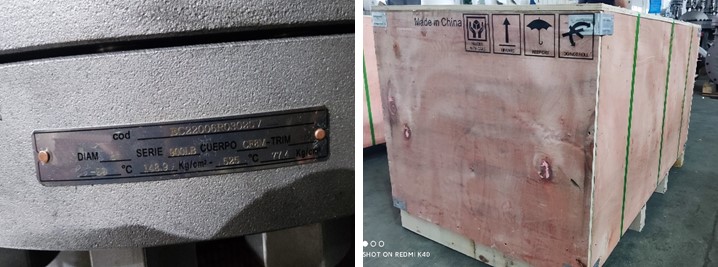

Nameplate & Packing

Body CF8M, 8" 900LB Stainless Steel Gate Valve, RF, API600, Handwheel

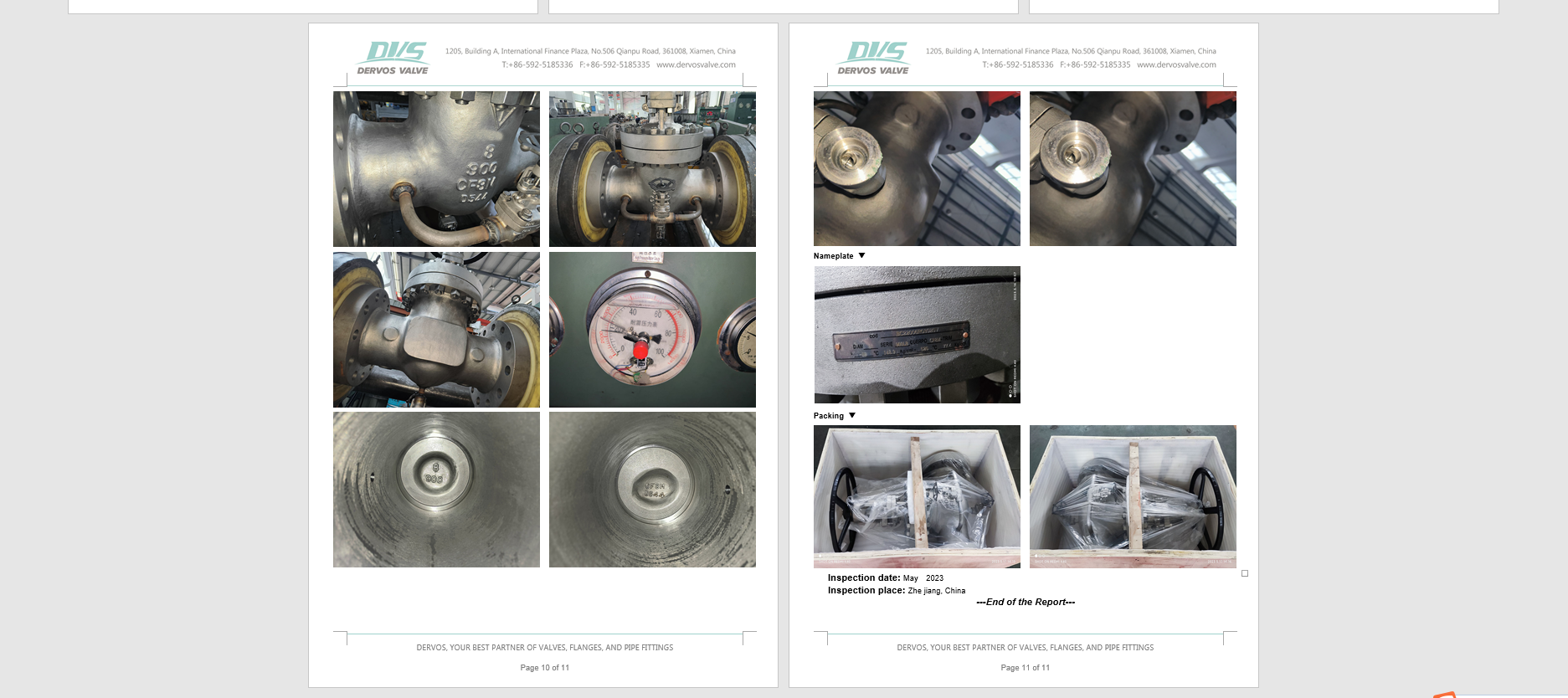

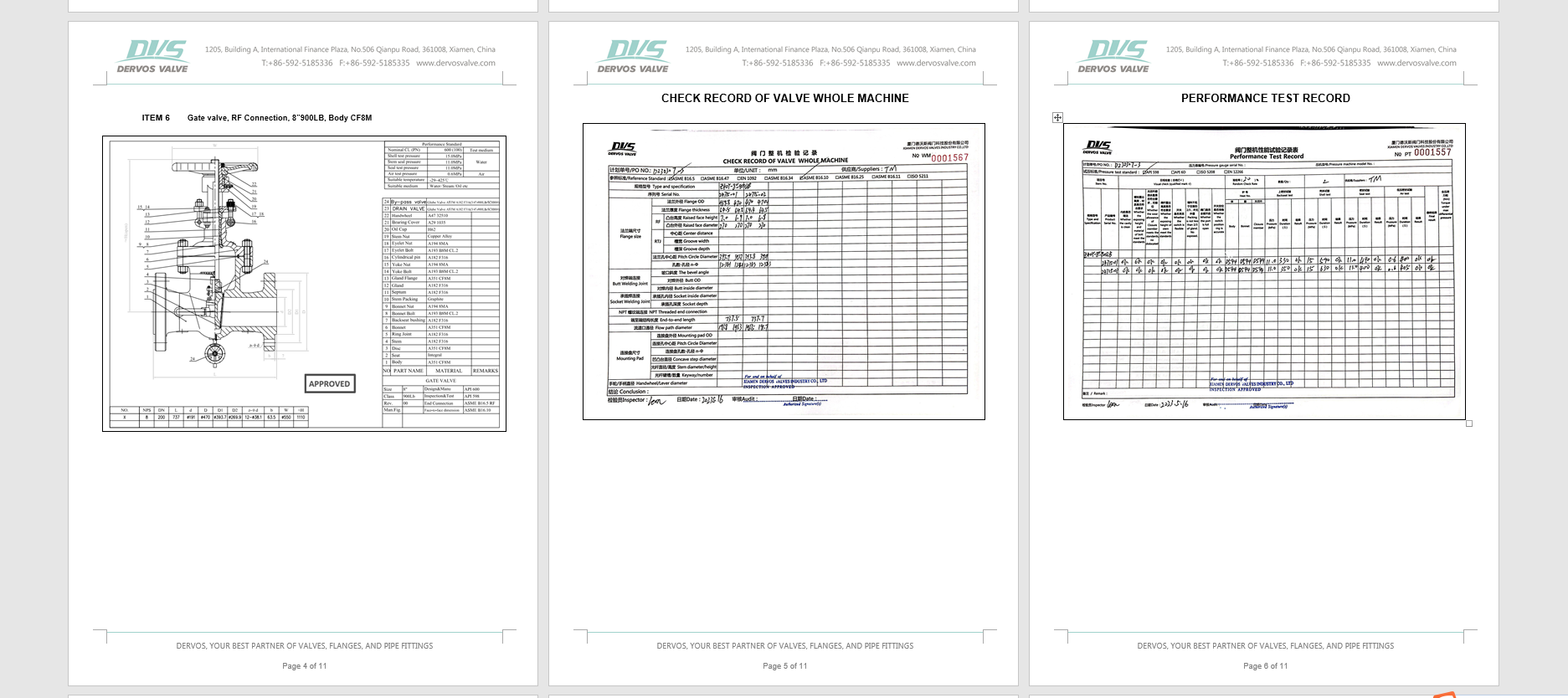

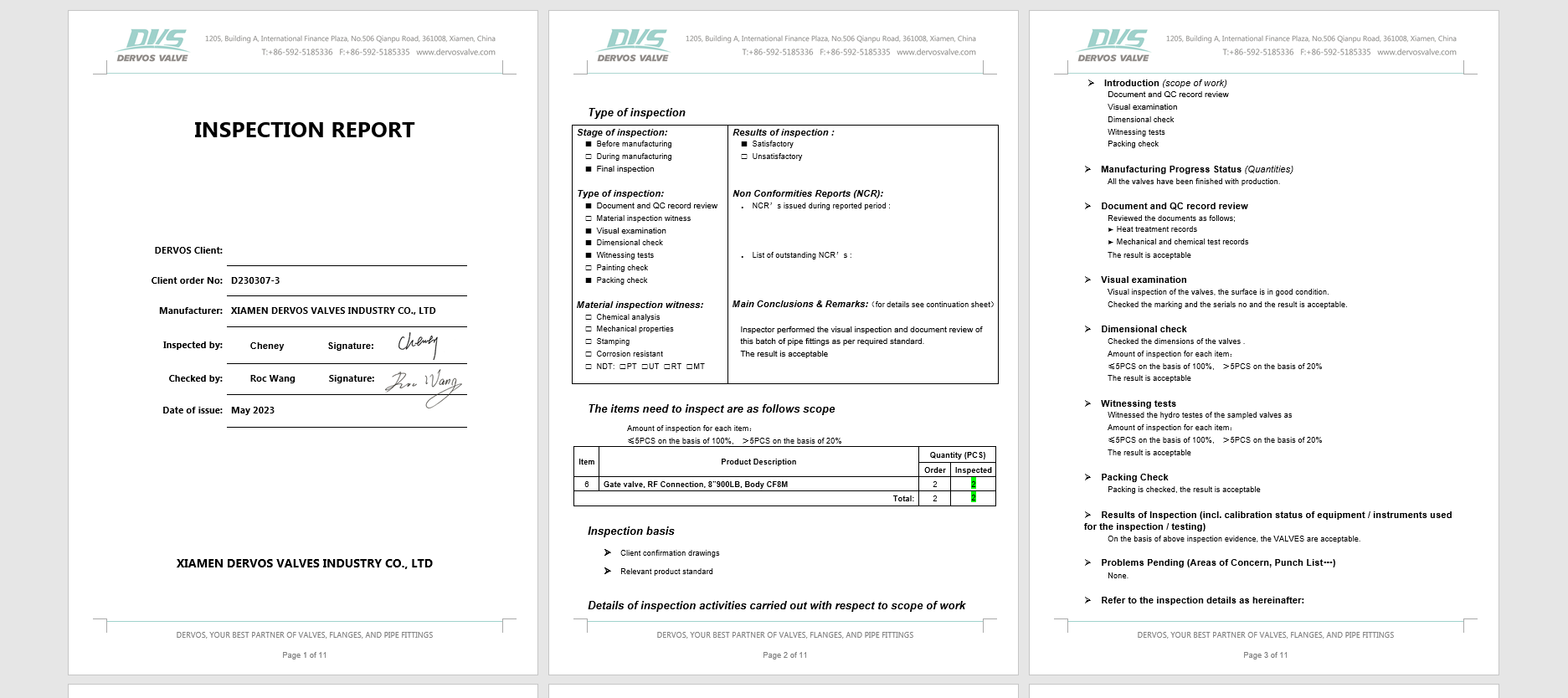

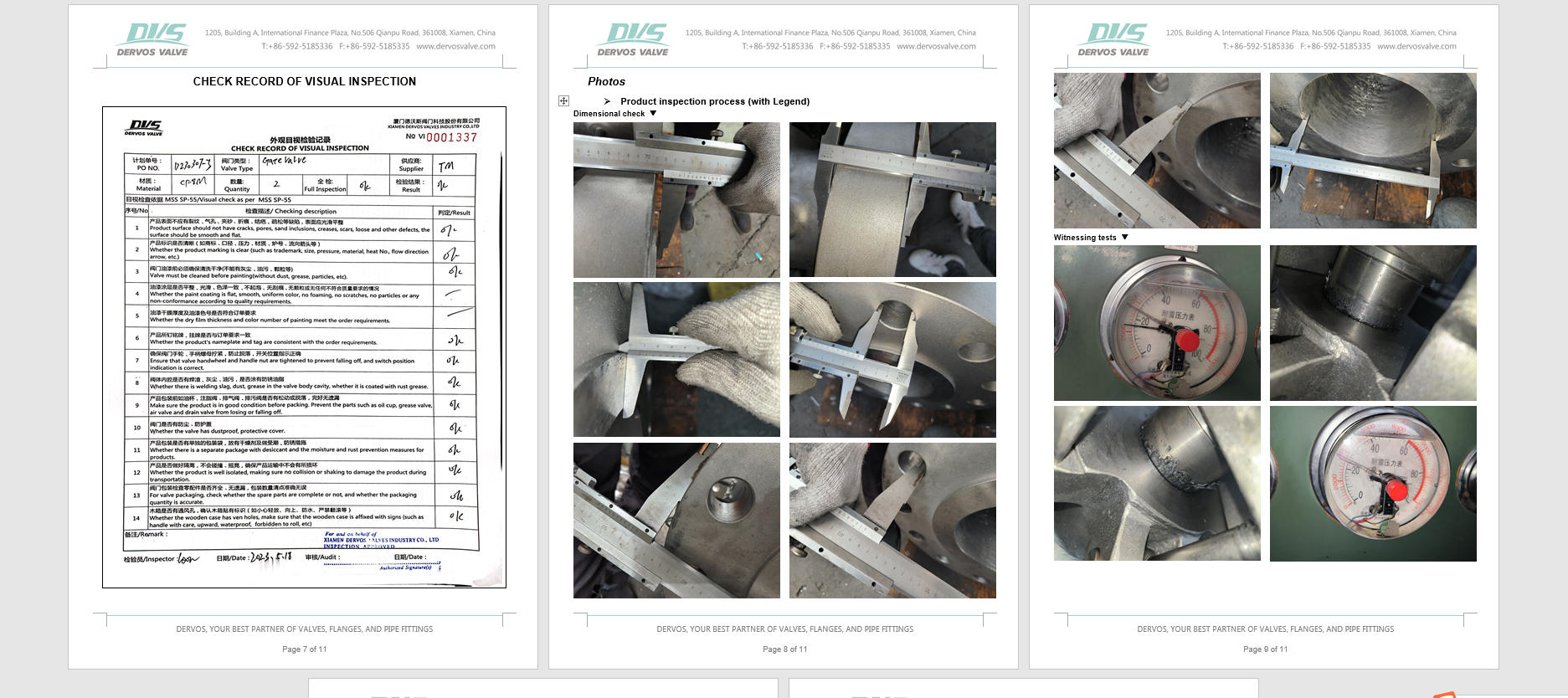

Inspection report

Body CF8M, 8" 900LB Stainless Steel Gate Valve, RF, API600, Handwheel
Body CF8M, 8" 900LB Stainless Steel Gate Valve, RF, API600, Handwheel
Body CF8M, 8" 900LB Stainless Steel Gate Valve, RF, API600, Handwheel
Body CF8M, 8" 900LB Stainless Steel Gate Valve, RF, API600, Handwheel
