RF Connection, 1/2" 600LB Forged Steel Gate Valve, Body A105N, API602

RF Connection, 1/2" 600LB Forged Steel Gate Valve, Body A105N, API602

Key Specifications / Features

Model No.: Hits: 0

1/2" 600LB Forged Steel Gate valve is made according to API 602 standard. The valve body is made of ASTM A105N. It has the structural characteristics of Rigid wedge, Bonnet and yoke. Its connection mode is RF. And it has Hand Wheel operation mode.
Request a quote

Detail Information

Product Description

Type Forged Steel Gate Valve
Size 1/2"
Pressure 600LB
Connection RF
Operation Hand Wheel
Body Material ASTM A105N
Design Norm API 602
Face to Face Dimensions ASME B16.10
End Connection ASME B16.5
Pressure-Temperature ASME B16.34
Test & Inspection Code API 598
Temperature -29 ~ 425°C
Applicable Medium Water, Oil and Gas

Features

1. Made of forged steel material, it has excellent compressive performance and mechanical strength, suitable for high-pressure and high-temperature working conditions;
2. The wedge and valve seat are tightly fitted, which can achieve bidirectional sealing and prevent medium leakage.

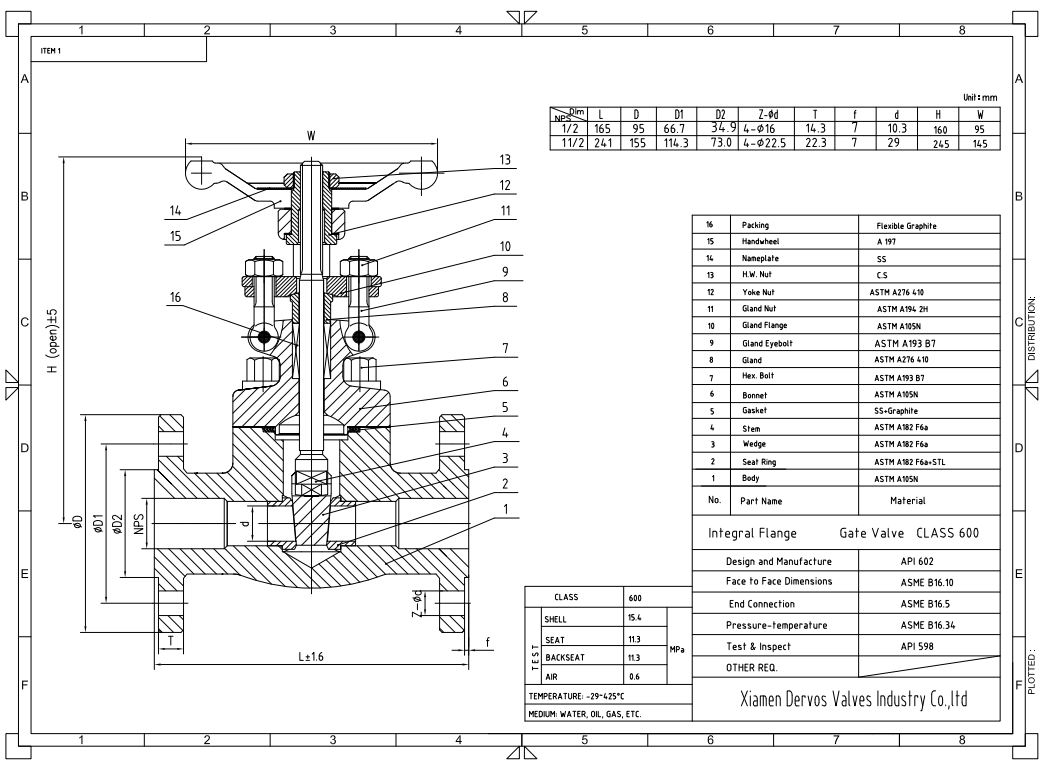

Technical Drawing

Forged Steel Gate Valve

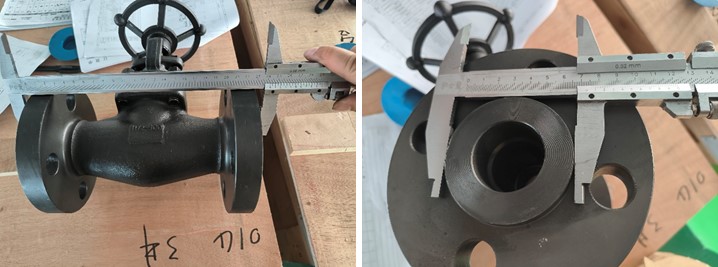

Dimension Checking

Forged Steel Gate Valve

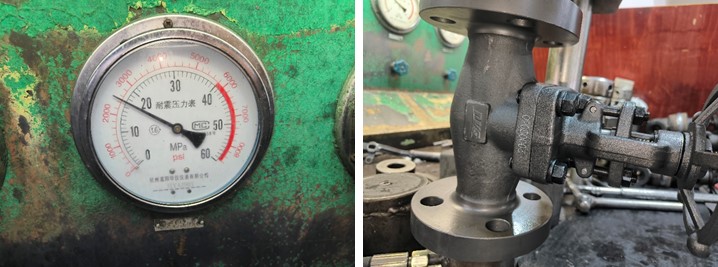

Pressure Testing

Forged Steel Gate Valve

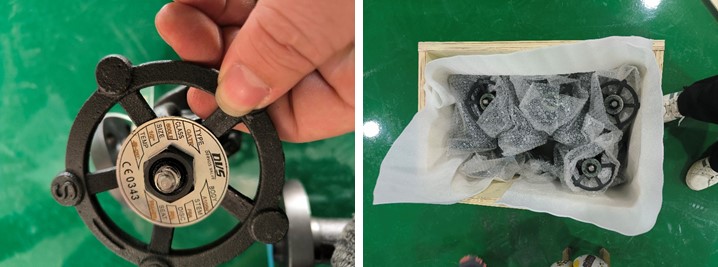

Nameplate & Packing

Forged Steel Gate Valve

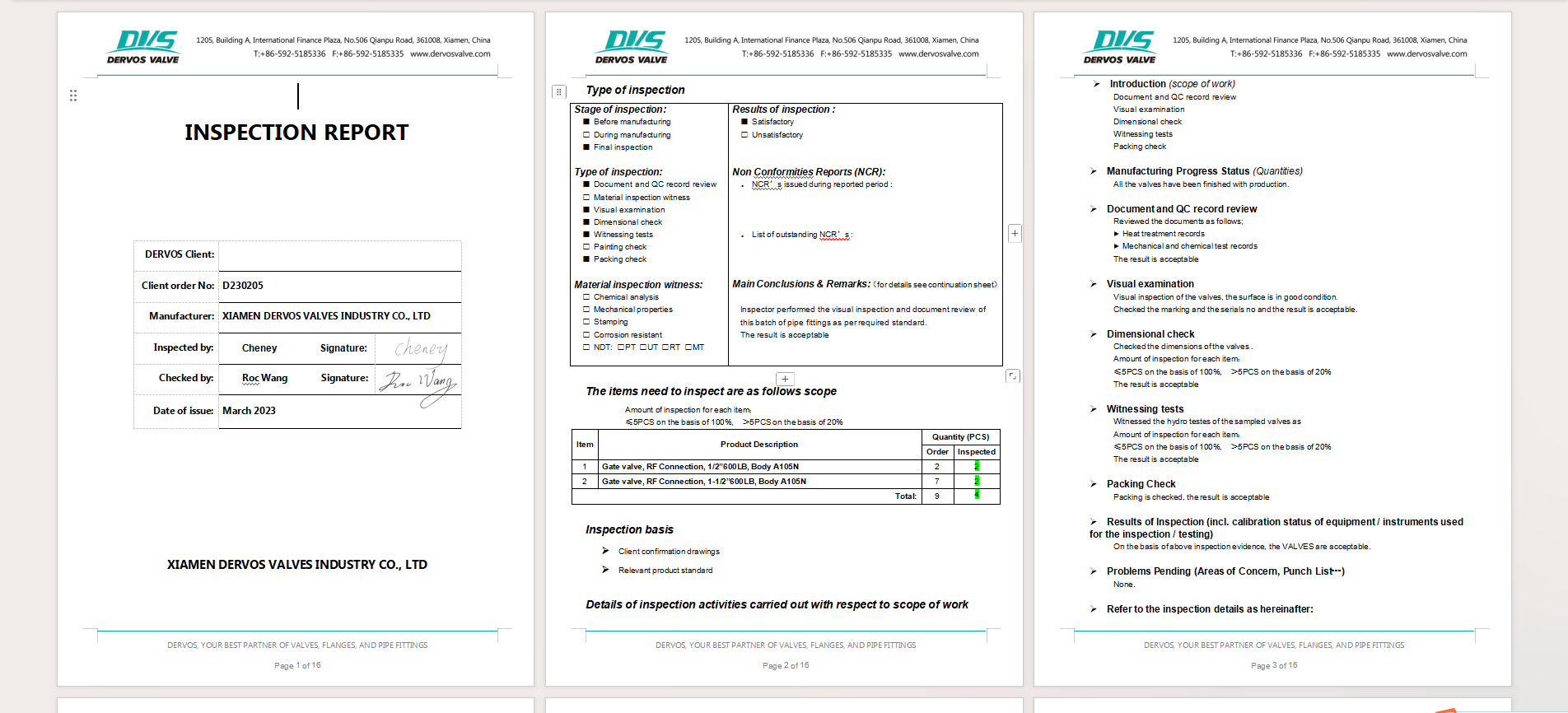

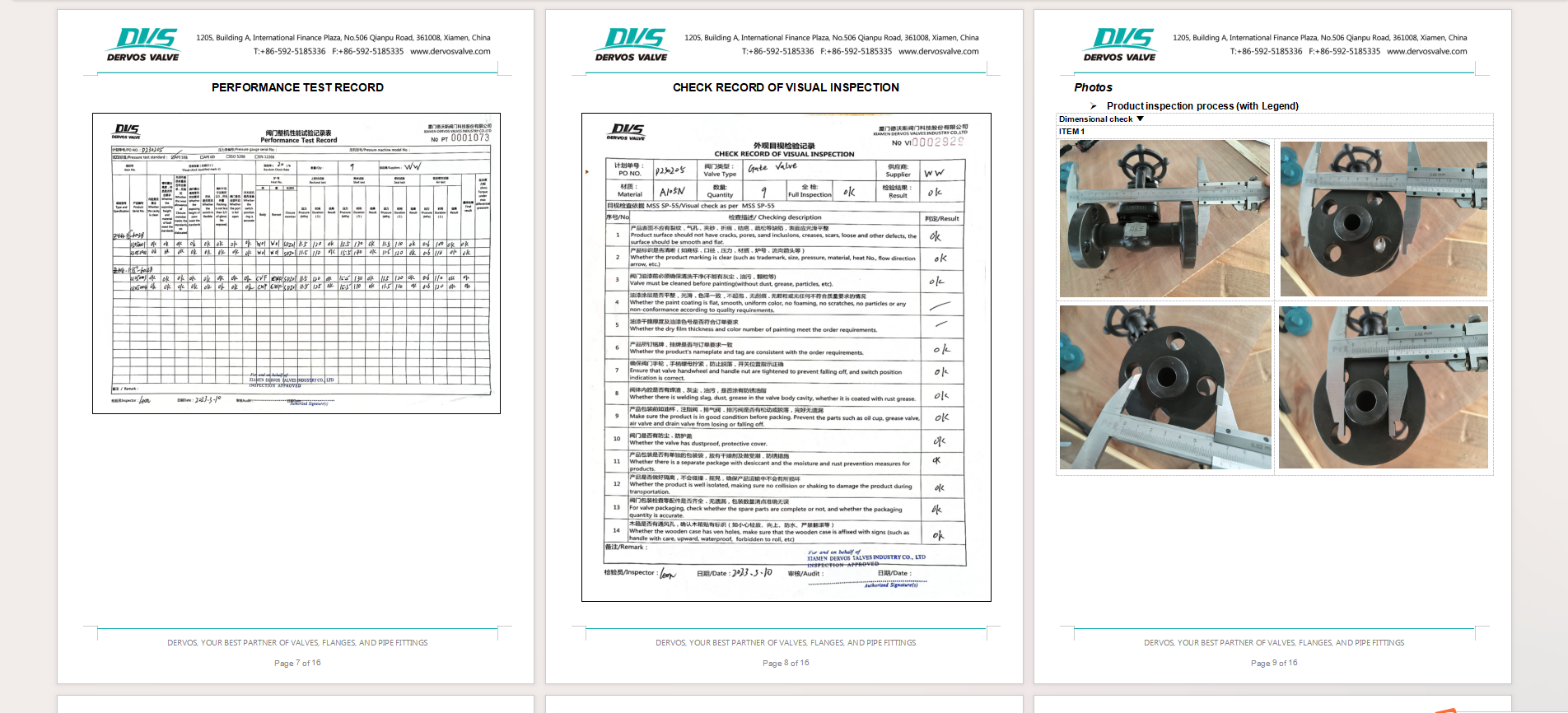

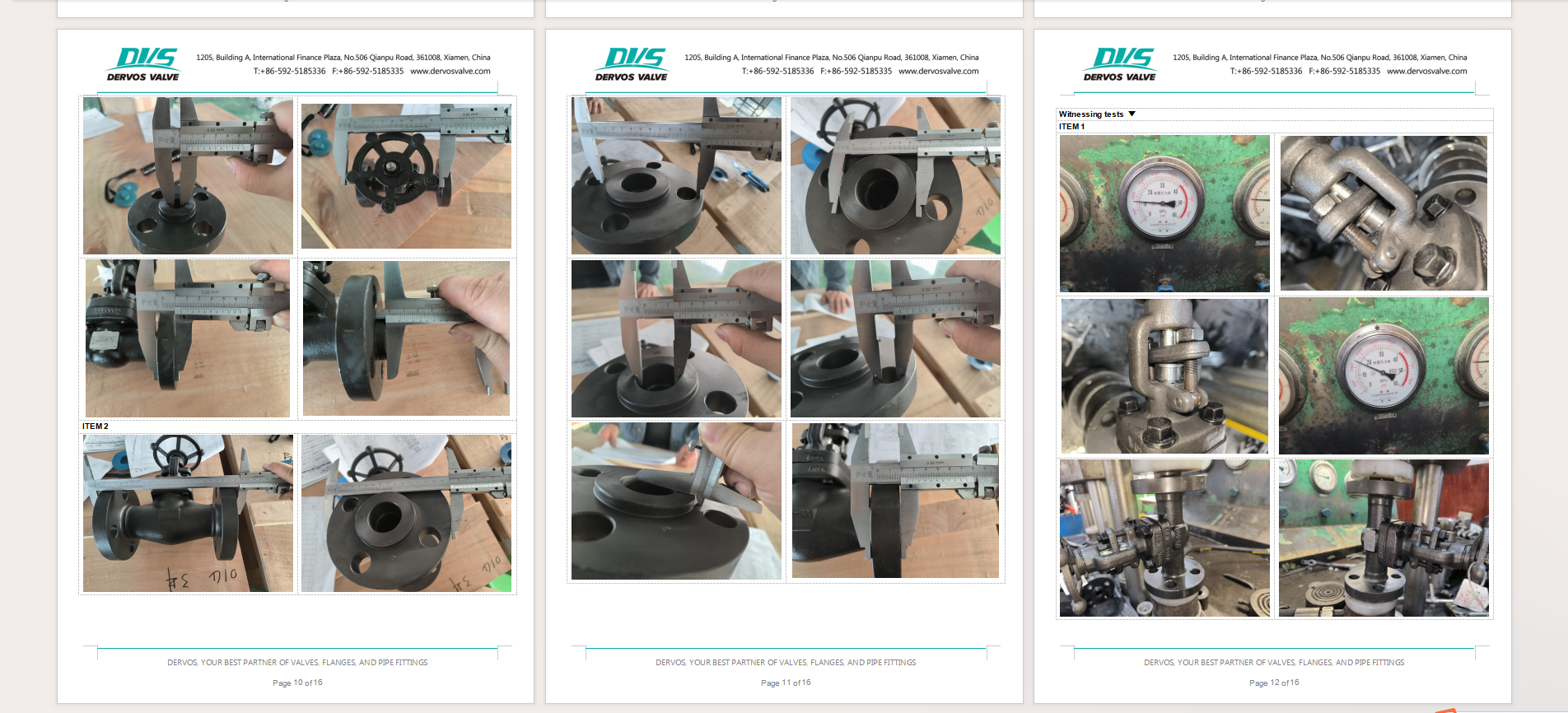

Inspection report

Forged Steel Gate Valve
Forged Steel Gate ValveForged Steel Gate ValveForged Steel Gate Valve
