Body WCB, DN150 PN16 Swing Check Valve, RF, BS 1868

Body WCB, DN150 PN16 Swing Check Valve, RF, BS 1868
Body WCB, DN150 PN16 Swing Check Valve, RF, BS 1868

Key Specifications / Features

Model No.: Hits: 0

DN150 PN16 Swing Check valve is made according to BS 1868 standard. The valve body is made of A216 WCB. It has the structural characteristics of Swing type, bolt cover and structural length of 475mm. Its connection mode is RF.
Request a quote

Next: 6" 600LB Swing Check Valve WC6 BW SCH 80

Previous: API 6D Swing Check Valve, ASTM A216 WCB, 10 Inch, 600 LB, RF

Detail Information

Product Description

Type Swing Check Valve
Size DN150
Pressure PN16
Connection RF
Body Material A216 WCB
Design Norm BS 1868
Pressure-Temp ASME B16.34
Face to Face Purchaser's RFQ
Flange Dimension EN 1092-1 B
Test & Inspection Code API 598
Temperature -29 ~ 425°C
Applicable Medium Water, Oil and Gas

Features

1. No external power drive required, relying solely on automatic control of medium flow, stable and reliable operation;
2. Suitable for horizontal pipeline installation, but can also be installed vertically (the flow direction of the medium needs to be from bottom to top).

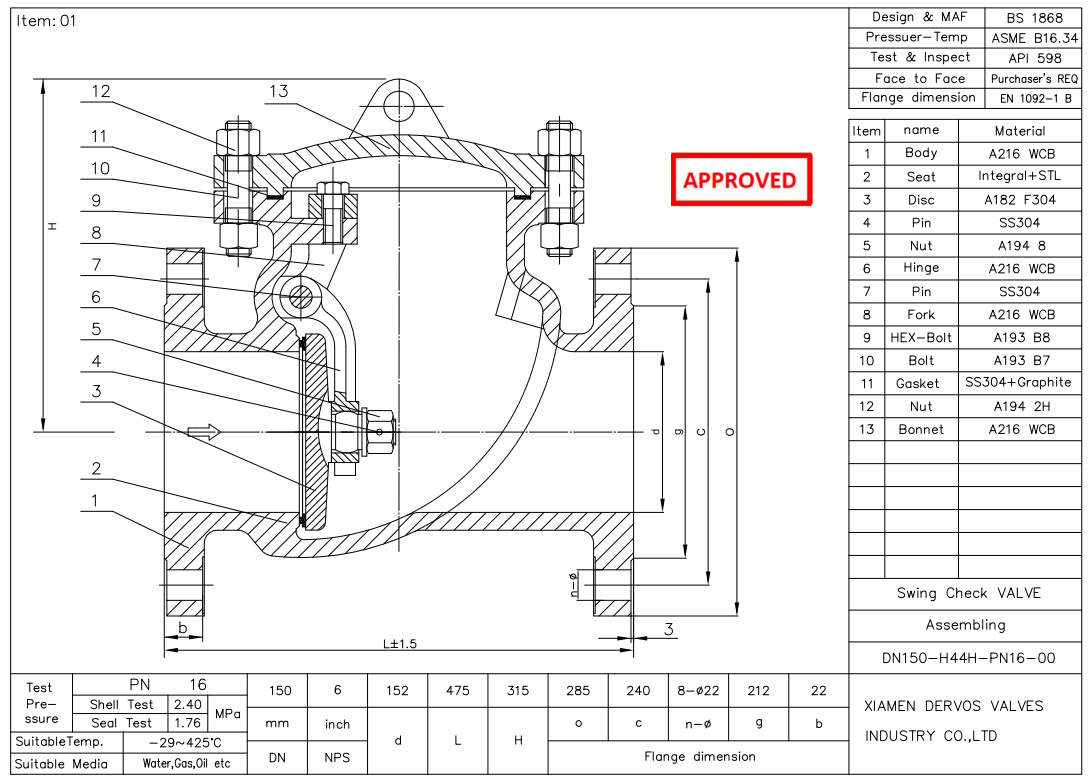

Technical Drawing

Body WCB, DN150 PN16 Swing Check Valve, RF, BS 1868

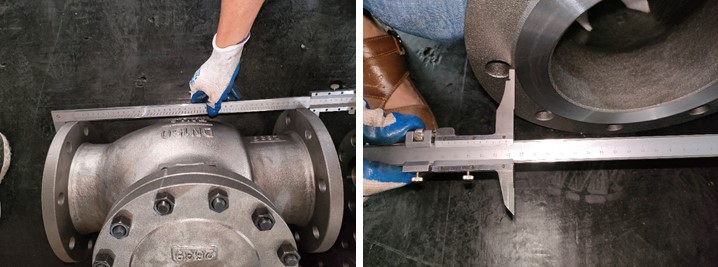

Dimension Checking

Body WCB, DN150 PN16 Swing Check Valve, RF, BS 1868

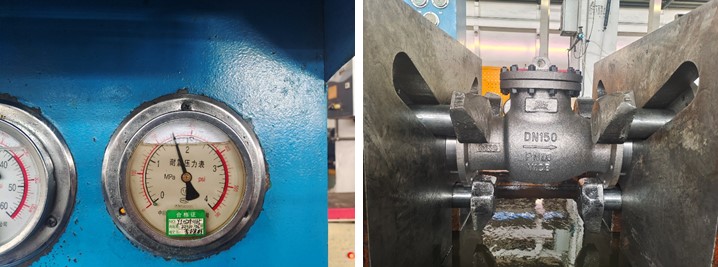

Pressure Testing

Body WCB, DN150 PN16 Swing Check Valve, RF, BS 1868

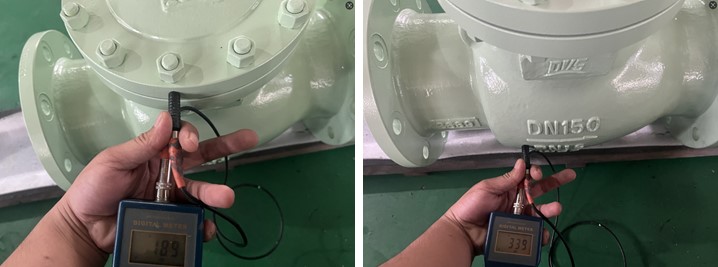

Painting

Body WCB, DN150 PN16 Swing Check Valve, RF, BS 1868

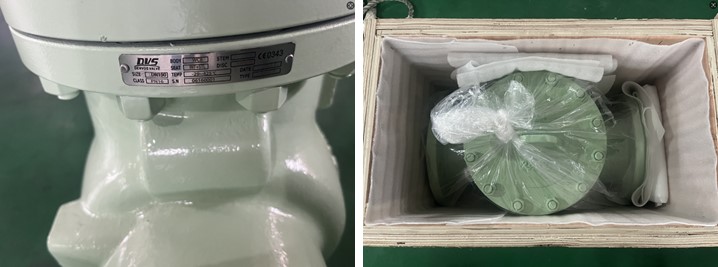

Nameplate & Packing

Body WCB, DN150 PN16 Swing Check Valve, RF, BS 1868

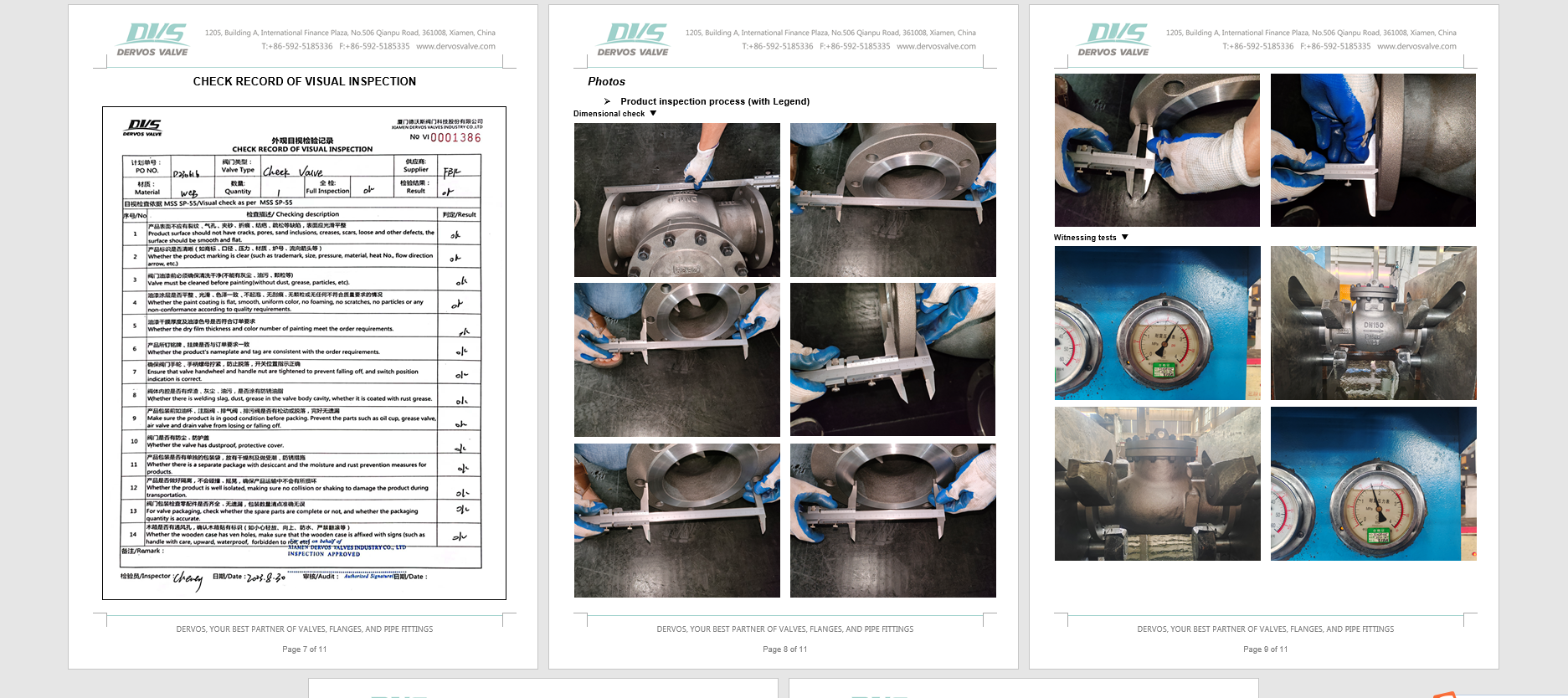

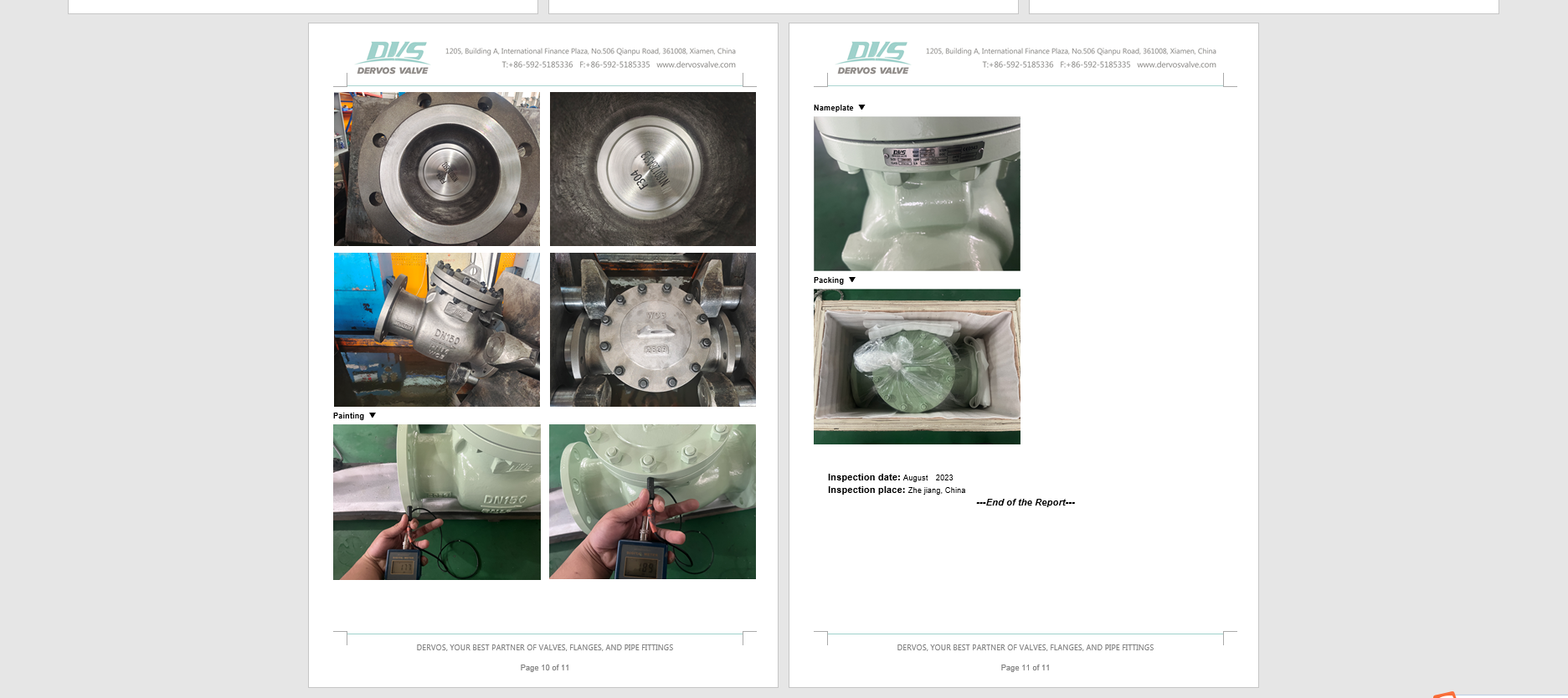

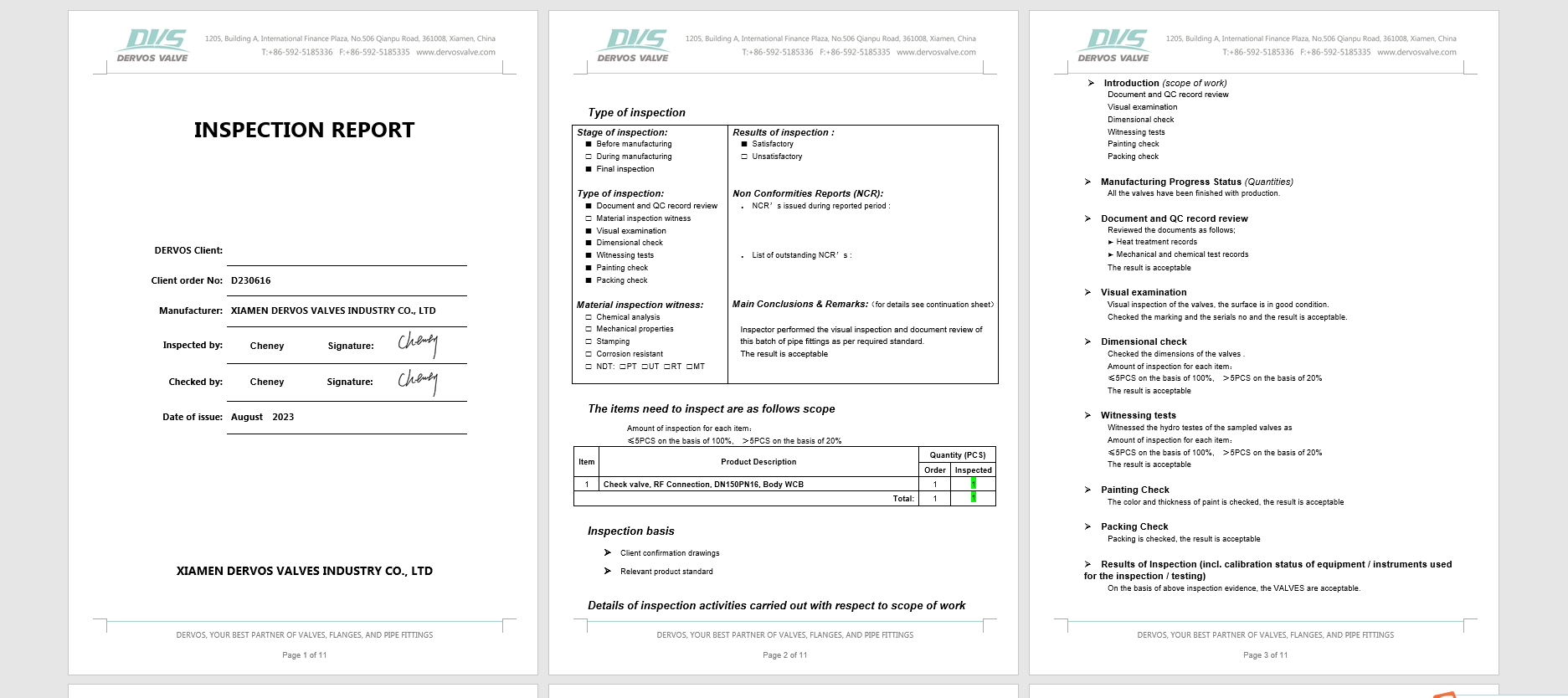

Inspection report

Body WCB, DN150 PN16 Swing Check Valve, RF, BS 1868Body WCB, DN150 PN16 Swing Check Valve, RF, BS 1868Body WCB, DN150 PN16 Swing Check Valve, RF, BS 1868Body WCB, DN150 PN16 Swing Check Valve, RF, BS 1868

Keywords of Body WCB, DN150 PN16 Swing Check Valve, RF, BS 1868
