6" 600LB Swing Check Valve WC6 BW SCH 80

6" 600LB Swing Check Valve WC6 BW SCH 80

Key Specifications / Features

Model No.: Hits: 0

6" 600LB Swing Check Valve is made according to BS 1868 standard. The valve body is made of ASTM A217 WC6. It has the structural characteristics of pressure self sealing. Its connection mode is BW SCH 80.
Request a quote

Detail Information

Product Description

Type Swing Check Valve
Size 6"
Pressure 600LB
Connection BW SCH 80
Body Material ASTM A217 WC6
Design Norm BS 1868
PRES.& TEMP ASME B16.34
FACE TO FACE MFR’S STD
FLG CONN. BW ASME B16.25
Temperature -29 ~ 595°C
Applicable Medium Water, Oil and Gas


Features

1. Simple & Reliable Design – Swinging disc allows automatic one-way flow control without external power.

2. Low Pressure Drop – Full-port design minimizes flow resistance for efficient operation.

3. Quick Response – Disc closes rapidly to prevent backflow and water hammer.

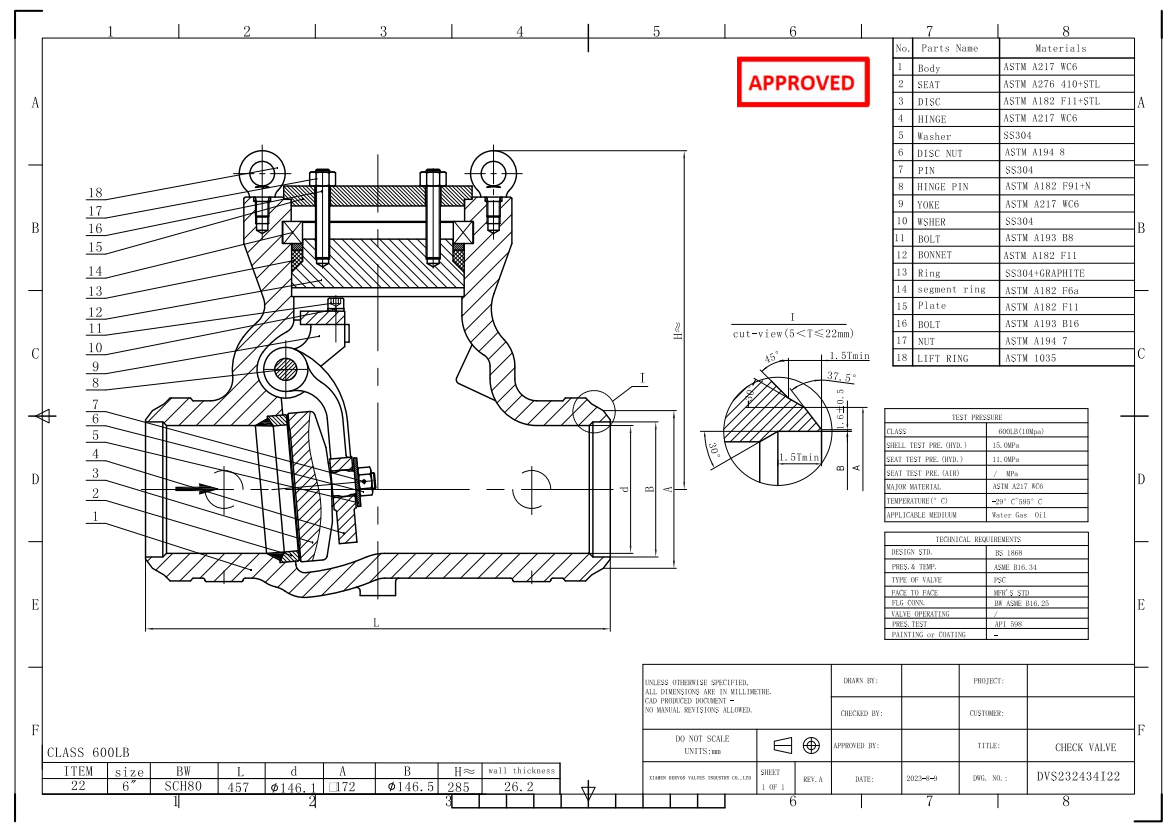

Technical Drawing

6" 600LB Swing Check Valve WC6 BW SCH 80

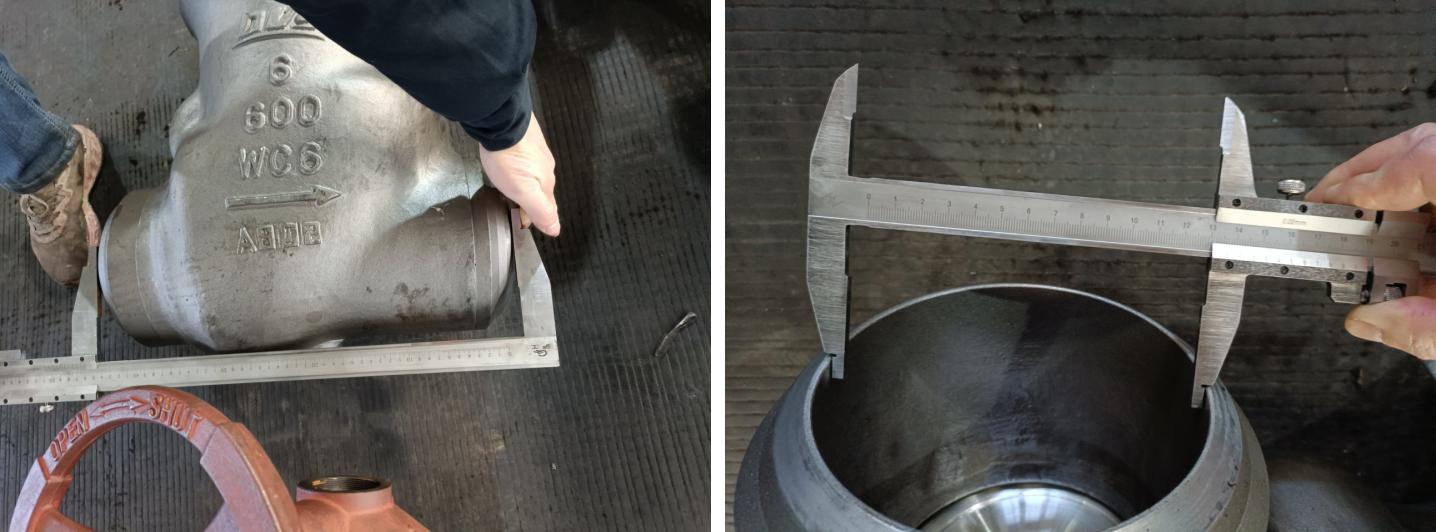

Dimension Checking

6" 600LB Swing Check Valve WC6 BW SCH 80

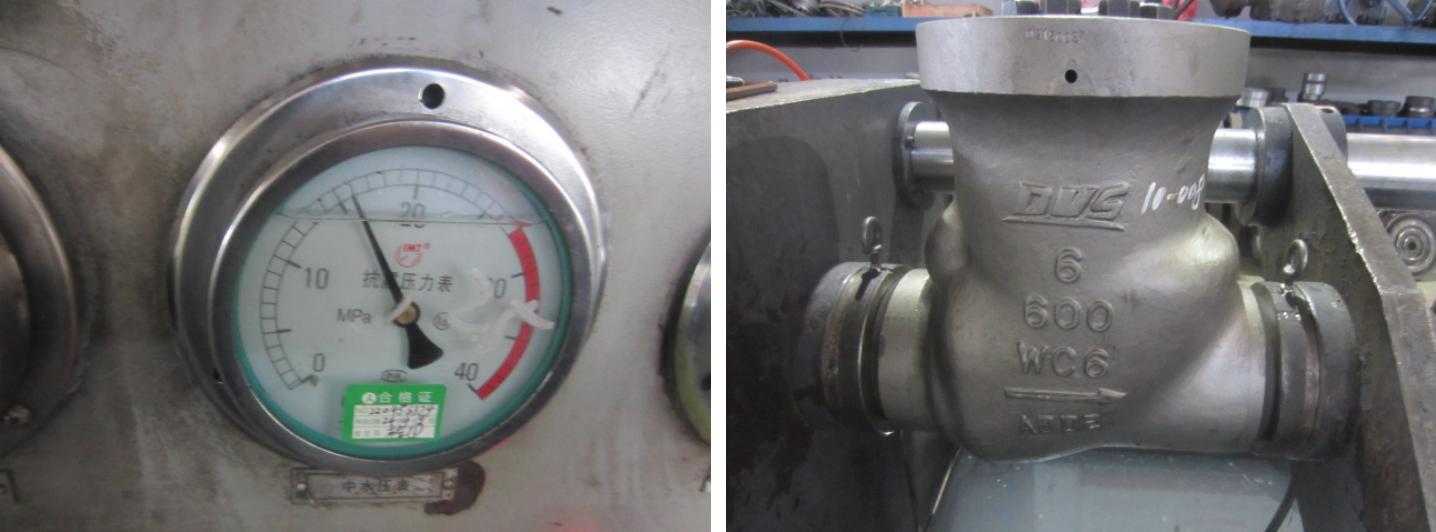

Pressure Testing

6" 600LB Swing Check Valve WC6 BW SCH 80

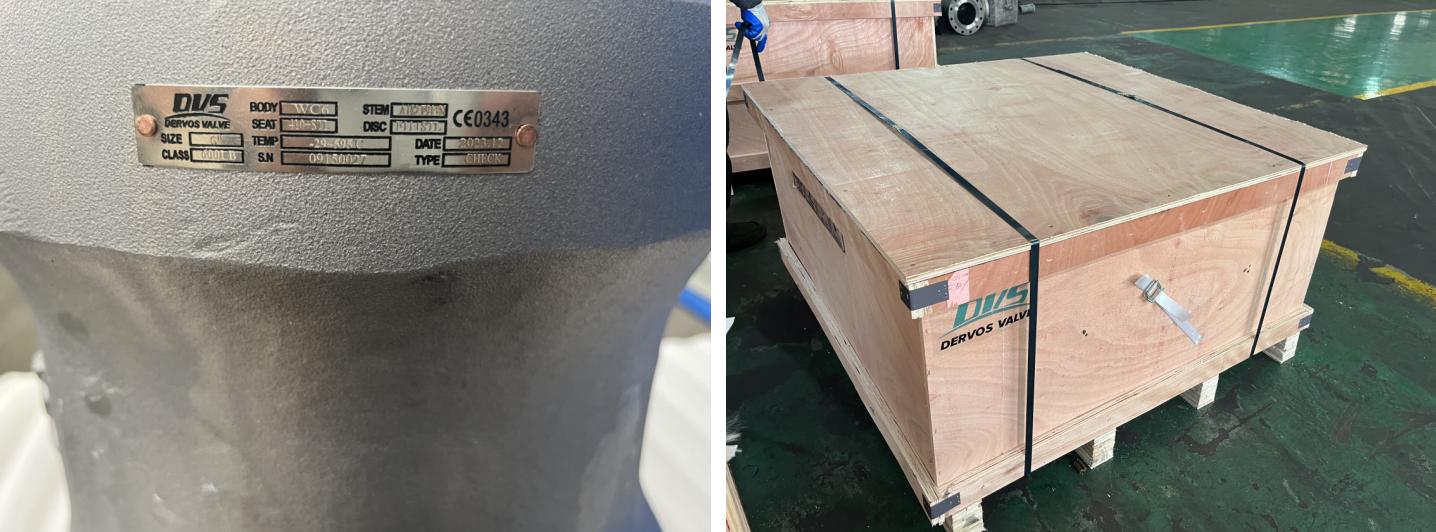

Nameplate & Packing

6" 600LB Swing Check Valve WC6 BW SCH 80

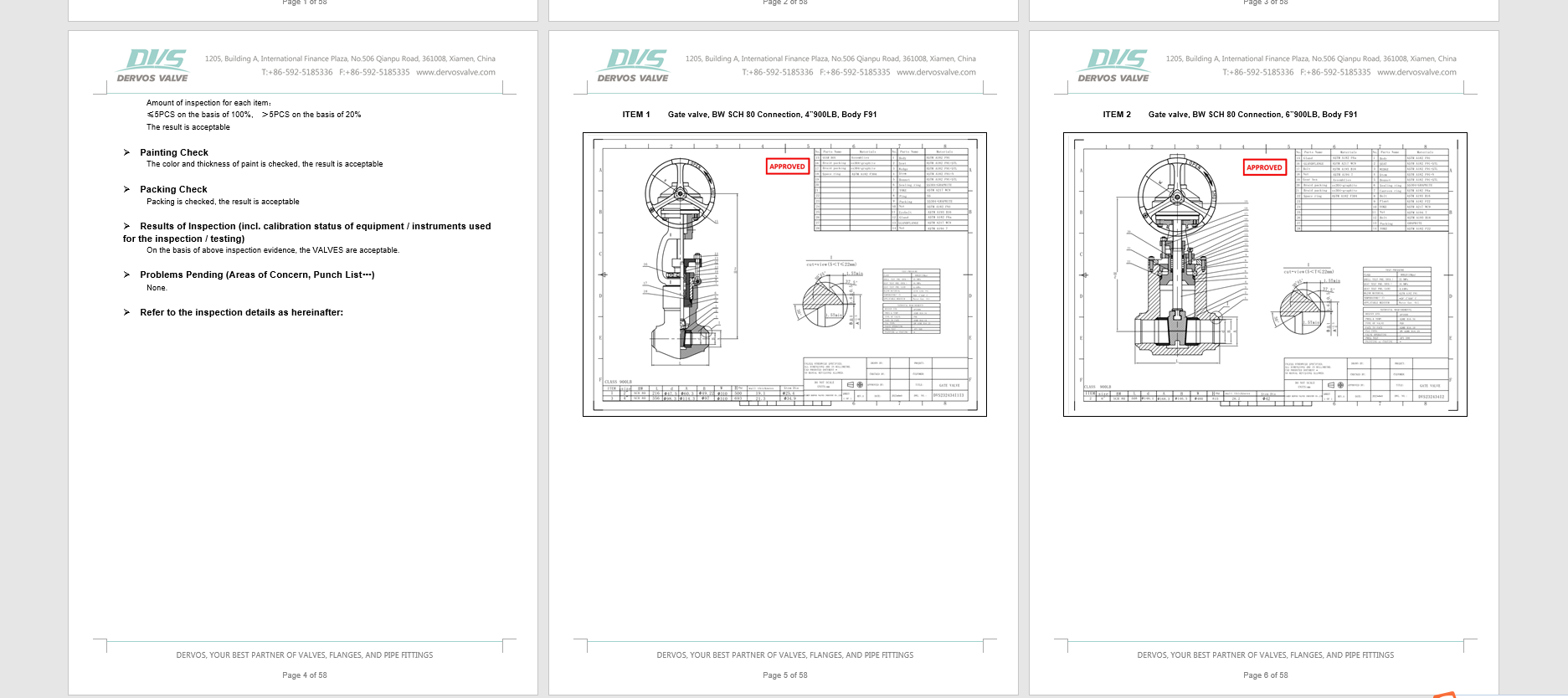

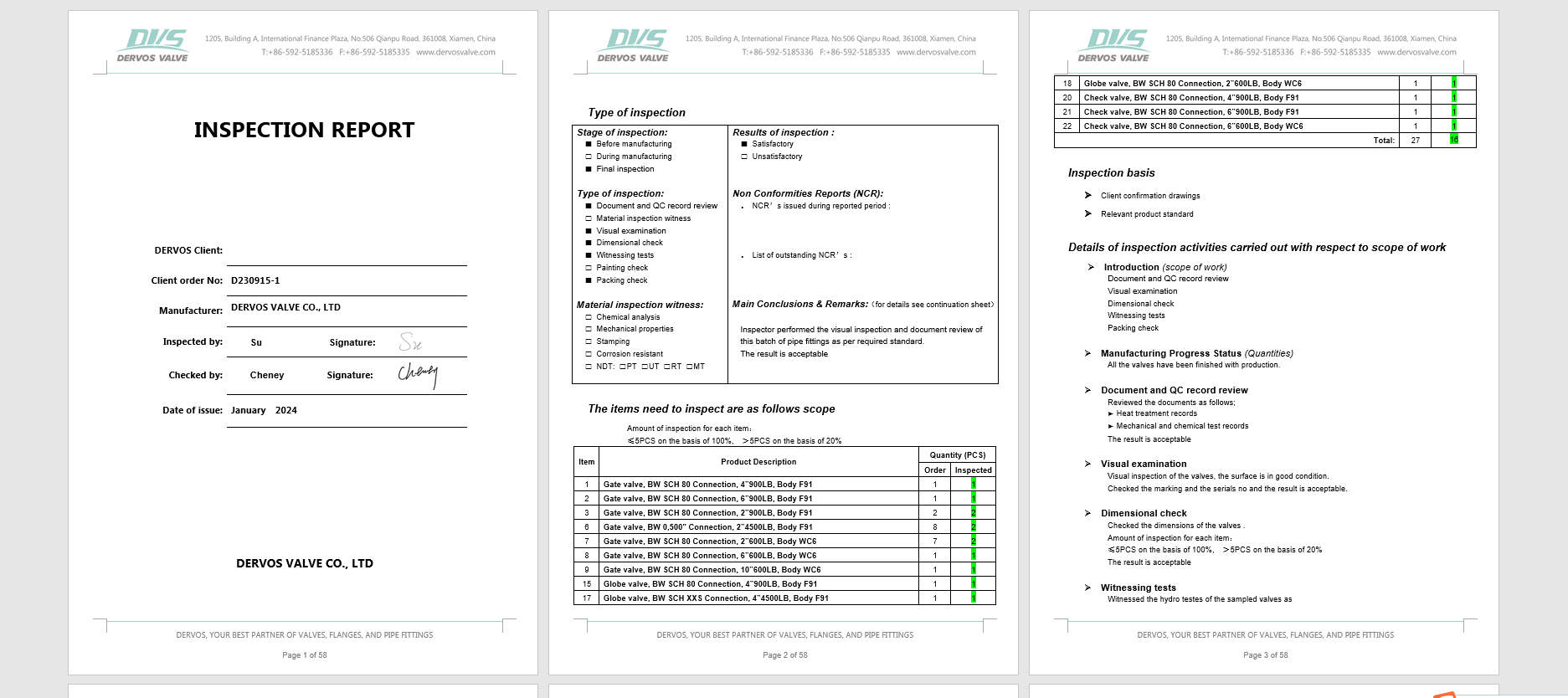

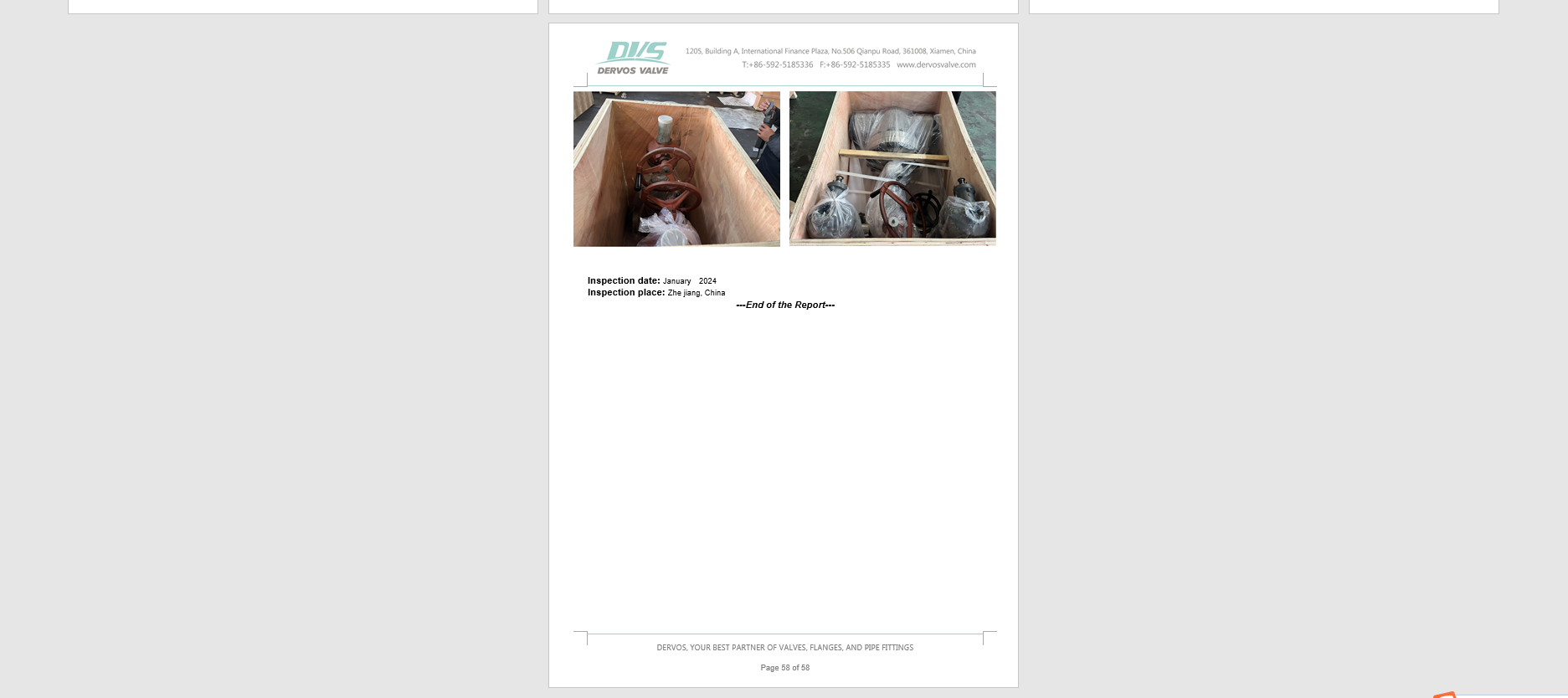

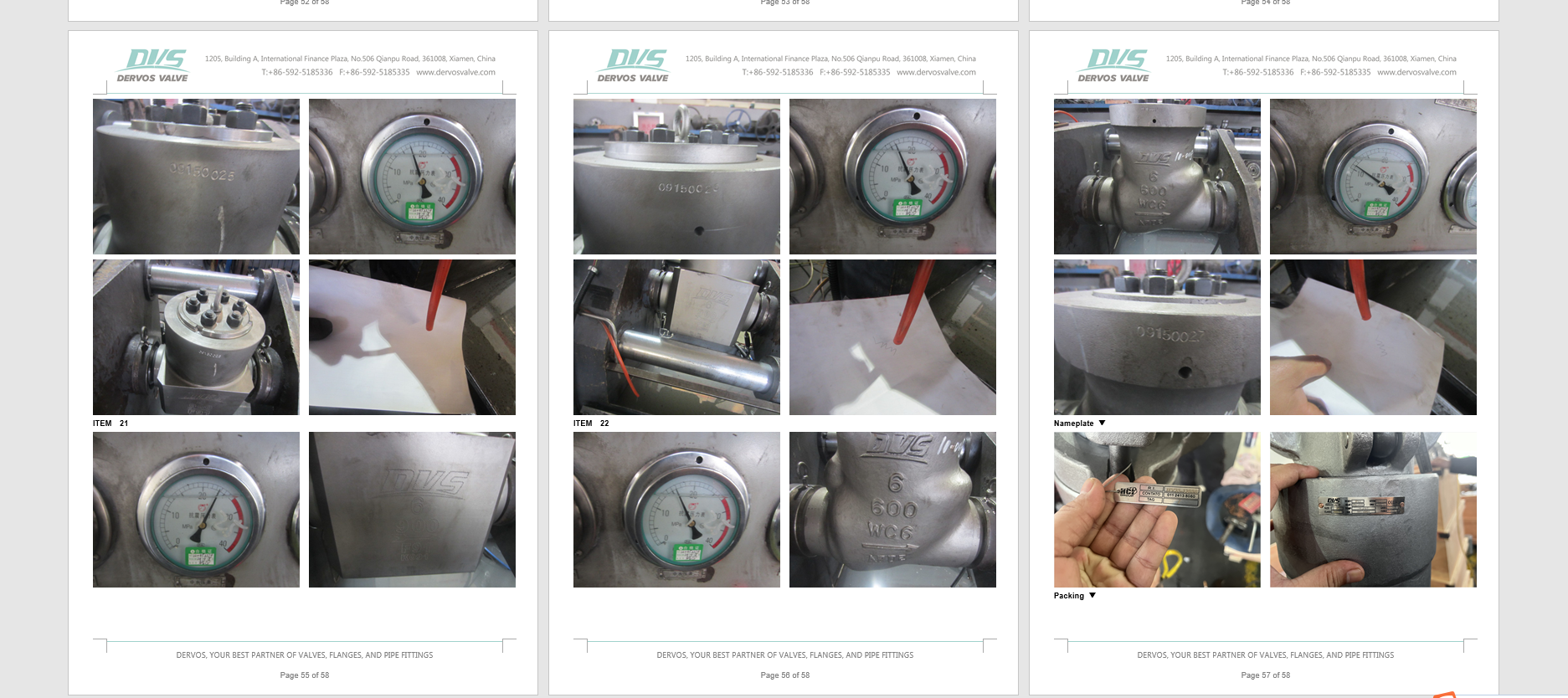

Inspection report


6" 600LB Swing Check Valve WC6 BW SCH 806" 600LB Swing Check Valve WC6 BW SCH 806" 600LB Swing Check Valve WC6 BW SCH 80
