1" 150LB Swing Check Valve RF A182-F304L
Key Specifications / Features
Model No.: Hits: 0
1" 150LB Swing Check Valve is made according to ASME B16.34 standard. The valve body is made of A182-F304L. It has the structural characteristics of a swing-open, spigot cover. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Previous: 6" 600LB Swing Check Valve WC6 BW SCH 80
Detail Information
Product Description
| Type | Swing Check Valve |
| Size | 1” |
| Pressure | 150LB |
| Connection | RF |
| Body Material | A182-F304L |
| Design Norm | API 602 |
| Face to Face Conform | ASME B46.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Automatic Opening and Closing: The swing check valve automatically opens and closes based on the direction of the fluid flow, effectively preventing backflow.;
2. Compact Structure: Utilizing a rotational opening and closing mechanism, the valve disc operates smoothly, and the design is more compact than traditional check valves, making it suitable for applications with limited space.

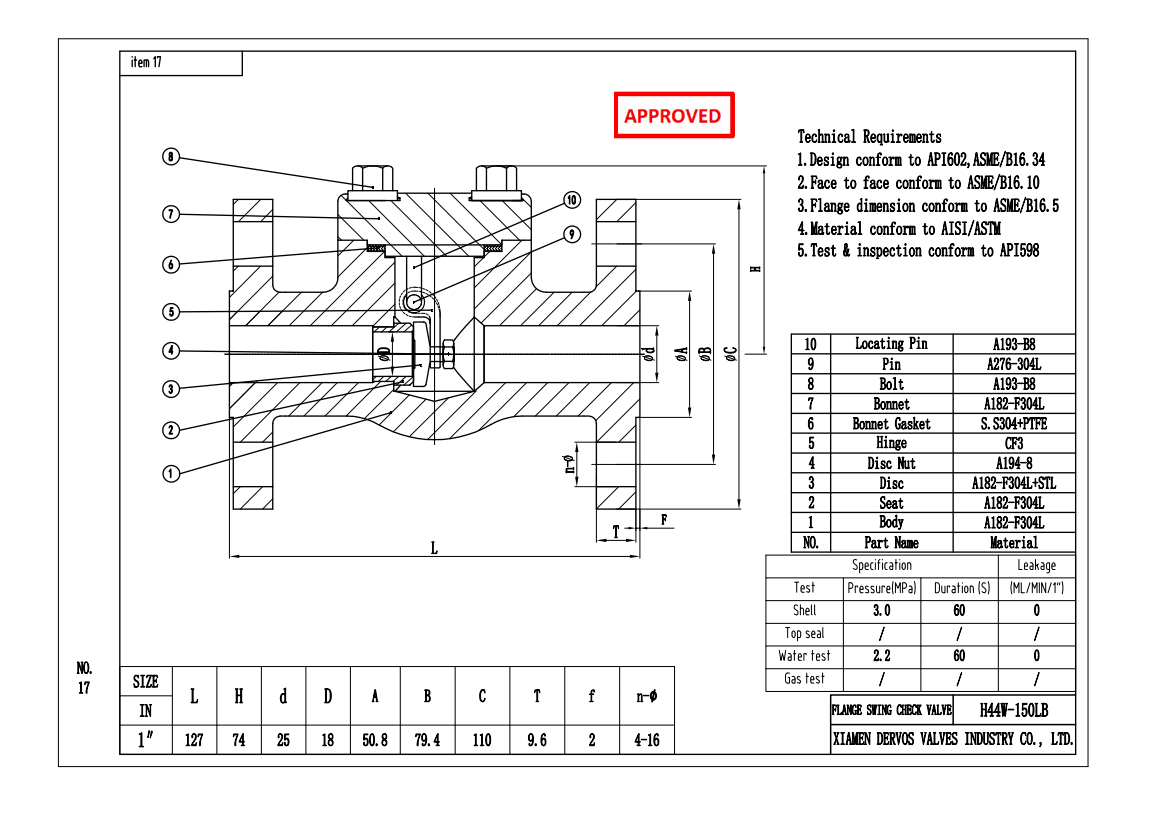

Swing Check Valve Drawing

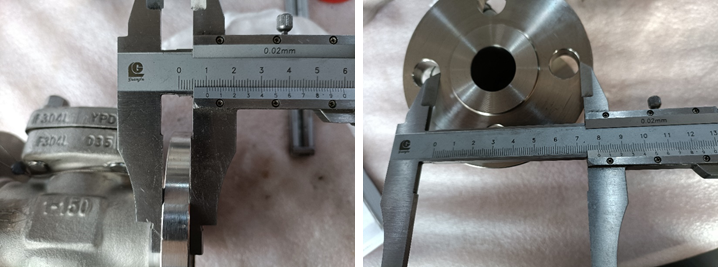

Dimension Checking

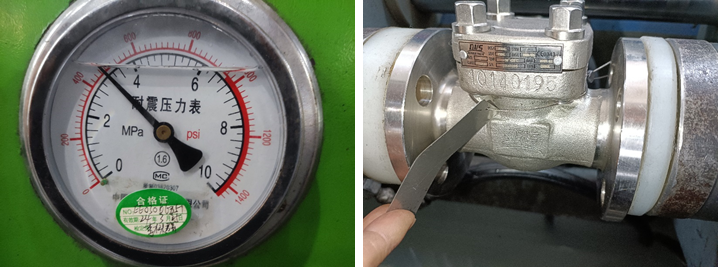

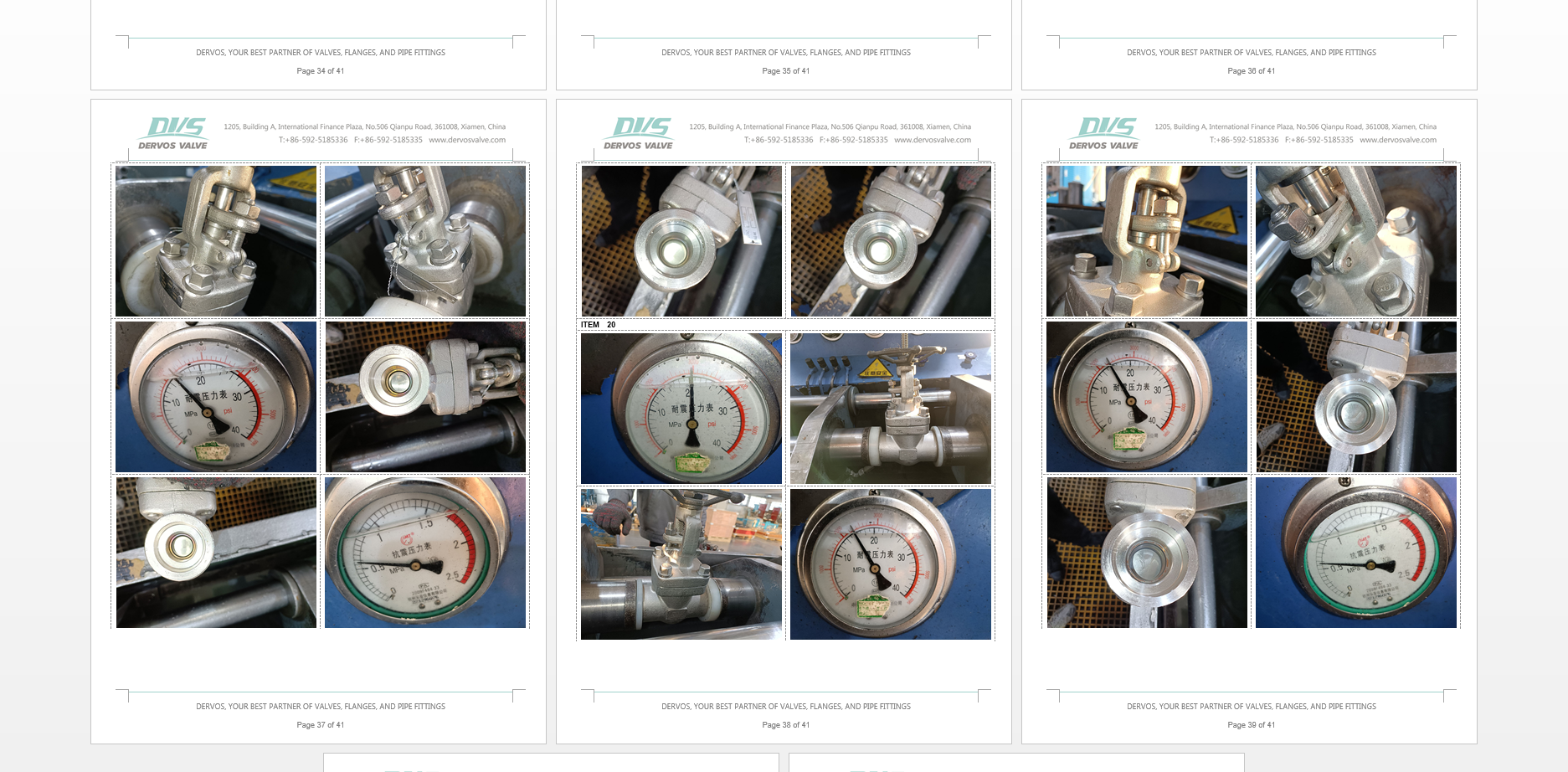

Pressure Testing

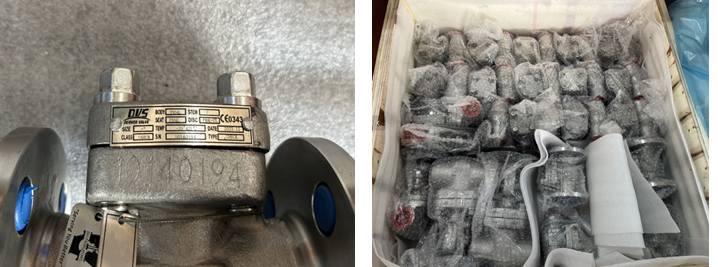

Nameplate & Packing

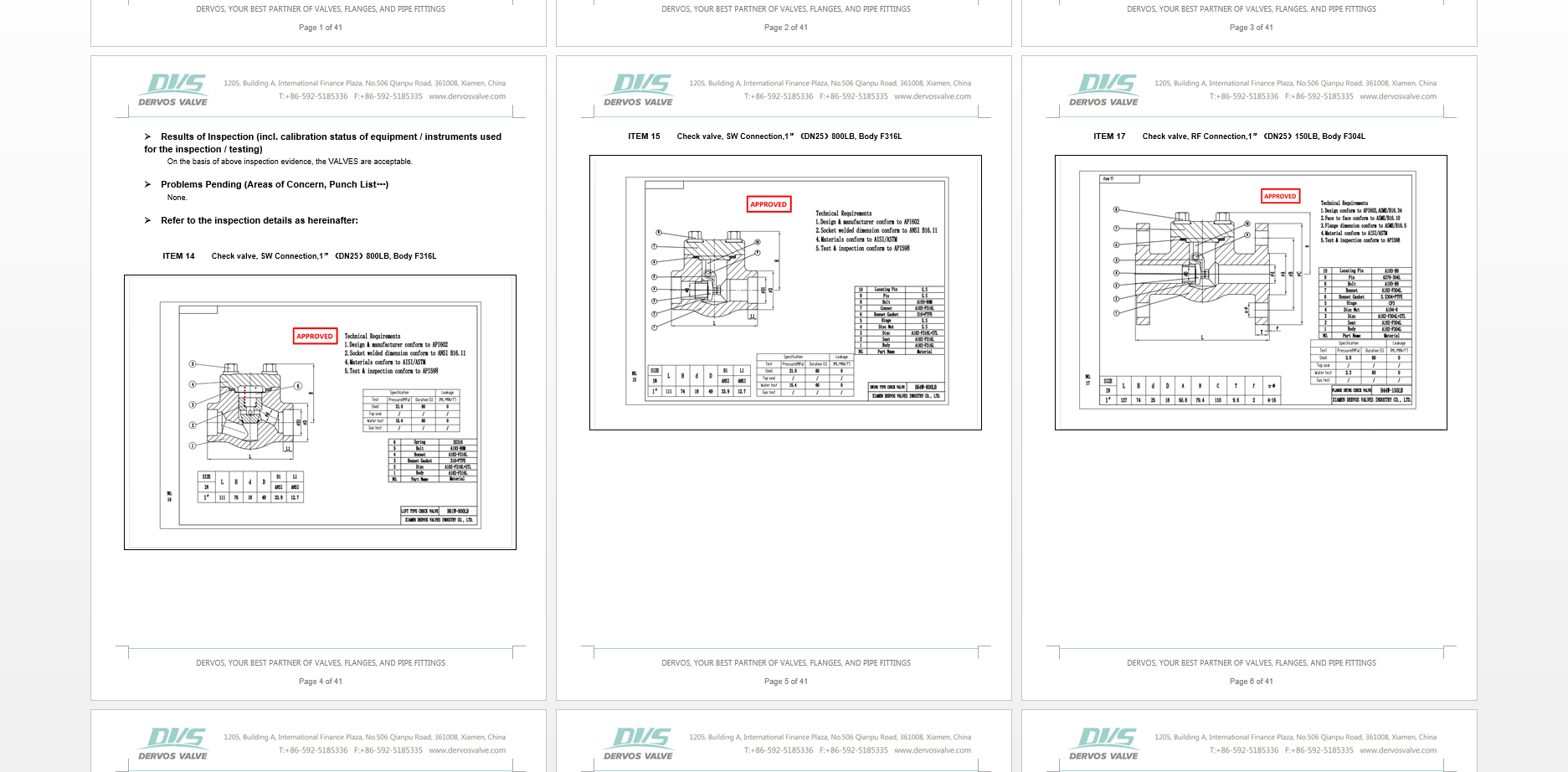

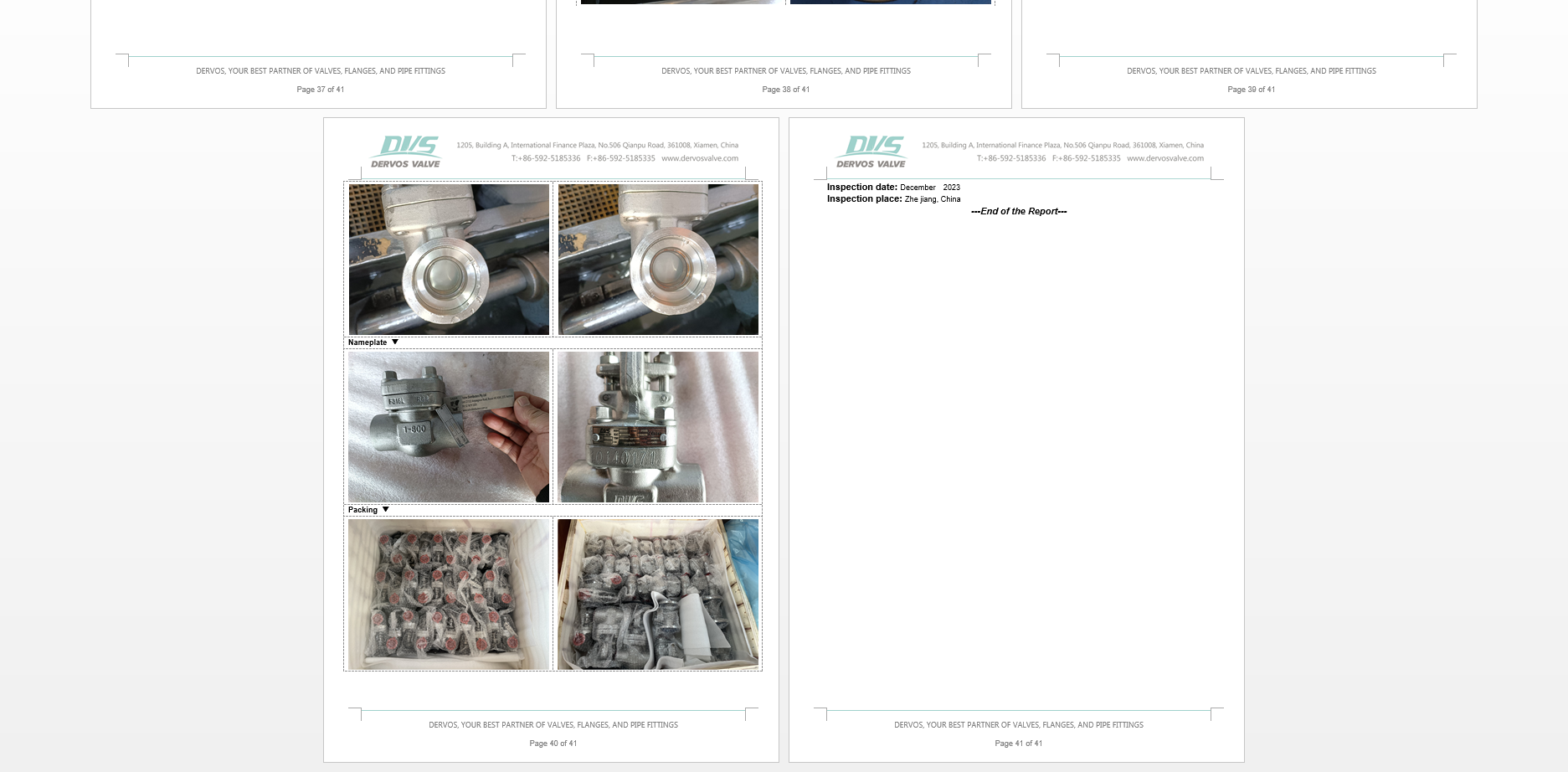

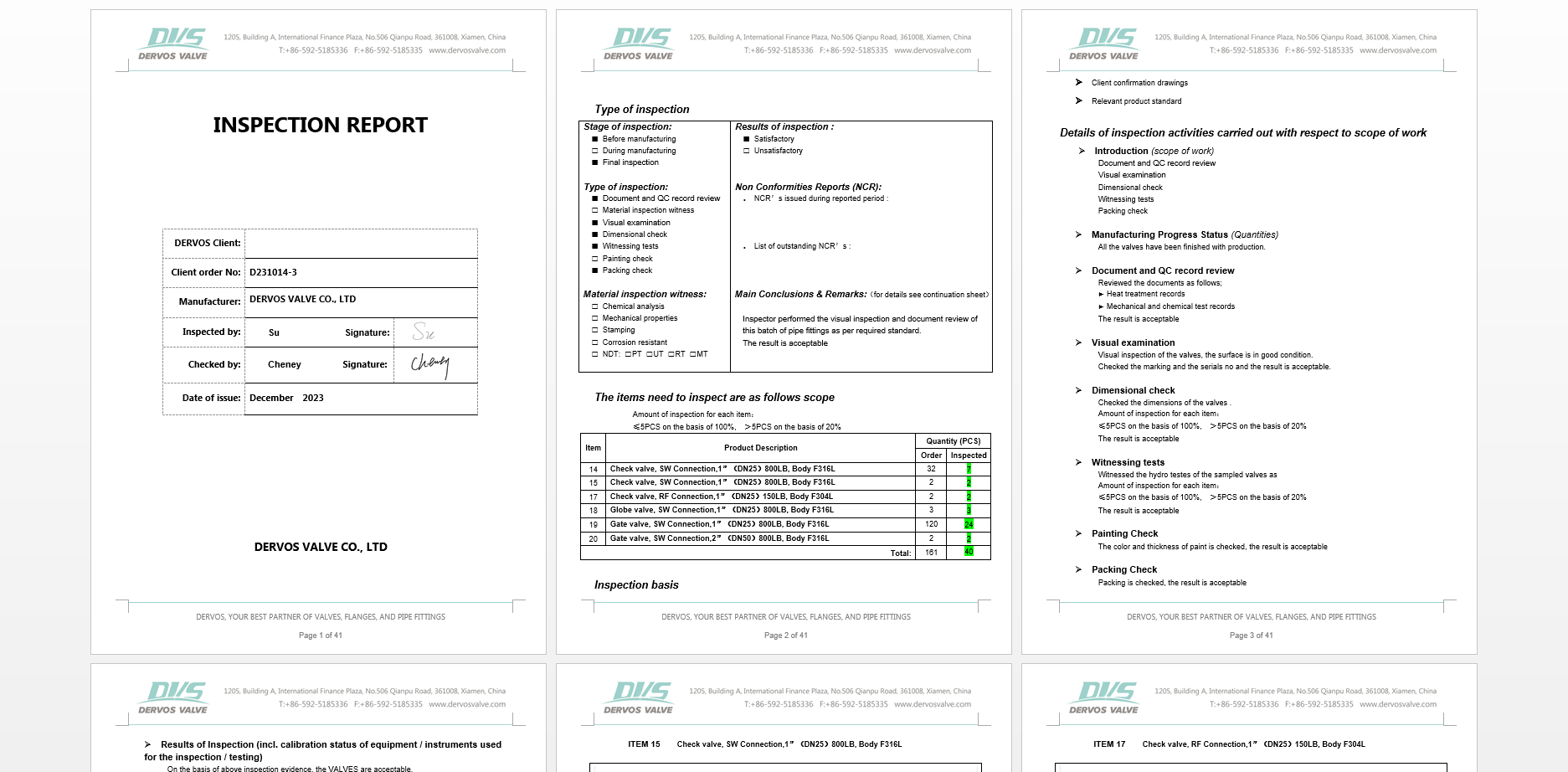

Inspection report
