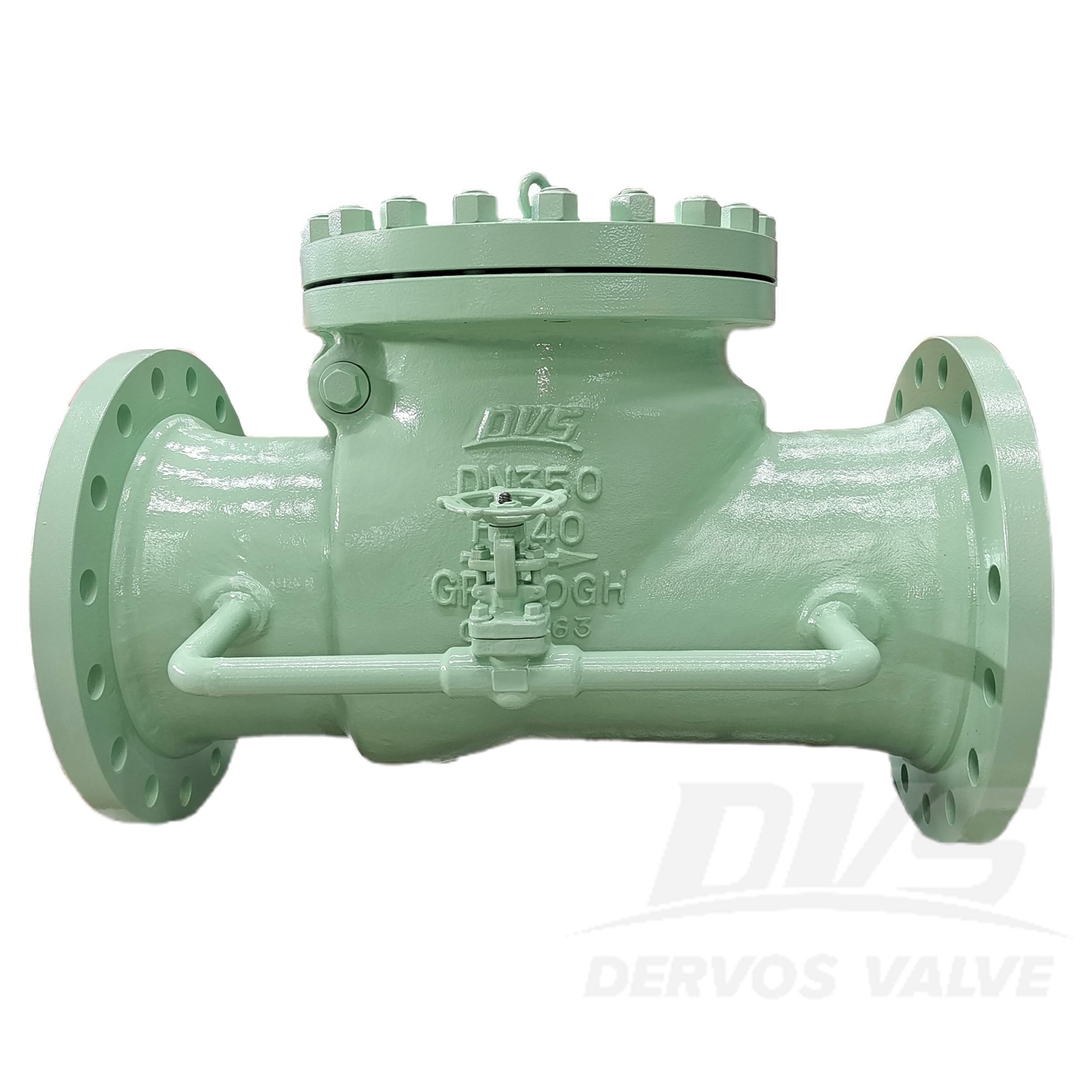

DN350 PN40 Cast Steel Swing Check Valve with Bypass BC RF

DN350 PN40 Cast Steel Swing Check Valve with Bypass BC RF
DN350 PN40 Cast Steel Swing Check Valve with Bypass BC RF

Key Specifications / Features

Model No.: Hits: 0

DN350 PN40 Swing Check Valve is made according to DIN 3840 standard. The valve body is made of GP240GH. It has the structural characteristics of BC. Its connection mode is RF.
Request a quote

Next: 2" 300LB Dual Plate Wafer Type Check Valve A351 CF3M

Previous: 1" 150LB Swing Check Valve RF A182-F304L

Detail Information

Product Description

Type Swing Check Valve
Size DN350
Pressure PN40
Connection RF
Body Material GP240GH
Design Norm DIN 3840
Face to Face DIN3202-F1
Flange dimension EN1092-1/B1
Test & Inspection Code EN12266-1/2
Temperature -10 ~ 400°C
Applicable Medium Water, Oil and Gas

Features

1.    Made according to DIN 3840, ensuring standardized design and performance.

2.    Constructed from GP240GH carbon steel for excellent strength and pressure resistance.

3.    Features a swing check design with bypass and RF flange connection for efficient flow control and easy installation.

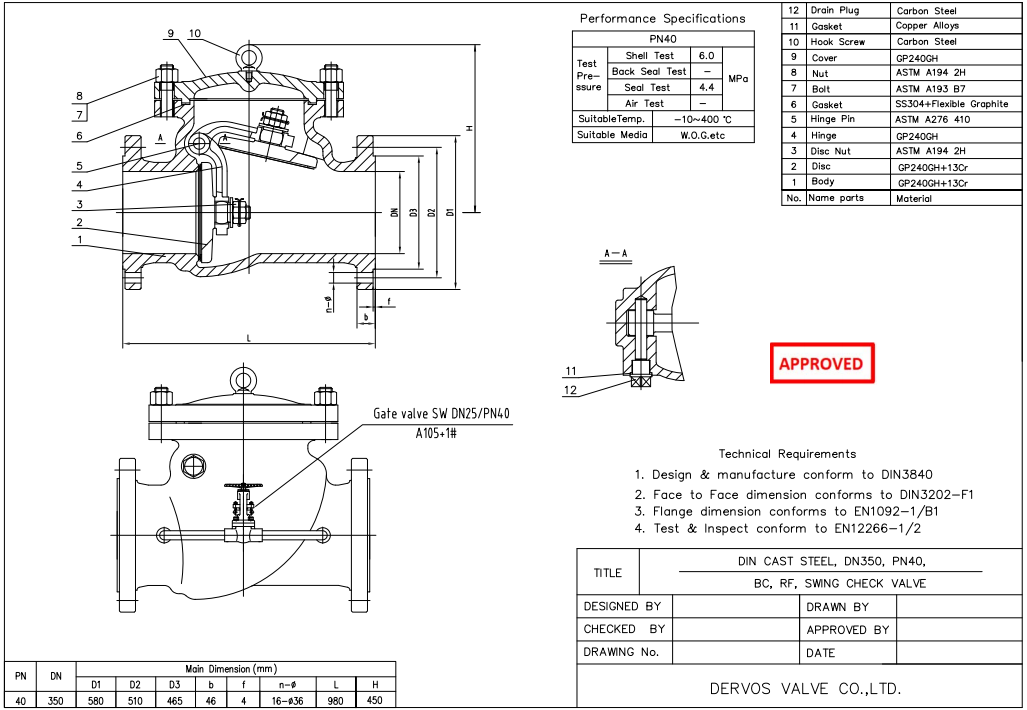

Swing Check Valve Technical Drawing

DN350 PN40 Cast Steel Swing Check Valve with Bypass BC RF

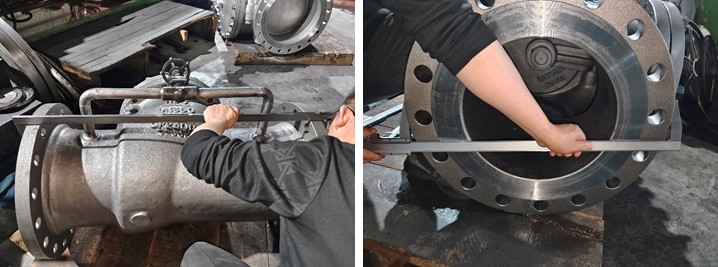

Dimension Checking

DN350 PN40 Cast Steel Swing Check Valve with Bypass BC RF

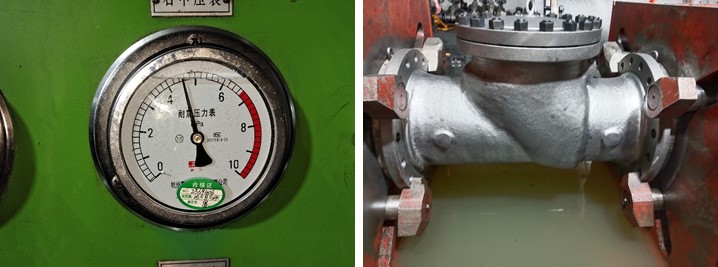

Pressure Testing

DN350 PN40 Cast Steel Swing Check Valve with Bypass BC RF

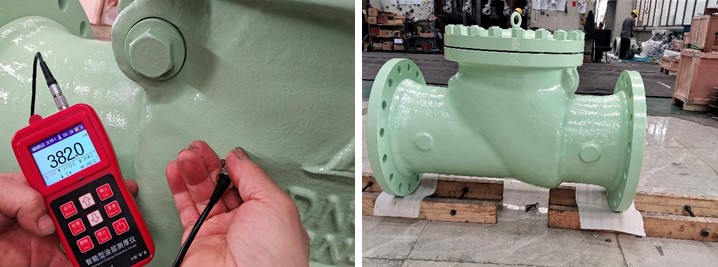

Painting

DN350 PN40 Cast Steel Swing Check Valve with Bypass BC RF

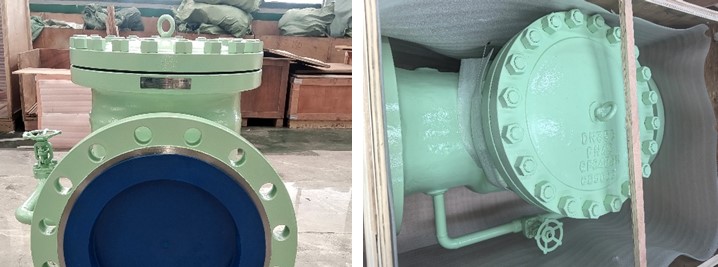

Nameplate & Packing

DN350 PN40 Cast Steel Swing Check Valve with Bypass BC RF

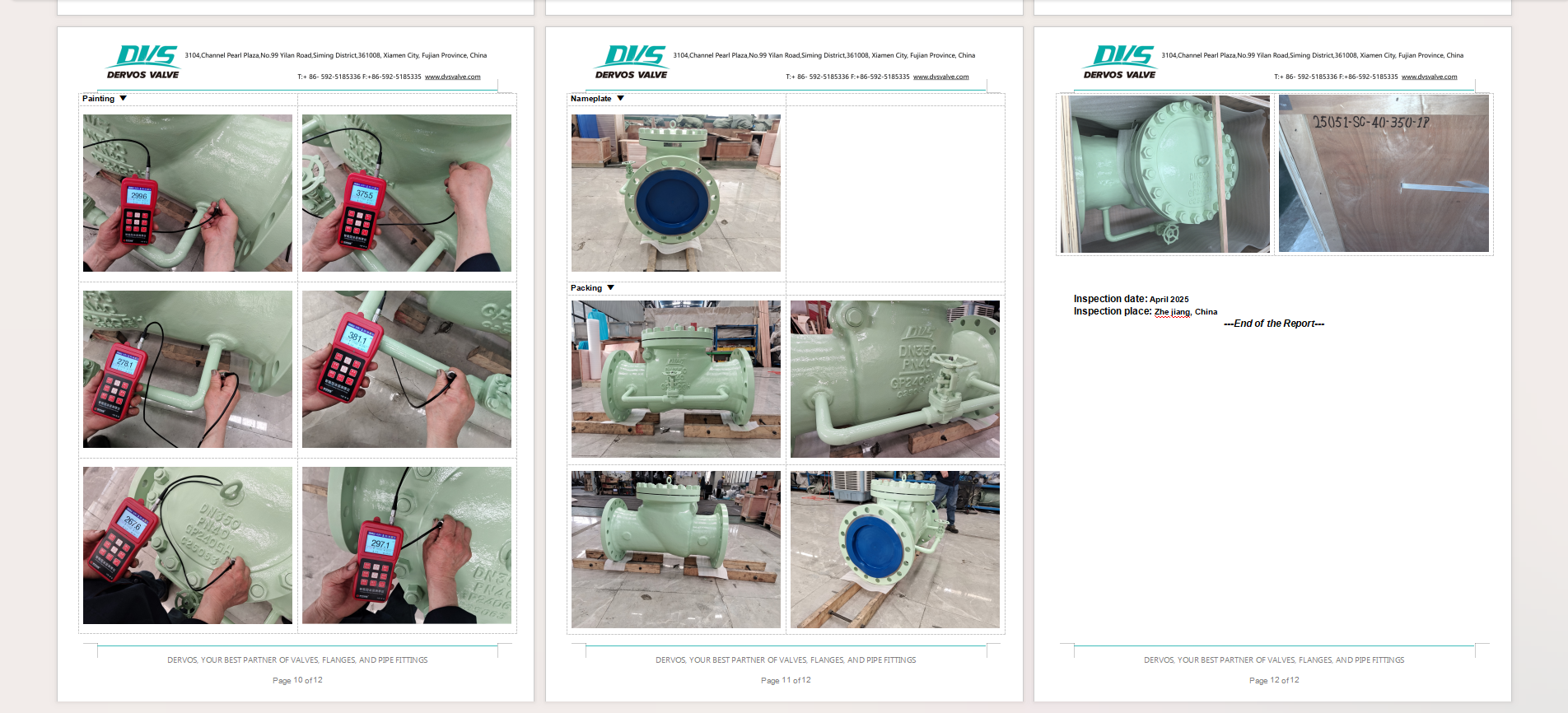

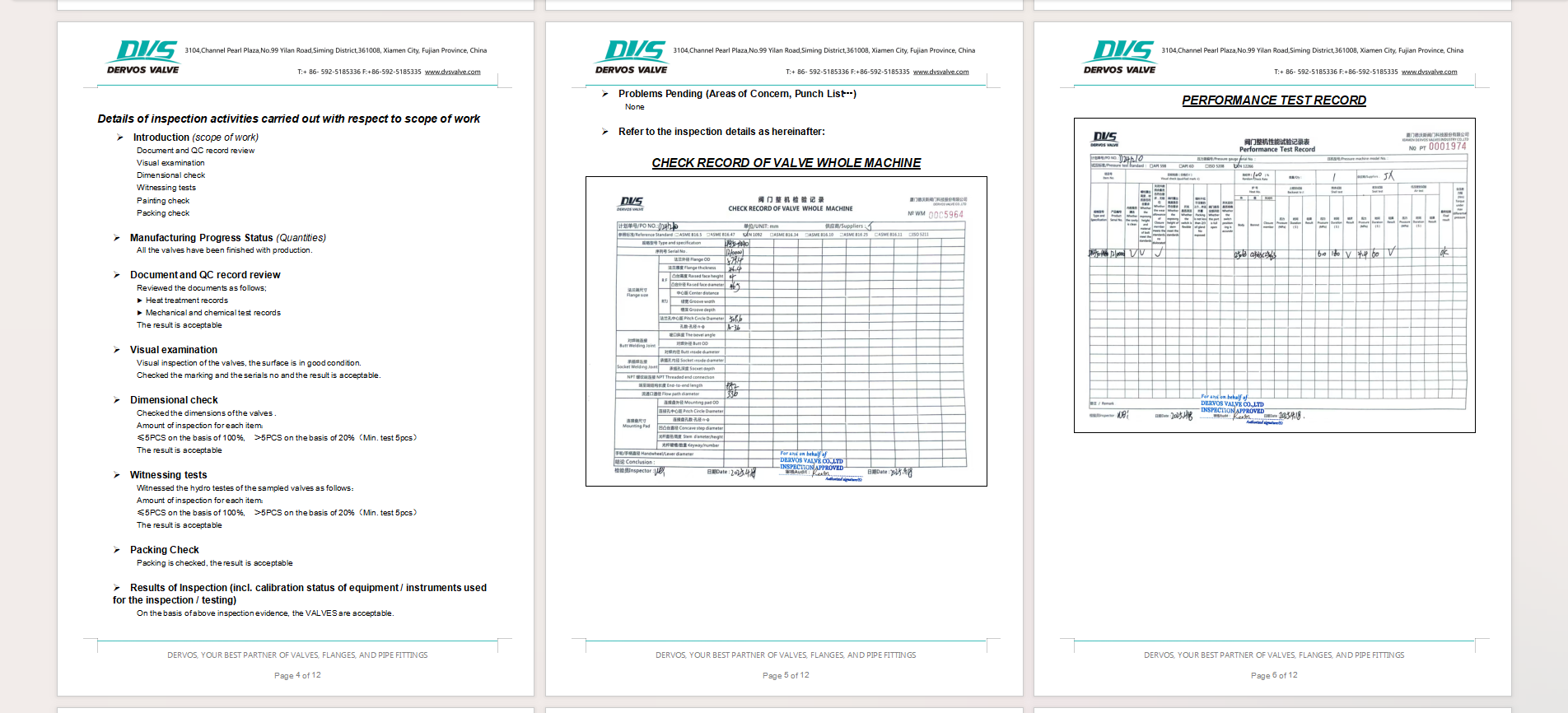

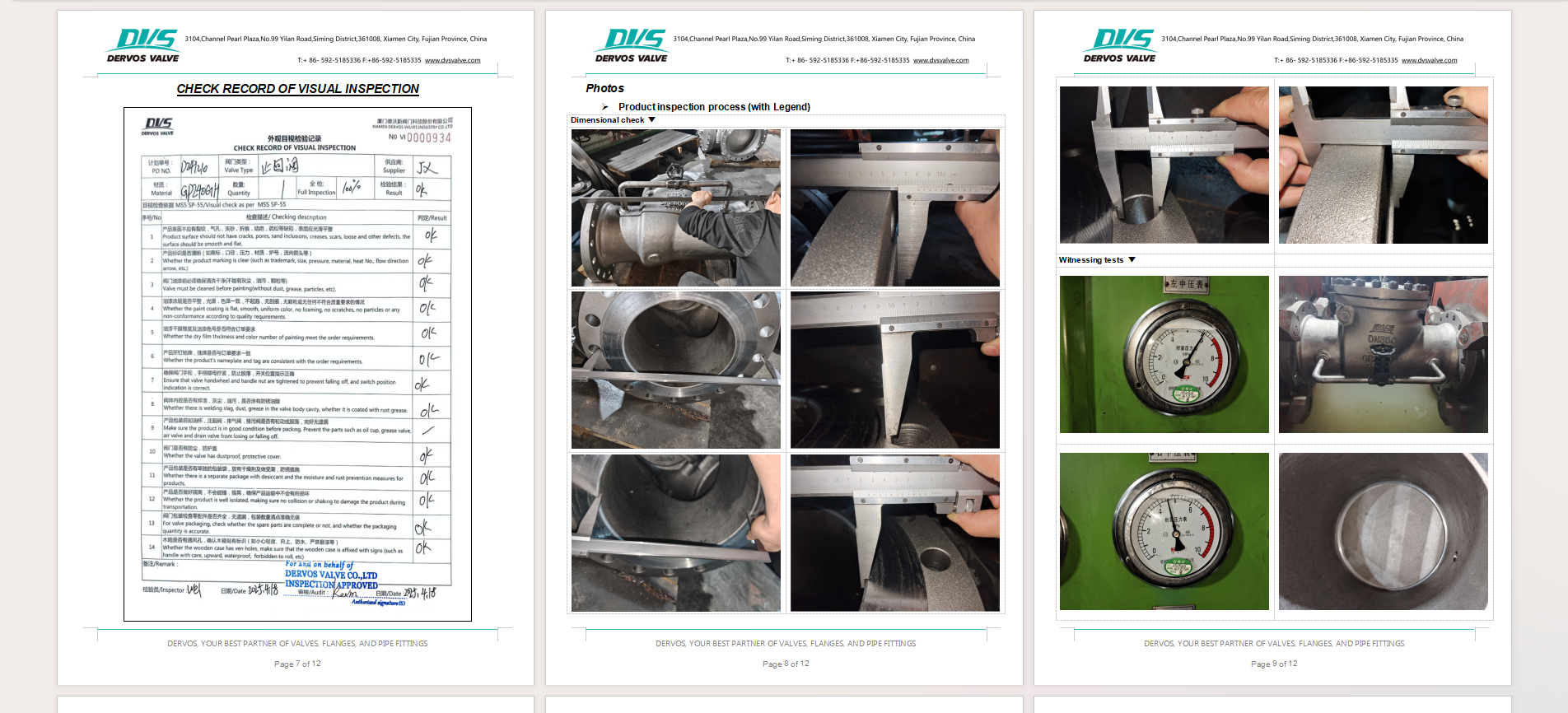

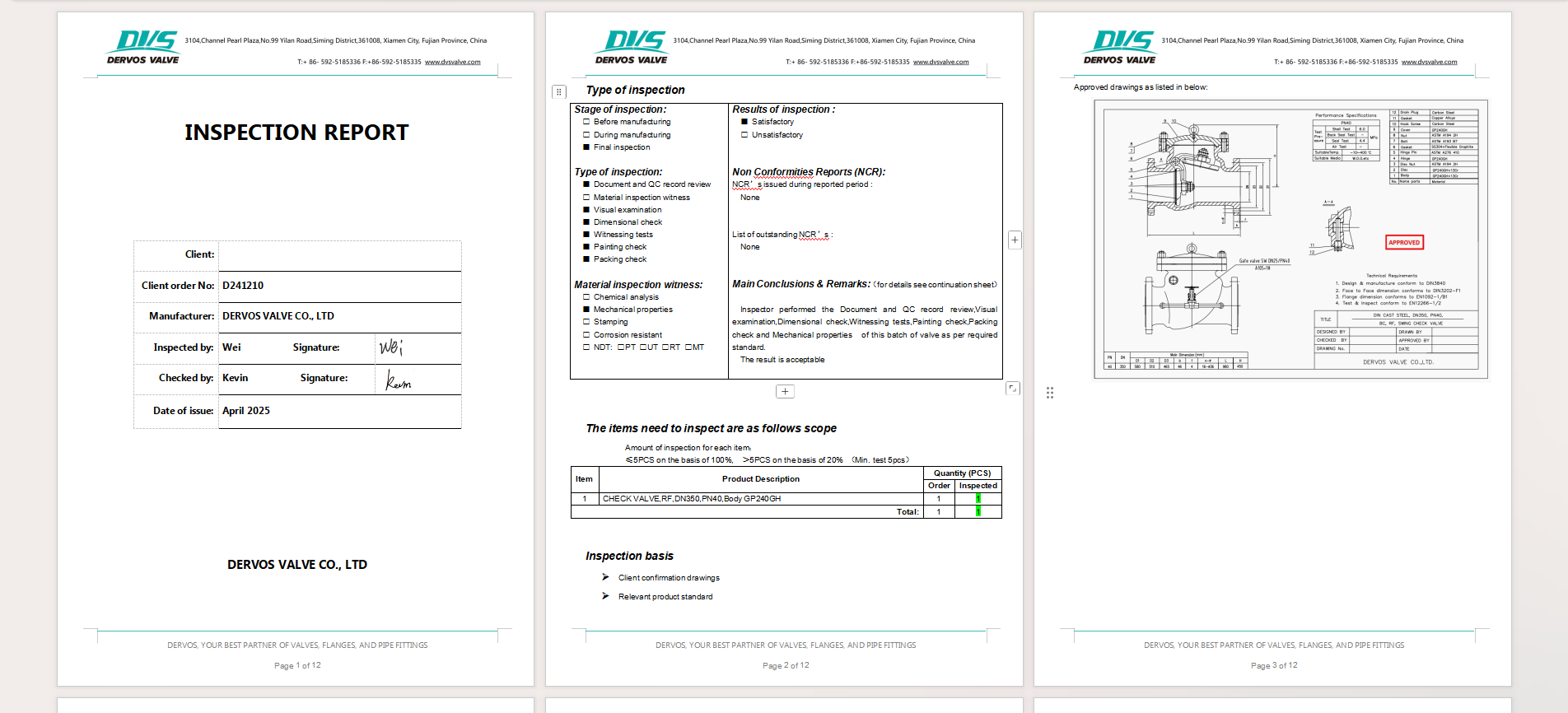

Inspection report

DN350 PN40 Cast Steel Swing Check Valve with Bypass BC RF
DN350 PN40 Cast Steel Swing Check Valve with Bypass BC RF
DN350 PN40 Cast Steel Swing Check Valve with Bypass BC RF
DN350 PN40 Cast Steel Swing Check Valve with Bypass BC RF
