Key Specifications / Features

Model No.: Hits: 0

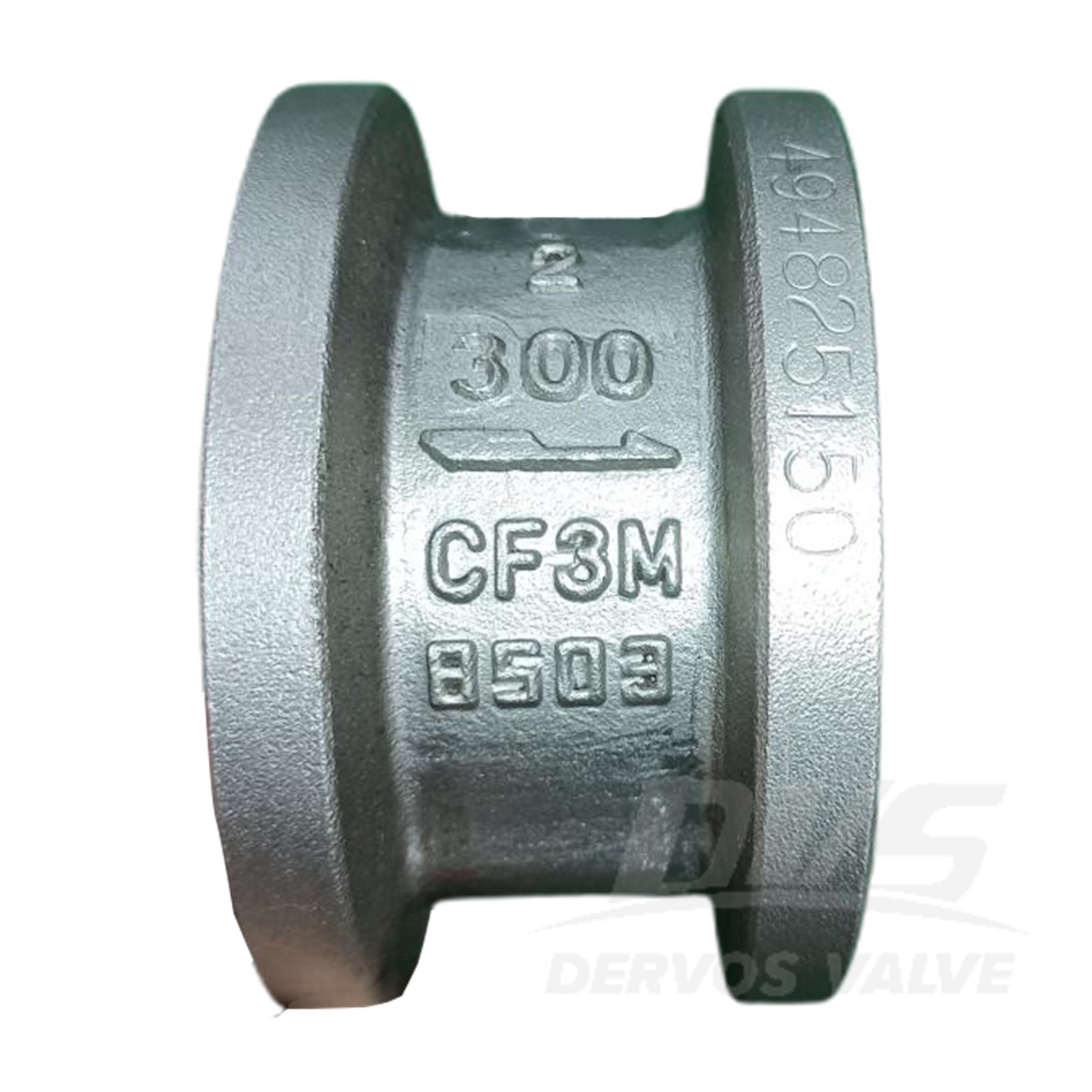

2" 300LB Dual Plate Wafer Type Check Valve is made according to API594 standard. The valve body is made of A351 CF3M. It has the structural characteristics of Dual flap, built-in, horizontal and vertical installation. Its connection mode is RF.
Request a quote

Next: DN50 PN16 Swing Check Valve Body EN 10213 1.0619 DIN

Previous: DN350 PN40 Cast Steel Swing Check Valve with Bypass BC RF

Detail Information

Product Description


Type Dual Plate Wafer Type Check Valve
Size 2”
Pressure 300LB
Connection RF
Body Material A351 CF3M
Design Norm API 594
Face to Face API594
Flange dimension ASME B16.5
Test & Inspection Code API 598
Temperature -46 ~ 300°C
Applicable Medium Water, Oil and Gas

Features

1. Dual-plate, spring-loaded design offers fast response, reduced water hammer, and compact structure ideal for limited space.

2.Flexible installation supports both horizontal and vertical pipelines; RF connection ensures reliable sealing and easy integration.

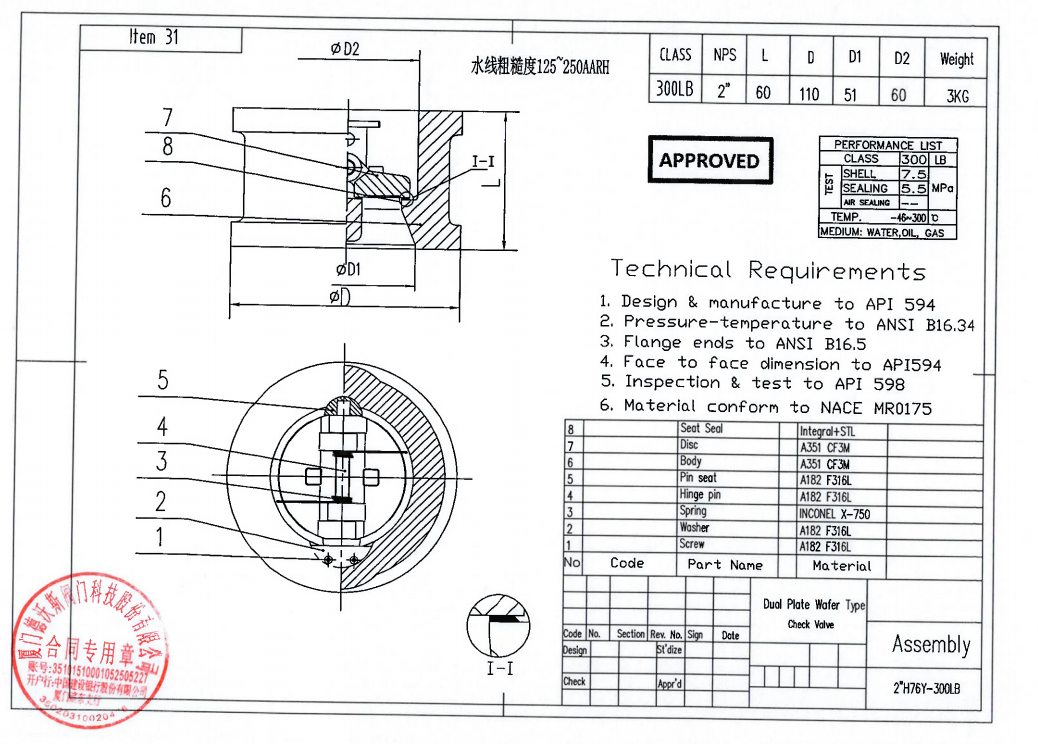

Dual Plate Wafer Type Check Valve Technical Drawing

2" 300LB Dual Plate Wafer Type Check Valve A351 CF3M

Dimension Checking

2" 300LB Dual Plate Wafer Type Check Valve A351 CF3M

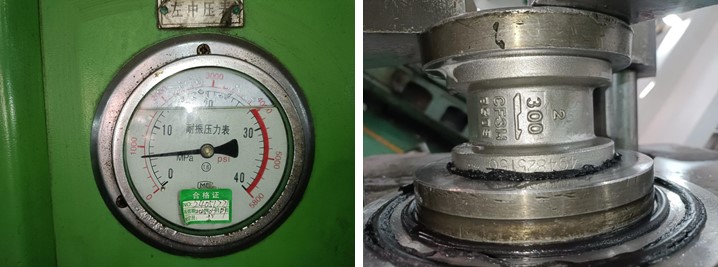

Pressure Testing

2" 300LB Dual Plate Wafer Type Check Valve A351 CF3M

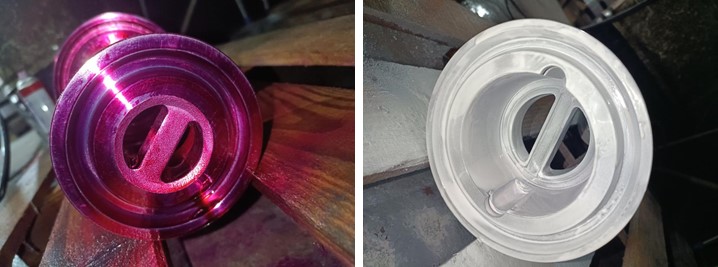

PT

2" 300LB Dual Plate Wafer Type Check Valve A351 CF3M

Nameplate & Packing

2" 300LB Dual Plate Wafer Type Check Valve A351 CF3M
