DN50 PN16 Swing Check Valve Body EN 10213 1.0619 DIN

DN50 PN16 Swing Check Valve Body EN 10213 1.0619 DIN
DN50 PN16 Swing Check Valve Body EN 10213 1.0619 DIN

Key Specifications / Features

Model No.: Hits: 0

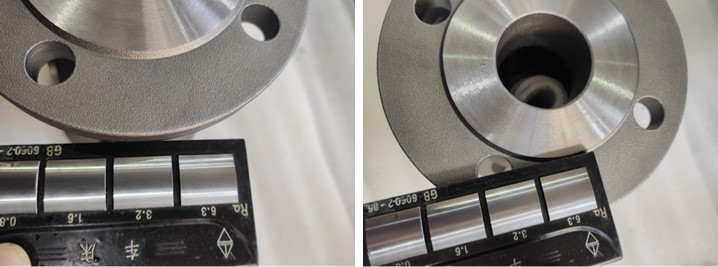

DN50 PN16 Swing Check Valve is made according to BS EN 14341 standard. The valve body is made of EN 10213 1.0619. It has the structural characteristics of Disc sealing surface Ra < 0.8 micron; flange face Ra 3.2–6.3 micron.. Its connection mode is EN1092-1 B.
Request a quote

Next: 4” 150LB Cast Steel Swing Check Valve WCB API6D RF

Previous: 2" 300LB Dual Plate Wafer Type Check Valve A351 CF3M

Detail Information

Product Description

Type Swing Check Valve
Size DN50
Pressure PN16
Connection EN1092-1 B
Body Material EN 10213 1.0619
Design Norm BS EN 14341
Face to Face Dimensions BS EN 558-1 Series 1
Flange Ends Dimensions BS EN 1092-B1
Test & Inspection Code BS EN 12266
Temperature -10 ~ 425°C
Applicable Medium Water, Oil and Gas

Features

1.Swing check design ensures automatic back flow prevention for safe system operation.
2.1.0619 cast steel body delivers reliable strength and performance under PN16 pressure rating.

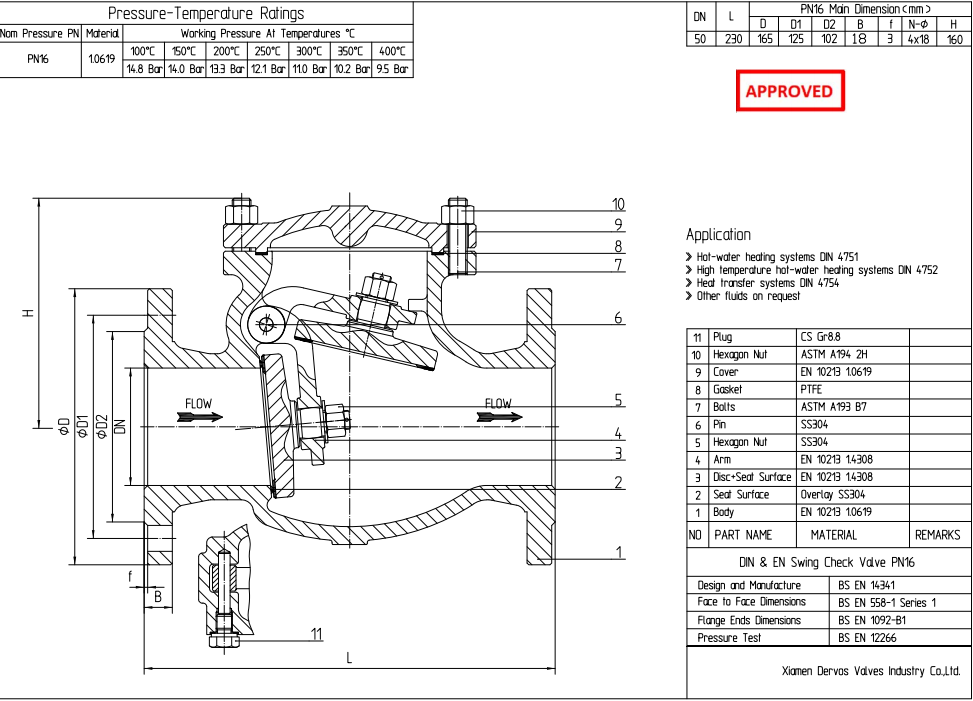

Technical Drawing

Swing Check Valve

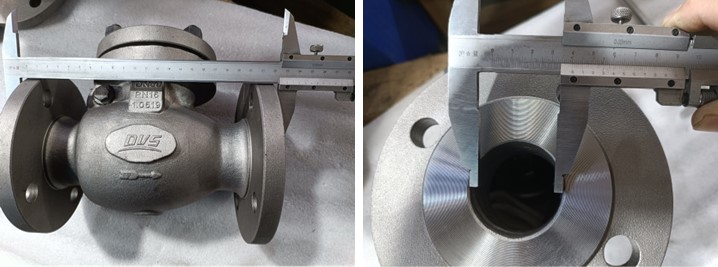

Dimension Checking

Swing Check Valve

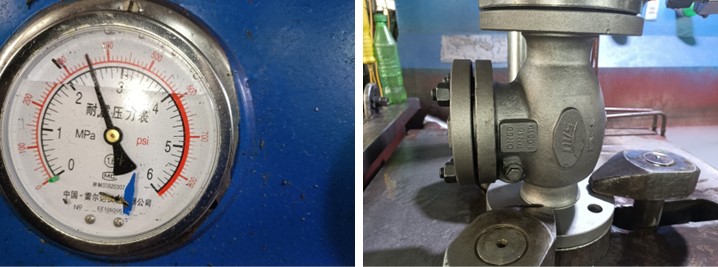

Pressure Testing

Swing Check Valve

Spectrum

Swing Check Valve

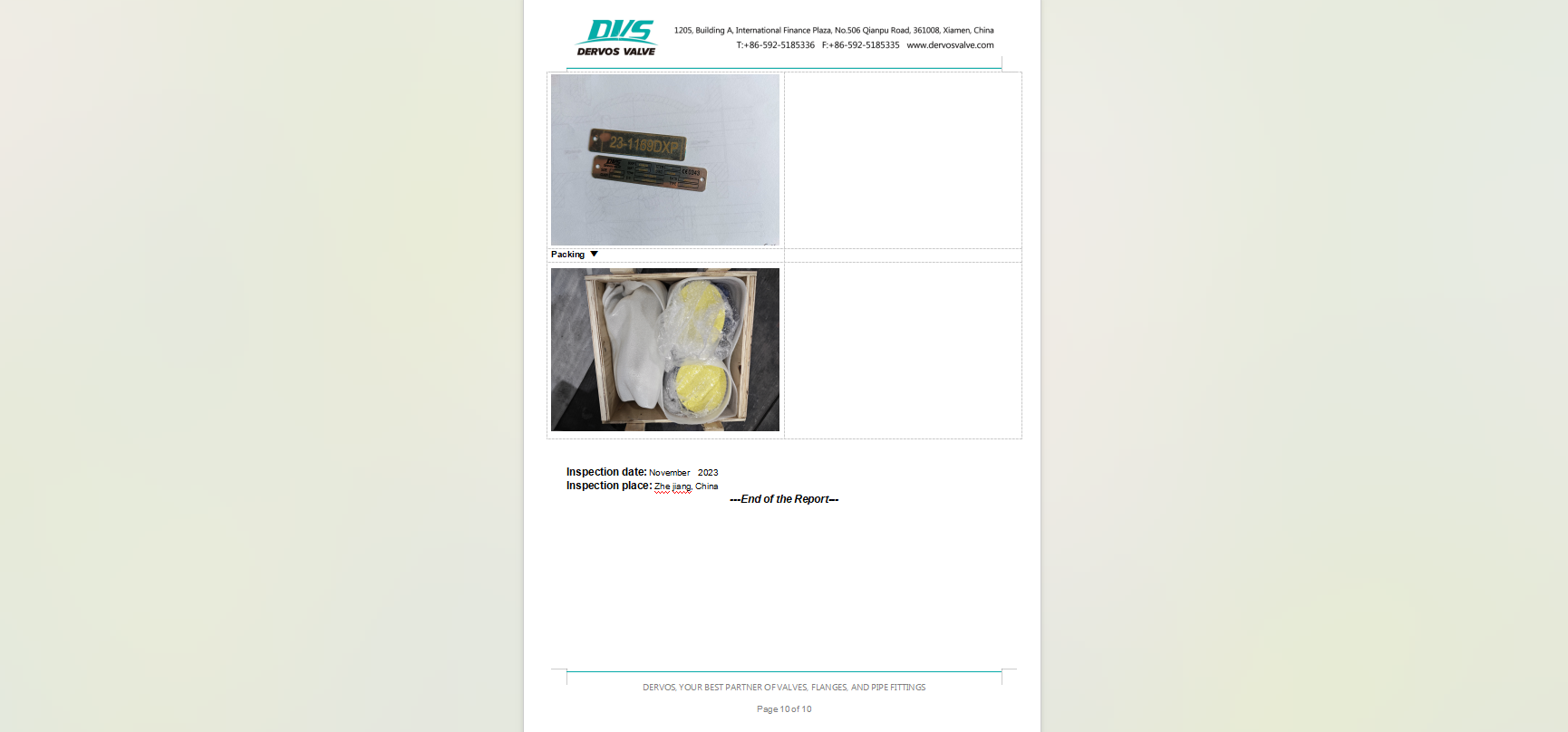

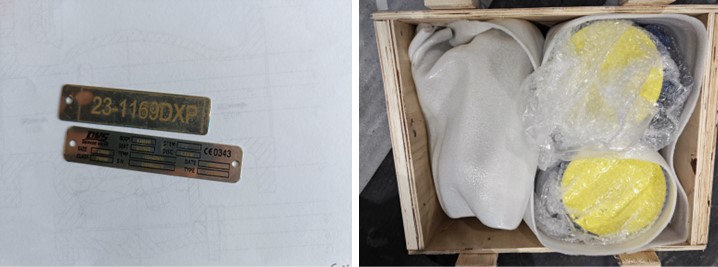

Nameplate & Packing

Swing Check Valve

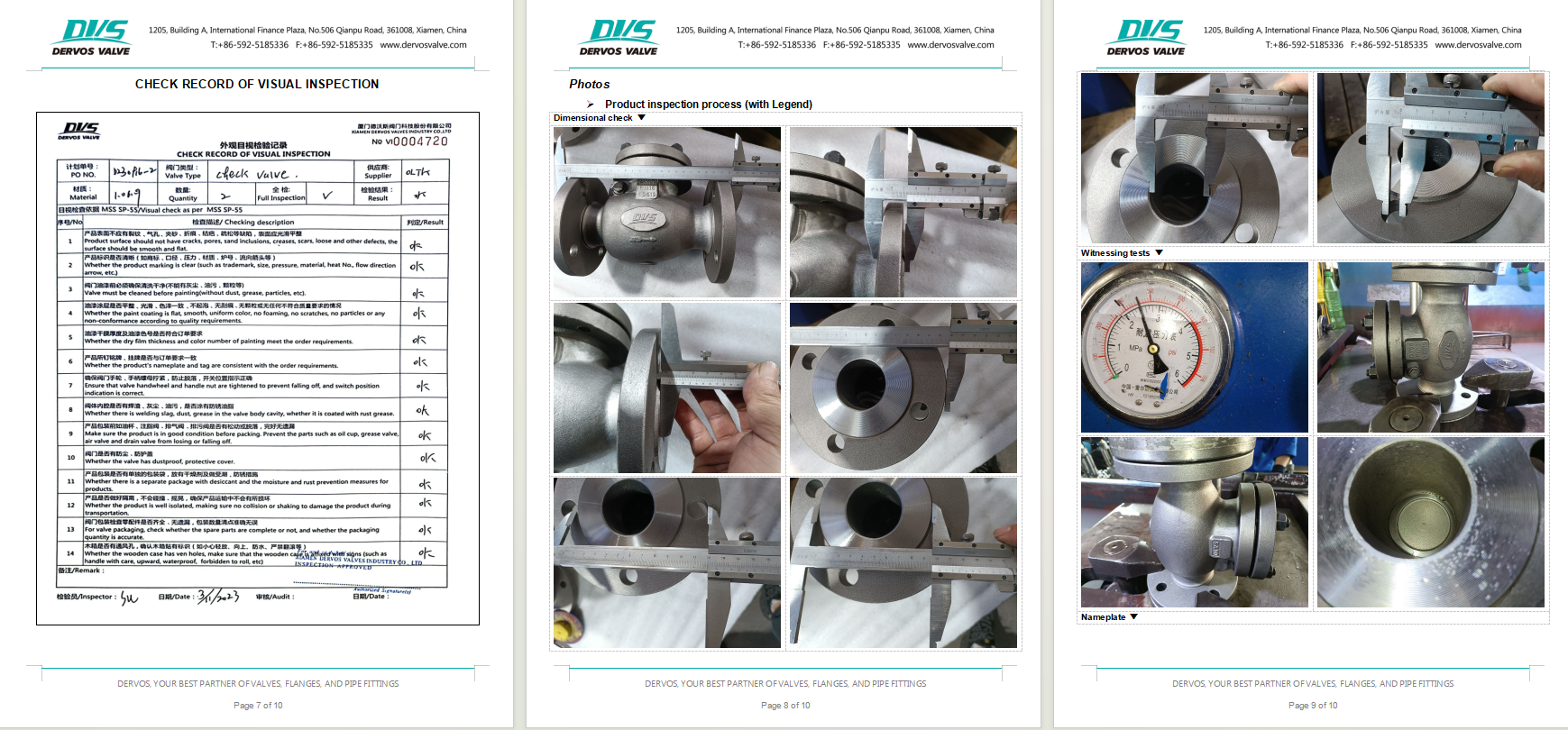

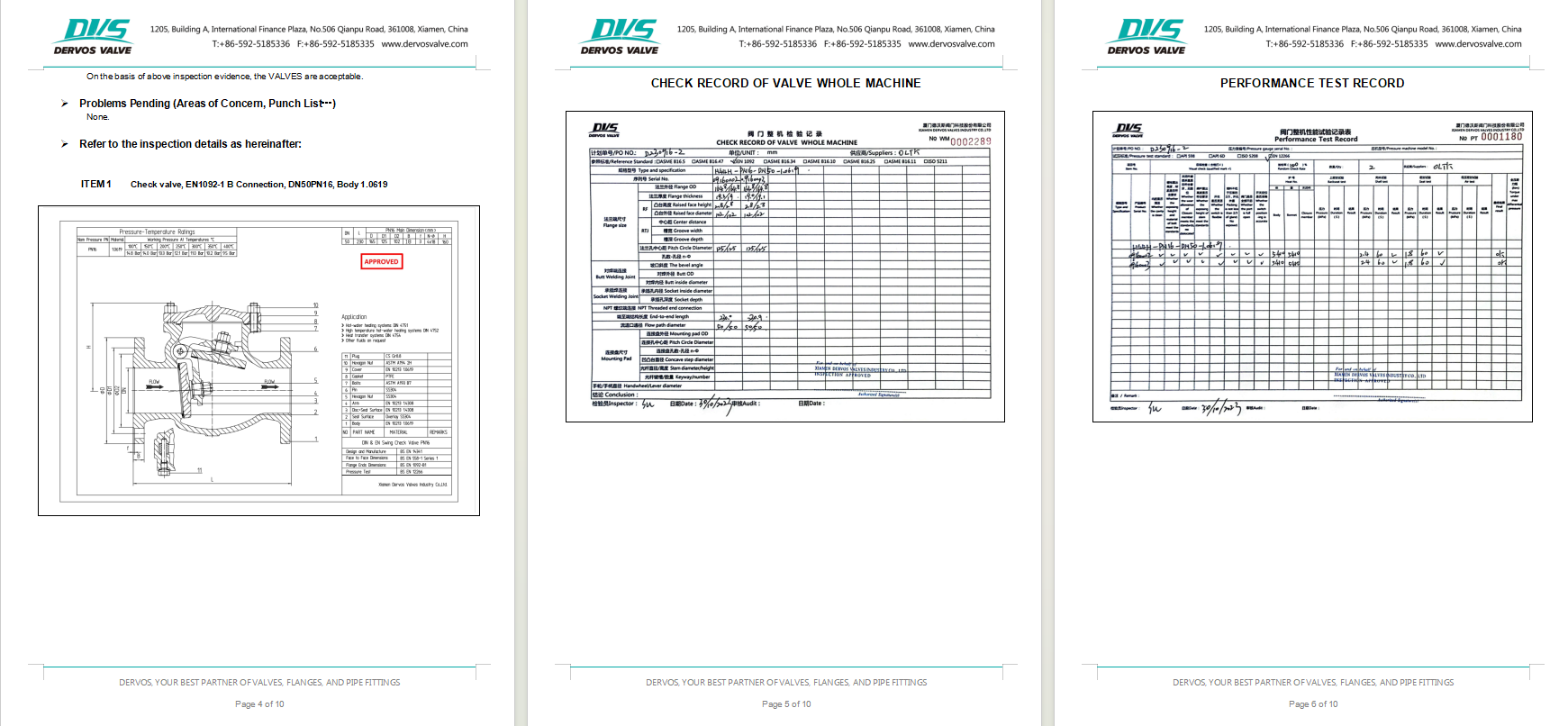

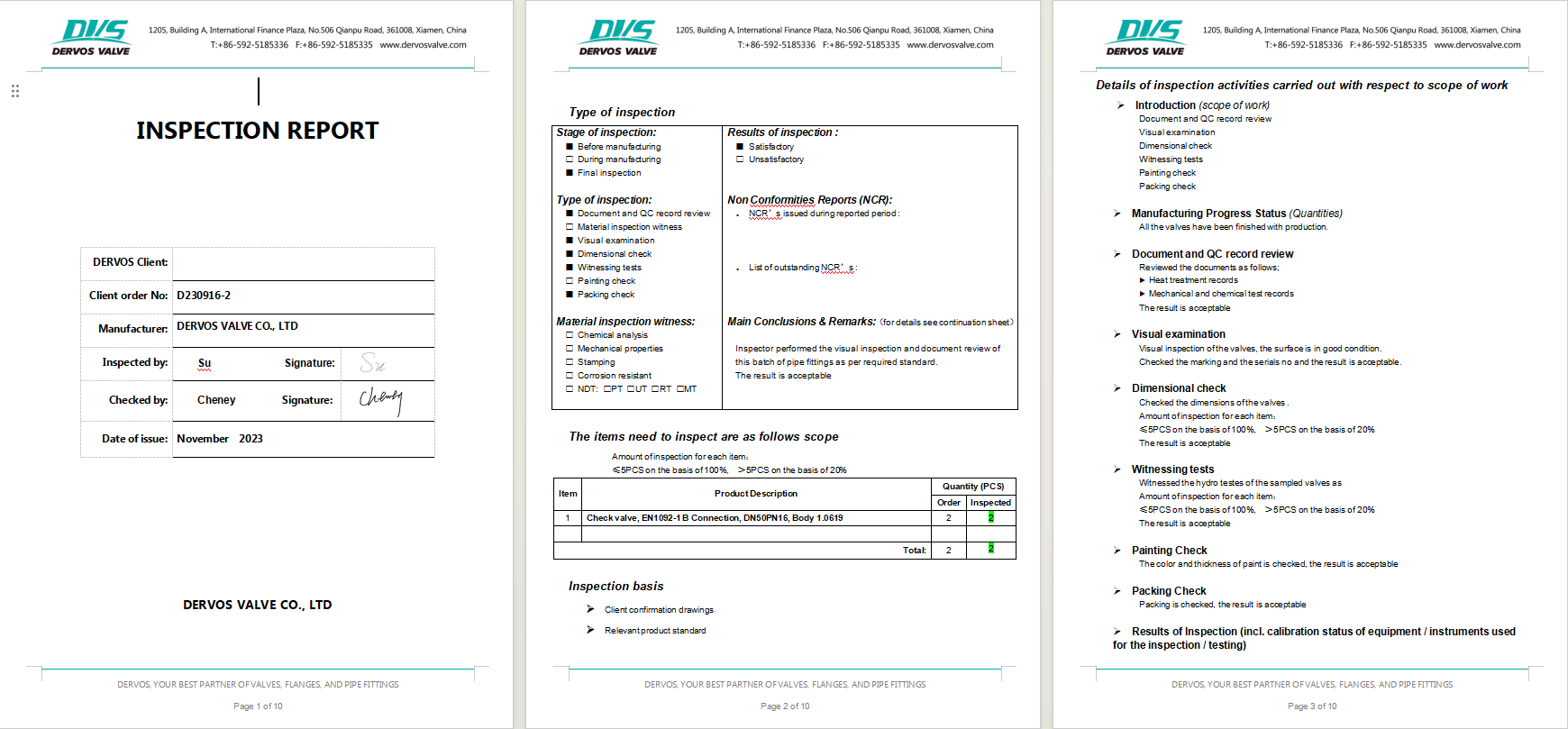

Inspection Report

Swing Check Valve
Swing Check ValveSwing Check ValveSwing Check Valve
